Specifications
BDXS-1325 3D cnc router:1 Hiwin rail from Taiwan
2 DSP control system
3 factory supply
4.CE,ISO standard

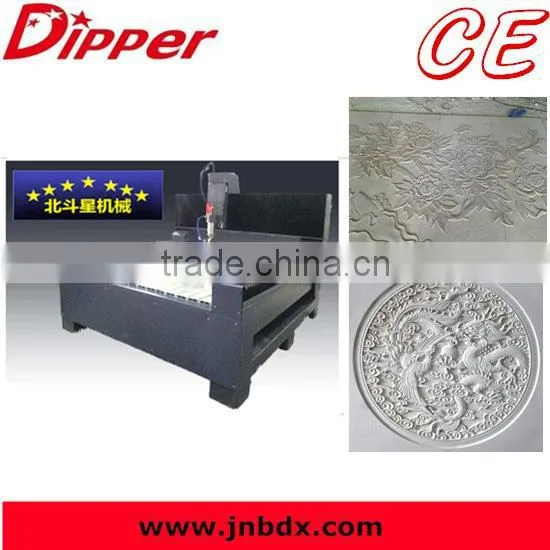

Best CNC marble machine Italy BDXS-1325 (big dipper)

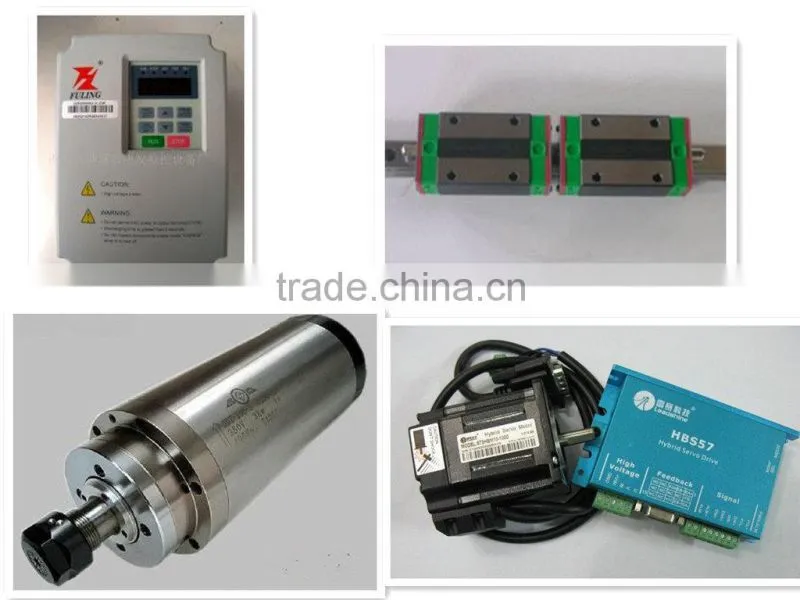

Machine parts of stone cnc router:
Applicable industries:
Big Dipper Stone engraving machine is used for carving marble,granite,glass,muyu-stone and so on hard materials.
Samples of stone cnc router:
Performance feature:
1.Industrial production model,heavy all-steel welded,temperating aging treatment,solid and can not change the shape.
2.It adopts Taiwan liner guide,and it is contact with the bearing surface,long time use the precision will be high.
3.Germany double-nut automatic anti-backlash ball screw.
4.High speed driver,so it has high speed and power.
5.Dust-protected oiling structure,so it make sure the machine running long time.
6.Break point and cutting continued carving,so it can engrave at any angle.
7.It can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.
8.High power AC water cooling spindle,so it can process hard material efficiently.
Applicable industries:
Big Dipper Stone engraving machine is used for carving marble,granite,glass,muyu-stone and so on hard materials.
Technical parameter:
Model |
BDX-S90 |
BDX-S12 |
BDX-S15 |
BDX-S18 |
X working area |
900 |
1200 |
1500 |
1800 |
Y working area |
1200-1500mm |
1200-1500mm |
1200-3000mm |
1200-3000mm |
Table size |
1080-1800mm |
1380-3000mm |
1680-3500mm |
1980-3500mm |
Max area of Z axis |
300mm |
300mm |
300mm |
300mm |
Highest running speed |
12m/min |
12m/min |
12m/min |
12m/min |
Highest engraving speed |
8m/min |
8m/min |
8m/min |
8m/min |
Precision |
0.005mm |
0.005mm |
0.005mm |
0.005mm |
Max feeding height |
350mm |
350mm |
350mm |
350mm |
Spindle power |
4.5kw/main axis |
4.5kw/main axis |
4.5kw/main axis |
4.5kw/main axis |
Rotated speed of the spindle |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
Working model |
stepper |
stepper |
stepper |
stepper |
Machine weight |
1000kg |
1300kg |
1600kg |
2000kg |
FAQ:
Our Factory:
Hope you can tell us the below answer and then we can recommend the best machine to you.
1)Which material do you want to engrave or cut?
2)What's the size of your engraving or cutting material?(length,width,thickness)
3) Your other requirment ?
