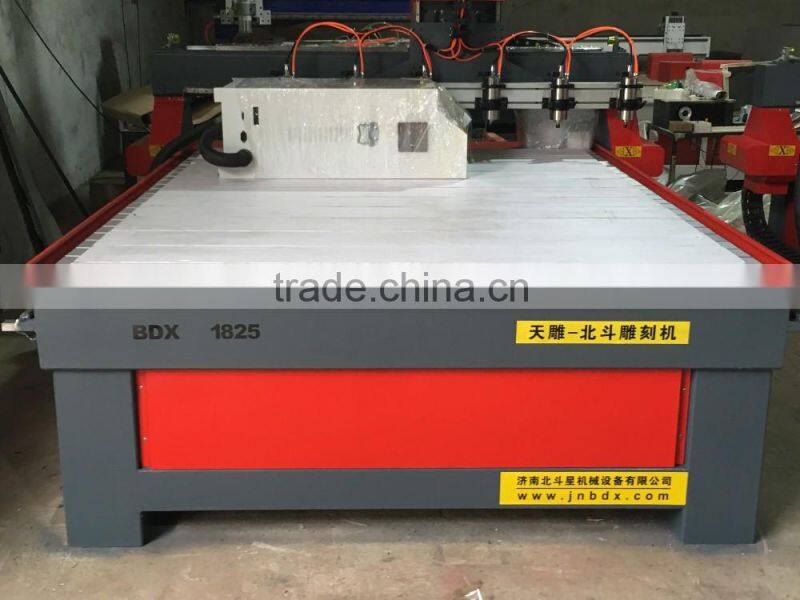

BDX-1825 cnc-router-china Multifunction wood carving machine
wood carving machineFeatures:
2. High power spindle, water cooling/air cooling for choose, working vigorously with low noise.
3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.
4. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press.
wood carving machine Technical Parameter:
Model |
BDX-1825 |
XYZ-axis travel |
1800*2500*200mm |
Guide Rail |
HIWIN linear guide rail |
Max. speed |
2800mm/min |
Max. engraving speed |
2000mm/min |
Max. feeding height |
200mm feed |
Resolution |
0.005mm |
Repeated positioning accuracy |
0.05mm |
Command |
G code. U00. Mmg. Plt. Eng |
Software operating environment |
WIN2000/XP |
Voltage |
380V/220V/110V |
Spindle power |
1.5kw*6 |
Spindle speed |
0-24000rpm/min |

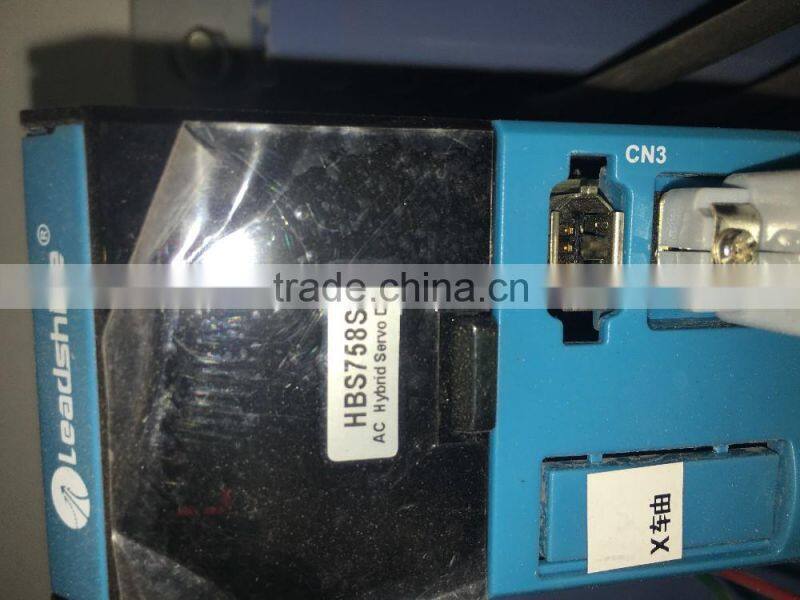

Stepper motor |
leadshine HSB758S AC Hybrid serbo drive |

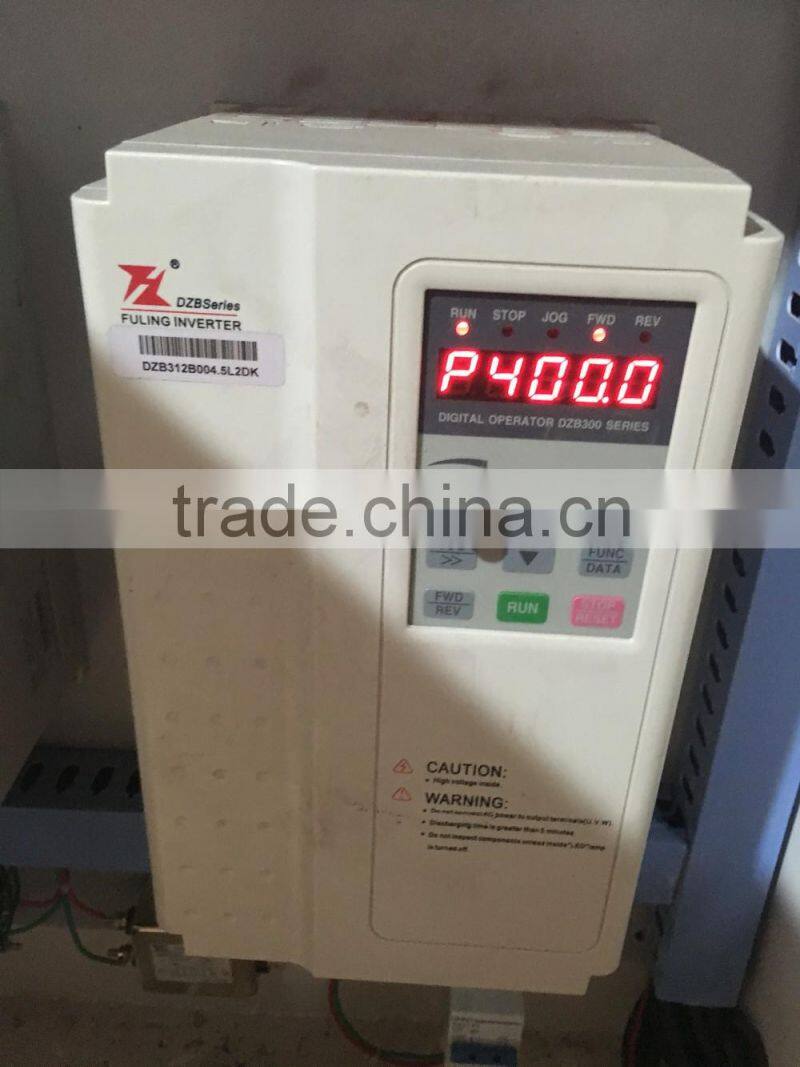

Interter |
2pic Fuling inverter(DZB312B004.5L2DK) |
Package size |
3170 * 2110 * 1700mm |
Control system |
DSP |
Weight |
1440kg |
Optional accessories |
Cylinder rotary attachment/ Dust collecter/ Metal water tank/Vacuum adsorption system |
|
wood carving machine Applications:
Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,
no- paint door ,avoid wind,process of the artistic window,shoes cleaning machine, the cabinet of the playing machine and the board,mahjong table,computer table and the assistant
process of the household effects
Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration
products.
Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and
non-mental materials such as man-made marble , sand, plastic board PVC materials, wood board etc.
Other field:It can engrave many image, embossment,It is widely used in artistic industry.

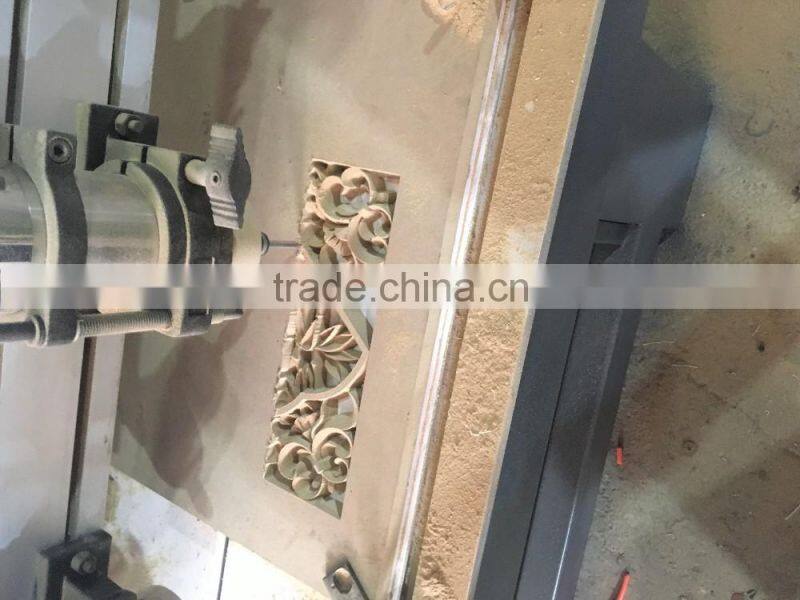

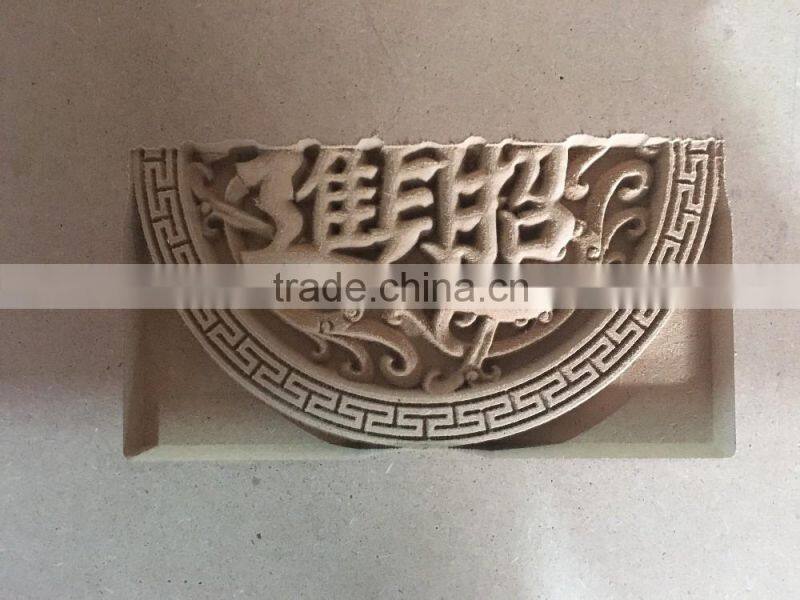

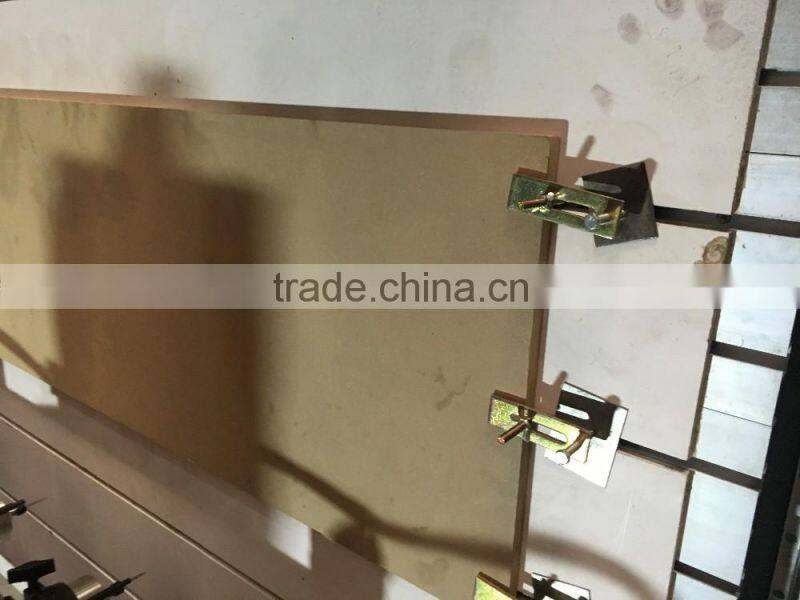

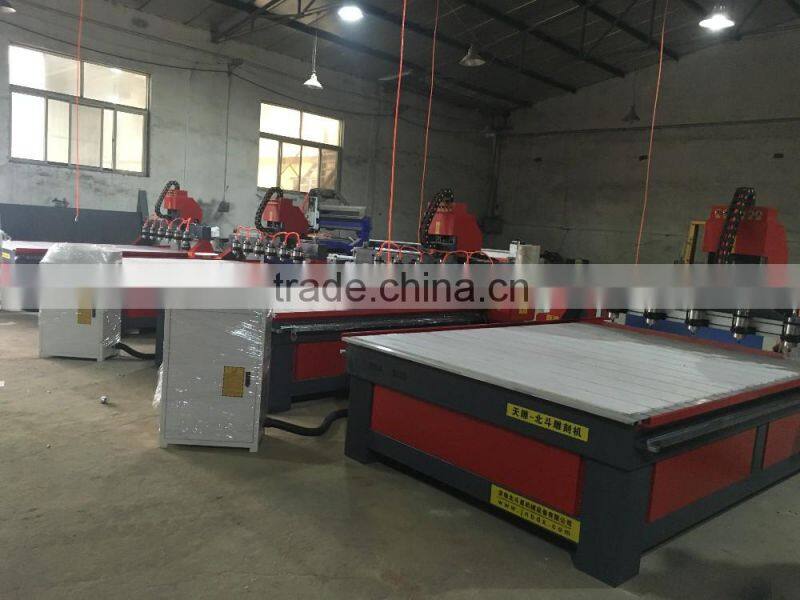

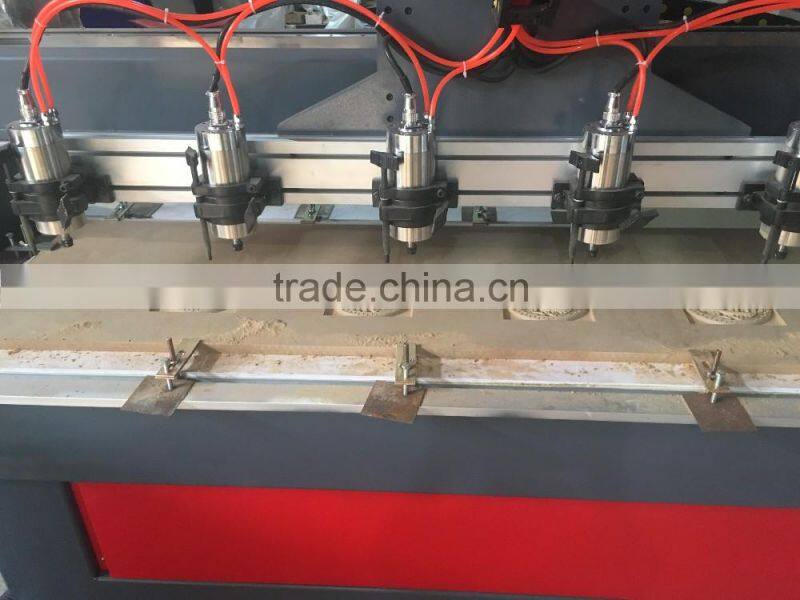

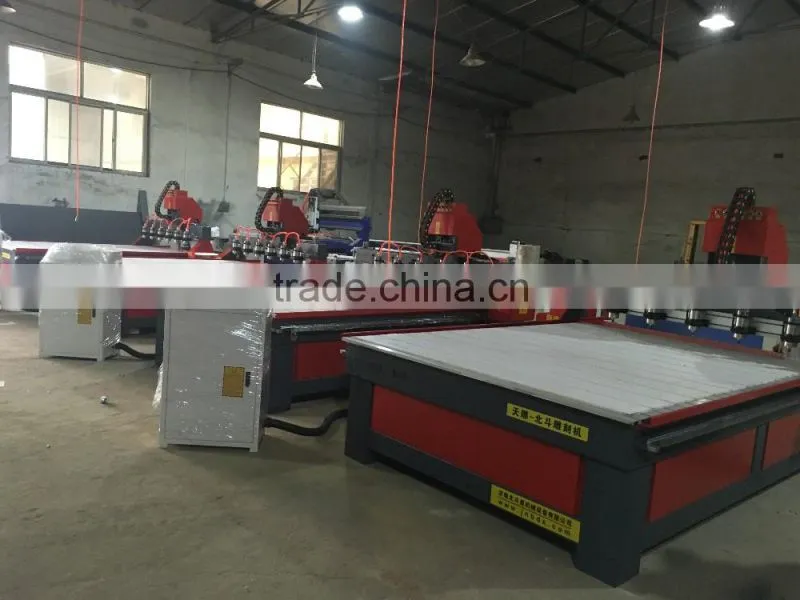

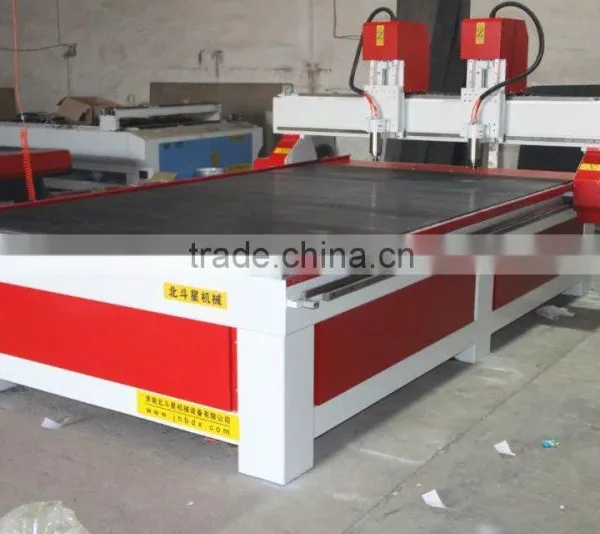

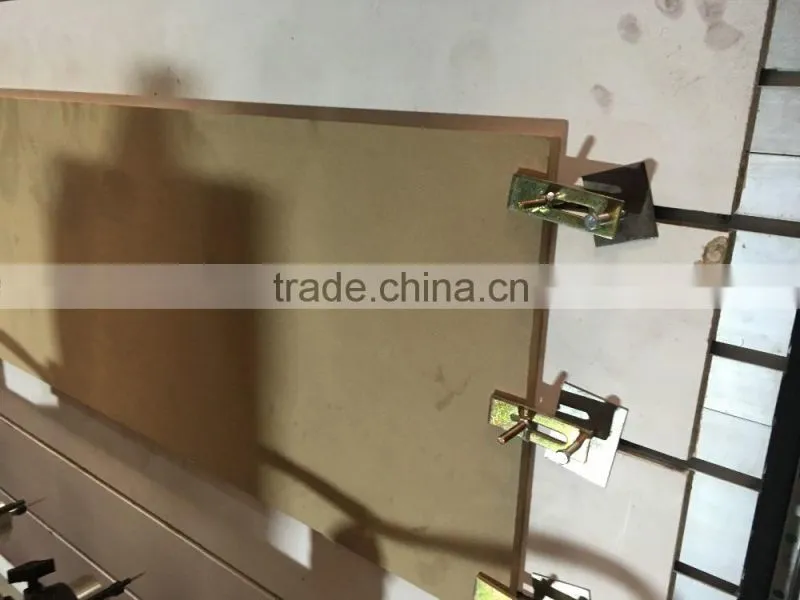

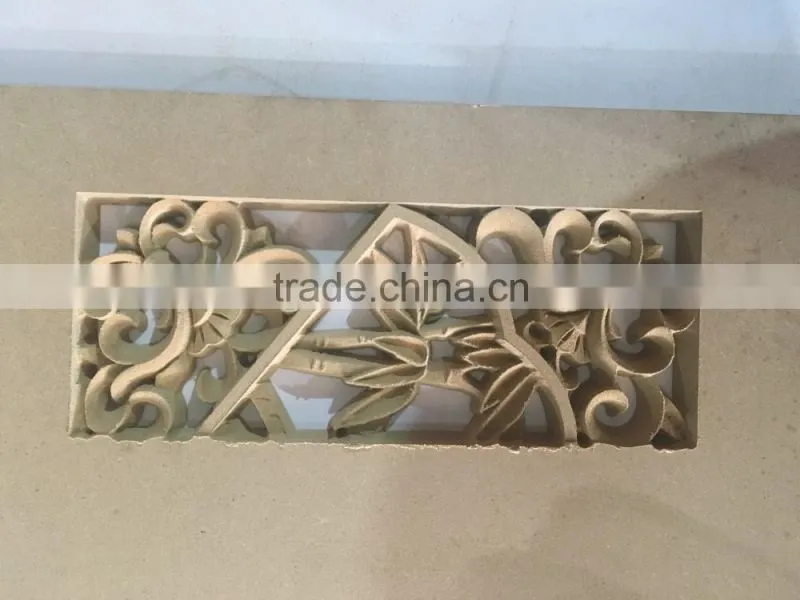

wood carving machine sample picture and working picture
1.”Guarantee & After-Sales Service |
1.1“One year warranty under normal use and we supply maintenance for life for free. |
1.2“24 hours technical support by phone, e-mail, SKYPE, MSN or Remote. |
1.3“Free trainings to make sure you master the operation of cnc router. |
1.4“English operation manual, popular and easy to understand. |
2.”OEM Service Available |
2.1“Usually, we will manufacture the machine as our regular design. |
2.2“X Y Z Working Area could be customized designing. |
2.3“Special configuration could be customized designing. |
3.’Delivery Time (Production procedure) |
3.1“For 3 axis machine with standard specification, usually 15 days. |
3.2“For 4 axis machine with standard specification, usually 30 days. |
3.3“For 5 axis machine, OEM or non-standard models, usually 45 days. |
4.”Payment Terms” |
4.1“T/T in advance. |
|
4.2“Western union: we can accept small payment (below $3000), but the banking charges shall be paid by the buyer. |
4.3“L/C is acceptable if the amount is big. Please issue the L/C draft for our confirmation first. |
