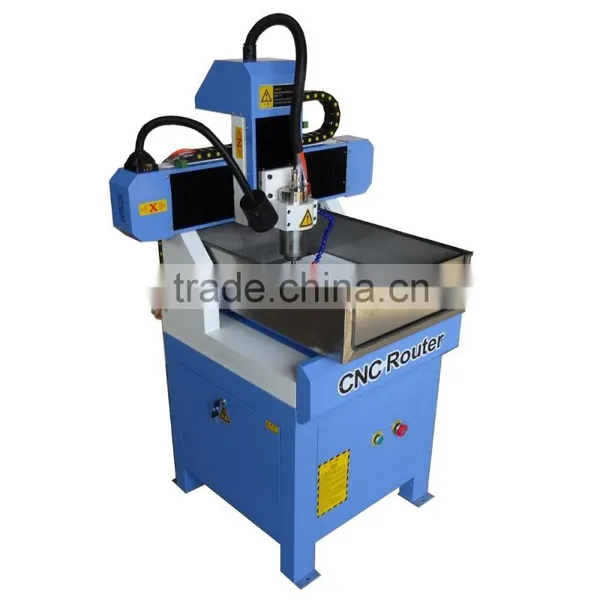

CS-4040 Copper Stamp Carving Router Machine CNC
This machine model is mainly used to make Jade, gemstone, jewelry and mould, the machine is able to make various 3d relief, text, letters, images, arts, character sculpture, decorative pattern, ornamental design etc
Features:
1. The integrally cast lathe bed is used for great solidity and stability.
2. High precision makes it suitable for the arts and crafts advertising industry.
3. Option metal tools are available to facilitate metal engraving
4. High-speed water cooling spindle, high performance subdivision driver.
5. Precise and efficient control system, coming with professional software.
Technical parameters:
NO. |
Description |
Parameters |
||||
1 |
Product model |
CS-4040 |
CS-6060 |
CS-6090 |
||
2 |
X,Y,Z Working area |
400x400x150mm |
600x600x150mm |
600x900x150mm |
||
3 |
Table Size |
490X640mm |
720x835mm |
720x1135mm |
||
4 |
Working Accuracy |
<0.01mm |
||||
5 |
X,Y,Z Traveling Positioning Accuracy |
±0.05/300mm |
||||
6 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm/300mm |
||||
7 |
Frame Structure |
Welded Structure |
||||
8 |
X,Y,Z axis guide rail |
Imported square guide rail |
||||
9 |
X,Y axis transmission |
Imported Ball Screw |
||||
10 |
Z axis transmission |
Imported Ball Screw |
||||
11 |
Max. Consume Power |
4KW |
||||
12 |
Max. Speed |
0-12000mm/min |
||||
13 |
Max. Working Speed |
0-8000mm/min |
||||
14 |
Spindle Power |
1.5kw water-cooling spindle(optional 2.2kw, 3kw spindle) |
||||
15 |
Water Tank/Pump |
Included |
||||
16 |
Spindle Speed |
0-24000RPM |
||||
17 |
Cutting Tool Diameter |
φ3.175/4/6/8/10/12.7 |
||||
18 |
Table |
T-slot aluminum working table |
||||
19 |
Working Voltage |
AC220V/380V, 50/60Hz, single phase |
||||
20 |
Driving System |
Stepper Motor and LEADSHINE860 driver |
||||
21 |
Format of Instructions |
G code,*uoo,*mmg, *plt |
||||
22 |
Control system |
English NC-studio computer control system |
||||
23 |
Software |
English Ucancam, Type3, Artcam |
||||
24 |
Interface |
USB |
||||
25 |
Flash Memory |
128M |
||||
26 |
Collet |
ER20 |
||||
27 |
Running circumstance |
Temperature: 0℃~45℃ |
||||
28 |
Packing Size |
98x96x179cm |
125x122x174cm |
155x122x174cm |
||
29 |
Net Weight |
210KG |
260KG |
350KG |
||
30 |
Gross Weight |
300KG |
350KG |
400KG |
||
All parameters above subject to change without prior notice | ||||||
Applicable industries:
1. Advertising industry: engrave and cut various signboards, marble, copper, charactermold, fonts. And various metal sign, brand.
2. Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
3. Model industry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, shoes, badge, embossed mould, biscuit, candy, chocolate mould.
4. Wood working industry: mainly used in redwood classical and antique furniture, wood carving, gifts wooden box ,redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.
5. Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relievo.

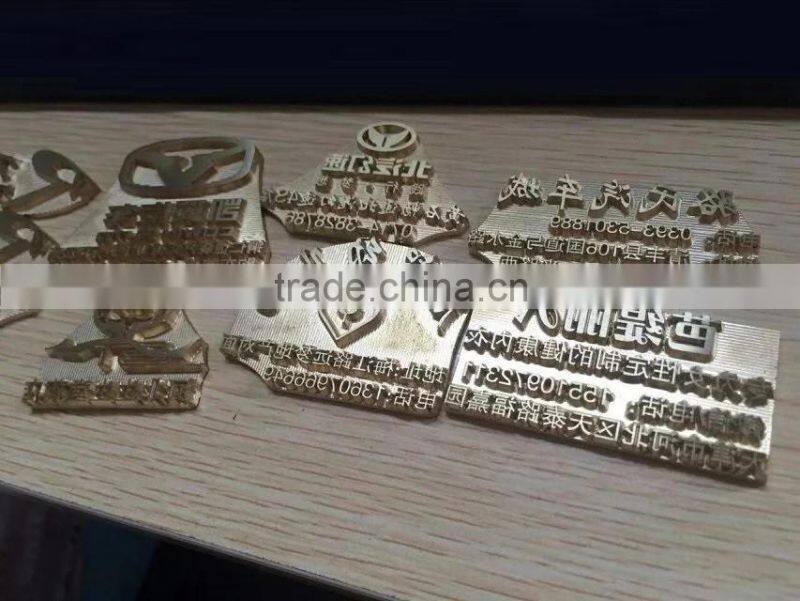

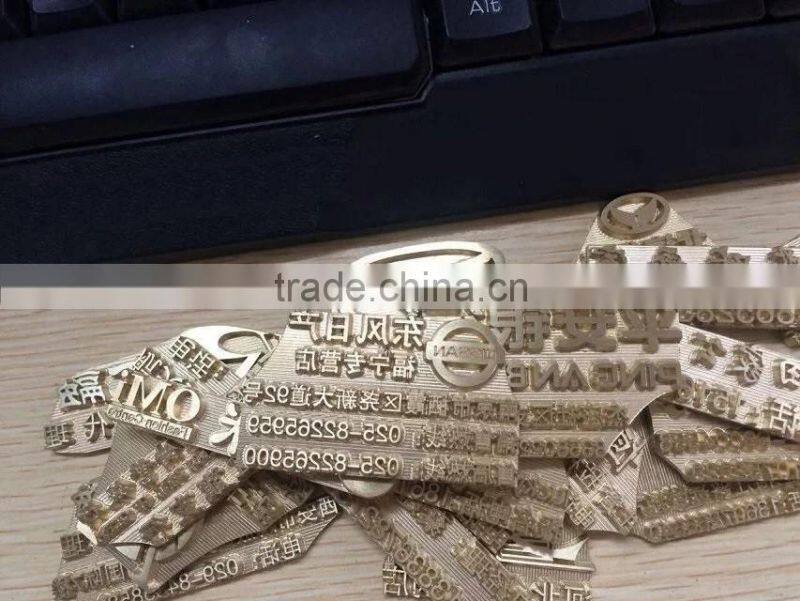

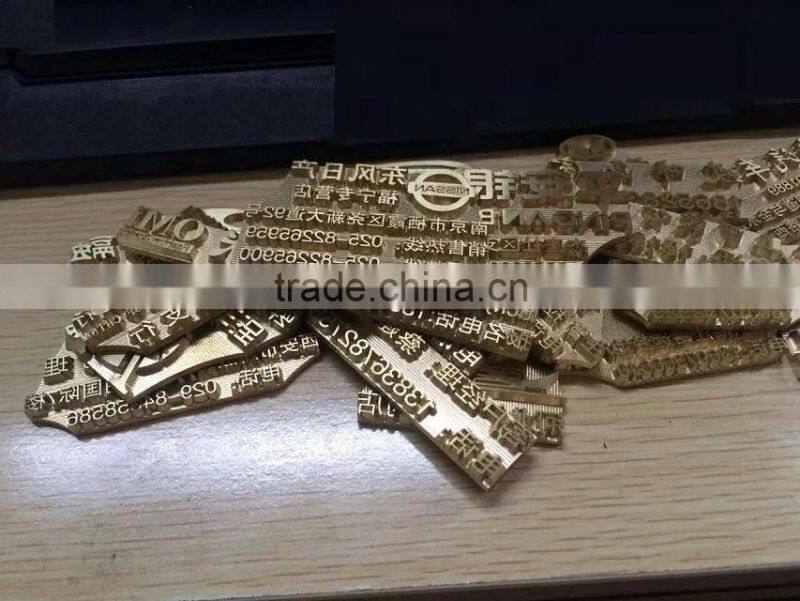

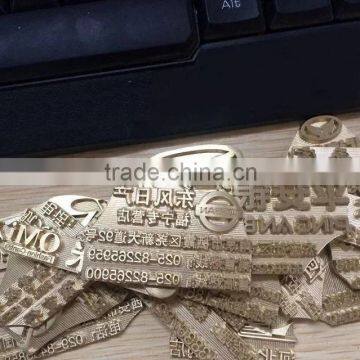

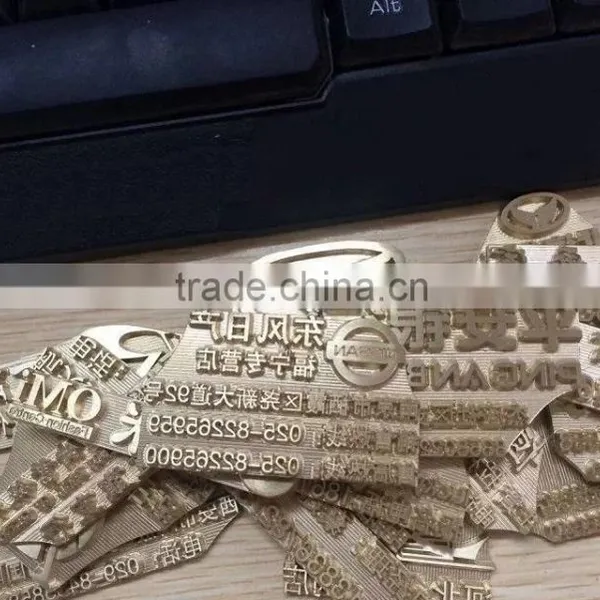

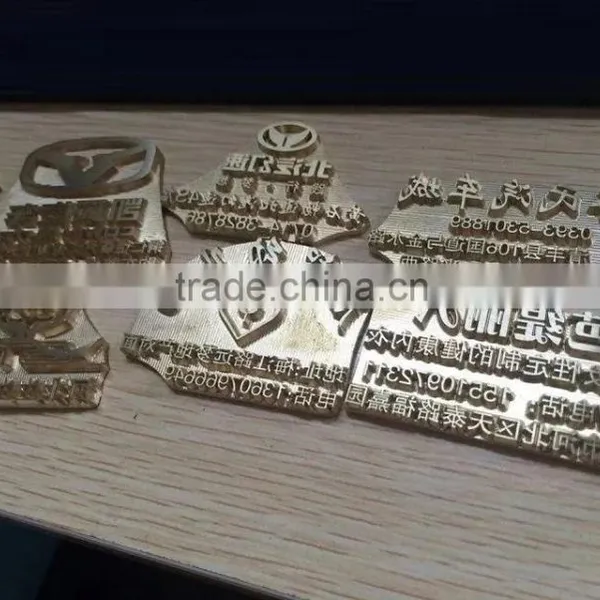

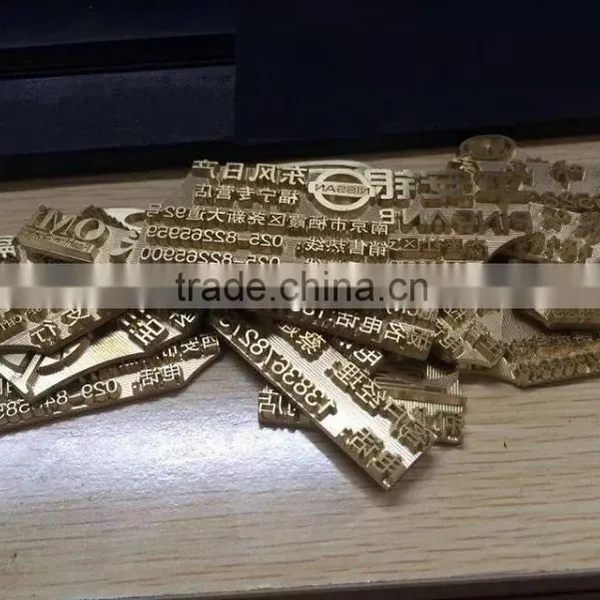

Sample pictures:
