Specifications
detailed info of wood working machine:1)1.5KW water cooled spindle
2)Fulling inverter
3)Hiwin square orbits
4)step motor

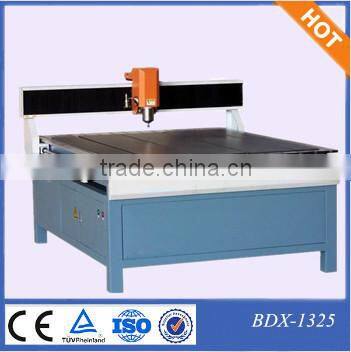

hot sale cheap price stepper diver wood working machine used for MDF wood
Applicable industries:
It is used for carving the wood,drilling hole,guide margin,cutting,processing the wave plate,artificial door,non-painting door and so on.
sample of hot sale cheap price step diver wood working machine :
Machine Accessories:
Product Description:
1)It adopts import liner square guide,double four ball slider,so it can bear big gravity,move steady,ghigh accuracy,longevity,import ball with high accuracy,and precision knife,so it is suitable for batch processing kinds of materials.
2) It can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.
3)It is wholly break away from remote operation USB connector DSP operating system.Lever operation so it is easily to operate,humanity design and adopts special smart budget law so it can make the motor play full potential.Realize high speed processing.curve and straight line synchronize,the curve line is more perfect.And do not occupy computer memory so it can realize cutting spindle’s start-stop system.
4)Six vacuum worktables,so it can absorb different size panel.vacuum pump can select import brand without oil so it can solve the problem when during winter the water circulation vacuum pump is difficult to change and add water.
5)It use high speed drive stepper motor and drive implement.Y axis adopts double motor drive,so it can make the high speed at 35 meters /minute operate with the cutting spindle so the carving speed is quickly.
Technical parameter:
Model |
BDX-1325 |
BDX-1625 |
BDX-1825 |
X working area |
1300mm |
1600mm |
1800mm |
Y working area |
1300~3000mm |
1600~3000mm |
1800~3000mm |
Z working area |
200mm |
200mm |
200mm |
Table size |
1480~3500mm |
1780~3500mm |
1980~3500mm |
Max feeding |
>25m/min |
>25m/min |
>25m/min |
Work-holding |
vacuum table |
vacuum table |
vacuum table |
Interface |
USB |
USB |
USB |
Command |
G code *.u00*.mmg*.plt |
G code *.u00*.mmg*.plt |
G code *.u00*.mmg*.plt |
Surroundings for software |
DSP |
DSP |
DSP |
Power(not include the spindle) |
1840W |
1840W |
1840W |
Power |
AC380V/50HZ |
AC380V/50HZ |
AC380V/50HZ |
Main axle power rate |
4.5kw(Italy air cooling) |
4.5kw(Italy air cooling) |
4.5kw(Italy air cooling) |
Main axle rotating speed |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
Word mode |
leadshine or Yaskawa |
leadshine or Yaskawa |
leadshine or Yaskawa |
Machine weight |
1000kg |
1300kg |
1600kg |
1)13 months free warranty under nomal use and we give maintance for 18 months.
2)first class engineer give 24 hours service on internet and telephone ,free instructions and problem solving.
3)free training to make sure you master the operating of wood cutting machine.
4)free video of how to operate the machine.
