cnc router machine price for aluminum table
cnc router machine price Features:
1, 4.5kw water cooling spindle with vacuum table.
2. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time.
3, 3. High speed stepper motor and drivers, and two motors for Y axis.
4, Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc.
cnc router machine price Technical Parameter:
Model |
BDX-1325 |
XYZ-axis travel |
1300*2500*200mm |
Guide Rail |
HIWIN linear guide rail |
Max. speed |
2800mm/min |
Max. engraving speed |
2000mm/min |
Max. feeding height |
200mm feed |
Resolution |
0.005mm |
Repeated positioning accuracy |
0.05mm |
Command |
G code. U00. Mmg. Plt. Eng |
Software operating environment |
WIN2000/XP |
Voltage |
380V/220V/110V |
Spindle power |
4.5kw |
Spindle speed |
0-24000rpm/min |
Stepper motor |
leadshine HSB758S AC Hybrid serbo drive |
Interter |
2pic Fuling inverter(DZB312B004.5L2DK) |
Package size |
3170 * 2110 * 1700mm |
Control system |
DSP |
Weight |
1440kg |
Optional accessories |
Cylinder rotary attachment/ Dust collecter/ Metal water tank/Vacuum adsorption system |
|
Advantages of cnc router machine price :
1. Cast steel structure makes our routers more stable
2. Excellent part:imported linear rails,import German ball screw,high speed air-cooling spindle,high precision bearing which has low noise and long life.
3. Modularize frame design:select a variety of machining spindle configuration that can carve,hollow cut and mill.
4. Reasonable designs:advanced rack and pinion drive in Y axi with larger speed and strength.
5.Easy operation:advanced file pre-processing functions to ensure speed and accuracy of operation.
6.Modularize frame design:select a variety of machining spindle configuration that can carve,hollow cut and mill.
7.Taiwan strong vacuum holding device that up to 312 cubic meter per hour.
8.Compatible software:open softwares prots,compatible with processing codes created by many
CAD/CAM sofewares including Type3/Artcam/Castmate/Wentai to pave the way for designs.
9.Perfect lubrication system makes maintenance much easier and gives the machine a long life.

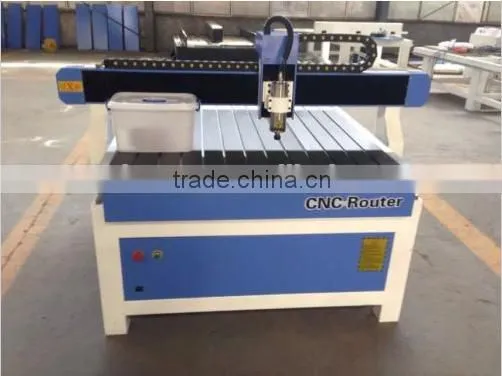

engrave machine sample picture and working picture
1.”Guarantee & After-Sales Service |
1.1“One year warranty under normal use and we supply maintenance for life for free. |
1.2“24 hours technical support by phone, e-mail, SKYPE, MSN or Remote. |
1.3“Free trainings to make sure you master the operation of cnc router. |
1.4“English operation manual, popular and easy to understand. |
2.”OEM Service Available |
2.1“Usually, we will manufacture the machine as our regular design. |
2.2“X Y Z Working Area could be customized designing. |
2.3“Special configuration could be customized designing. |
3.’Delivery Time (Production procedure) |
3.1“For 3 axis machine with standard specification, usually 15 days. |
3.2“For 4 axis machine with standard specification, usually 30 days. |
3.3“For 5 axis machine, OEM or non-standard models, usually 45 days. |
4.”Payment Terms” |
4.1“T/T in advance. |
|
4.2“Western union: we can accept small payment (below $3000), but the banking charges shall be paid by the buyer. |
4.3“L/C is acceptable if the amount is big. Please issue the L/C draft for our confirmation first. |
Thank you for your time ! What can I do for you ? :)
