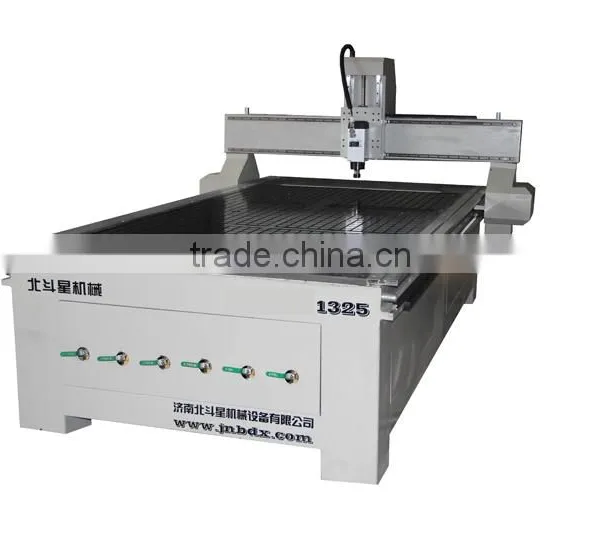

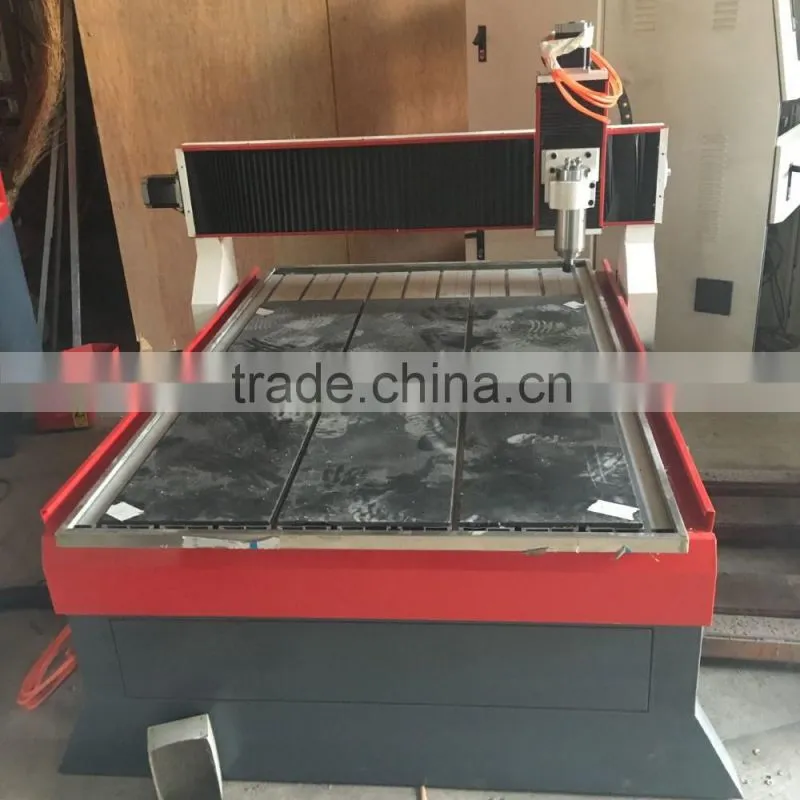

Jinan router cnc woodworking machinery BDX-1325
Items |
Standard |
|
Model No. |
1325CNC Router |
|
Working area(mm) |
1300mm*2500mm*200mm |
|
Transmission system |

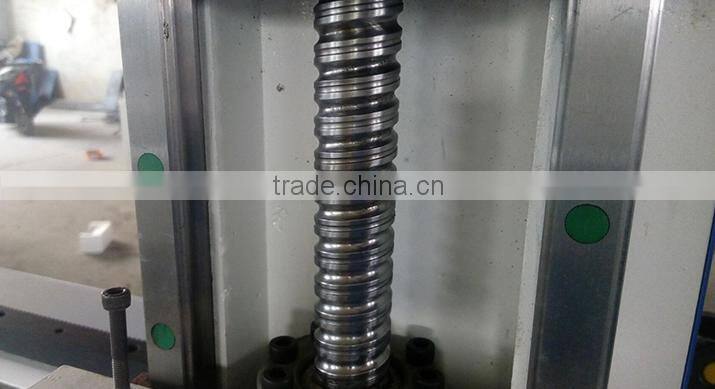

X,Y,Z Axis Square guide,Ball Screw Driving |
|

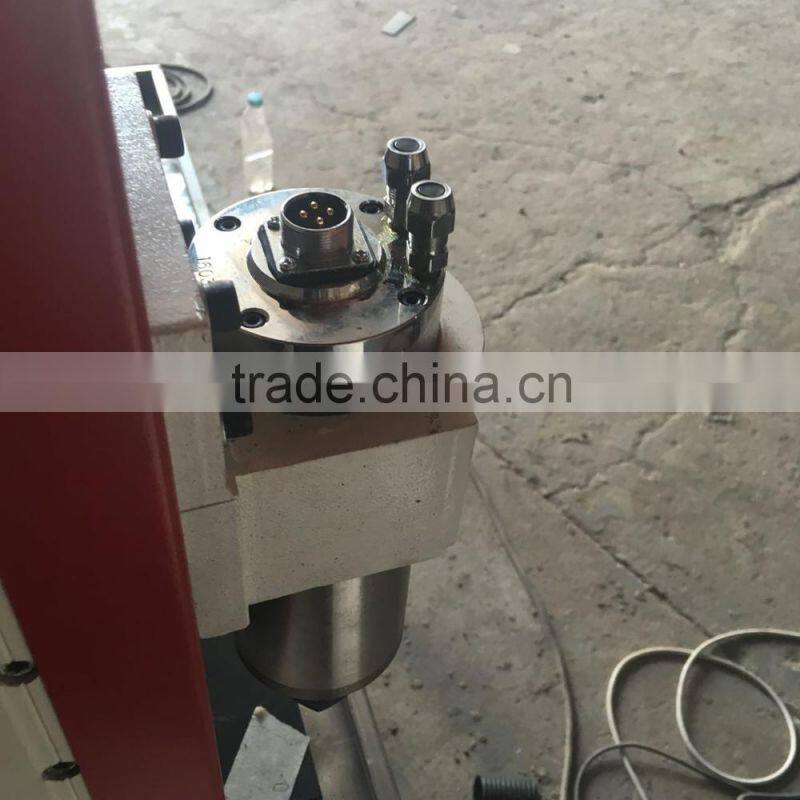

Spindle |
Power |
3.0kw China-made water-cooling spindle |
Inverter |
DZB200B2.2L Fuling |
|
Rotating Speed |
24000rpm |
|
Cooling Type |
water- cooling/pump DK-5000 220V/50HZ 105W |
|
Collet diameter |
Ø3.175,4, |
|
About drive systems |
Stepper motor(1)85BYGH450A, drive-MA-860H(2.0A-7.2A) |
|
Dust collector system |
Dust collector double bag (FOR SELECTION) |
|
Machine body |
Seamless welded steel structure / Lathe bed welded with thick square tube and slot steel |
|
Control System |
Ncstudio/DSP |
|
Data reading mode |
G code /PLT/DXF/ENG |
|
Compatible CAD/CAM Softwares |
Ucancam V9/ Type3 / Artcam / |
|
Table structure |
Aluminium Table/Vacuum table with six zone |
|
Working Voltage |
AC220V/50/60Hz,3PH / AC 380 V/50Hz |
|
Gantry Height (From Table) |
200 mm |
|
Gantry made of |
Steel unlike aluminium |
|
work off-line |
Off line working DSP |
|
Accessories |
Collets |
>20 cutters,(φ3.175, φ4, φ6) ER 25 3 collets |
Cutter / knives |
20pics |
|
Maintenance |
Service can be supplied on line |
|
|
Guarantee / Warranty Whole Machine |
13 MONTHS FROM THE DAY ON DELIVERY FROM THE LOADING PORT |
|
Net / Gross Weight |
±100KG |
|
Payment Terms |
T/T ,30%PREPAID, DOCUMENTS AGAINST THE REST PAYMENT |
|
Making / Delivery Time |
IN 10 WORKING DAYS |
|
Jinan Big Dipper CNC Machinery Co.Ltd company is a collection of Research and development production and sales as one of professional manufacturer of CNC Router machine.Developed six series and several kinds of numerical control equipment.Main products include wood CNC Router,Stone cutting machine,CNC Plasma cutting machine,Laser cutting machine.Our products sells well at home and abroad,Win the high praise by the general customer.
Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)
Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
