2016 hot sales six spindle machines for woodwork cutting and engraving products
Features:
2. High power spindle, water cooling/air cooling for choose, working vigorously with low noise.
3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.
4. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press.
Software:
type3/ucancamV9/artengraver/artcam/type3 etc.
1. this software is fit for all kind of cnc routers.
2. we can do 2D and 3D works with the software.
3. you can design any kind of works with the software or use the drawings that existed in the software.
Technical Parameter:
Model |
BDX-1825 |
XYZ-axis travel |
1800*2500*200mm |
Guide Rail |
HIWIN linear guide rail |
Max. speed |
2800mm/min |
Max. engraving speed |
2000mm/min |
Max. feeding height |
200mm feed |
Resolution |
0.005mm |
Repeated positioning accuracy |
0.05mm |
Command |
G code. U00. Mmg. Plt. Eng |
Software operating environment |
WIN2000/XP |
Voltage |
380V/220V/110V |
Spindle power |
1.5kw*6 |
Spindle speed |
0-24000rpm/min |
Stepper motor |
leadshine HSB758S AC Hybrid serbo drive |
Interter |
2pic Fuling inverter(DZB312B004.5L2DK) |
Package size |
3170 * 2110 * 1700mm |
Control system |
DSP |
Weight |
1440kg |
Optional accessories |
Cylinder rotary attachment/ Dust collecter/ Metal water tank/Vacuum adsorption system |
|
Applications:
Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,
no- paint door ,avoid wind,process of the artistic window,shoes cleaning machine, the cabinet of the playing machine and the board,mahjong table,computer table and the assistant
process of the household effects
Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration
products.
Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and
non-mental materials such as man-made marble , sand, plastic board PVC materials, wood board etc.
Other field:It can engrave many image, embossment,It is widely used in artistic industry.

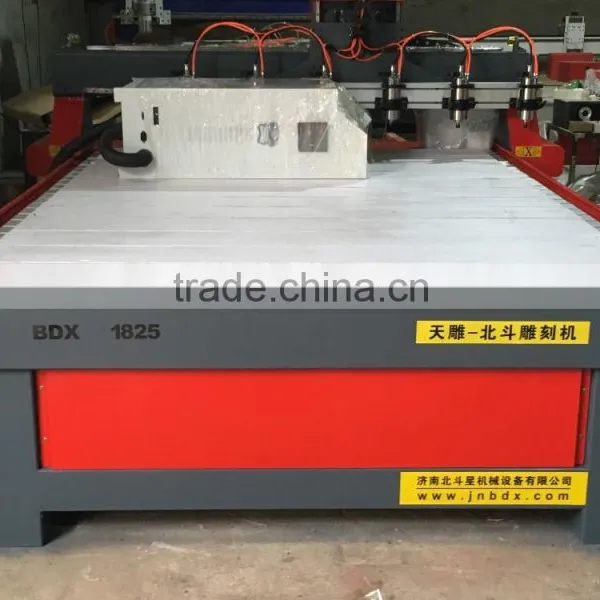

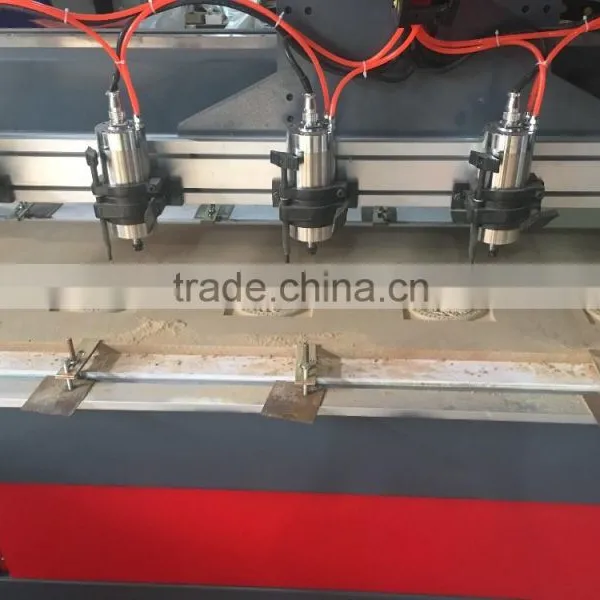

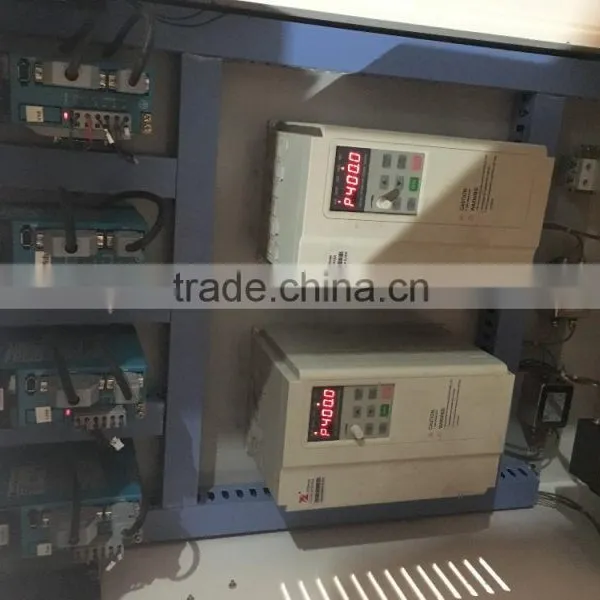

sample picture and working picture
1.”Guarantee & After-Sales Service |
1.1“One year warranty under normal use and we supply maintenance for life for free. |
1.2“24 hours technical support by phone, e-mail, SKYPE, MSN or Remote. |
1.3“Free trainings to make sure you master the operation of cnc router. |
1.4“English operation manual, popular and easy to understand. |
2.”OEM Service Available |
2.1“Usually, we will manufacture the machine as our regular design. |
2.2“X Y Z Working Area could be customized designing. |
2.3“Special configuration could be customized designing. |
3.’Delivery Time (Production procedure) |
3.1“For 3 axis machine with standard specification, usually 15 days. |
3.2“For 4 axis machine with standard specification, usually 30 days. |
3.3“For 5 axis machine, OEM or non-standard models, usually 45 days. |
4.”Payment Terms” |
4.1“T/T in advance. |
|
4.2“Western union: we can accept small payment (below $3000), but the banking charges shall be paid by the buyer. |
4.3“L/C is acceptable if the amount is big. Please issue the L/C draft for our confirmation first. |
