11PIN 3NO 3NC 3PDT Reverse 250VAC 30VDC 40A Power Relay JQX-38F

11PIN 3NO 3NC 3PDT Reverse 250VAC 30VDC 40A Power Relay JQX-38F thumbnail-1
11PIN 3NO 3NC 3PDT Reverse 250VAC 30VDC 40A Power Relay JQX-38F thumbnail-2
11PIN 3NO 3NC 3PDT Reverse 250VAC 30VDC 40A Power Relay JQX-38F thumbnail-3
11PIN 3NO 3NC 3PDT Reverse 250VAC 30VDC 40A Power Relay JQX-38F thumbnail-4

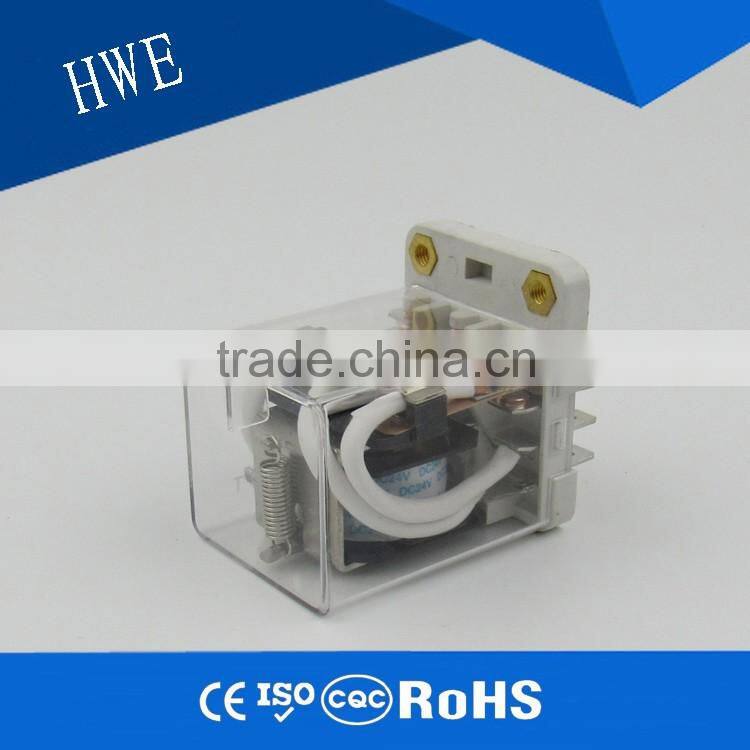

11PIN 3NO 3NC 3PDT Reverse 250VAC 30VDC 40A Power Relay JQX-38F photo-1

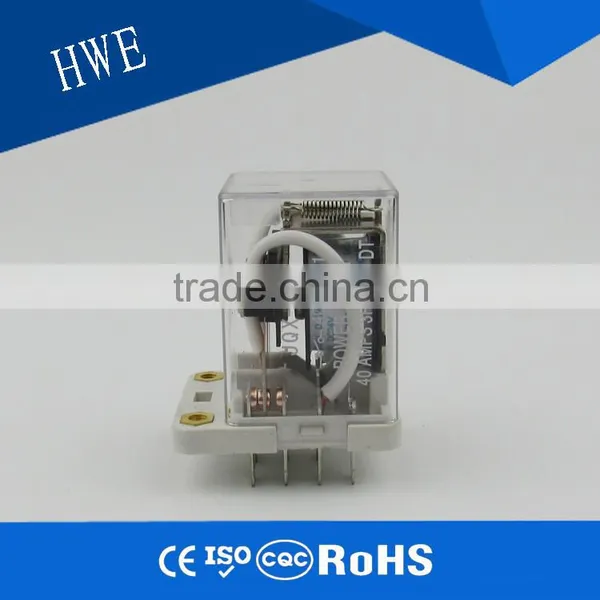

11PIN 3NO 3NC 3PDT Reverse 250VAC 30VDC 40A Power Relay JQX-38F photo-2

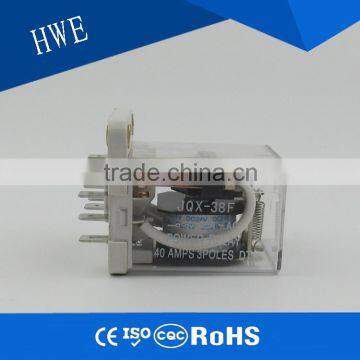

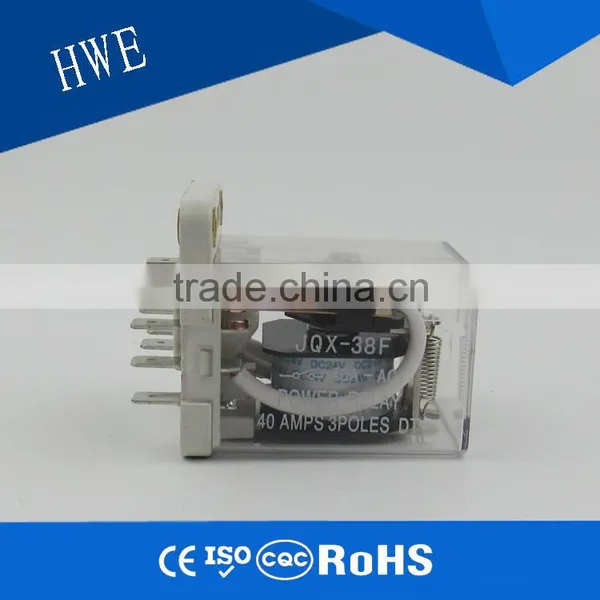

11PIN 3NO 3NC 3PDT Reverse 250VAC 30VDC 40A Power Relay JQX-38F photo-3

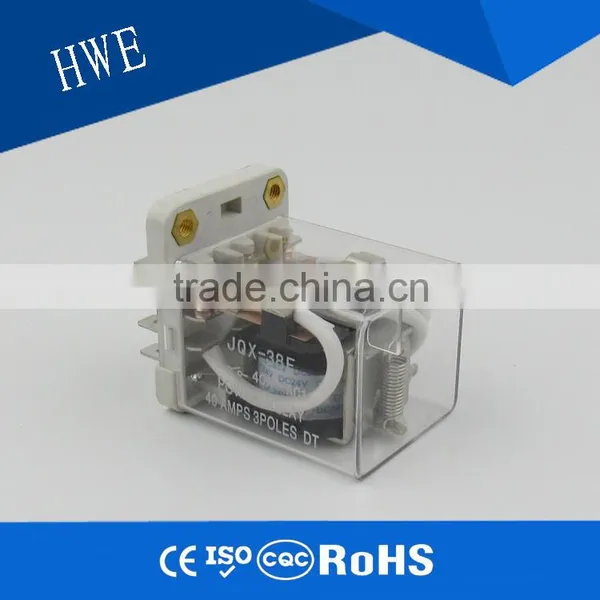

11PIN 3NO 3NC 3PDT Reverse 250VAC 30VDC 40A Power Relay JQX-38F photo-4
US$ 3.7 - 4 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HWE
Model Number:
jqx-38f
Contact Supplier Request Quote Chat Now
Yueqing Hengwei Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HWE
Model Number jqx-38f
Theory Electromagnetic Relay
Usage General Purpose
Size Miniature
Protect Feature Epoxy
Contact Load High Power



11PIN 3NO 3NC 3PDT reverse 250VAC 30VDC 40A power relay JQX-38F

Specifications





1. 3Z magnetic relay 38F
2. easy to install
3. big power
Coil Voltage:DC:5~ 110V;AC:6~240V
Contact capacity: 30A/40A 250VAC/30VDC
2Z,2H,2D,3Z,3H,3D





3Z magnetic relay 38F



Detailed Product Description

1) Outline dimensions: 57.0 x 42..0 x 50.0
2) Contact data:
    a) Contact arrangement: 3Z(3D 3H)
    b) Material: silver alloy
3) Max. switching current: 40A
4) Max. switching voltage: 28V DC / 250V AC
5) Coil data:
    a) Nominal voltage: 6 - 220V DC / 6 - 380V AC
    b) Pick-up voltage: AC≤90%, DC≤75%
    c) Drop-out voltage: DC≥10%, AC≥30%
    d) Coil power: 3.5W / 5.5VA
6) Specifications data:
    a) Contact resistance: ≤50mΩ
    b) Insulation resistance:≥500MΩ
    c) Dielectric strength Vr.m.s:
        i) Between open contacts: ≥1,500VAC
        ii) Between coil and contacts: ≥2,000VAC
        iii) Between contacts form:
    d) Ambient temperature: -45 - +55oC
    e) Operation/release time: ≤20/20ms
