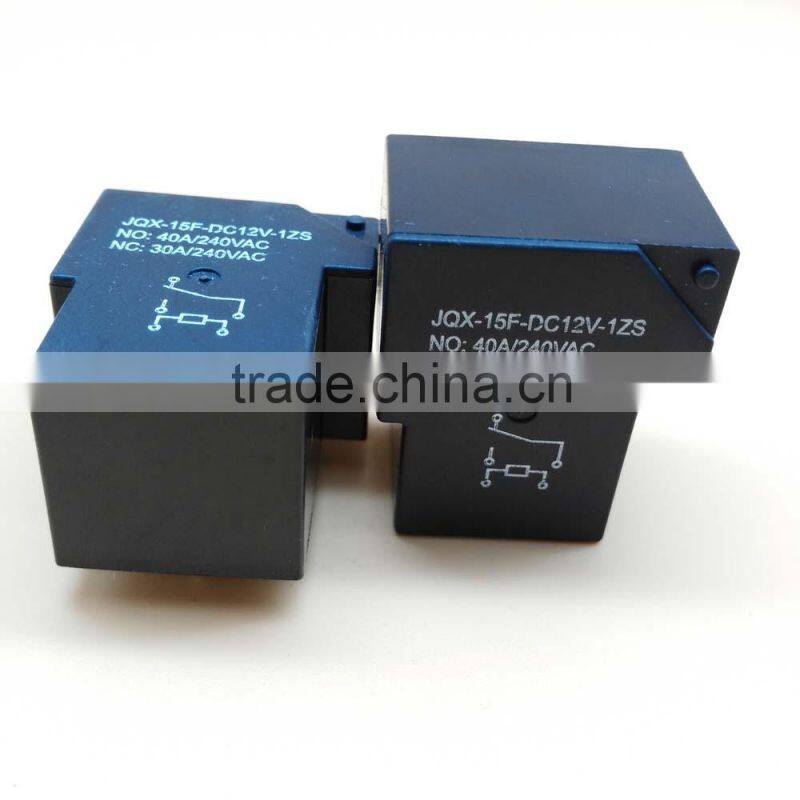

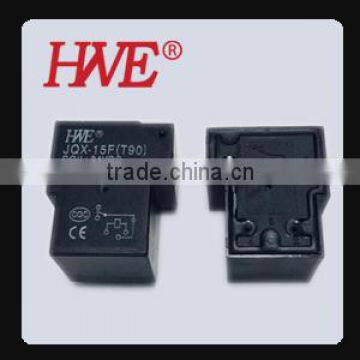

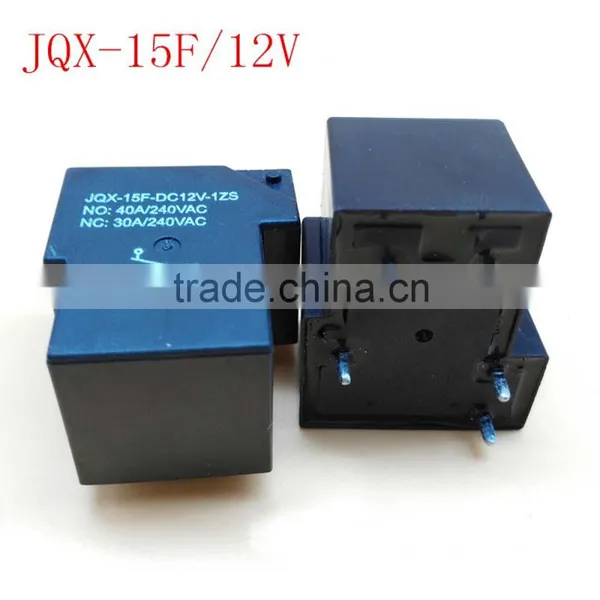

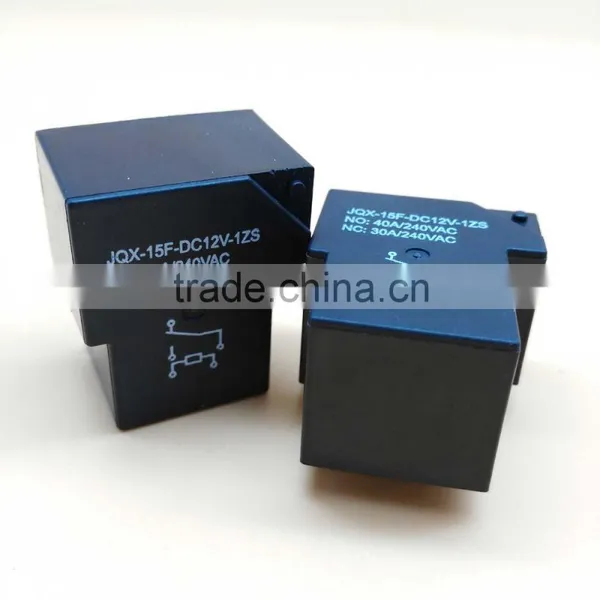

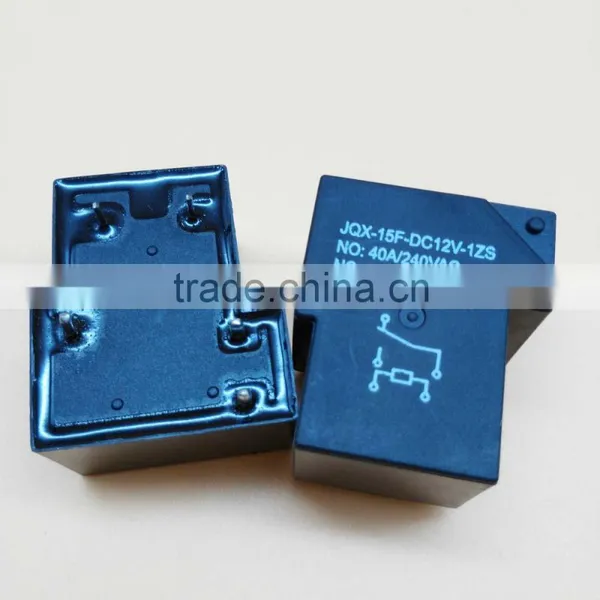

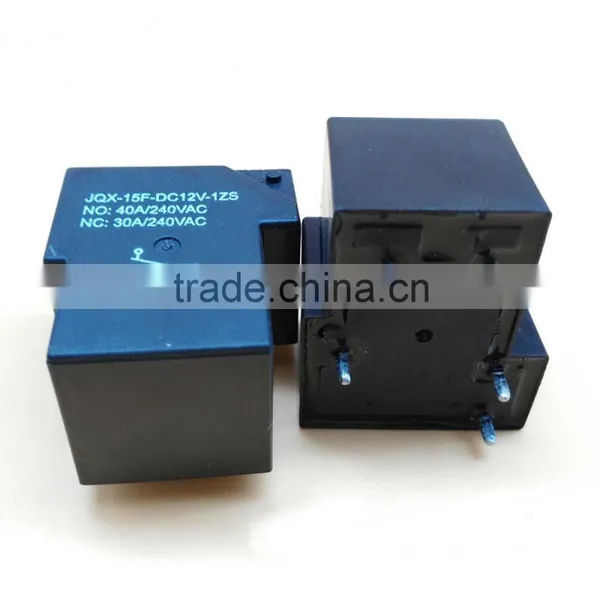

JQX-15F T90 Relay

JQX-15F T90 Relay thumbnail-1
JQX-15F T90 Relay thumbnail-2
JQX-15F T90 Relay thumbnail-3
JQX-15F T90 Relay thumbnail-4
JQX-15F T90 Relay thumbnail-5
JQX-15F T90 Relay thumbnail-6
JQX-15F T90 Relay photo-1
JQX-15F T90 Relay photo-2
JQX-15F T90 Relay photo-3
JQX-15F T90 Relay photo-4
JQX-15F T90 Relay photo-5
JQX-15F T90 Relay photo-6
US$ 0.4 - 0.6 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HWE
Model Number:
JQX-15F
Contact Supplier Request Quote Chat Now
Yueqing Hengwei Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HWE
Model Number JQX-15F
Theory Electromagnetic Relay
Usage PCB
Size Miniature
Protect Feature Sealed
Contact Load High Power

JQX-15F T90 Relay

Features:
 30A switching capabilities
 PCB coil terminals,ideal for heavy duty load
4KV dielectric coil to contact
 Heavy load up to 7,200va
 Open ,sealed & unsealed type available

ontact data



Contact Arrangement 1H 1D 1Z(Normal Open) 1Z(Normal Close)
Initial Contact Resistance 50mΩ(1A 24VDC)
Contact Material AgSnO2 AgCdO
Max.switching curreng 7200VA/560W 3600VA/280W 4800VA/560W 2400VA/280W
Max.switching voltage 277VAC/28VDC
Max.switching curreng 30A 15A 20A 10A
JQX-105F-1
Rated load		 30A 240VAC
20A 28VDC		 15A 240VAC
10A 28VDC		 20A 240VAC
20A 28VDC		 10A 240VAC
10A 28VDC
JQX-105F-1L
Rated load		 25A 240VAC
20A 28VDC		 15A 240VAC
10A 28VDC		 20A 240VAC
20A 28VDC		 10A 240VAC
10A 28VDC
Mechanical life 2×107 times
Electrical life 1×105 times



Characteristics
Initial Insulation Resistance 1000MΩ,500VDC
Dielectric Strength
Between coil and Contacts 1500VAC 1 min.
Between open contacts 1500VAC 1 min.
Operate time(at nomi.Volt) Max:15ms
Release time(at nomi.Volt) Max:10ms
Shock Resistance
stability 98m/s2
intensity 980m/s2
Vibration Resistance Double oscillation amplitude:1.5mm 10~55Hz
Humidity 98% +40 ℃
Temperature
B Level DC:-55℃~+85℃;AC:-55℃~+60℃
F Level DC:-55℃~+105℃;AC:-55℃~+85℃
Termination PCB
Unit weigth About 36g
Construction Opening wide(AC Specification No Suitable)
Model And Dust cover Model
Coil data



Coil power DC:0.9W AC:2VA
Coil voltage 5~110VDC 12~277VAC
Coil Resistance Sees the next table



Coil Specification table
Nominal Voltage VDC Action voltageVDC Drop-out Voltage VDC Max voltageVAC(20℃) Coil Resistance Ω
5 3.75 0.5 6.50 27±10%
6 4.50 0.6 7.80 40±10%
9 6.75 0.9 11.70 97±10%
12 9.00 1.2 15.60 155±10%
15 11.25 1.5 19.50 256±10%
18 13.5 1.8 23.40 380±10%
24 18.00 2.1 31.20 660±10%
48 36.00 4.8 62.40 2560±10%
70 52.50 7.0 91.00 5500±10%
110 82.50 11 143.00 13450±10%

Nominal Voltage VAC Action voltageVAC Drop-out Voltage VAC Max voltageVAC(20℃) Coil Resistance Ω
12 9.6 2.4 15.6 25±10%
24 19.2 4.8 31.2 100±10%
120 96.0 24.0 156.0 2500±10%
208 166.4 41 270.4 11000±10%
220/240 192 48 286.0 13490±10%
277 220 54 360.1 15000±10%
Ordering information



Mark demonstration JQX-15F / 12DC-1ZS
Type JQX-15F
Coil power source    DC: DC              AC: AC
Coil voltage DC:5~110VDC           AC:6~240VAC
Contact Arrangement 1Z: SPDT           1H :  SPST-NO     1D: A group Normal Close
Installs the form 1.Opens wide the type,       2.Dust cover      NO: .Models seals the type
Contact Material  T: AgSnO                                 NO:  AgCdO
