HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay

HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay thumbnail-1
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay thumbnail-2
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay thumbnail-3
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay thumbnail-4
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay thumbnail-5
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay thumbnail-6
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay photo-1
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay photo-2
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay photo-3
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay photo-4
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay photo-5
HRS4H-S-DC24V-C/A HKE Relay 24V 1A Power Relay photo-6
US$ 0.2 - 0.3 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HWE
Model Number:
T73
Contact Supplier Request Quote Chat Now
Yueqing Hengwei Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HWE
Model Number T73
Theory Electromagnetic Relay
Usage PCB
Size Miniature
Protect Feature Sealed
Contact Load Low Power

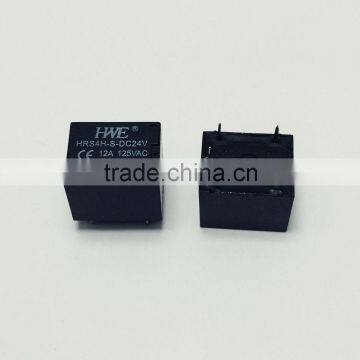

HRS4H-S-DC24V-C/A HKE relay 24V 1A power relay

HRS4H-S-DC24V-C/A HKE relay 24V 1A power relay

Contact data

Contact Arrangement

1H

1Z

Initial Contact Resistance

                 100mΩ       (1A 24VDC)

Contact Material

                 Silver Alloy

Contact Rating(Res.Load)

    10A  240VAC       7A 250VAC
     10A 277VAC

Max.switching voltage

              277VAC/30VDC

Max.switching curreng

              15A     12A

Max.switching power

              2770VA 210W

Mechanical life

         1×107 times

Electrical life

        1×105 times
Characteristics



Initial Insulation Resistance
         1000MΩ    500VDC

Dielectric Strength
          Between coil and Contacts 1500VAC 1minute
          Between open contacts 750VAC 1minute

Operate time(at nomi.Volt)
             Max:    10ms

Release time(at nomi.Volt)
               Max:    5ms

Temperature rise(at nomi.Volt)
             Max:    60℃

Shock Resistance
              stability 98m/s2(10g)
              intensity 980m/s2(100g)

Vibration Resistance
             1.5mm 10~55Hz

Humidity
               35%~85%R.H

Temperature
             -40℃~+85℃

Termination
                   PCB

Unit weigth
          10g

Construction
           Sealed IP67And Guards against the solder



Coil data



Coil power

  0.36W (48VDC:0.51W)



Coil Specification table



Nominal Voltage VDC Action voltageVDC Drop-out Voltage VDC Max voltageVDC(25℃) Coil Resistance Ω
5 3.80 0.5 6.5 70±10%
6 4.50 0.6 7.8 100±10%
9 6.80 0.9 11.7 225±10%
12 9.00 1.2 15.6 400±10%
18 13.5 1.8 23.4 900±10%
24 18.0 2.4 31.2 1600±10%
48 36.0 4.8 62.4 4500±10%



Ordering information



Mark demonstration JQC-3F/12VDC-1HSTF
Type JQC-3F
Coil voltage 5   6   9   12   18  24   48 VDC
Contact Arrangement 1H:SPST-NO             1Z:SPDT
Contact Material T:AgSn02                   NO:AgCdO
Insulation rank F: F 155℃    NO:B 130℃







Send Inquiry to This Supplier

Message
0/5000
