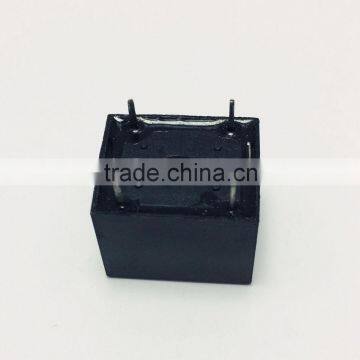

JQC-3FF-DC12V-1ZS(555) T73 Series Relay photo-2
JQC-3FF-DC12V-1ZS(555) T73 Series Relay photo-3
JQC-3FF-DC12V-1ZS(555) T73 Series Relay photo-4
JQC-3FF-DC12V-1ZS(555) T73 Series Relay photo-5
JQC-3FF-DC12V-1ZS(555) T73 Series Relay photo-6
US$ 0.2 - 0.3 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HWE
Model Number:
T73
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HWE
Model Number T73
Theory Electromagnetic Relay
Usage PCB
Size Miniature
Protect Feature Sealed
Contact Load Low Power

JQC-3FF-DC12V-1ZS(555) T73 series relay

JQC-3FF-DC12V-1ZS(555) T73 series relay

Contact data

Contact Arrangement

1H

1Z

Initial Contact Resistance

                100mΩ       (1A 24VDC)

Contact Material

                Silver Alloy

Contact Rating(Res.Load)

   10A  240VAC      7A 250VAC
     10A 277VAC

Max.switching voltage

             277VAC/30VDC

Max.switching curreng

             15A    12A

Max.switching power

             2770VA 210W

Mechanical life

        1×107 times

Electrical life

       1×105 times
Characteristics



Initial Insulation Resistance
         1000MΩ    500VDC

Dielectric Strength
          Between coil and Contacts1500VAC 1minute
          Between open contacts750VAC 1minute

Operate time(at nomi.Volt)
             Max:    10ms

Release time(at nomi.Volt)
               Max:    5ms

Temperature rise(at nomi.Volt)
             Max:    60℃

Shock Resistance
              stability98m/s2(10g)
              intensity980m/s2(100g)

Vibration Resistance
             1.5mm 10~55Hz

Humidity
               35%~85%R.H

Temperature
             -40℃~+85℃

Termination
                   PCB

Unit weigth
          10g

Construction
           Sealed IP67And Guards against the solder



Coil data



Coil power

 0.36W (48VDC:0.51W)



Coil Specification table



Nominal Voltage VDCAction voltageVDCDrop-out Voltage VDCMax voltageVDC(25℃)Coil Resistance Ω
53.800.56.570±10%
64.500.67.8100±10%
96.800.911.7225±10%
129.001.215.6400±10%
1813.51.823.4900±10%
2418.02.431.21600±10%
4836.04.862.44500±10%



Ordering information



Mark demonstrationJQC-3F/12VDC-1HSTF
TypeJQC-3F
Coil voltage5   6   9   12   18  24   48 VDC
Contact Arrangement1H:SPST-NO             1Z:SPDT
Contact MaterialT:AgSn02                   NO:AgCdO
Insulation rankF: F 155℃    NO:B 130℃
