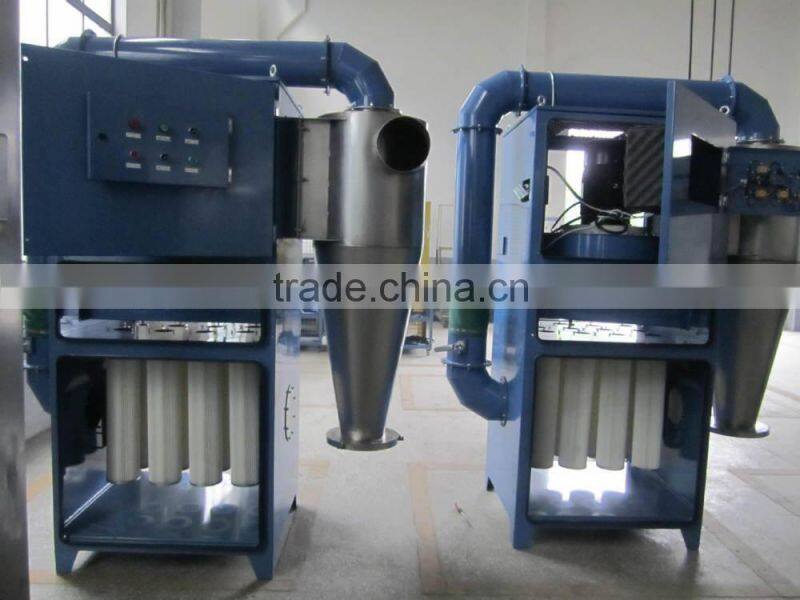

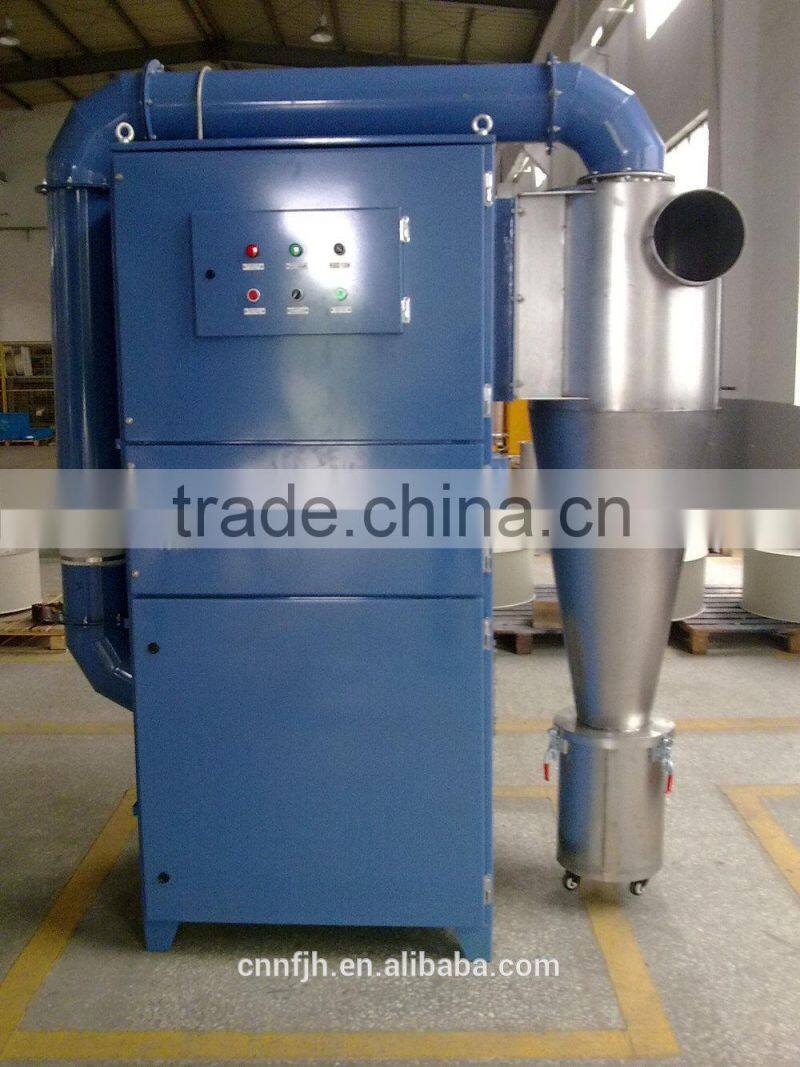

Newest Cheapest TUOER-35F Secondary Dust Extractor Cylcone and Filter Dust Collector
Features of Filter Dust Collector
- Process high density dust and dust with randomly distributed particle sizes
- Two-stage filtering, higher efficiency
- Low energy consumption
- Easy installation, less floor space

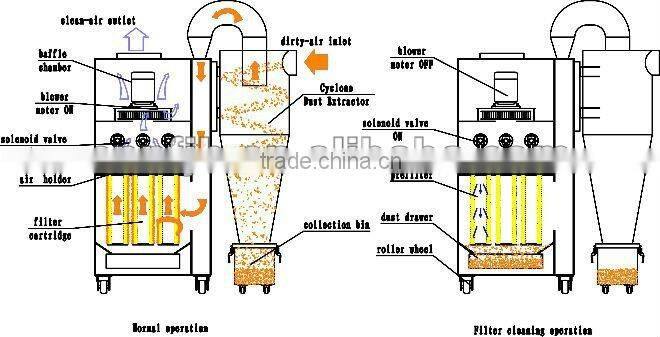

Operating Principle of Filter Dust Collector Dust air firstly enters into cyclone separator from dust source through suspended hood which is connected with dust remover. High density dust is radically split by cyclone within the tank; large grain size dust is separated and falls into storage tank at the lower end ; fine particle dust enters the hop-pocket dust collector or filter dust remover; remaining fine particle dust is blocked on the surface of the hop-pocket and cylinder; clean air is discharged out of the dust remover after passing through the filter material. The former part of the cyclone separator has separated most of the dust particles (efficiency>75%), so dust removing burden in the later part is reduced, which enhances filtering efficiency and prolong its service life.
Applications:
It’s applicable to industries those are easy to produce high density dust and dust with large particle sizes like cement, profile cutting, grain and mechanical processing etc.

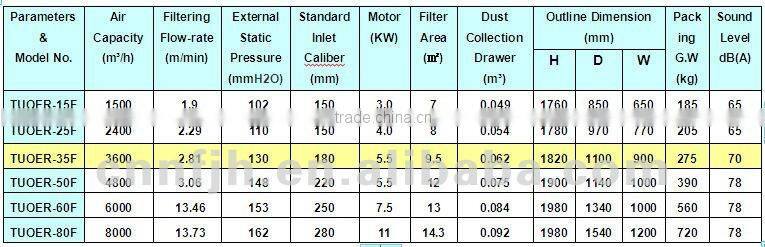

NANFANG Brand TUOER-35F and series Secondary Separator Filter Dust Collector Technical Parameters:
Production process
1. CNC Laser Cutting:
2. Bending:
3. Welding:
4. Assembling:

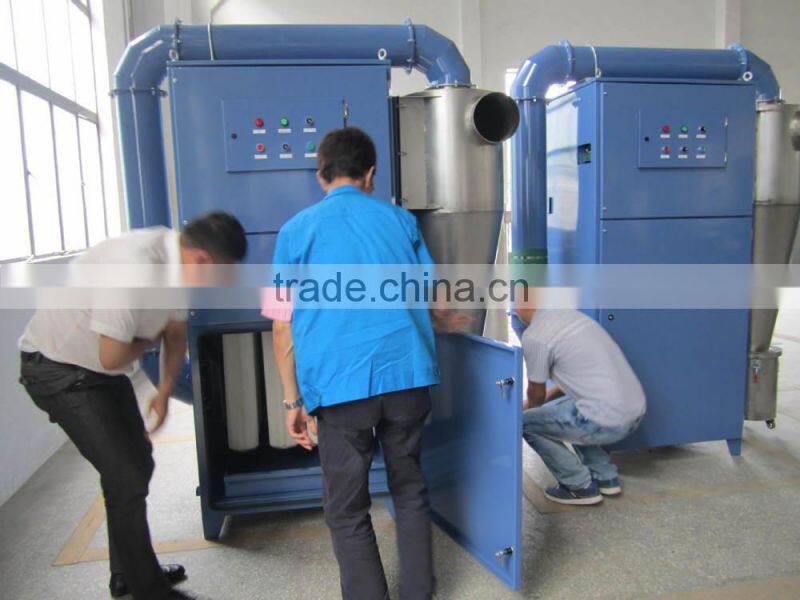

5. Testing:
6. Packing:

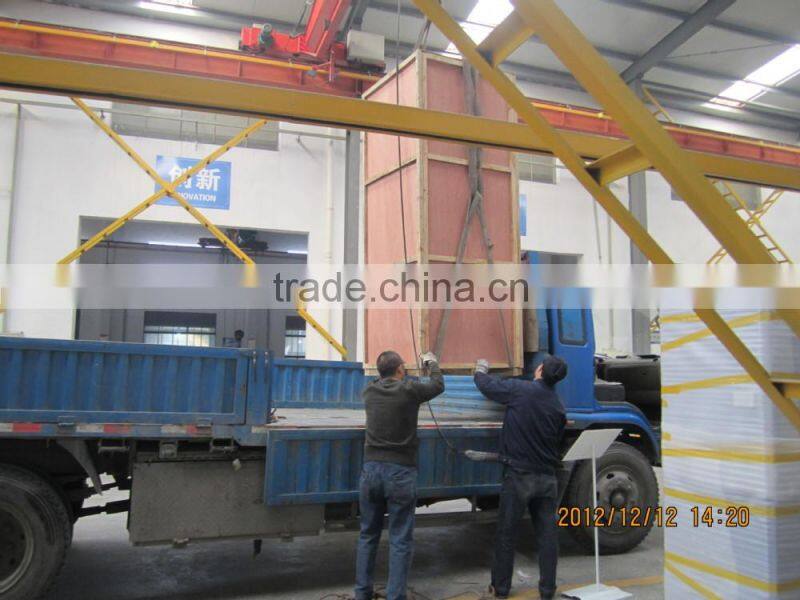

7.Loading:
Our Certificates
Other products
Filter Cartridge Dust Collector
Bag Filter Dust Collector
Cyclone Dust Collector
Two Stage Dust Collector
Wet Scrubber
Other Dust Collector
Contact way
Filter Dust Collector Filter Dust Collector Filter Dust Collector
