standard size walk in freezer room temp.-18degree C for meat storage

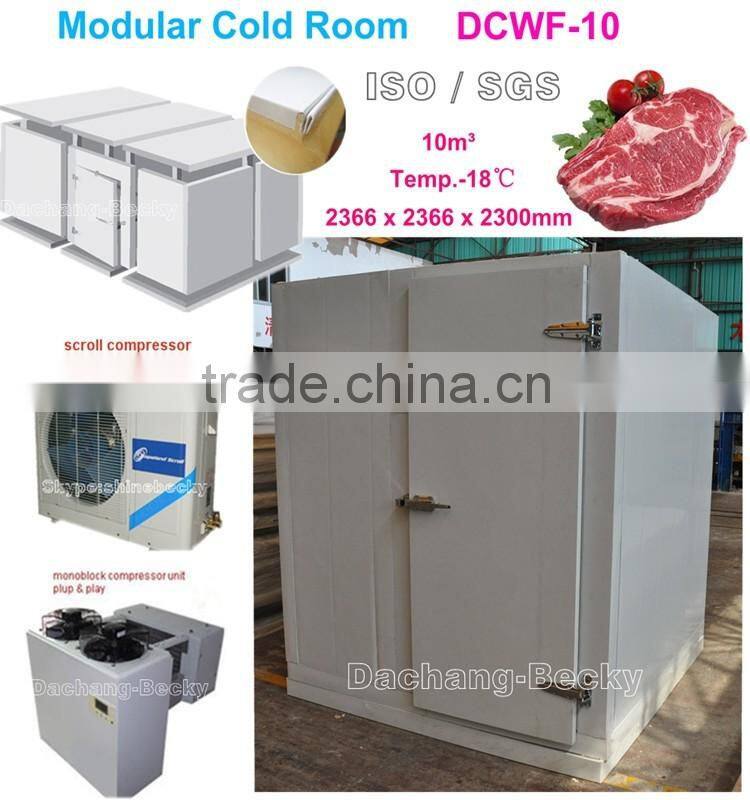

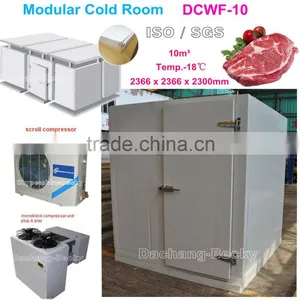

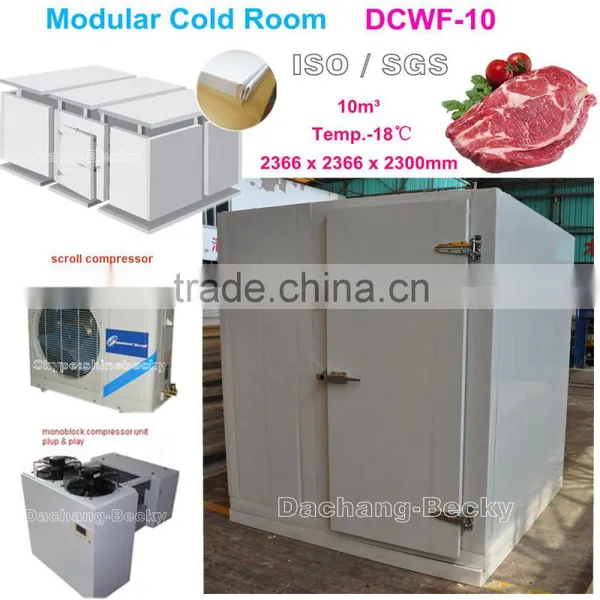

Specification of modular walk in freezer room
| Model | DCWF-10 |
| Volume | 10m3 |
| External size | 2366mm L x2366mm W x2300mm H |
| Internal size | 2166mm L x2166mm W x2100mm H |
| Temperature | -18 degree C adjustable |
| Condensing unit | Air cooled Copeland hemertic scroll unit |
| Refrigerant | R404a |
| Power supply | 110V/60Hz,220V/60Hz,220V/50Hz, 380V/50Hz |
Features of walk in freezer room
1)Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2)convex door,heavy duty.It can be changed to hinge door base on customer's requirement.
3)Copeland brand compressor,durable to use,with good refrigeration.
4)Necessary parts are included.
5)Environmentally friendly refrigerant R404a
Structure of walk in freezer room

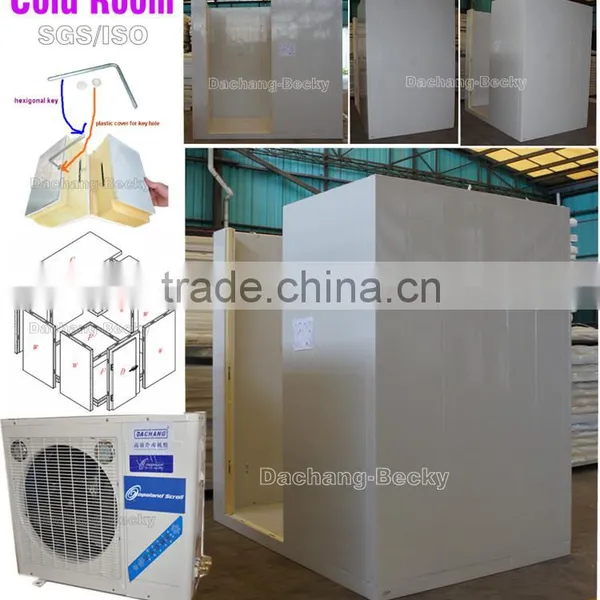

1.Cold room panel-polyurethane panels
Polyurethane panels are with interring cam lock, use hexagonal key to assemble base on the drawing.
1. cold room is made up of pieces of polyurethane insulation panels, male and female type connnected with cam locks, use hexagonal key to assemble.
2. Polyurethane panels thick 50mm, 75mm,100mm,150mm,200mm
3. Both sides of the polyurethane pane are painted galvanized steel
4. Each panel is marked with labels, assemble base on the installation drawing.

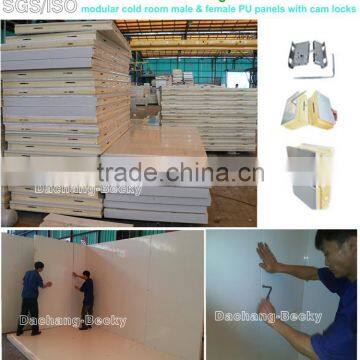

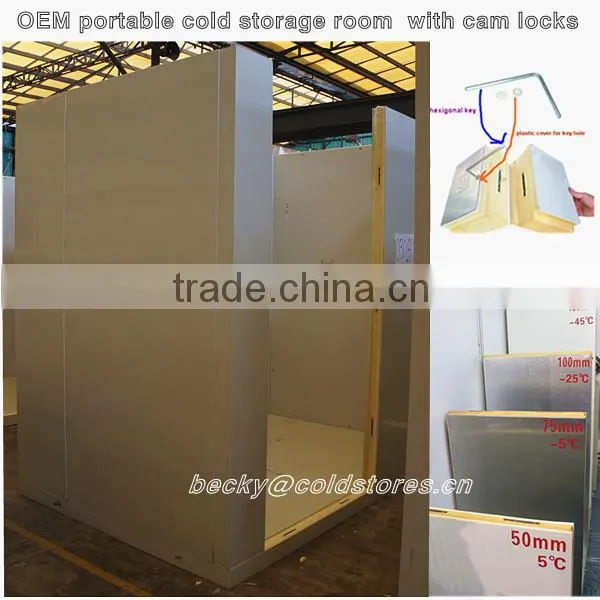

*Polyurethane sandwich cold room panels cam lock system

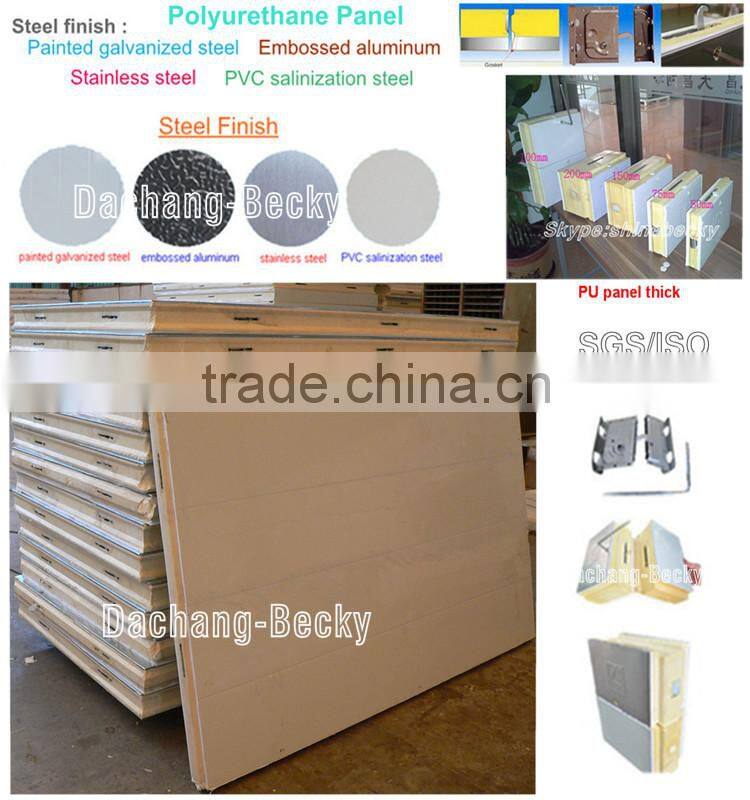

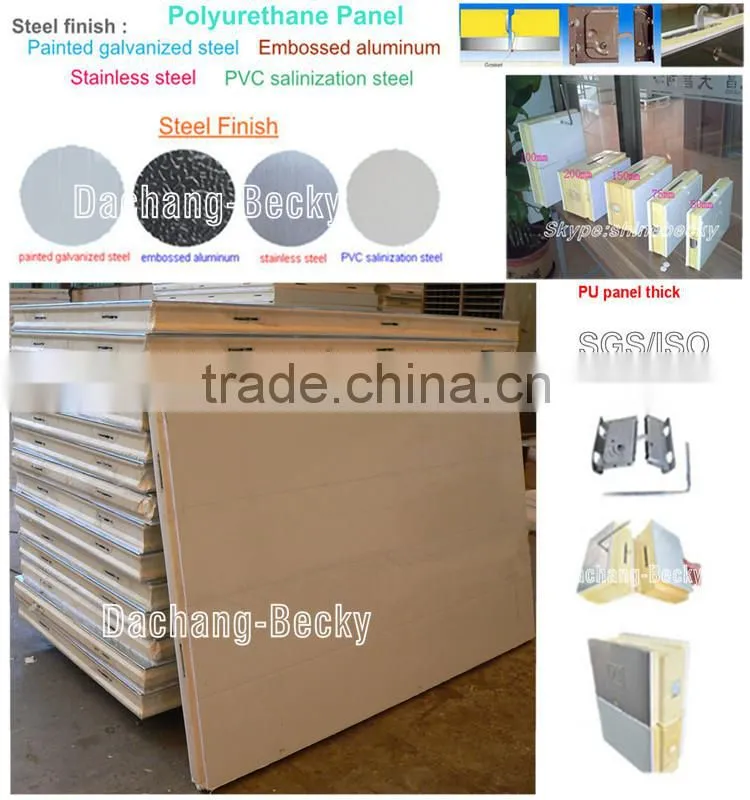

PU panel steel finish optional
A.painted galvanized steel --->Popular !!!
B.embossed aluminum ---> Hot sale in the USA.
C.stainless steel ---> For food processing industry.
D.PVC salinazation steel---> for cold rooms constructed near the sea.
Different thickness of PU panels fit cold room with different operating temperature.
2.Walk in freezer polyurethane insulation door

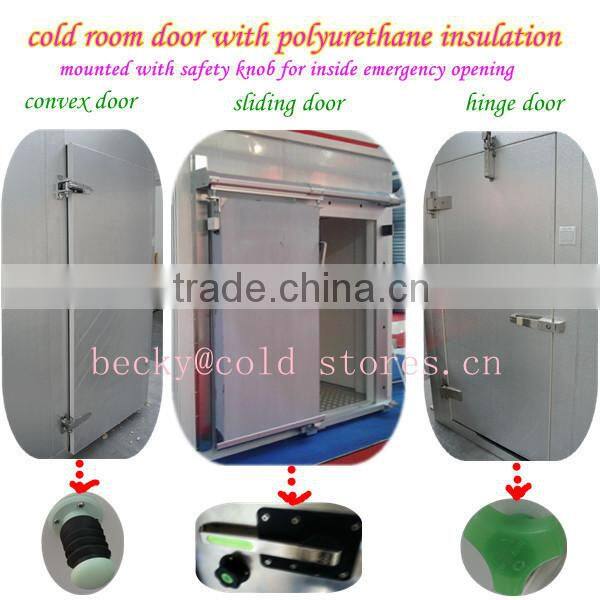

polyurethane insulation cold room door: hinge door, convex door, sliding door optional
1. the hinged cold room door has frame electrical heater to prevent frozen stuck
2. the polyurethane insulation door has internal safety knob for emergency opening.

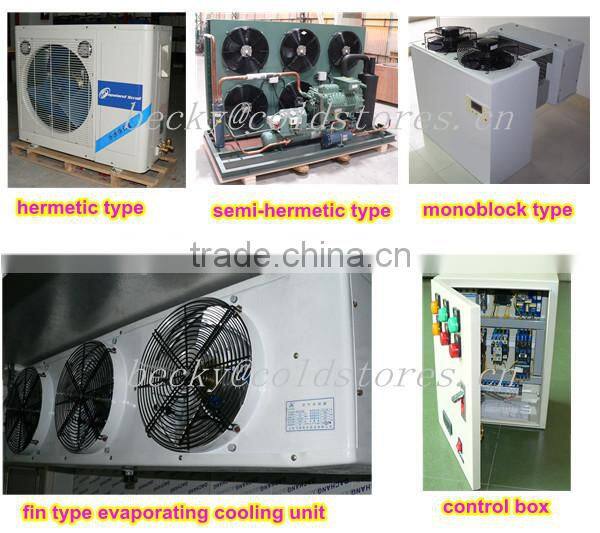

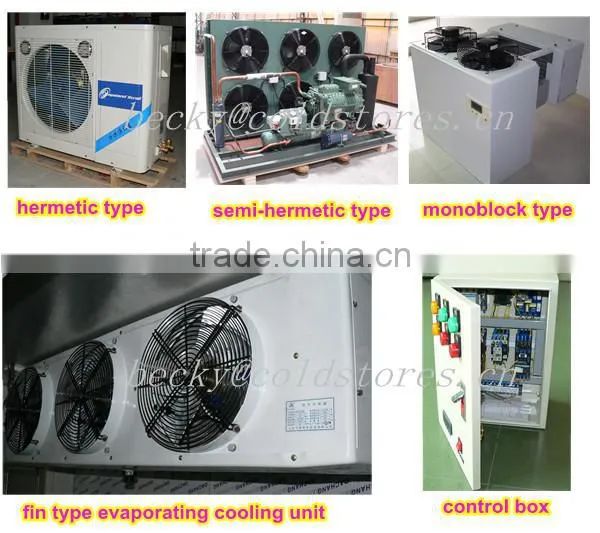

3.Cold room condensing unit
We can design to desice how many and how big the unit is.
--outside unit: usually we choose Bitzer or Copeland or Danfoss Compressor
--hermetic/ semi-hermetic/ monoblock
--air cooled
--refrigerant R404a

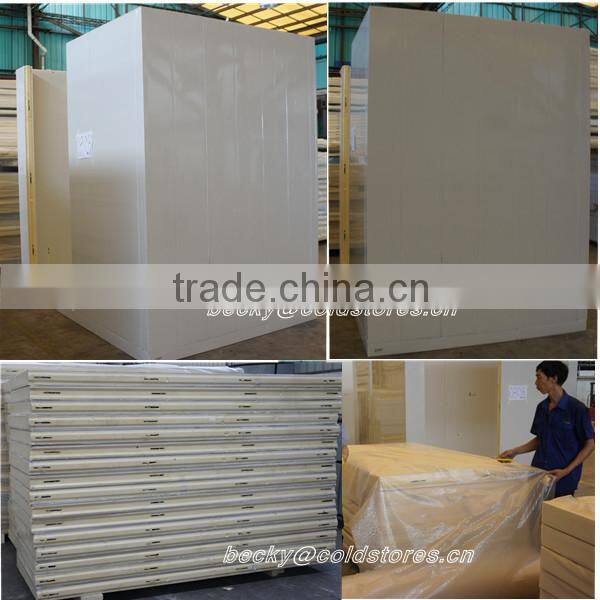

*Assembling cold rooms in the factory
Customized cold room acceptable !
Dimension |
Length (m) *Width (m)*Height (m) |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-30~+20degree C, optional |
Purpose of cold room |
fruit,vegetable,flower etc / frozen food, fish,meat ,chicken etc. |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
Packing and loading of the walk in freezer room
Dachang company is located in Dongguan, China, equipped with 30,000.00 square meter workshop and complete set of imported CUSBER and OMS production line for polyurethane sandwich panel.
DACHANG company provide the pefect solutions to the modular cold storage room for 20years !
DACHANG company attend the related exhibitions every year.
2.Sample order: Acceptable.
3.Trade term:FOB,CFR,CIF
4.Payment term: T/T OR L/C at sight
