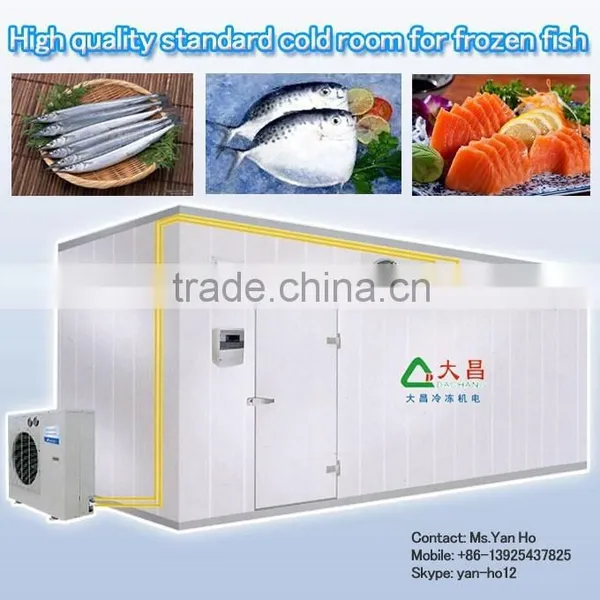

High quality standard cold room for frozen fish

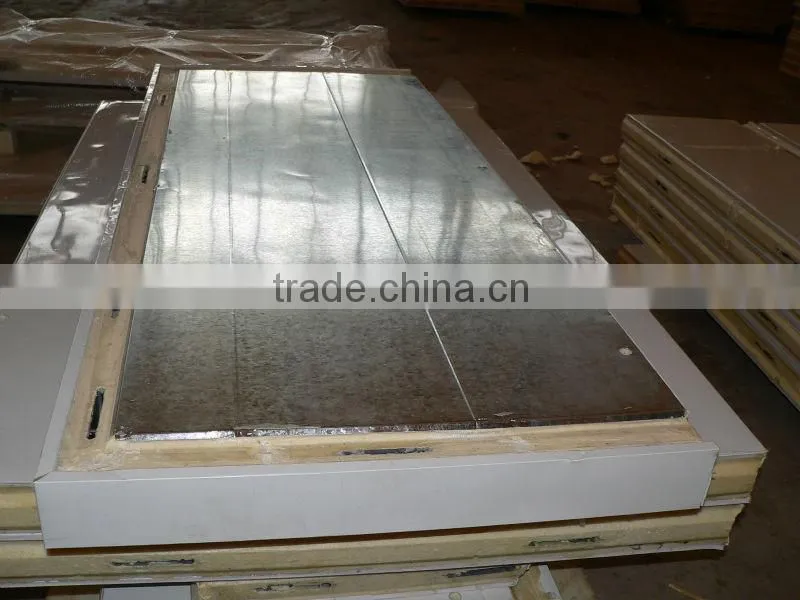

1.Cold room panel
(1) Cold room panel dimension
Polyurethane sandwiched panels are of 100% Polyurethane insulation, which is constructed by being foamed in place with retarted Polyurethane using high pressure. They have certain dimensions. Standard widths of panels are a multiple of 1183mm. The maximum lengths of panels are 13.5M. Non-standard sizes are also available upon request with price varying.
(2)The foaming material we choose is imported BASF (US brand) foaming material, green to the environment.
The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15 years.
(3)The cold room panels male and female, cam lock type, use hexagonal key to assemble.
Accept purchase cold storage panels only!
(4) Panel thickness. Different thickness panel is used in different temperature cold room.
| Panel thick | Operating temperature |
| 50mm | 5degree C or above |
| 75mm | -5degree C or above |
| 100mm | -25degree C or above |
| 150mm | -45degree C or above |
| 200mm | -55degree C or above |
(5) Our cold room panels meets JB/6527-2006<modular cold room insulation sandwiched panel’s technology conditions> standard request.
| No. | Inspection item | Unit | Technology inspection | Inspection result |
| 1 | density | kg/m3 | 32~50 | 43 |
| 2 | compressing strength (10% deformation) | Kpa | ≥160 | 200 |
| 3 | Bending strength | Kpa | ≥245 | 331 |
| 4 | Absorbing rate | % | ≤4 | 3 |
| 5 | Heating coefficient | W/m.k | 0.024 | 0.024 |
| 6 | Average burning time | S | ≤30 | 3 |
| 7 | Average burning height (vertical) | S | ≤250 | 250 |
2.Cold room door
There are hinged door, convex door, sliding door, normal door for option.Manual opened, with PU material, with heater in the door frame, with gasket etc.
Convex door standard size: 800W*1900Hmm
Hinged door standard size: 832W*1960Hmm
Manual sliding door size:1200W*2200Hmm
With safety handle for emergency open.
3.Cold room refrigeration unit
For cold room, will use Copeland/Bitzer split refrigeration unit
Refrigerant is R404A
Air cooled system
4.Cold room packing and loading
5. To make a fast and detailed quotation for you,we would like you to answer some questions about this product as following:
1)What’s the products do you want to store in this cold room?
2)Will this cold room be installed inside building or put outside?
3)Could you provide the detailed inside dimension of this cold room?(m)
4)What’s the thickness of cold room panel?(Including the wall panel, floor and roof panel)(mm)
5)Which kind of door do you prefer,convex door, hinged door or sliding door? Color steel or stainless steel?
6)How much kilograms of products will be put in cold room per once(kg/once)?
7)What’s the required temperature inside the cold room(°C)?
8)What’s the ambient temperature?
9)Original temperature of products before put into the cold room(°C)
10)How many hours do you want to cool the products down to the required temperature?
11)Which refrigerant required for the refrigeration unit? R22 or R404A,R134A or others?
12)What’s the voltage/phase/frequency in your place?
6.Dachang polyurethane panel production workshop
There are several imported production lines produce the cold room.

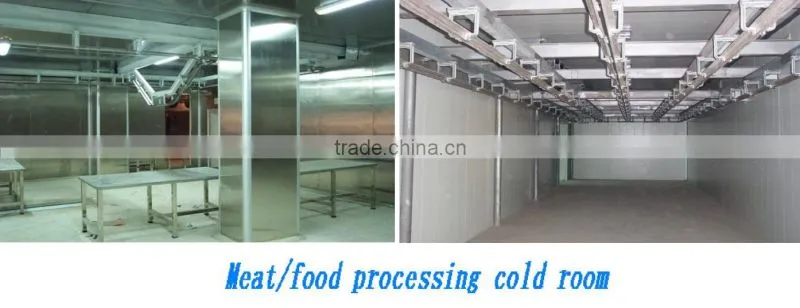

7.Dachang company cold room project.
8.Exhibition
Dachang company will take part in different exhibitiong every year including Shanghai, Beijing,German etc.
