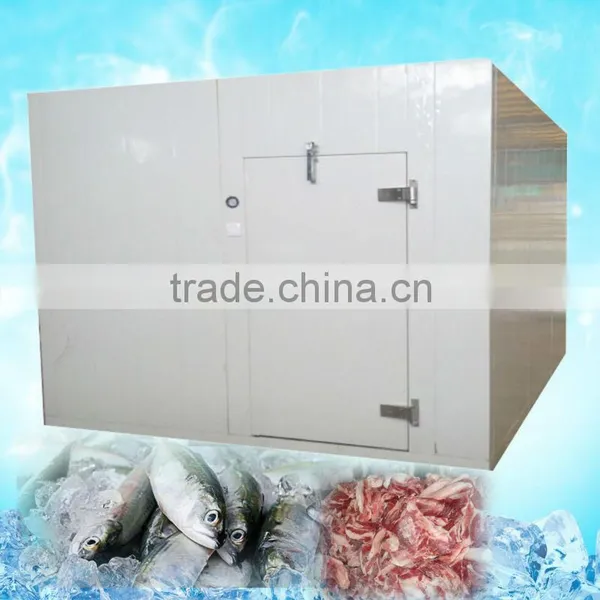

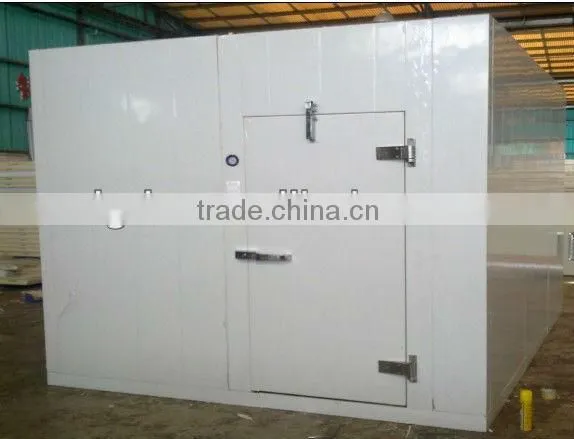

fish cold storage (Minus 25 centigrade)
we are the Professional manufacturer specializes in designing and manufacturing fish cold storage .
our factory found in 1992 . we have twenty years experience to design and manufacture the
fish cold storage .
In order to design the best fish cold storage for you , plase answer us the following questions:
1.Which country the fish cold storagelocated?
2. fish cold storage being installing inside the building or putting outside the house?
3.What is the ambient temperature(°C)
4.External dimension of the fish cold storage ?(m)
5.What Kind of products is gonna store in the room?
6.Required temperature inside the fish cold storage (°C)?
7.Original temperature of products before put into the fish cold storage (°C)
8.what kind of door your require? Hinged door,manual/electric sliding door or glass door?
9.Both sides of fish cold storage panels are with steel sheet covered. The steel sheet optional: painted galvanized steel,embossed stucco aluminum, stainless steel.Which do you like ?
cold storage Temperature Range for more products
| Storage products | Storage temperature approach |
| Vegetables, Fruit storage | -5~5 degree centigrade |
| Drink, Beer storage | 2~8 degree centigrade |
| Meat, Fish freeze storage | -18~--25 degree centigrade |
| Medicine storage | 2~8 degree centigrade |
| Medicine freeze storage | -20 degree centigrade |
| Meat, Fish blast freezer | -35~-40 degree centigrade |
Some fish cold storage specification for your reference
| Specification/Model | DCWF-10 | DCWF-15 | DCWF-20 |
| Storage volume | 10 | 15 | 20 |
| Exterior dimensions | 2366W X 2366L X 2300H | 2366W X 3549L X 2300H | 2366W X 4732L X 2300H |
| Interior dimensions | 2166W X 2166L X 2100H | 2166W X 3349L X 2100H | 2166W X 4532L X 2100H |
| Power | 220V/50HZ 2HP | 220V/50HZ 2HP | 380V/50HZ 3HP |
| Color and malerial | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel | Grey-white color coated painted gaivanised mild steel |
| Storage temperature | >-20 | >-20 | >-20 |
fish cold storage based Product information for your reference
Dimension |
Length (m) *Width (m)*Height (m) According to client's requirement . |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-45~+20 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
fish cold storage panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
fish cold storage Installation tool: hexagonal key
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

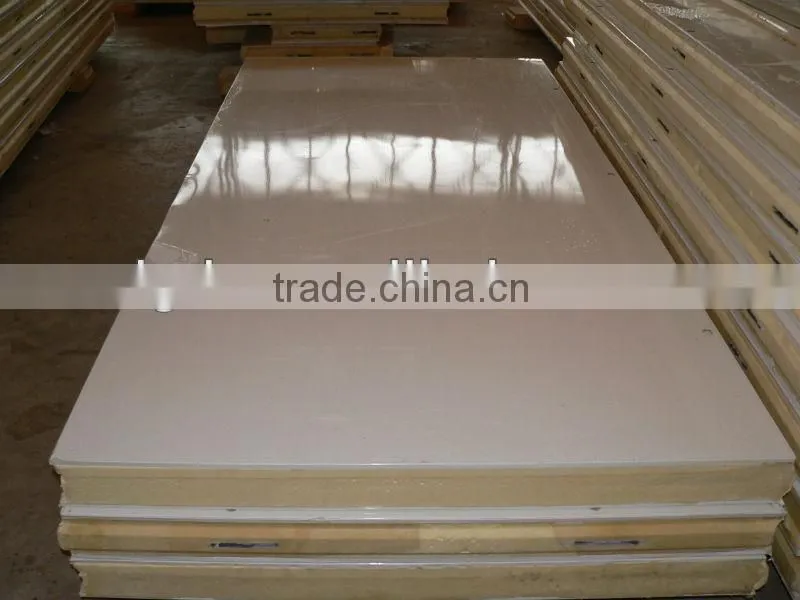

Our panel advantage :
1. Our fish cold storage panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each fish cold storage panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
we can design the flat panel for the fish cold storage .so it's easy to clean the
fish cold storage
fish cold storage floor: galvanized steel floor panel , skidproof floor or reinforced concrete floor
fish cold storage condensing units :split unit or monolithic unit
fish cold storage for your choice
size can be changed according to the client's requirement

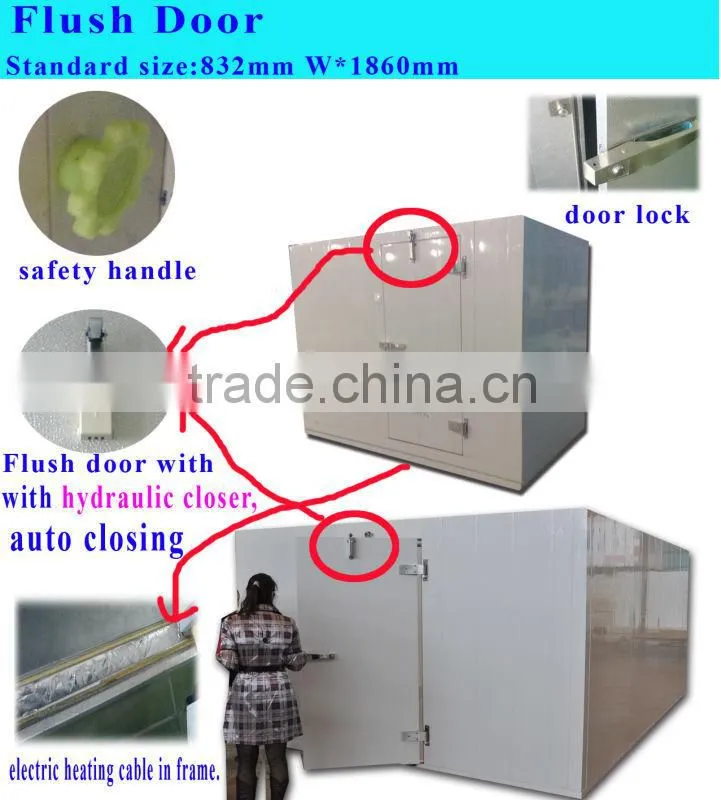

| No | Door type | door size | door heater voltage |
| 1 | Flush door | 800mm W*1900mm H | 24V / 36V |
| 2 | not flush mounted hinged door | 832mm W*1860mm H | 24V / 36V |
| 3 | sliding door | 1500mm W*2000mm H | 24V / 36V |
fish cold storage door can be with the curtain
production line for our fish cold storage
fish cold storage package
Some of our cold storage Project :(Domestic and Overseas )
