Cold Chamber for medicine (20m3)
Cold Chamber are made of modular fabrication with polyurethane insulation with different dimensions, which make it flexible for construction different sizes of an ideal Cold Chamber . The modular design allows for easy assembly and disassembly.
All panels are injected with 100% polyurethane with an average density of 40KG/M3 firmly glued to the metal, which has a variety of finishes available to meet the customers specific requirement.
we design the ideal Cold Chamber inner temperature and humidity to store the medicine or vaccine
Please find the following Cold Chamber information about our customized Cold Chamber :
cold room External Dimension |
2500L*2500W*2500H (mm) |
Panel |
Wall & Ceiling panels:
Floor panels: |
Foaming material |
BASF,with fire retardant, fireproofing grade is B1 Level |
door |
hinged door 800W*1900H (mm) |
Temp.of room |
4 Celsius degree |
Purpose of cold room |
to storage refrigerated food |
Refrigeration unit |
Copeland scroll air cold condensing unit (2hp) |
power |
1900W |
Fittings |
shelf , light , Ventilator , Alarme , Temperature recorder ,ect |
Place to assemble |
indoor |
Voltage |
220V/50HZ, 220V/60HZ optional |
OEM order is welcome . In order to customized the suitable Cold Chamber for you, please answer us the following questons :
1. what's the Cold Chamber External Dimension yourequired ? such as length , width , height
2.what kind of food will be put into the Cold Chamber ?
3.what's the Cold Chamber inner temperature you required ?
4. The Cold Chamber will be installed indoor or outdoor ?
5.what's the ambient temperature in your local country ?
6.what's the voltage for the Cold Chamber ?
7.what kind of door for the Cold Chamber you like ? swing door(hinged door) or sliding door or glass door ?
8.will forklift drive into the Cold Chamber ?
Cold Chamber panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

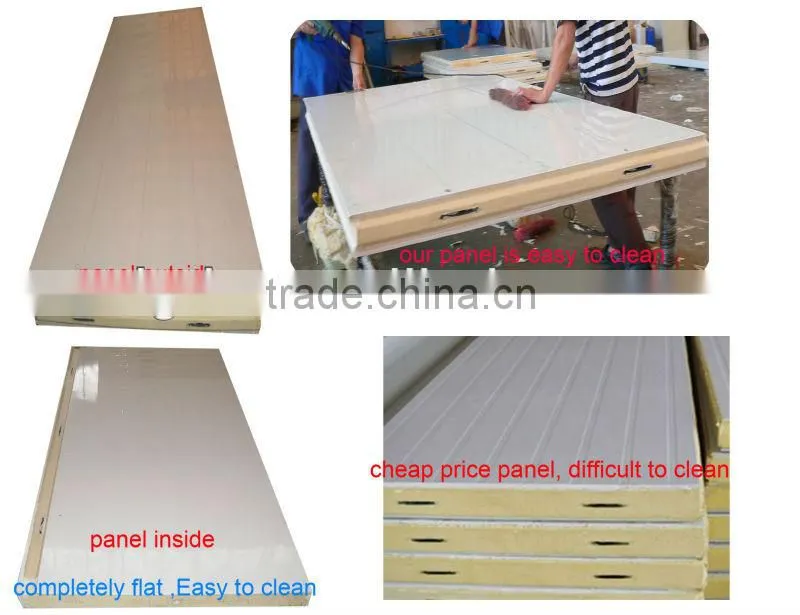

Our Cold Chamber panels VS the cheap price panel :
Our Cold Chamber panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years

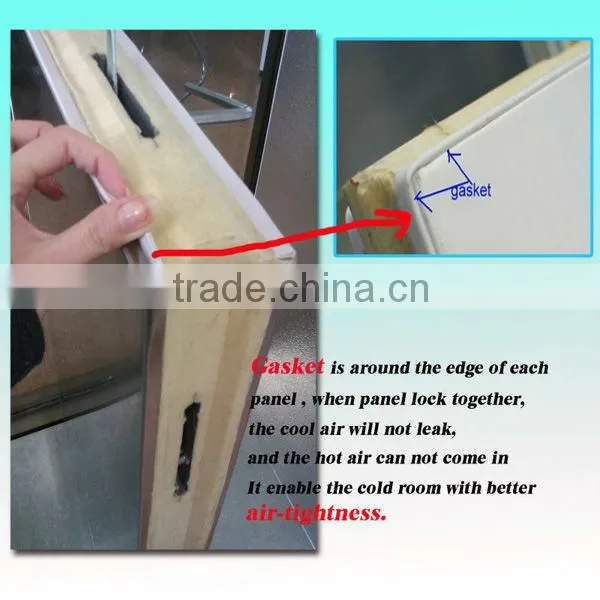

4.Gasket is around the edge of each Prefabricated Cold Room panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
Cold Chamber Installation :
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

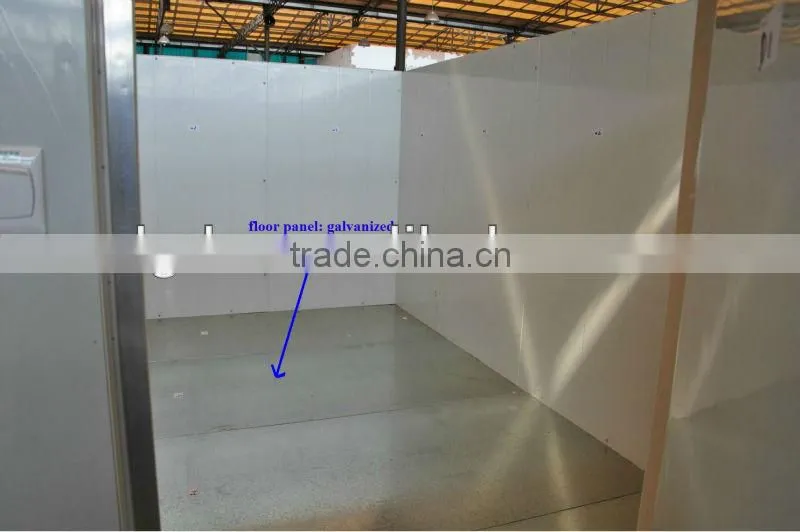

Cold Chamber inner floor: sandwich PU Panel floor

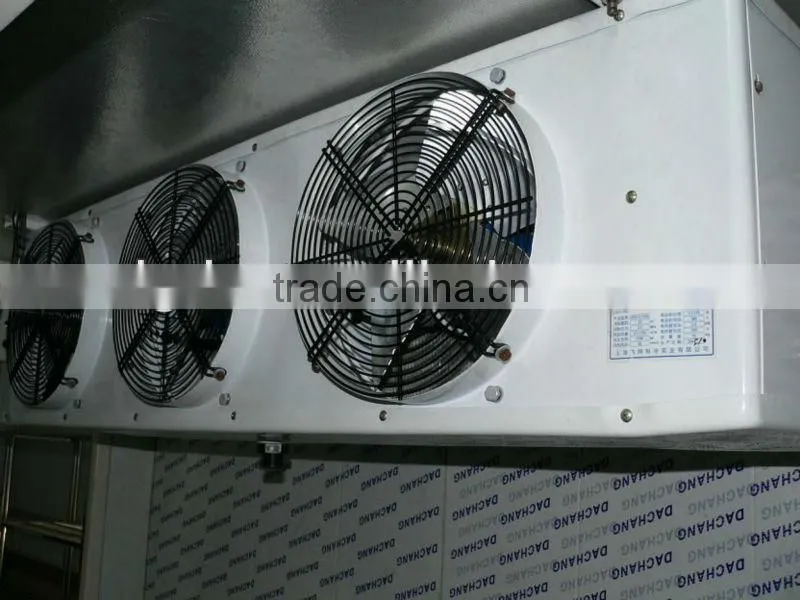

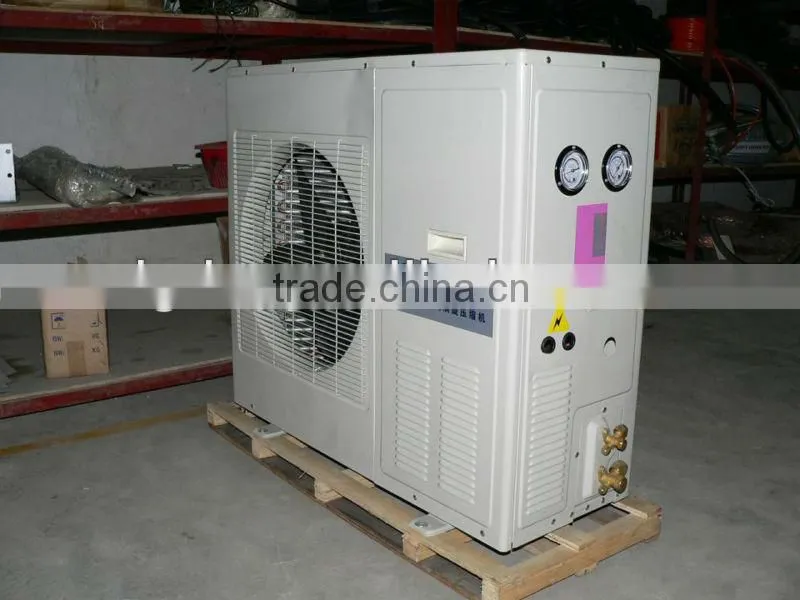

Cold Chamber condensing units & fan: Copeland scroll air cold condensing unit (2hp)

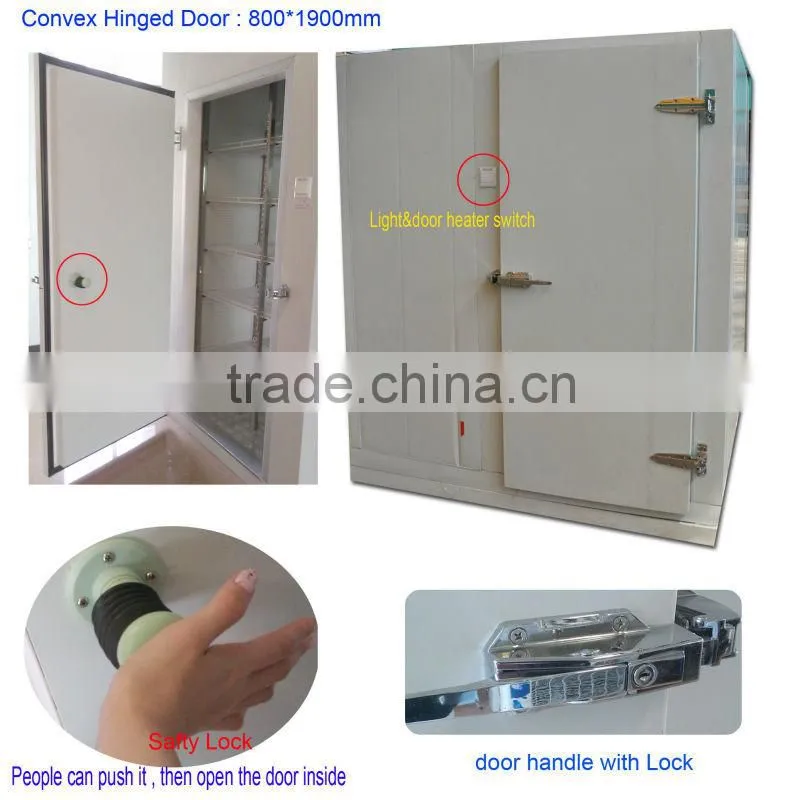

Hinged door for the Cold Chamber
The Temperature recorder is intalled in the door fram
More door for your choose (the size can be customize )
| No | Door type | door size | door heater voltage |
| 1 | Flush door | 800mm W*1900mm H | 24V / 36V |
| 2 | not flush mounted hinged door | 832mm W*1860mm H | 24V / 36V |
| 3 | sliding door | 832mm W*1860mm H | 24V / 36V |

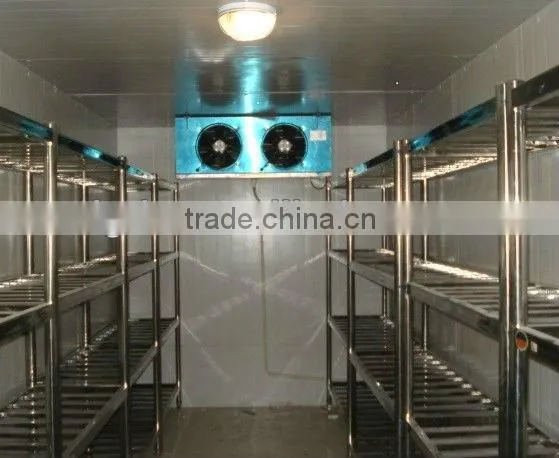

You can install te shelf into the Cold Chamber
production line for our Cold Chamber
Cold Chamber Package

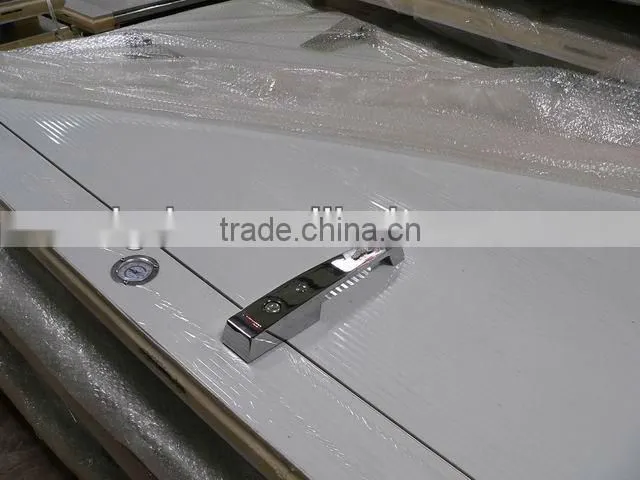

Polyurethane sandwich insulation panels are packed with bubble paper
Refrigeration unit: condensing unit and evaporator cooling unit are packed in plywood box
Cold Chamber parts are packed in cartons

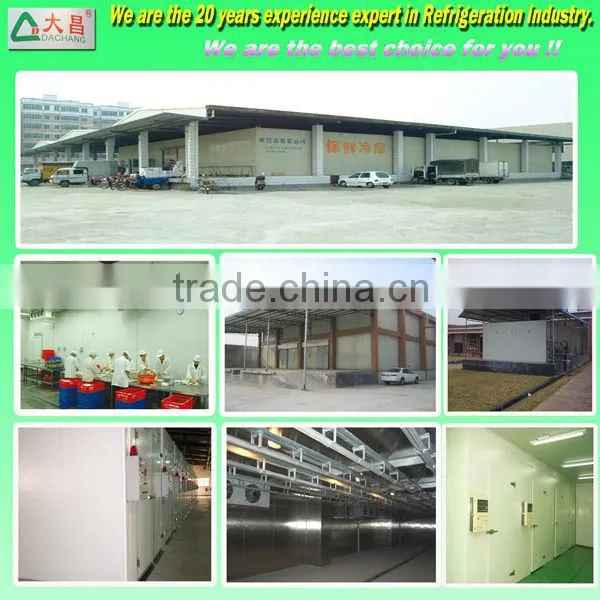

Some of our Cold Chamber Project :(Domestic and Overseas )
Take part in the Cold Chamber Exhibition every year:
