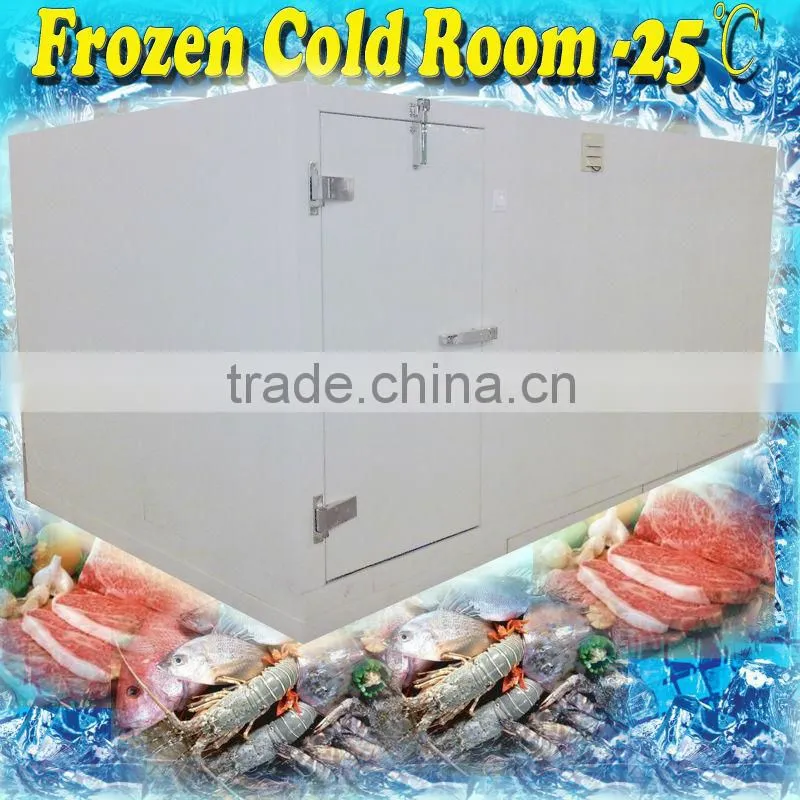

Meat storage freezer room with temperature -25C
Product Feature:
1. The freezer room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel density is up to
43kg/m3 or above.
3. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel and durable for anti-scratch.
4. The hinged door panel of our coldroom is made by heavy duty door hinge, heavy duty door lockand hydraulic door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high quality sealing.
6. The connection of our cold room is with cam lock construction and excentric fasterners for tight connection and
sealing of the cold room. .
freezer room Product information:
Dimension |
Length (m) *Width (m)*Height(m) |
Panel |
polyurethane insulation panel,43kg/m3, fire resistance |
Foaming material |
BASF(Germany) |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stucco embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use a hexagonal key to assemble and disassemble |
Type of door |
hinged door, convex door, sliding door |
Temp.of room |
-45~+20 degrees C, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional. |
freezer room panel Testing Specification
Wii have new test every year
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
freezer room Installation tool: hexagonal key
Every polyurethane panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a hexagonal key to lock them together.
our cold room panel advantages :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which
enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is
0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety
problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world,
they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each freezer room panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
freezer room floor
plastics-dipping shelf (5 pcs/set) (L:726*W:600mm)
freezer room condensing units:
Famous Brand ----- Copeland Bitzer/ZANOTTI
•Wide flexibility,Energy saving,Low noise.
•Low vibration,space and weight saving,Energy saving.
•can bu used in more higher ambient temperature.

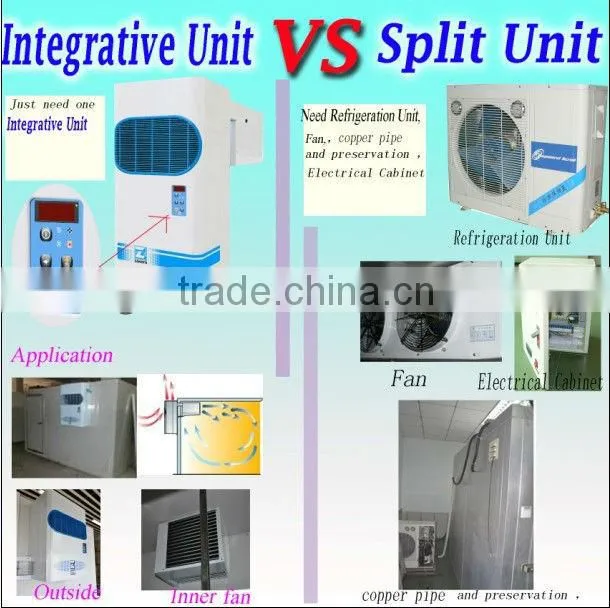

You can choose the Integrative unit or Splite unit .
The ZANOTTI Integrative unit is suitable for small cold room, It;s easy to install and save space
freezer room door for your choice
size can be changed according to the client's requirement
| No | Door type | door size | door heater voltage |
| 1 | hinged door | 800mm W*1900mm H | 24V / 36V |
| 2 | convex door | 832mm W*1860mm H | 24V / 36V |
| 3 | sliding door | 832mm W*1860mm H | 24V / 36V |
production line for our freezer room (Import from Europe)
Package
Some of our Project :(Domestic and Overseas )
Take part in the Exhibition every year:
