Help CenterSolid Door Bagged Ice Storage Bin DC-630
Related Products
-
Refrigerated Ice Storage Box With Static Refrigeration SystemUS$ 1,500 - 1,900MOQ: 1 Set -
Upright Ice Merchandiser With 2-glass Door Bagged Ice Storage Bin Temp -12degree CUS$ 1,160 - 1,300MOQ: 1 Set
-
CE/RoHs Approved Gas Station Bagged Ice Storage Bin for Ice MerchandiserUS$ 936 - 1,076MOQ: 2 Pieces
-
Ice Bag Storage Freezer / Ice Merchandiser Freezer 30 CuftUS$ 780 - 850MOQ: 1 Unit
-
Ice Bin With -12 Degrees C Outdoor UseUS$ 1,000 - 1,500MOQ: 1 Set
bagged ice storage bin for indoor & outdoor use ( 200 bags ice)
indoor & outdoor bagged ice storage bin with CE and RoHs certificate !!!
It is designed to storgae dry ice or bagged ice .
bagged ice storage bi Feature
Solid door bagged ice storage bin
1. Material: Painted galvanized steel / stainless steel foamed in polyurethane insultation
2. Temperature: -12 degree C adjustable
3. Compressor: Embraco
4. Refrigerant: R404a CFC free.
5. Single embossed stucco aluminum solid door / glass door
Self-closing door with heavy duty hinge can open up to 180 degree, Solid door or glass door option, with firm lock.
6.Static cooling with copper pipe/ Fan cooling optional(Automatic defrost)
7.Voltage and frequency can be changed as customer's requirement.
8.Steel sheet:painted galvanized steel / stainless steel.
9.Just according to clients' requirement .
bagged ice storage bin Specification
| Model | DC-630 |
| Certificate | CE&Rohs |
| Temperature range | -5°C |
| Capacity(liters) | 650 |
| Bag(8 Lbs) | 200 pcs |
| Steel finish | Painted galvanized steel |
| Insulation | Polyurethane 80mm thick |
| Dimension(W*D*H)inch | 72*35*80 |
| Dimension(W*D*H)mm | 1830*890*2030 |
| Door type | Soild door/ glass door |
| Door size(W*H)inch/mm | 660*1120mm |
| Door quantity | 1 |
| Refrigerant | R404a |
| Cooling system | Fan cooling optional(Automatic defrost) |
| Compressor brand | Embraco |
| 40ft container loading QTY | 13 pcs |
bagged ice storage bi storage capacity may vary due to the type of ice, ice bag size differences and methods of loading!Up to 100~320pcs bagged ice storage bin 8lbs.

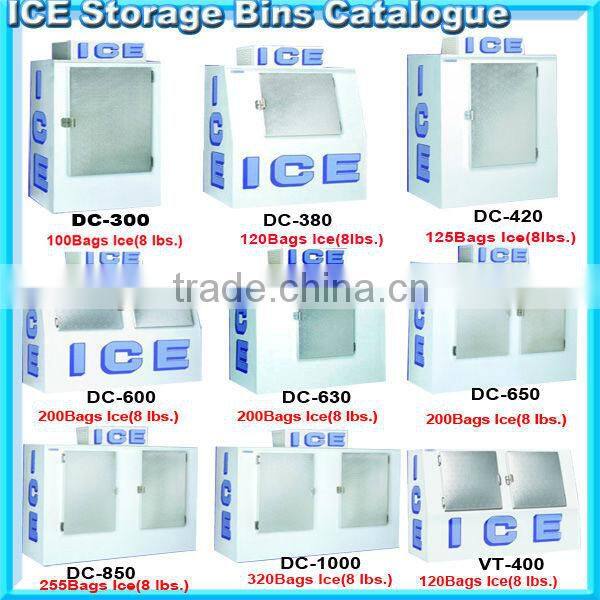

more series bagged ice storage bin for your choice
Model No.: |
DC-750 |
DC-420 |
DC-1000 |
DC-300 |
Temperature range: |
-5 to 0 ° C |
-5 to 0 ° C |
-5 to 0 ° C |
-5 to 0 ° C
|
Capacity (Cubic feet): |
75 |
42 |
100 |
30 |
Material: |
Galvanized Paint Steel |
Galvanized Paint Steel |
Galvanized Paint Steel |
Galvanized Paint Steel
|
Dimension (W*D*H) Inch |
72 x 35 x 78 |
48*30*80 |
94 x 35 x 78 |
36 x 30 x 78
|
Dimension (W*D*H) MM |
1829*889*1981 |
1220*760*2030 |
2388*889*1981 |
910*760*1980 |
Door type: |
Embossed aluminum |
Embossed aluminum |
Embossed aluminum |
Embossed aluminum
|
Refrigerant: |
R134a |
R134a |
R134a |
R134a/R404a
|
Cooling system: |
Fan cooling |
Fan cooling |
Fan cooling |
Fan cooling
|
Compressor: |
1/2 HP |
3/8 HP |
3/4 HP |
1/3 hp |
Compressor brand name: |
ASPERA |
ASPERA |
ASPERA |
ASPERA |

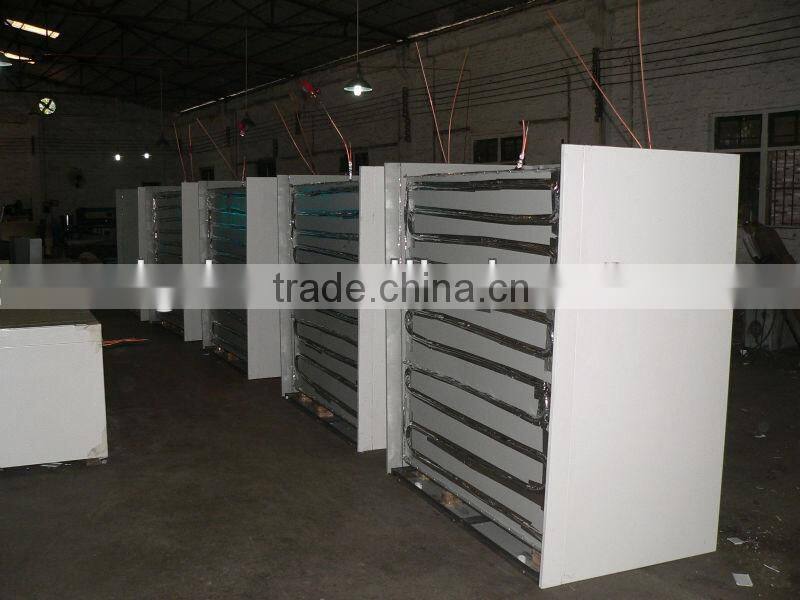

bagged ice storage bin with cold wall cooling system :Static cooling with copper pipe

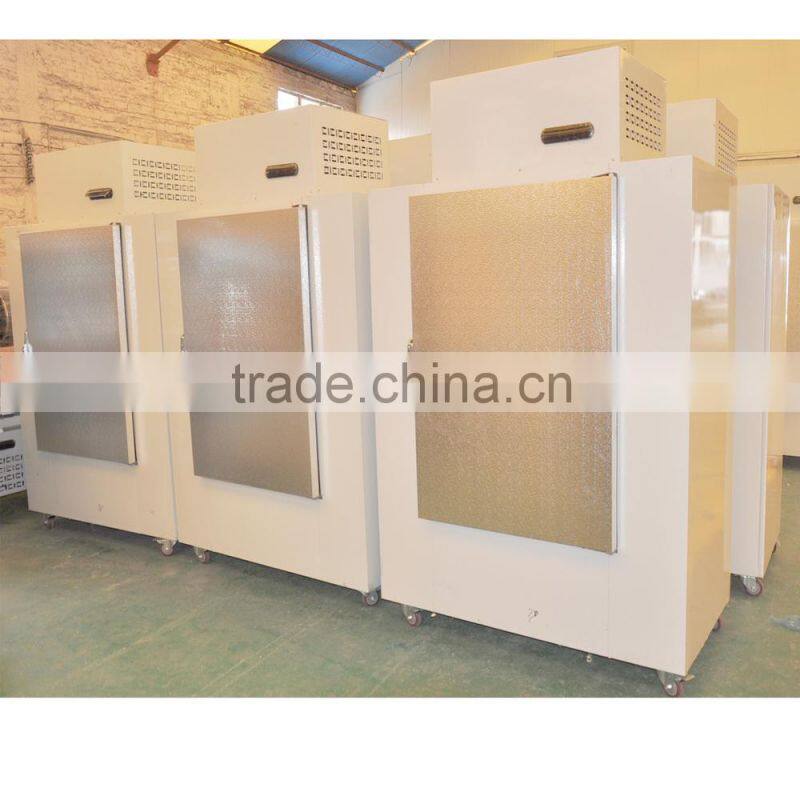

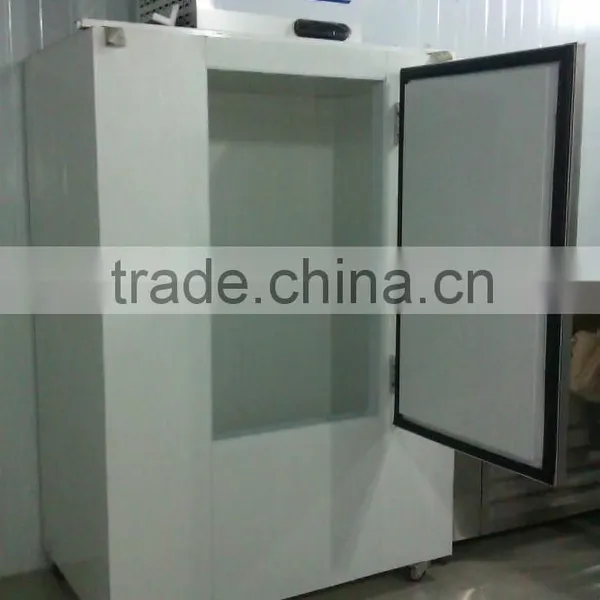

bagged ice storage bin solid door

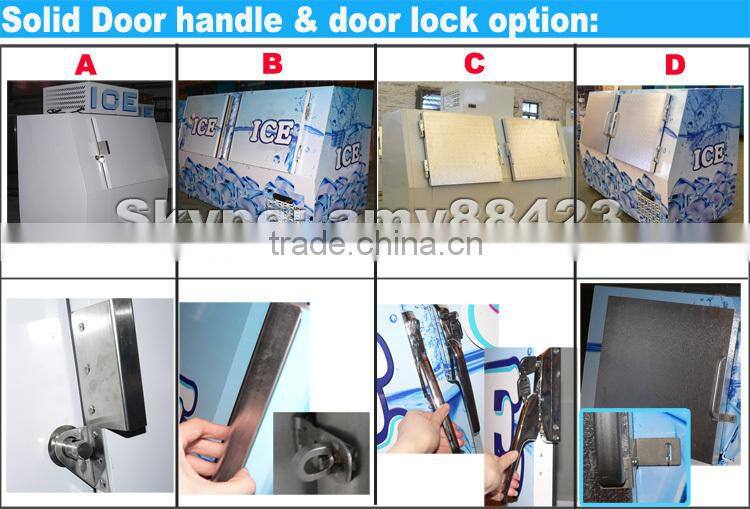

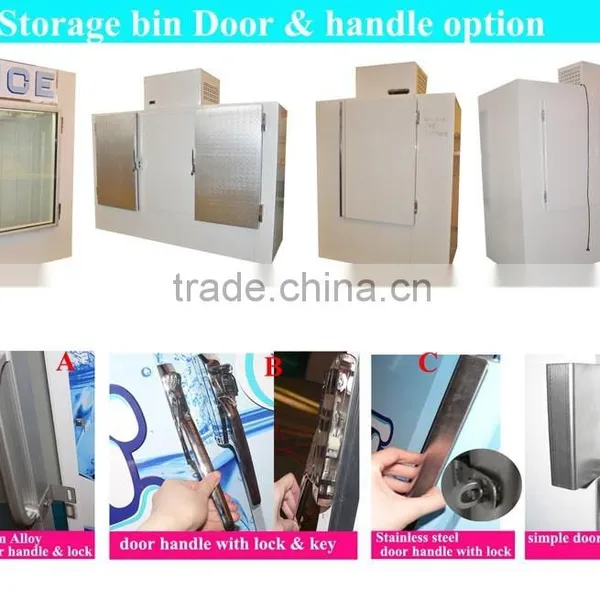

bagged ice storage bin door lock optional for the soild door

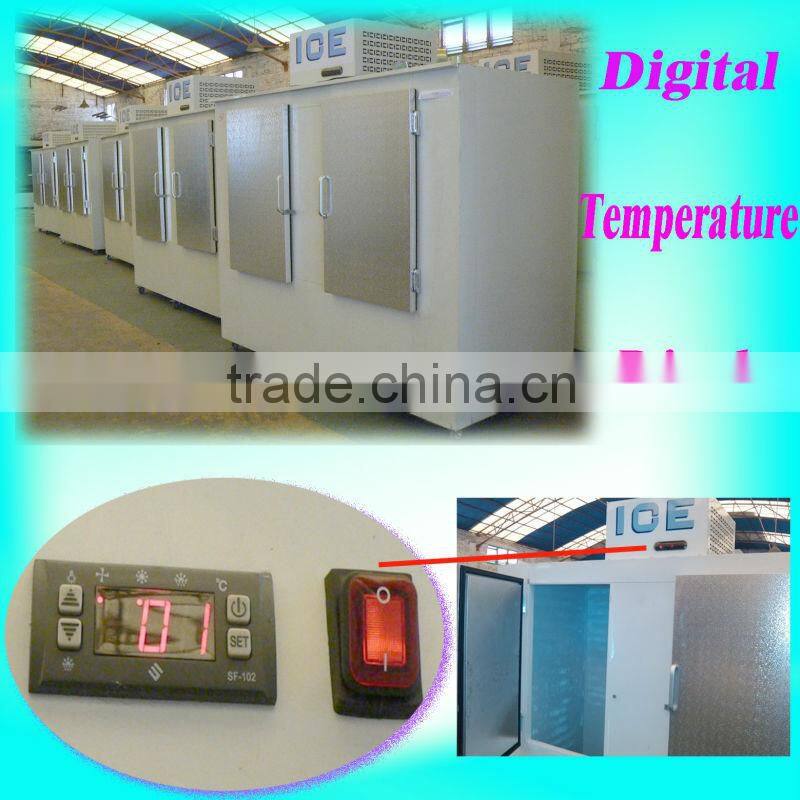

Bagged ice storage bin temperature display

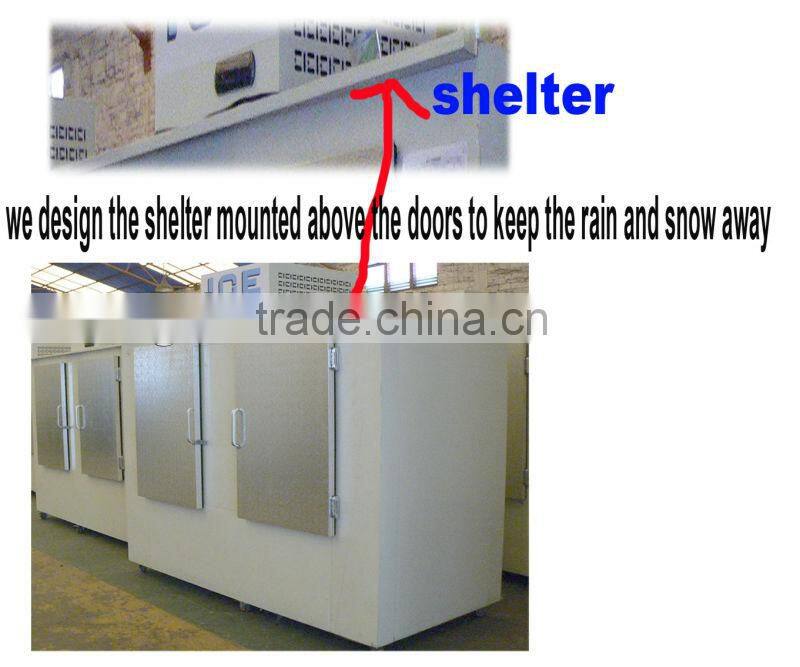

In order to make the bagged ice storaeg bin suitable for outdoor use , we install the rain /smow shelter mounted above the doors to keep the rain and snow away!

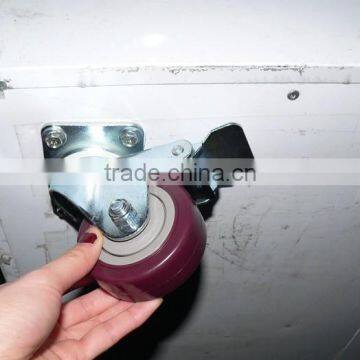

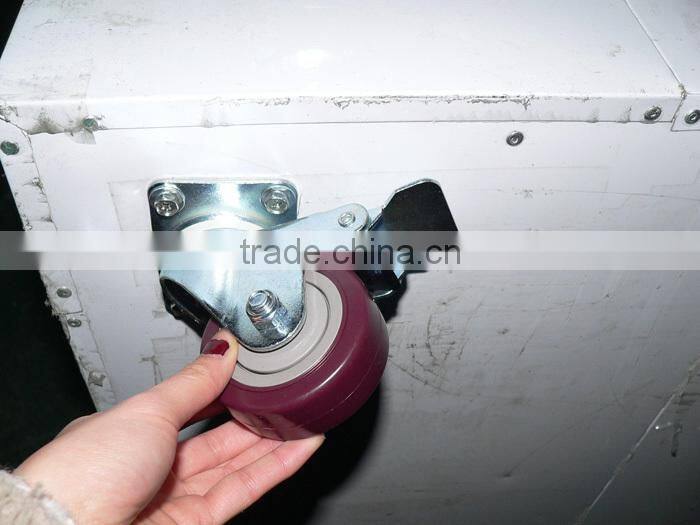

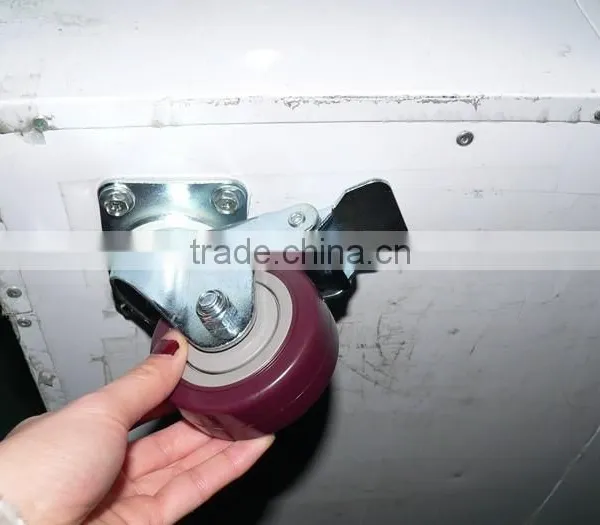

bagged ice storaeg bin bottom is installed the wheel or feet,which make the bagged ice storaeg bin mobile

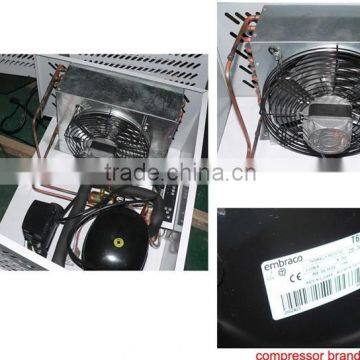

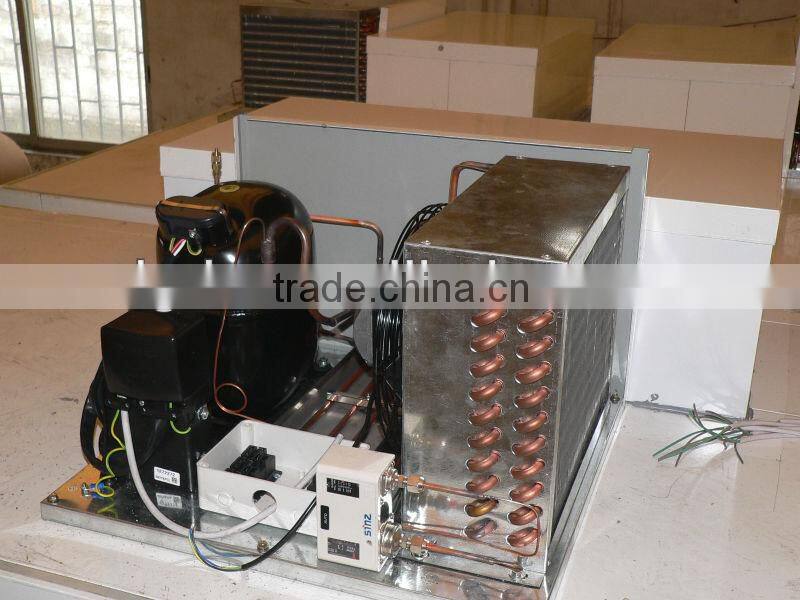

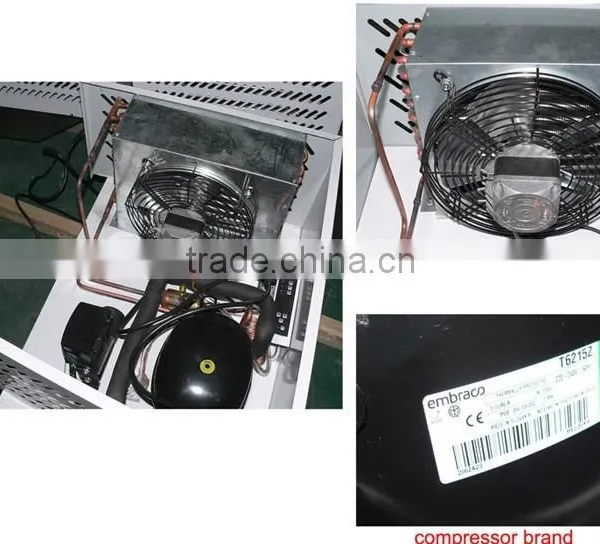

bagged ice storaeg bin Refrigerating unit :
bagged ice storaeg bin package
