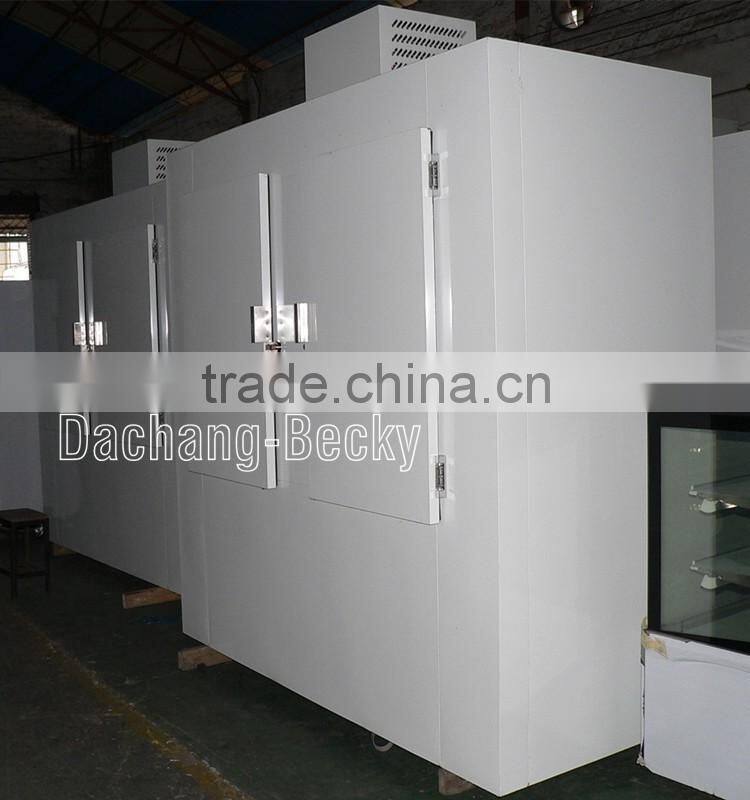

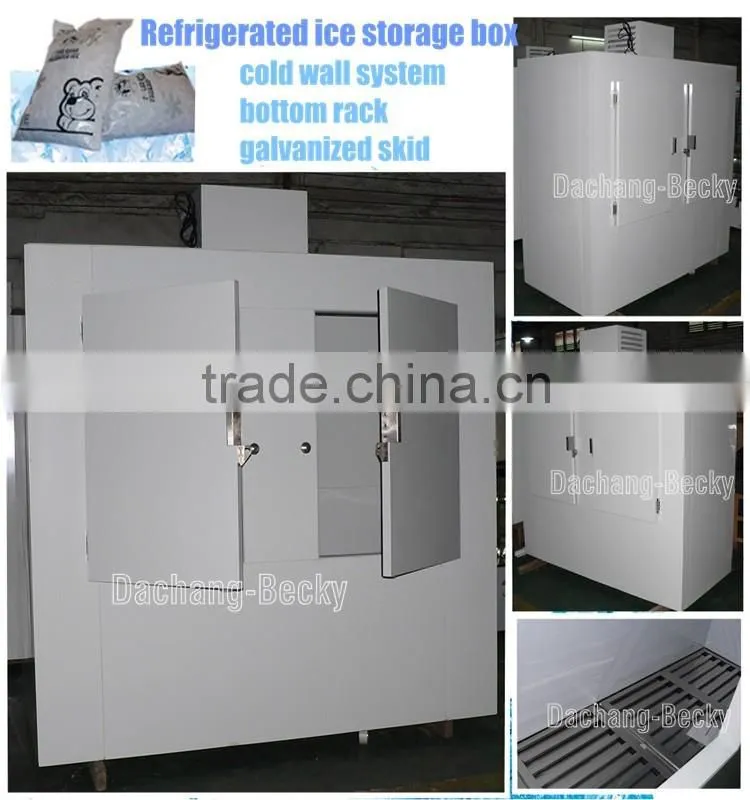

Refrigerated ice storage box with static refrigeration system
Specification of Refrigerated ice storage box
| Model | OEM ice merchandiser |
| Certificate | CE&Rohs |
| Temperature range | -12°C |
| Capacity(cubic feet) | 150 |
| Bag(8 Lbs) | 500 |
| Steel finish | Painted galvanized steel |
| Insulation | Polyurethane 80mm thick |
| Dimension(W*D*H)inch | 90.50*44*99 |
| Dimension(W*D*H) | 2300mm*1000mm*2200mm |
| Door type | Painted galvanized steel |
| Door size(W*H)inch | 26*44 |
| Door quantity | 2 solid doors |
| Refrigerant | R404a |

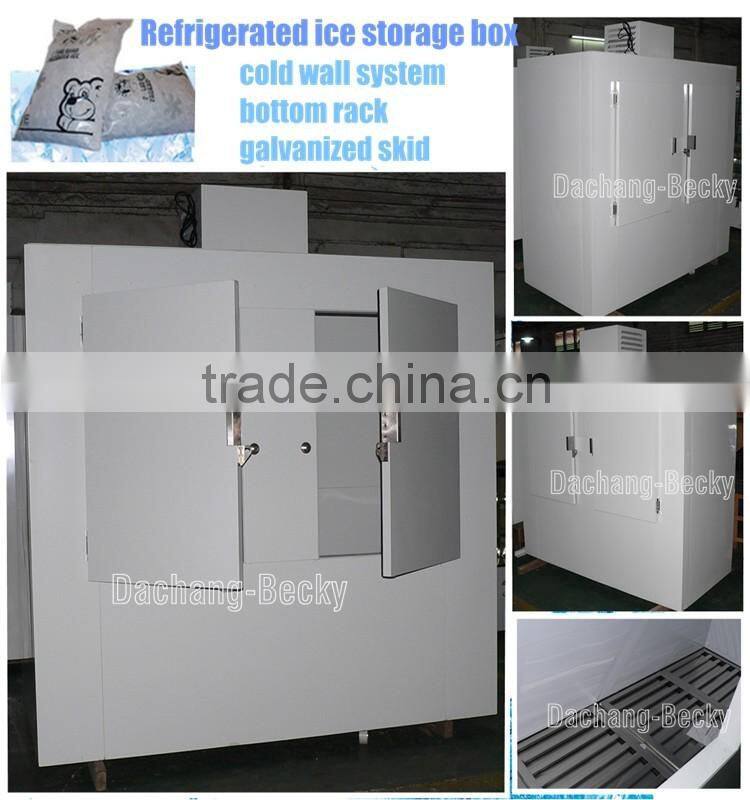

| Cooling system | static refrigeration system (cold wall) |
| Compressor brand | Embraco |
| 40ft container loading QTY | 10 pieces |
Feature of Refrigerated ice storage box
1. Polyurethane insulation,painted galvanized steel
2. PU insulation door with stainless steel / painted galvanized steel/ embossed aluminum
3. Good quality door rubber with magnet
4. Good quality wheels.Or we can make without wheels, or with bullet feet.
5. Drainage hole on the bottom of the ice bin
6. Air cooled and static cooling(copper pipe around the cupboard) optional
7. Voltage: 110V/60Hz, 220V/60Hz ,220V/50Hz

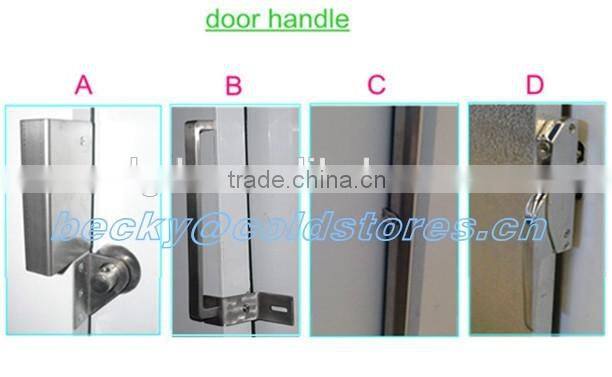

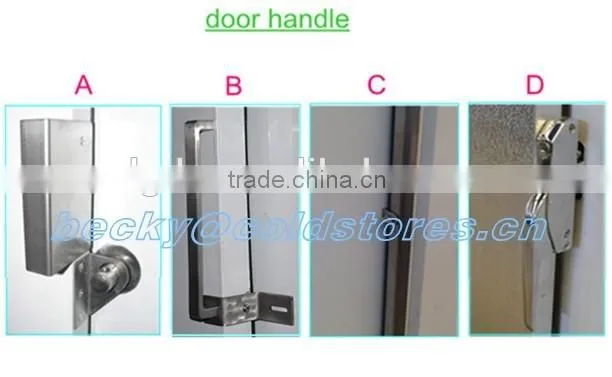

Handles and locks optional ice storage box

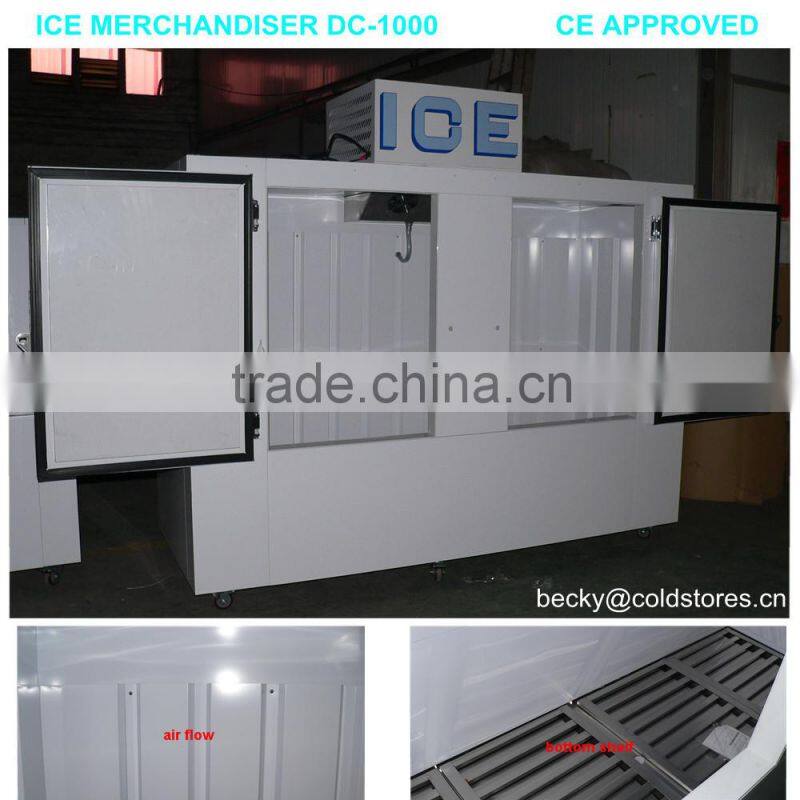

We also have fan cooling ice storage bin / ice merchandiser, we provide air flow to make the cold air even inside,and we provide bottom shelf to hold the ice to drain the water out from bottom drainage hole.
***FAN COOLING ICE MERCHANDISER

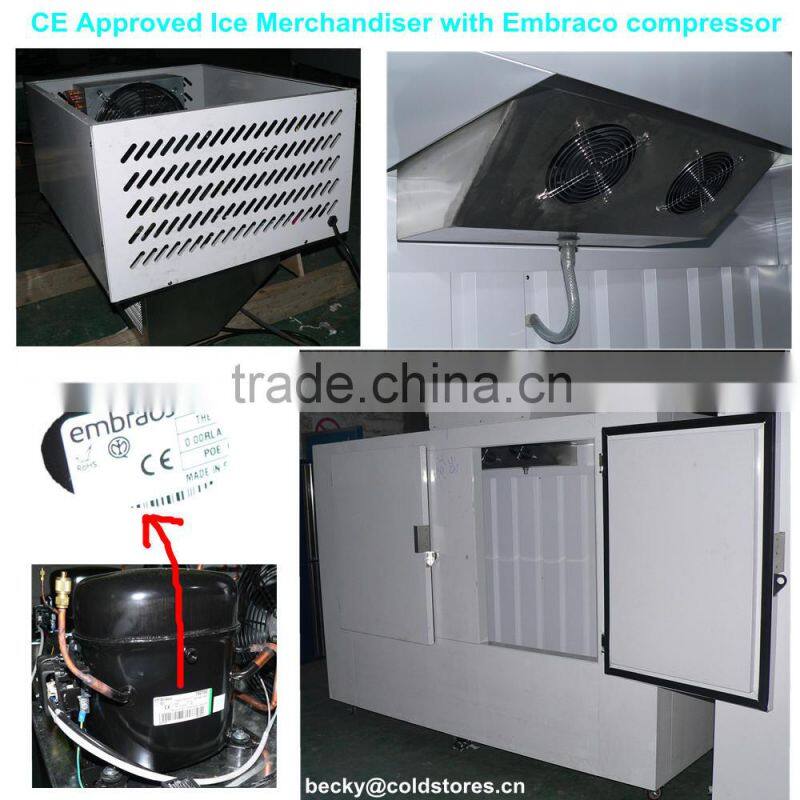

We design "drop-in"condensing unit together with evaporator, easy take out whole refrigeration unit for test and maintenance.
We usually use Embraco compressor, run with refrigerant R404a. If the ice storage bin is with fan cooling system, it is frost free.
We have ice storage bin/ ice merchandiser for indoor use and outdoor use, digital temperature control(waterproof for outdoor use).
The voltage and plug can be changed to meet client's actual need.
The ice storage bin/ice merchandiser can stand without / with roller(with brake)or adjustable bullet feet.

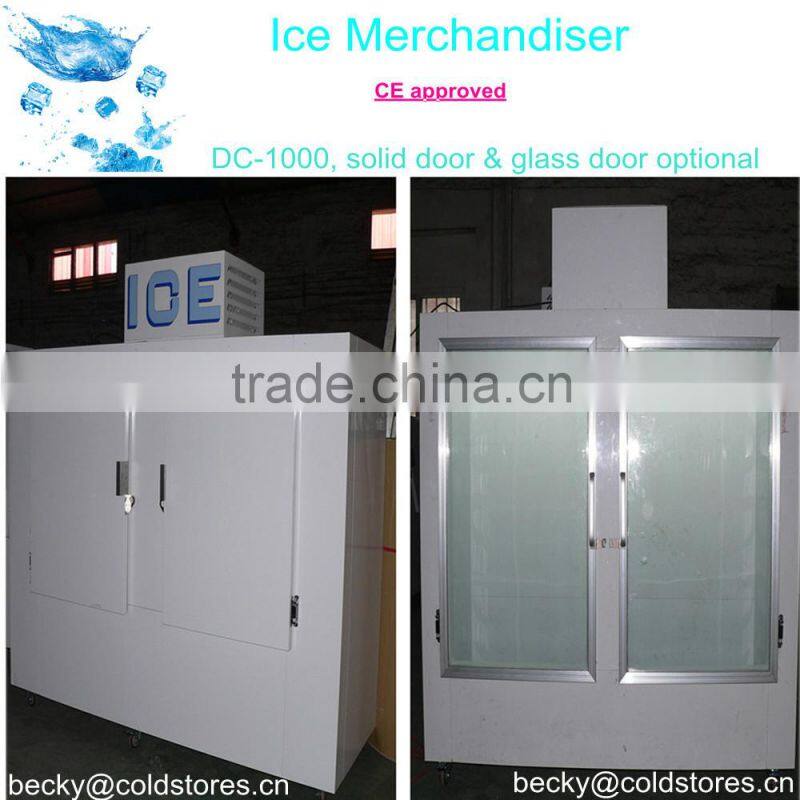

ice storage box can be with two big solid doors or you can choose it with beautiful glass door. There is LED lighting for glass door ice storage bins.
Ice merchandiser, we have many ice bin models with different capacity optional.
Temperature of the ice storage bins can be 0degree C/-5degree C/-12degree C/-18degree C.
The cooling system can be fan cooling or static cooling(Cold wall).
The door of the ice bins can be solid door or glass door.
The voltage can be changed as request.
We can asist you to make the logo artworks for the ice storage bin.

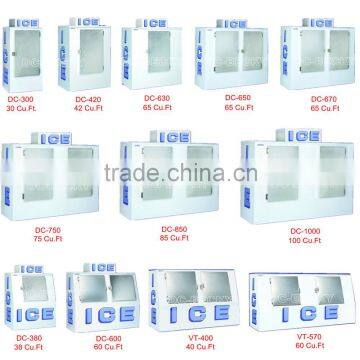

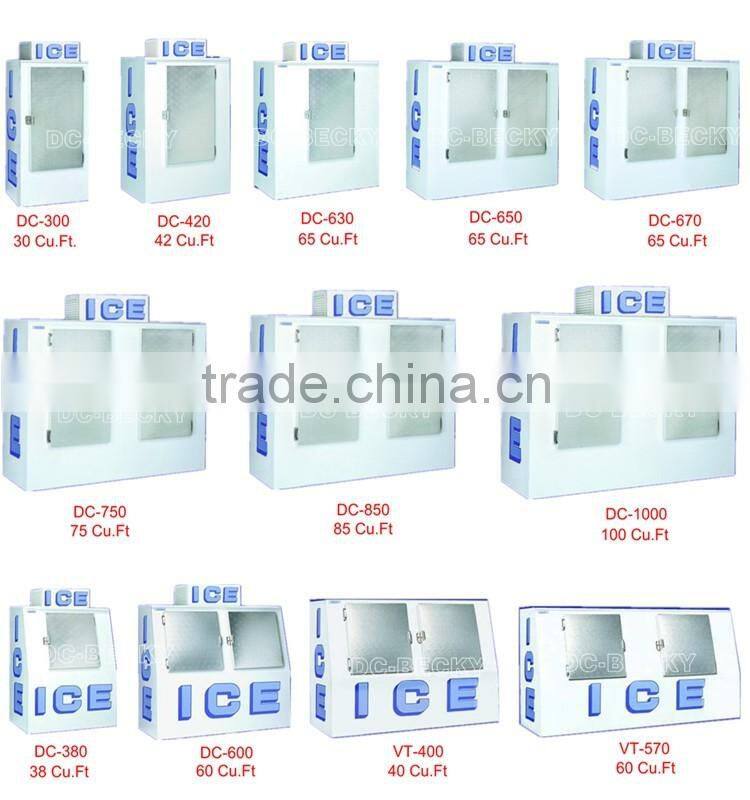

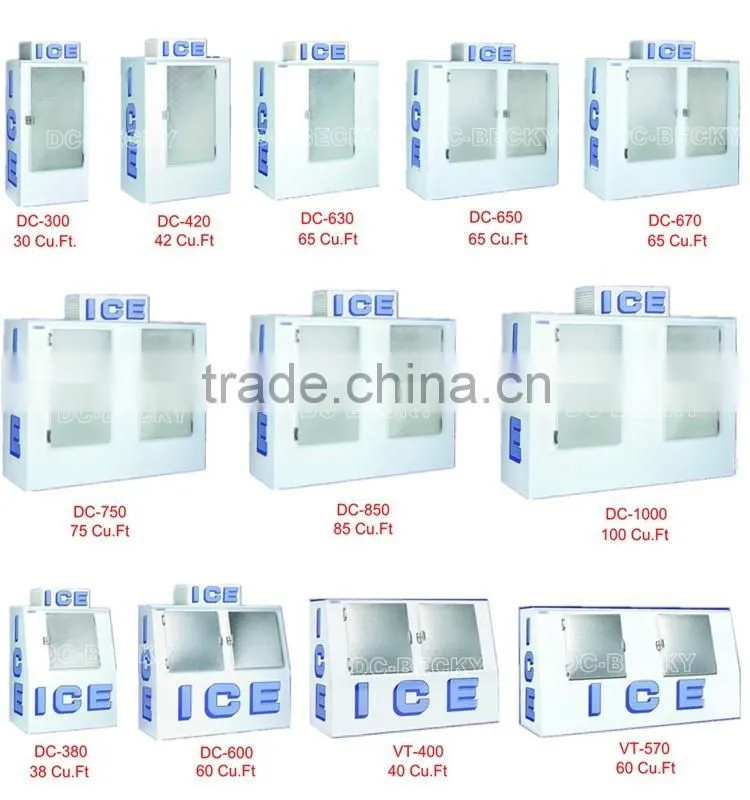

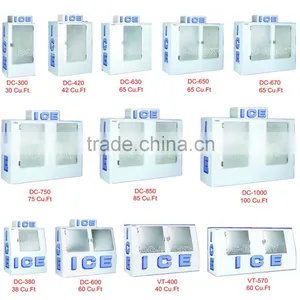

The ice storage bins with different capacity:

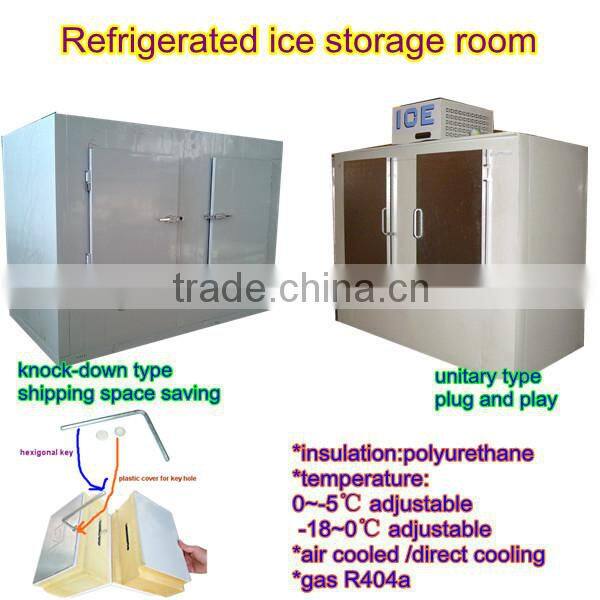

Besides full assembled ice merchandisers, we also provide flat pack ice storage room for your option:

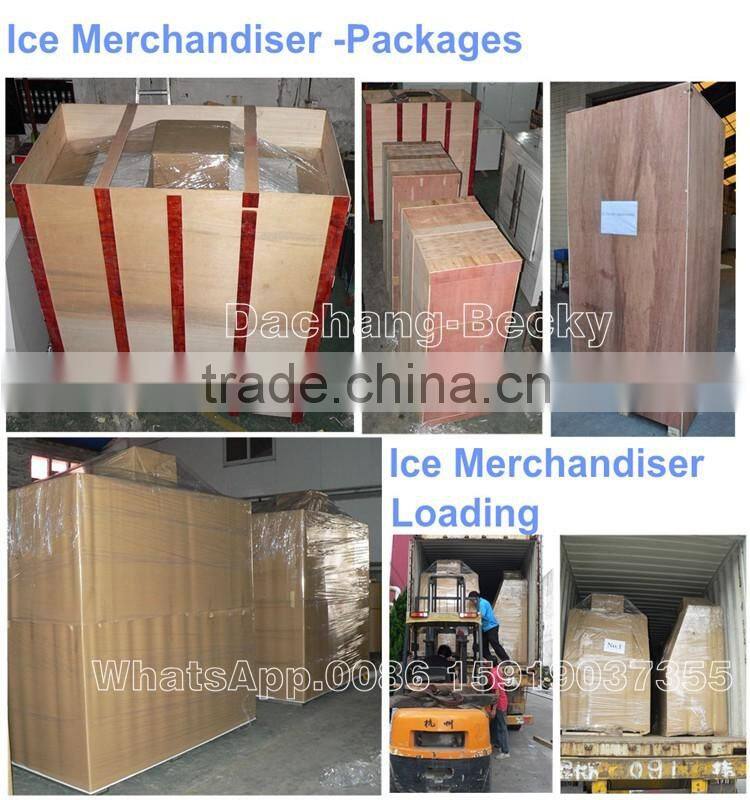

Packaging and shipping of ice storage box
