Home > Products > Display coldroom for supermarket > walk-in 10 Glass doors cold storage room

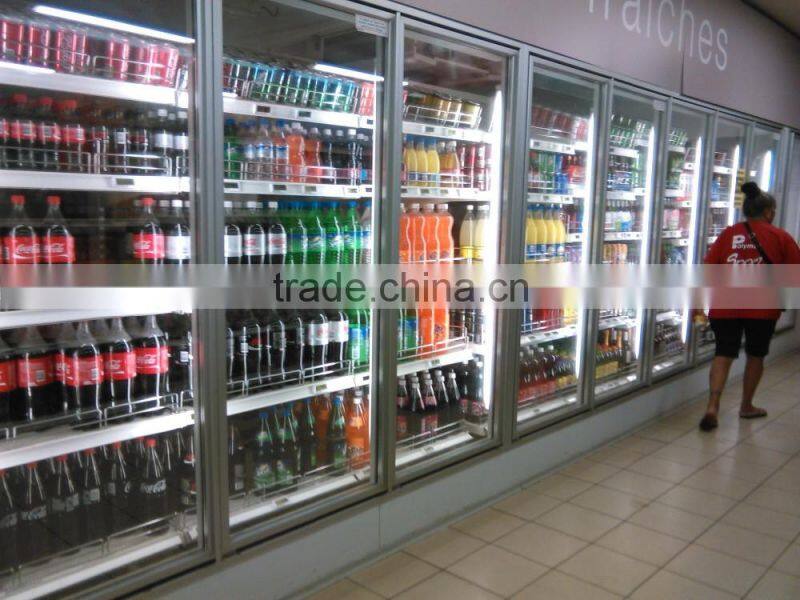

walk-in 10 Glass doors cold storage room
- 10160 Square Meter / Square Meters per Month
- FOSHAN CHINA
- T/T
- fresh Vegetable/fruit and meat cold storage warehouse
- Blast Freezer quick freezing for fish meat Ice Cream CE Approval
- vegetable/ fruits /meat/ beef quick freeze warehouse 200mm
- frozen cold room for meat and fish with solar power cold room thermometer
- Quick Frozen Cold Room for Pizza/Meat/Fish/Chicken/Vegetable
- frozen beef cold storage cold chain cold warehouse
Product Details
Condition: | New | Temperature: | -20~10℃ | Place of Origin: | Guangdong, China |
Brand Name: | Cold room | Model Number: | Cold room | Voltage: | 380V |
Power(W): | Customized product | Dimension(L*W*H): | Customized product | Weight: | Customized product |
Certification: | ISO9001:2000 CCC SGS | Warranty: | One year | After-sales Service Provided: | Overseas third-party support available |
Product Description
walk-in 10 Glass doors cold storage room
glass doors cold storage room is a new product with various standard dimension sizes. The storage capacity of it may be specified
or selected according to customer's requirements. The storage temperature of the cold room is
displayed and controlled by digital thermostat for precise control temperature and temperature
adjustment to achieve the utmost energy efficiency and perfect storage of food.
Glass door walk in cooler feature:
1.Using all parts of the main foreign brands, running more secure;
2.A unique way of cooling than traditional high-efficiency by about 30%;
3.To adopt environment-friendly refrigerant and fluorine-free refrigerant;
4.Mute design, low noise and give you a quiet office space;
5.Condensation unique: half of the natural convection, half of the air, even if the wind blocking dirty condenser, compressor's not easy to cause damage;
6.The production of stainless steel liner;
7.Round cavity design, easy to clean;
8.Outside the door silicone door seals tight blockade of air-conditioning;
9.R232 interface (optional) to help data analysis;
10.The removable cleaning dust,
11.According to the domestic high and wide doors designed for the handling and do not have to put in place to worry about;
12.PU extra-thick insulation so that heat and strengthen the structure;
13.With lights and shelvings
Glass door walk in cooler specification:
Glass Doors | 50mm panel(2~10C) | 75mm panel(0~-5C) | 100mm panel(-5~-20C) |
1 DOOR | 905*950*>1965mm | 955*950*>2015mm | 1005*950*>2065mm |
2DOORs | 1663*950*>1965mm | 1713*950*>2015mm | 1763*950*>2065mm |
3DOORs | 2421*950*>1965mm | 2471*950*>2015mm | 2521*950*>2065mm |
4DOORs | 3179*950*>1965mm | 3229*950*>2015mm | 3279*950*>2065mm |
5DOORs | 3937*950*>1965mm | 3897*950*>2015mm | 4037*950*>2065mm |
6DOORs | 4695*950*>1965mm | 4745*950*>2015mm | 4795*950*>2065mm |
7DOORs | 5453*950*>1965mm | 5503*950*>2015mm | 5553*950*>2065mm |
8DOORs | 6211*950*>1965mm | 6261*950*>2015mm | 6311*950*>2065mm |
9DOORs | 6969*950*>1965mm | 7019*950*>2015mm | 7069*950*>2065mm |
10 DOORs | 7727*950*>1965mm | 7777*950*>2015mm | 7827*950*>2065mm |
Glass door walk in cooler introduction:
1. Glass door walk in cooler panel
1)Panel test specification
No. | Inspection Item | Unit | Technology requirement | Inspection result |
1 | Density | kg/m3 | 32~50 | 43 |
2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
3 | Bending Stregth | Kpa | ≥ 245 | 331 |
4 | Absording rate | % | ≤ 4 | 3 |
5 | Heating coefficient | W/m.k | 0.024 | 0.021 |
6 | Average burning time(vertical) | S | ≤ 30 | 3 |
7 | Average burning height(vertical) | s | ≤ 250 | 250 |
2)Panel advantages
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel
with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the
painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in.

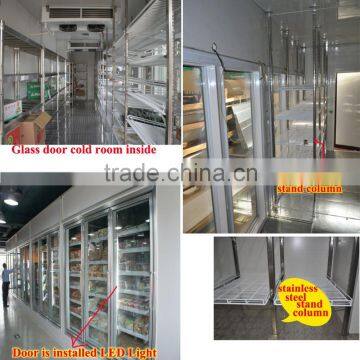

2. Glass door walk in cooler parts
1)Plastic coated shelf
2)Light and glass door heating tube switch
3. Glass door walk in coolerrefrigeration unit
4.Cold storage room installation
5. Glass door walk in cooler package
6.Cold room panel production procedure
Cold storage room project:
Cold storage room certificate:
Factory picture:
