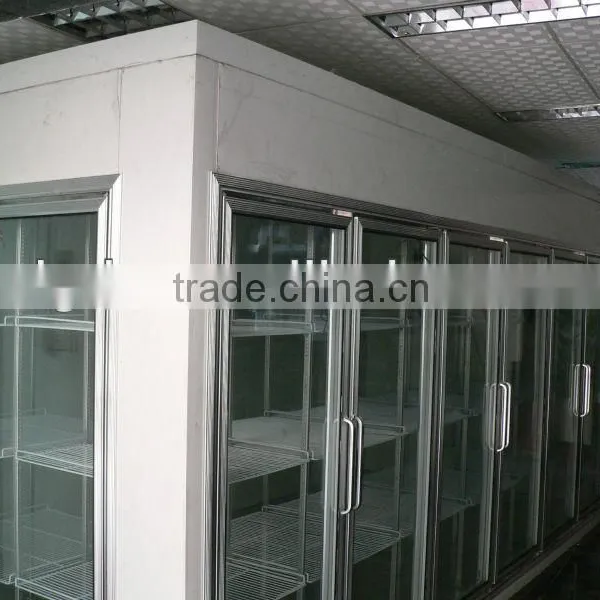

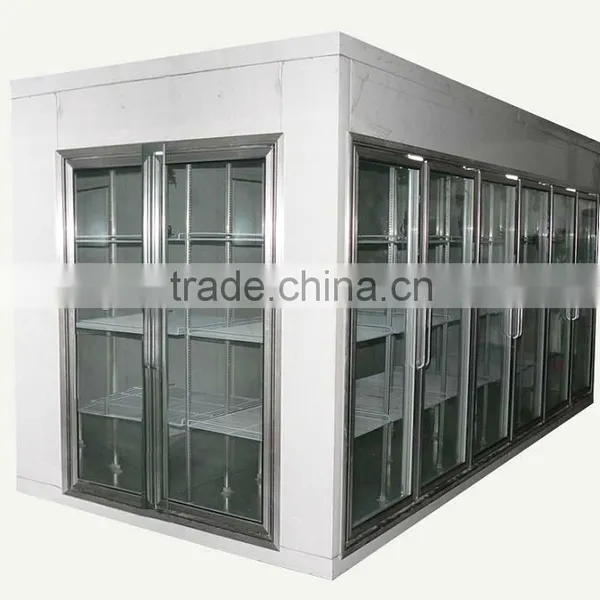

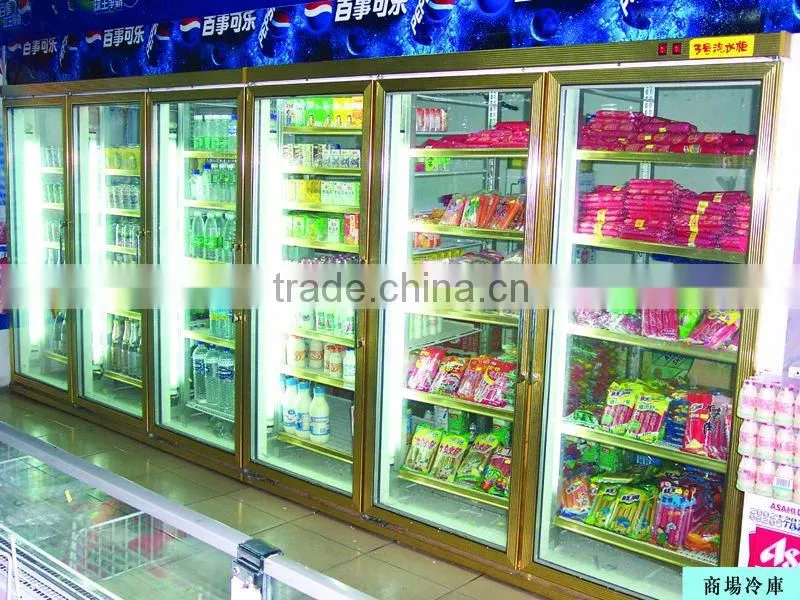

Supermarket display cold room
Polyurethane display cold room with heated glass door
Feature:
1.using all parts of the main foreign brands, running more securely;
2.an unique way of cooling than traditional high-efficiency by about 30%;
3.to adopt environment-friendly refrigerant and fluorine-free refrigerant;
4.mute design, low noise and give you a quiet office space;
ndensation unique: half of the natural convection, half of the air, even if the wind blocking dirty condenser, compressor's not easy to cause damage;
6.the production of stainless steel liner;
7.outside the door silicone door seals tight blockade of air-conditioning;
8.the removable cleaning dust;
9.PU extra-thick insulation so that heat and strengthen the structure
10.with lights and shelvings..
Polyurethane display cold store Specification
Display cold store measurement | |||
Glass Doors |
50mm panel(2~10C) |
75mm panel(0~-5C) |
100mm panel(-5~-20C) |
1 DOOR |
905*950*>1965mm |
955*950*>2015mm |
1005*950*>2065mm |
2DOORs |
1663*950*>1965mm |
1713*950*>2015mm |
1763*950*>2065mm |
3DOORs |
2421*950*>1965mm |
2471*950*>2015mm |
2521*950*>2065mm |
4DOORs |
3179*950*>1965mm |
3229*950*>2015mm |
3279*950*>2065mm |
5DOORs |
3937*950*>1965mm |
3897*950*>2015mm |
4037*950*>2065mm |
6DOORs |
4695*950*>1965mm |
4745*950*>2015mm |
4795*950*>2065mm |
7DOORs |
5453*950*>1965mm |
5503*950*>2015mm |
5553*950*>2065mm |
8DOORs |
6211*950*>1965mm |
6261*950*>2015mm |
6311*950*>2065mm |
9DOORs |
6969*950*>1965mm |
7019*950*>2015mm |
7069*950*>2065mm |
10 DOORs |
7727*950*>1965mm |
7777*950*>2015mm |
7827*950*>2065mm |
Polyurethane display cold store Product Information
| Dimension | Length (m) *Width (m)*Height (m) |
| Panel | polyurethane insulation panel,43kg/m3, fire resistance |
| Foaming material | BASF environmental friendly |
| Panel thickness | 50mm,75mm,100mm,150mm,200mm |
| Steel cover | painted galvanized steel(optional:stuccom embossed aluminum,,stainless steel,PVC stell) |
| Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
| Type of door | sliding door(hinge door&convex door optional) |
| Temp.of room | -22 degree C |
| Purpose of cold room | fruit,vegetable,flower,fresh/frozen meat etc |
| Refrigeration unit | Copeland / Bitzer / Zanotti etc |
| Refrigeration type | air cooled / water cooled |
| Fittings | all necessary fittings are included, optional |
| Place to assemble | indoor/out door(concrete construction building/steel construction building) |
| Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ,400V/60Hz optional |

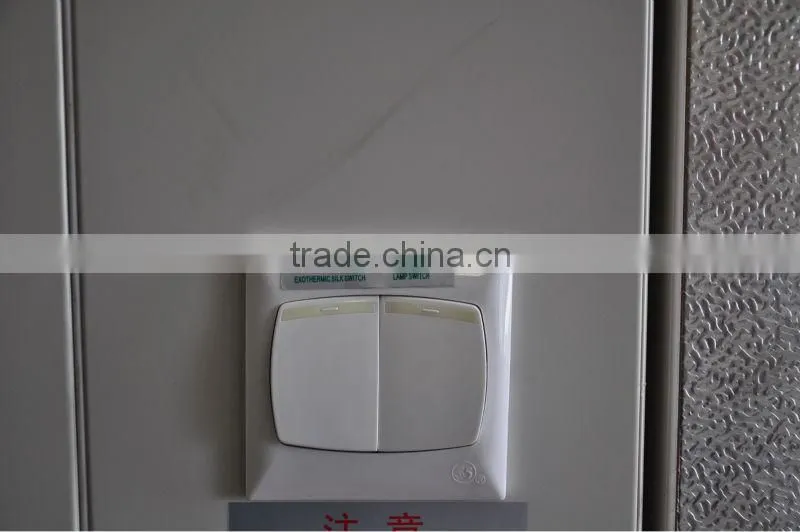

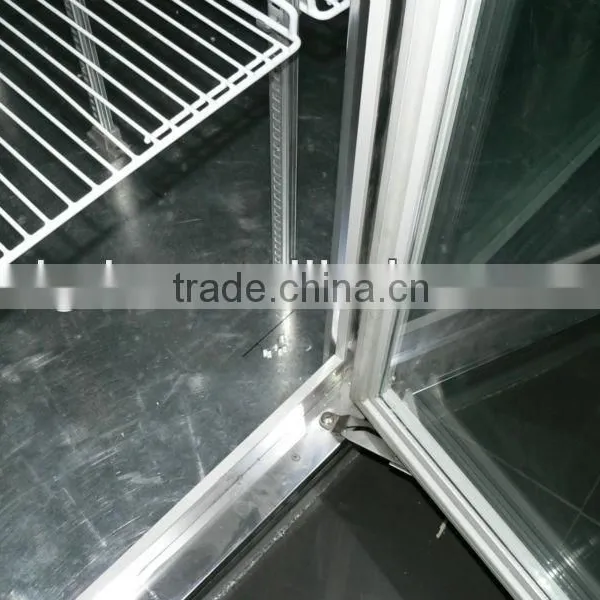

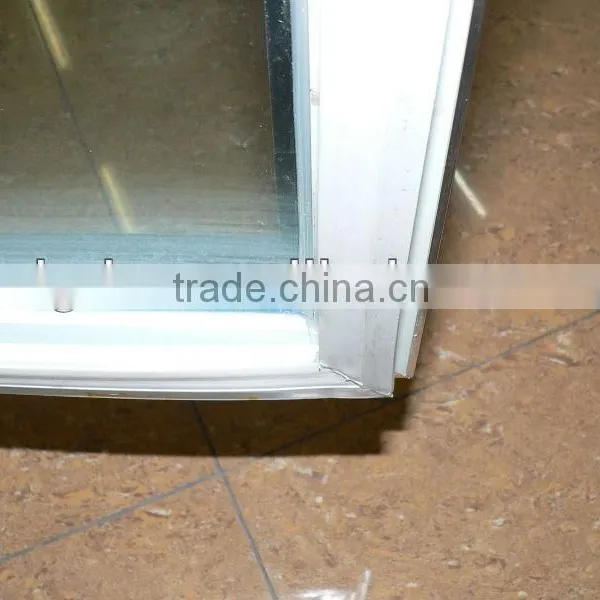

Polyurethane display cold store Glass door with heater (the switch to control the light and door heater)

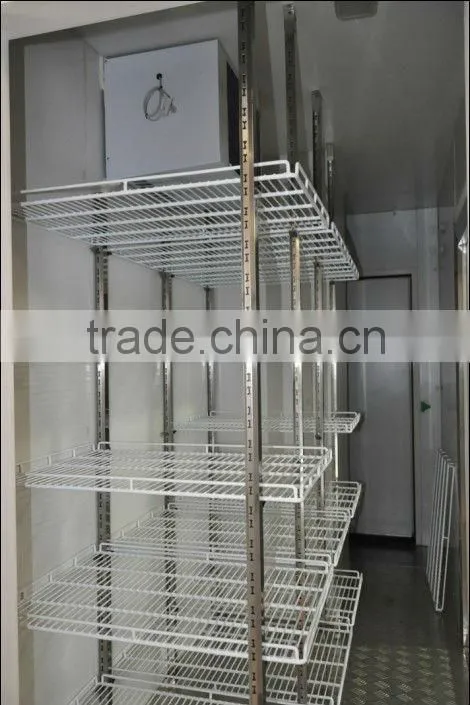

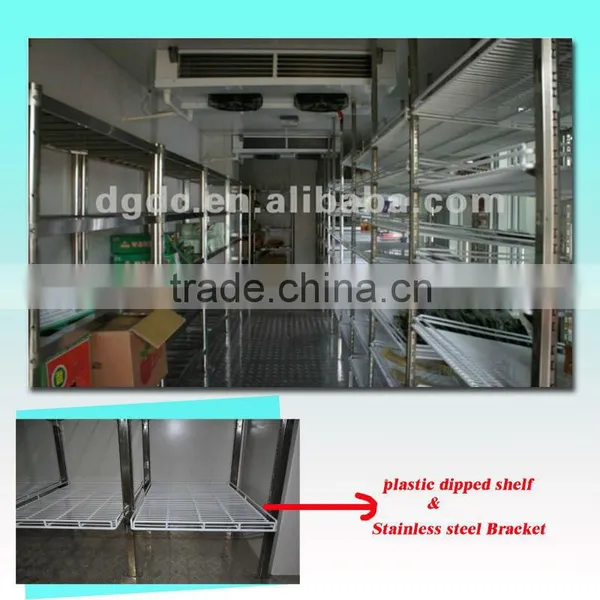

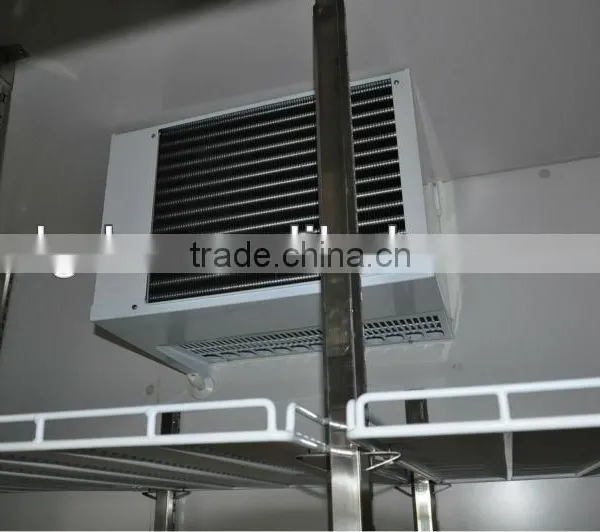

the dipped plastic shelf &non-slip floor for the Polyurethane display cold store

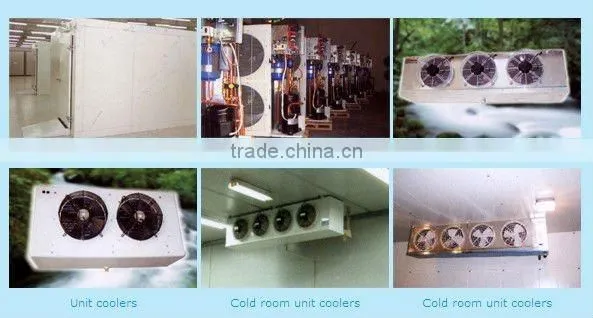

Features of the Polyurethane display cold store condensing units:
•Compliant,accurate,fewer moving parts,the exclusive copeland design guarantee the supper reliability.
•Wide flexibility,Energy saving,Low noise.
•Low vibration,space and weight saving,Energy saving.
•can be used in more higher ambient temperature.
Polyurethane display cold store sandwich panel : (polyurethane insulation panel foam by high pressure,with fire retardant,density about 43kg/m3)
Polyurethane display cold store panel:
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
our panel advantages :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the
panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self-extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world,
they promise the painted galvanized steel they produce will not fade in 15~20 years.
4. Gasket is around the edge of each Polyurethane display cold store panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
It enable the cold room with better air-tightness.
So our panel is with excellent thermal insulation effect .
It is saving energy.
Company Certificate
Production line of PU panels
Some of our Polyurethane display cold store Project :
Some of our well know clients:
Take part in the Exhibition every year:
