walk-in refrigerator for supermarket
Storage walk-in refrigerator and display walk-in refrigerator are one of our specialties here . Our walk-in refrigerator are perfect for use by florists, grocery floral departments and convenience stores. They feature refrigeration that holds temperature constant and is high humidity and low velocity which allows for the proper storage of delicate flowers and plants. Our walk-in refrigerator are a great investment for your business and will perform for many years to come.
we are a professional manufacturer,which help our clients to customize the walk-in refrigerator .Pls answer us the following questions. Tks!
1.Which country the walk-in refrigerator located?
2.External dimension of the walk-in refrigerator ?(m)
3.What Kind of products is gonna store in the room?
4.Required temperature inside the walk-in refrigerator (°C)?
5.what kind of door your require? Hinged door,manual/electric sliding door or glass door?
walk-in refrigerator Product Information:
| Dimension | customize made |
| Panel | polyurethane insulation panel,43kg/m3, fire retardant |
| Foaming material | BASF |
| Panel thickness | 50mm,75mm,100mm,150mm,200mm |
| Steel cover | stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
| Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
| Type of door | hinge door, convex door, sliding door |
| Temp.of room | -45~+20 degree, optional |
| Purpose of cold room | fruit,vegetable,flower,fresh/frozen meat etc |
| Refrigeration unit | Copeland / Bitzer / Sanyo etc |
| Refrigeration type | air cooled / water cooled |
| Fittings | all necessary fittings are included, optional |
| Place to assemble | indoor/out door(concrete construction building/steel construction building) |
| Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ |
standard walk-in refrigerator measurement | |||
Glass Doors |
50mm panel(2~10C) |
75mm panel(0~-5C) |
100mm panel(-5~-20C) |
1 DOOR |
905*950*>1965mm |
955*950*>2015mm |
1005*950*>2065mm |
2DOORs |
1663*950*>1965mm |
1713*950*>2015mm |
1763*950*>2065mm |
3DOORs |
2421*950*>1965mm |
2471*950*>2015mm |
2521*950*>2065mm |
4DOORs |
3179*950*>1965mm |
3229*950*>2015mm |
3279*950*>2065mm |
5DOORs |
3937*950*>1965mm |
3897*950*>2015mm |
4037*950*>2065mm |
6DOORs |
4695*950*>1965mm |
4745*950*>2015mm |
4795*950*>2065mm |
7DOORs |
5453*950*>1965mm |
5503*950*>2015mm |
5553*950*>2065mm |
8DOORs |
6211*950*>1965mm |
6261*950*>2015mm |
6311*950*>2065mm |
9DOORs |
6969*950*>1965mm |
7019*950*>2015mm |
7069*950*>2065mm |
10 DOORs |
7727*950*>1965mm |
7777*950*>2015mm |
7827*950*>2065mm |
walk-in refrigerator panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

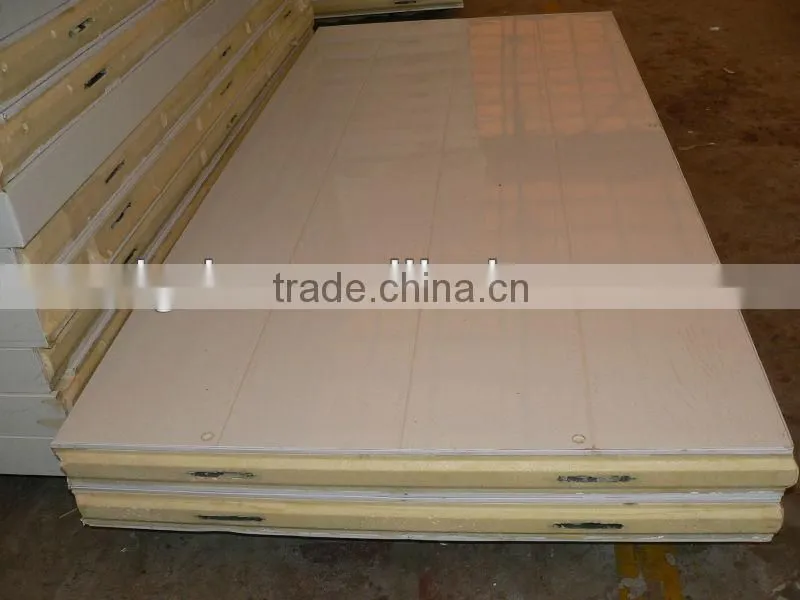

Our panel advantage
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each walk-in refrigerator panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

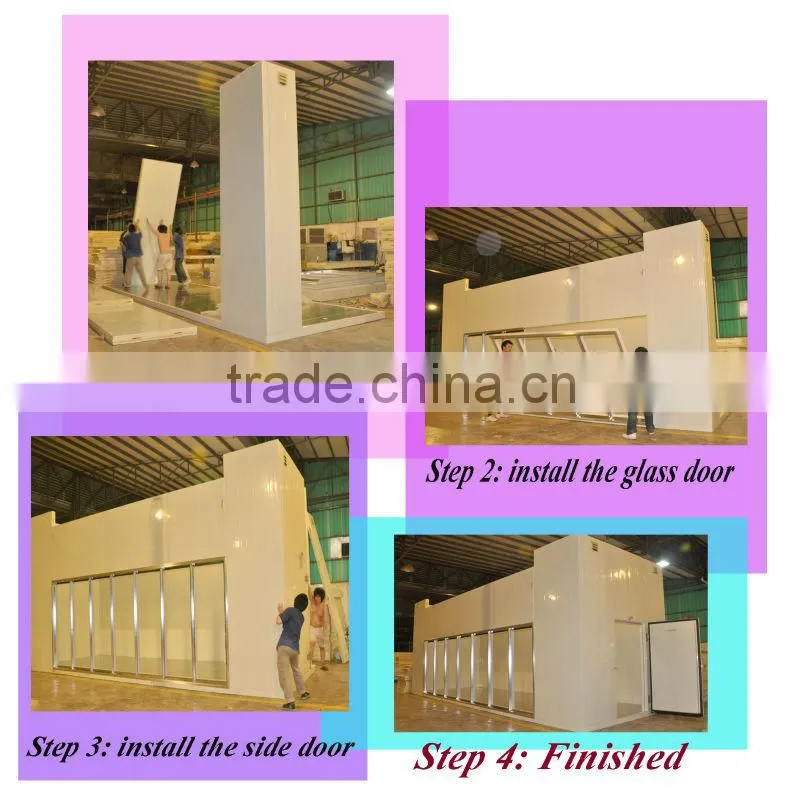

walk-in refrigerator Installation tool: hexagonal key
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
walk-in refrigerator floor

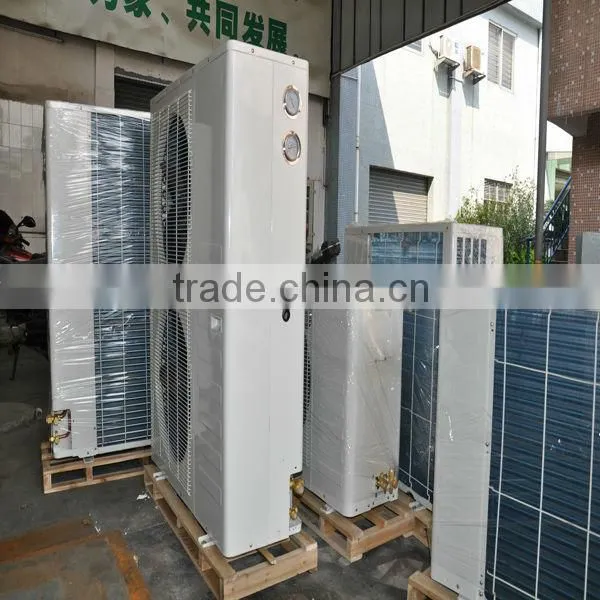

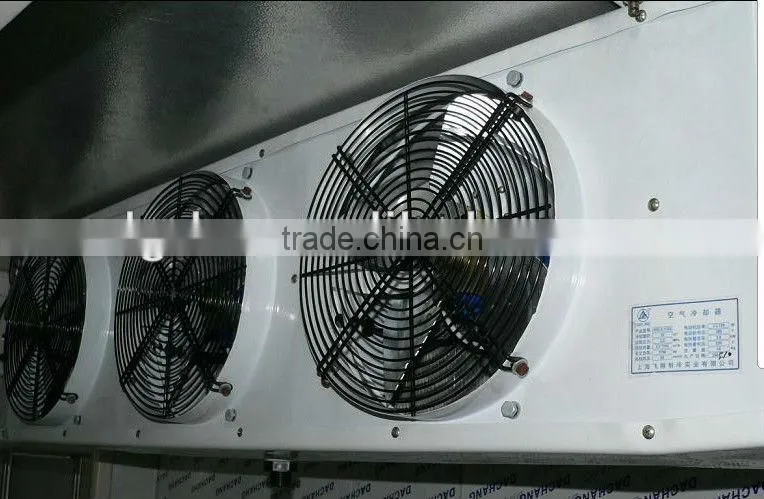

walk-in refrigerator condensing units

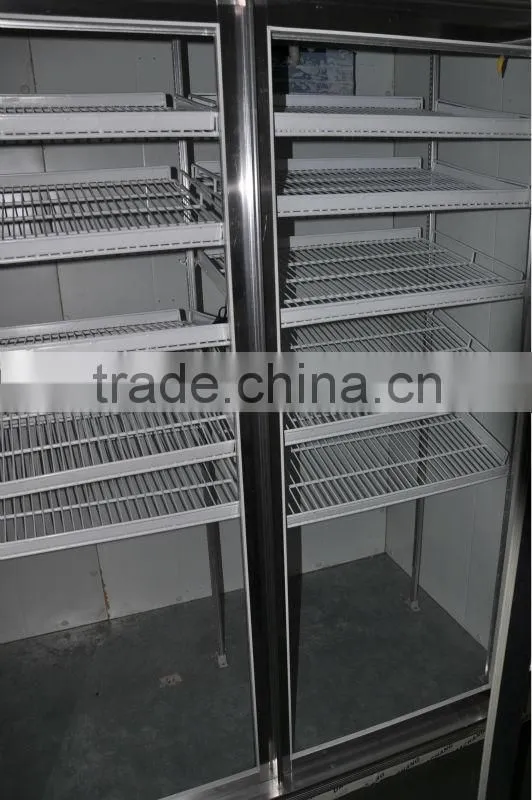

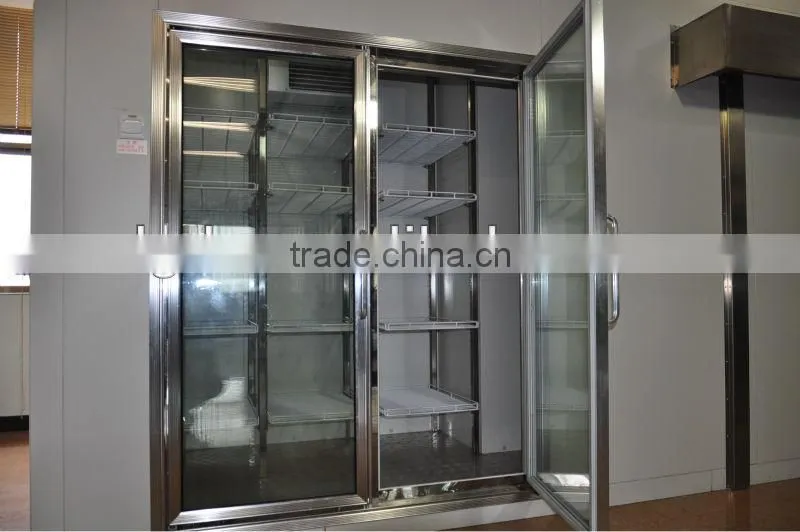

walk-in refrigerator door &shelf
glass Door size: W:725*H:1775 mm
shelf: plastics-dipping shelf (5 pcs/set) (L:726*W:600mm)

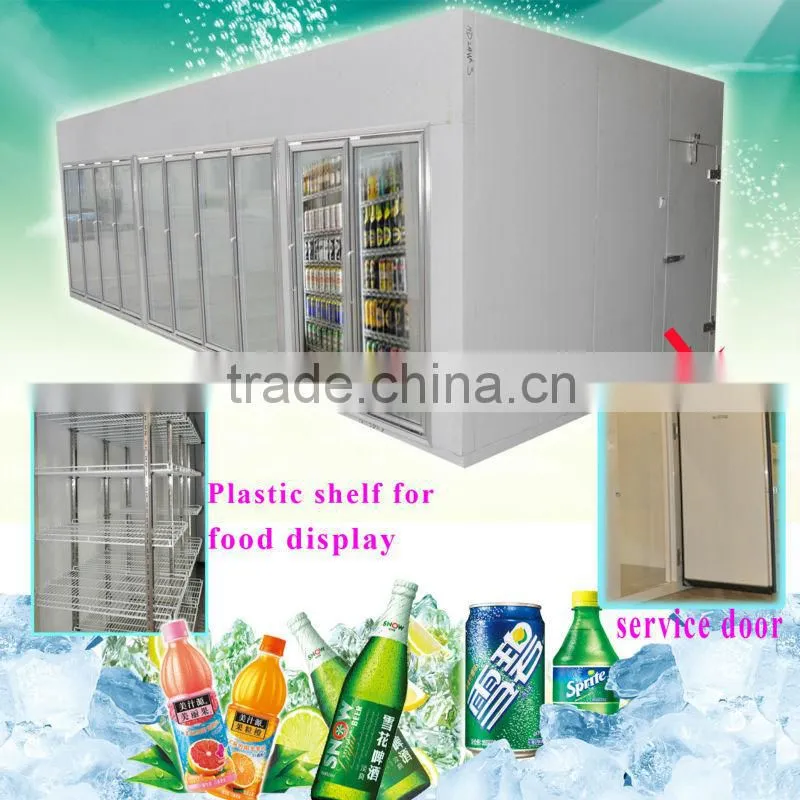

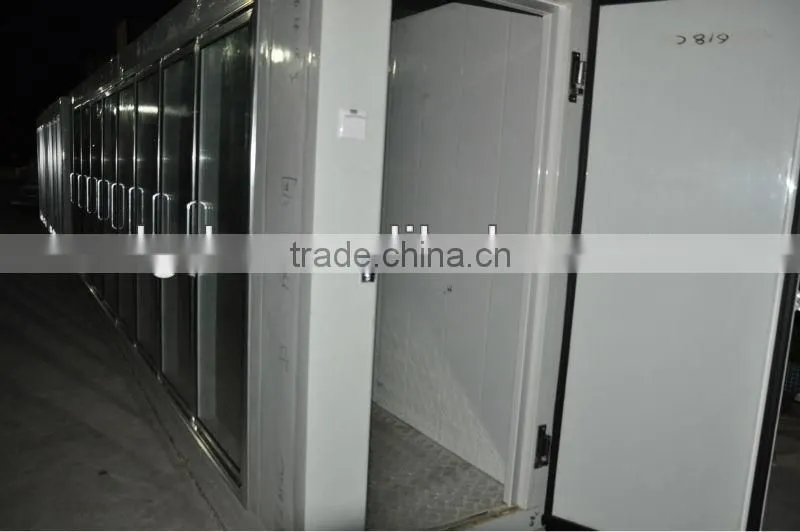

Service door for people come into the walk-in refrigerator to display the food
production line for our walk-in refrigerator
Take part in the Exhibition every year:
