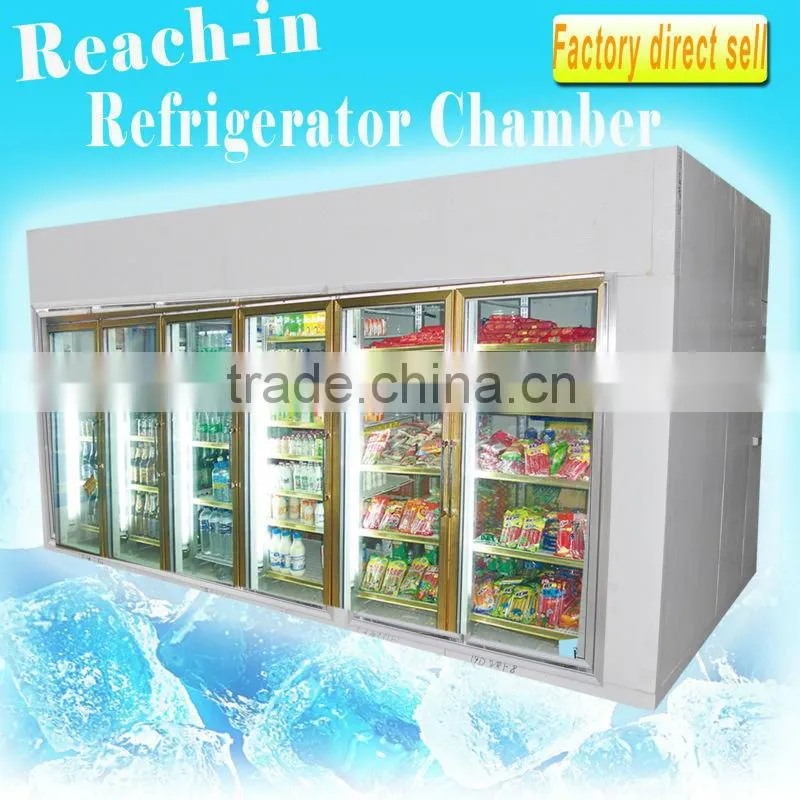

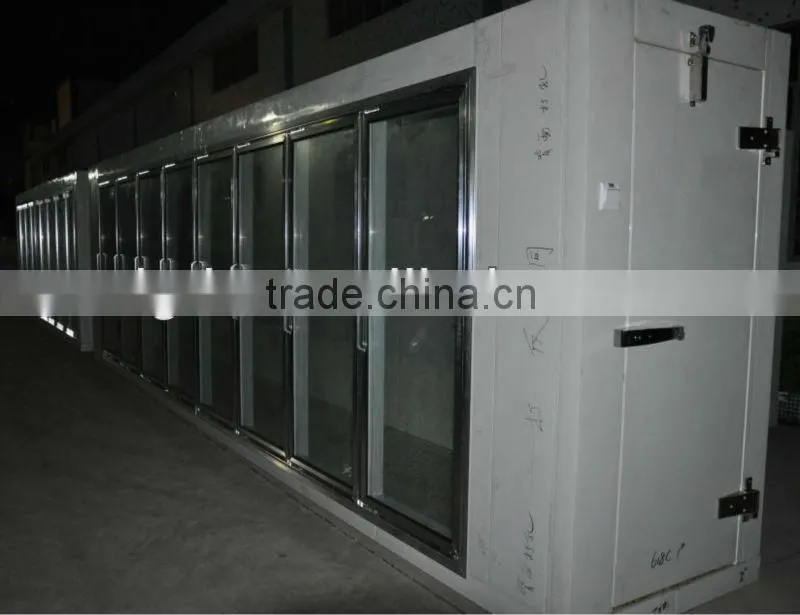

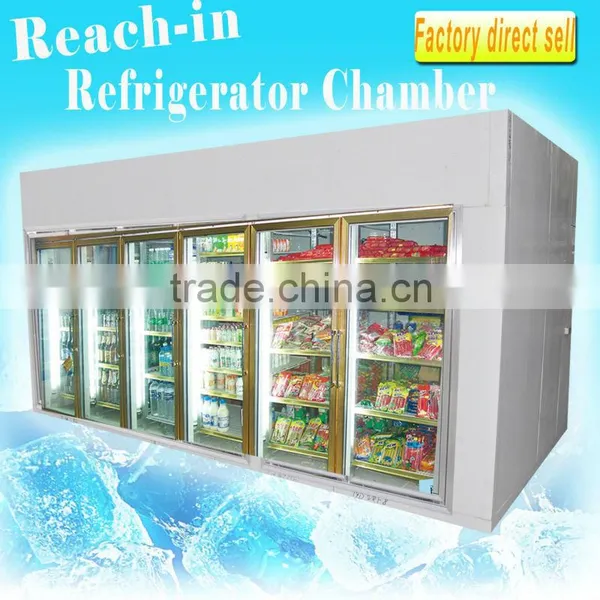

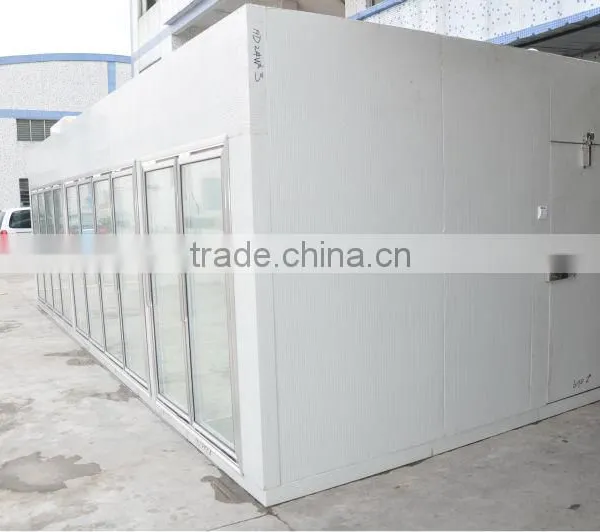

walk in cooler display room
we are a professional manufacturer,which help our clients to customize the walk in cooler .Pls answer us the following questions. Tks!
1.Which country the walk in cooler located?
2. walk in cooler being installing inside the building or putting outside the house?
4.External dimension of the coolroom ?(m)
5.What Kind of products is gonna store in the room?
6.Required temperature inside the walk in cooler (°C)?
7.How much kilograms of products put in coolroom per once(kg/once)?
9.what kind of door your require? Hinged door,manual/electric sliding door or glass door?
walk in cooler Components:
1.panel:polyurethane insulation panel foam by high pressure,with fire retardant,density about 43kg/m3,panel thickness 100mm/150mm/200mm
2.Side door: convex door / hinge door,with safety knob for opening the door inside.
ndensing unit:Bitzer,Copeland etc.
4.evaporator:branded air cooler
5.Danfoss expansion valve
6.Dachang control box
7.other accessories:pressure relief vent,copper pipe,light and switches,drainage system etc.
walk in cooler Product Information:
| Dimension | customize made |
| Panel | polyurethane insulation panel,43kg/m3, fire retardant |
| Foaming material | BASF |
| Panel thickness | 50mm,75mm,100mm,150mm,200mm |
| Steel cover | stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
| Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
| Type of door | hinge door, convex door, sliding door |
| Temp.of room | -45~+20 degree, optional |
| Purpose of cold room | fruit,vegetable,flower,fresh/frozen meat etc |
| Refrigeration unit | Copeland / Bitzer / Sanyo etc |
| Refrigeration type | air cooled / water cooled |
| Fittings | all necessary fittings are included, optional |
| Place to assemble | indoor/out door(concrete construction building/steel construction building) |
| Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ |
standard size walk in cooler
walk in cooler measurement | |||
Glass Doors |
50mm panel(2~10C) |
75mm panel(0~-5C) |
100mm panel(-5~-20C) |
1 DOOR |
905*950*>1965mm |
955*950*>2015mm |
1005*950*>2065mm |
2DOORs |
1663*950*>1965mm |
1713*950*>2015mm |
1763*950*>2065mm |
3DOORs |
2421*950*>1965mm |
2471*950*>2015mm |
2521*950*>2065mm |
4DOORs |
3179*950*>1965mm |
3229*950*>2015mm |
3279*950*>2065mm |
5DOORs |
3937*950*>1965mm |
3897*950*>2015mm |
4037*950*>2065mm |
6DOORs |
4695*950*>1965mm |
4745*950*>2015mm |
4795*950*>2065mm |
7DOORs |
5453*950*>1965mm |
5503*950*>2015mm |
5553*950*>2065mm |
8DOORs |
6211*950*>1965mm |
6261*950*>2015mm |
6311*950*>2065mm |
9DOORs |
6969*950*>1965mm |
7019*950*>2015mm |
7069*950*>2065mm |
10 DOORs |
7727*950*>1965mm |
7777*950*>2015mm |
7827*950*>2065mm |
walk in cooler panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
Our panel advantage
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each walk in cooler panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
walk in cooler Installation tool: hexagonal key
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
walk in cooler floor
walk in cooler condensing units

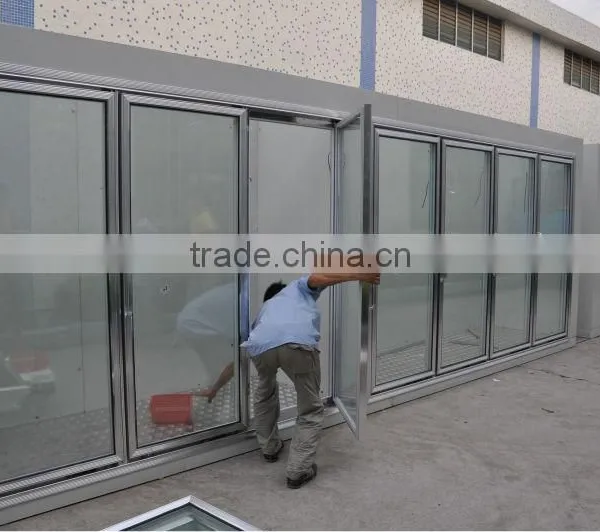

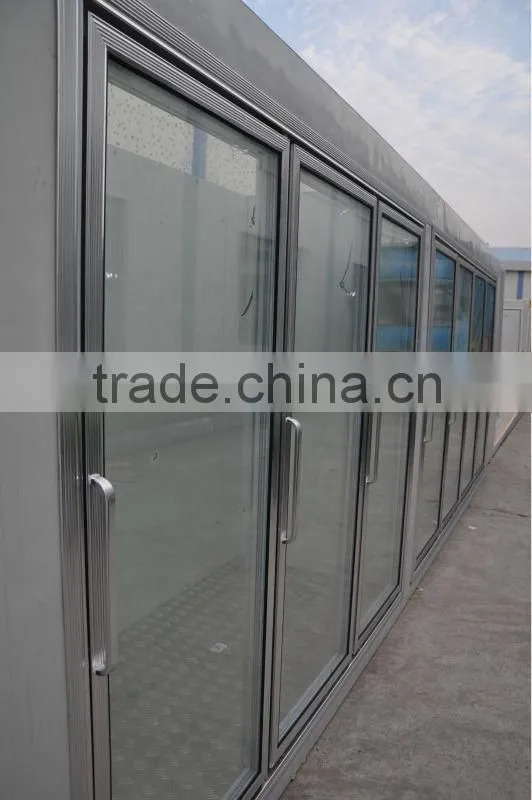

walk in cooler door &shelf

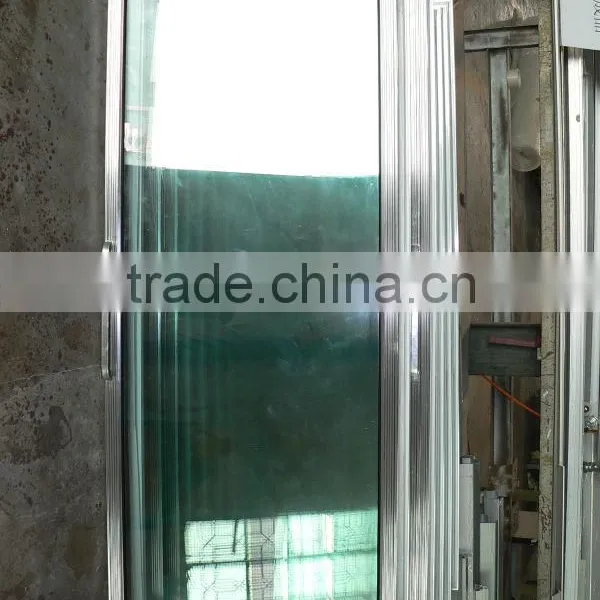

glass Door size: W:725*H:1775 mm

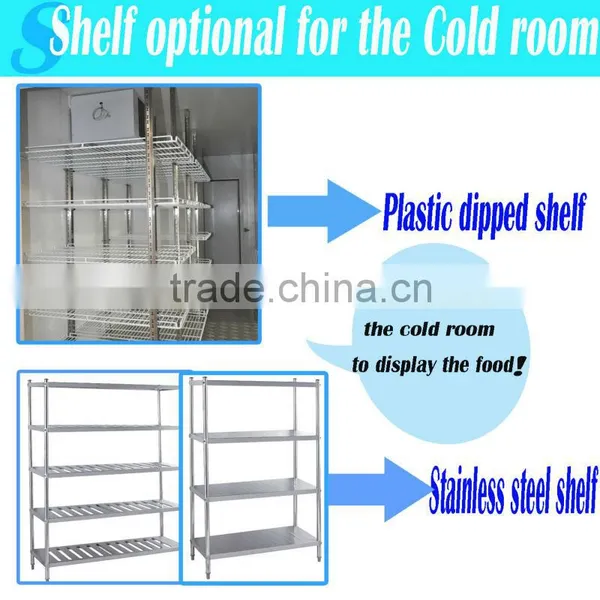

shelf: plastics-dipping shelf (5 pcs/set) (L:726*W:600mm)
Service door

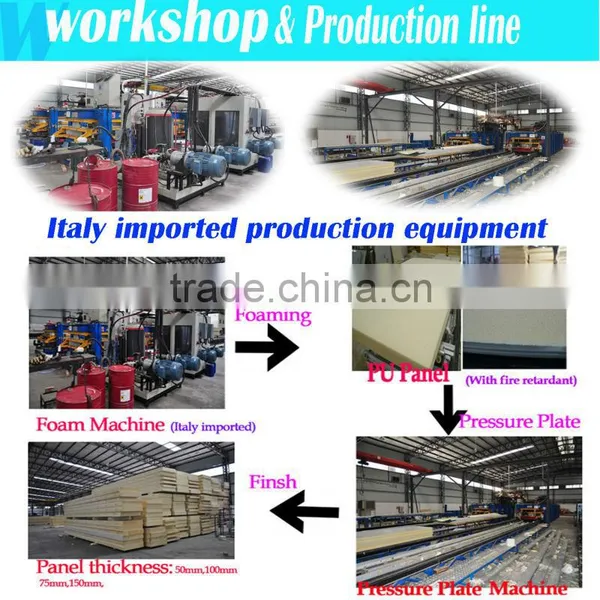

production line for our walk in cooler
Take part in the Exhibition every year:
