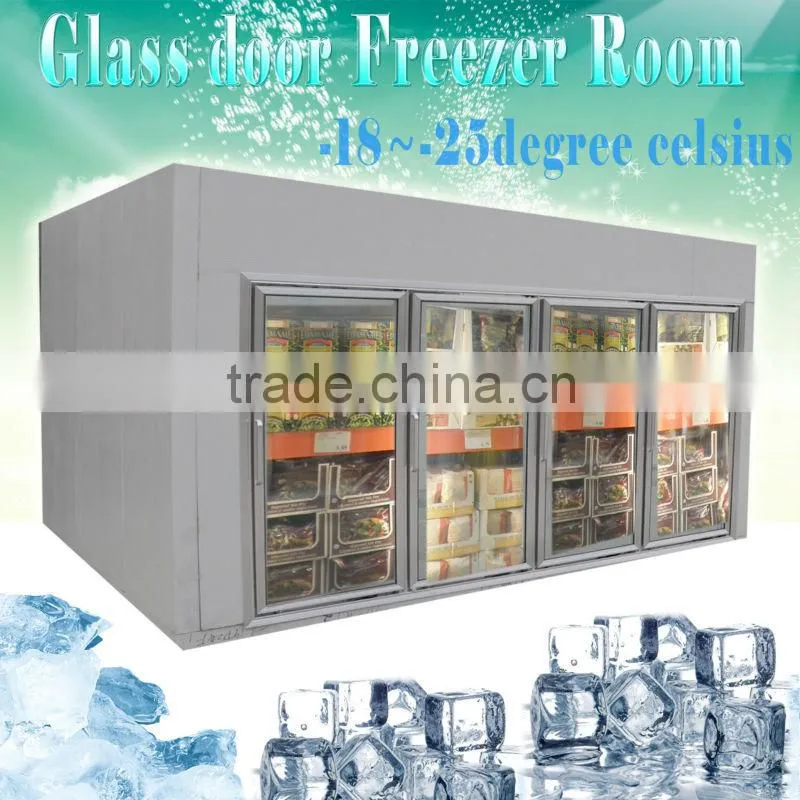

glass door freezer room for ice cream displaying
GLASS DOOR COLD- AND FREEZER ROOMS are ideal for display and storage of chilled products such as beverages, dairy products, flowers, ice cream, meat, etc. Self closing, condensation-free doors ensure displays are kept at the right temperature, with the lowest possible energy consumption and cost.
GLASS DOOR COLD- AND FREEZER ROOMS can be customised and are manufactured in any shape and size. Panel World is renowned for its perfectly curved rooms.
we are a professional manufacturer,which help our clients to customize the glass door freezer room .Pls answer us the following questions. Tks!
1.Which country the glass door freezer room located?
2. glass door freezer room being installing inside the building or putting outside the house?
4.External dimension of the glass door freezer ?(m)
5.What Kind of products is gonna store in the room?
6.Required temperature inside the glass door freezer room (°C)?
7.How much kilograms of products put in coolroom per once(kg/once)?
9.what kind of door your require? Hinged door,manual/electric sliding door or glass door?
glass door freezer room Product Information:
| Dimension | customize made |
| Panel | polyurethane insulation panel,43kg/m3, fire retardant |
| Foaming material | BASF |

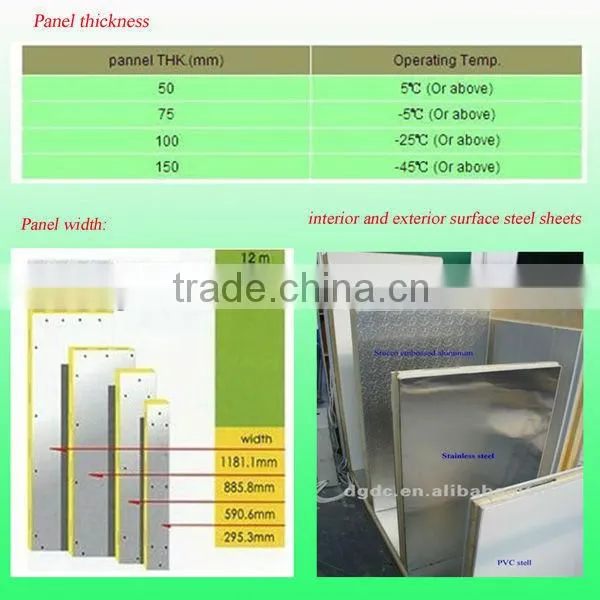

| Panel thickness | 50mm,75mm,100mm,150mm,200mm |
| Steel cover | stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
| Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
| Type of door | hinge door, convex door, sliding door |
| Temp.of room | -45~+20 degree, optional |
| Purpose of cold room | fruit,vegetable,flower,fresh/frozen meat etc |
| Refrigeration unit | Copeland / Bitzer / Sanyo etc |
| Refrigeration type | air cooled / water cooled |
| Fittings | all necessary fittings are included, optional |
| Place to assemble | indoor/out door(concrete construction building/steel construction building) |
| Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ |
standard size glass door freezer room
glass door freezer room measurement | |||
Glass Doors |
50mm panel(2~10C) |
75mm panel(0~-5C) |
100mm panel(-5~-20C) |
1 DOOR |
905*950*>1965mm |
955*950*>2015mm |
1005*950*>2065mm |
2DOORs |
1663*950*>1965mm |
1713*950*>2015mm |
1763*950*>2065mm |
3DOORs |
2421*950*>1965mm |
2471*950*>2015mm |
2521*950*>2065mm |
4DOORs |
3179*950*>1965mm |
3229*950*>2015mm |
3279*950*>2065mm |
5DOORs |
3937*950*>1965mm |
3897*950*>2015mm |
4037*950*>2065mm |
6DOORs |
4695*950*>1965mm |
4745*950*>2015mm |
4795*950*>2065mm |
7DOORs |
5453*950*>1965mm |
5503*950*>2015mm |
5553*950*>2065mm |
8DOORs |
6211*950*>1965mm |
6261*950*>2015mm |
6311*950*>2065mm |
9DOORs |
6969*950*>1965mm |
7019*950*>2015mm |
7069*950*>2065mm |
10 DOORs |
7727*950*>1965mm |
7777*950*>2015mm |
7827*950*>2065mm |
glass door freezer room panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
Our panel advantage
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each glass door freezer panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
glass door freezer room Installation tool: hexagonal key
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
glass door freezer room floor

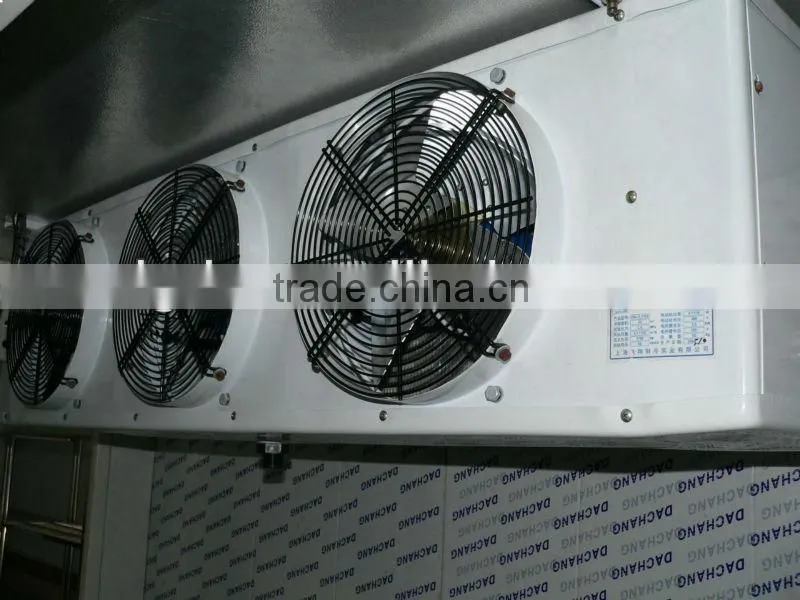

glass door freezer room condensing units
glass door freezer room door &shelf
glass Door size: W:725*H:1775 mm

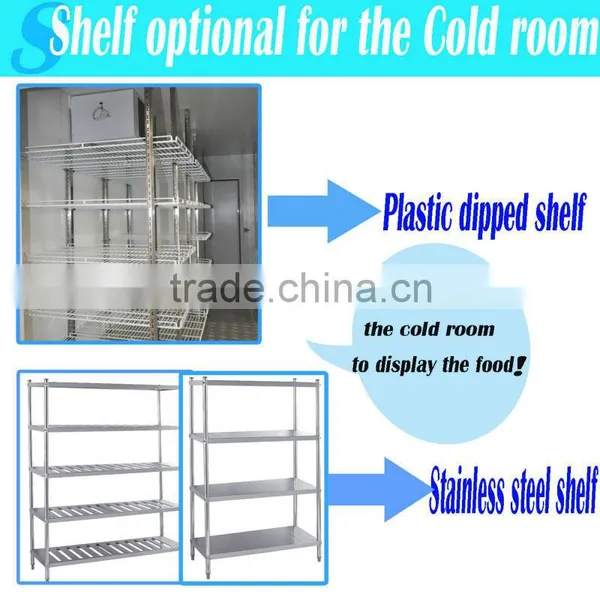

shelf: plastics-dipping shelf (5 pcs/set) (L:726*W:600mm)

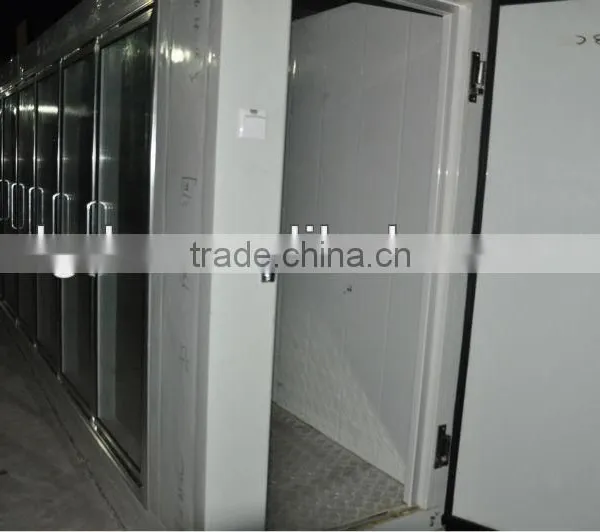

Service door for worker work in to display the food
production line for our glass door freezer room
Take part in the Exhibition every year:
