Home > Products > Blast Freezer > Blast Chilling for Candy Chilling ( CE Approval)
Blast Chilling for Candy Chilling ( CE Approval)
- 300 Unit / Units per Month
- foshan china
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DC | Model Number: | BF-3 |
Type: | Other, Blast Chilling | Style: | Single-temperature | Certification: | CE |
Capacity: | 180KG Food | Temperature: | -18 degree C | Refrigerant: | R404a |
Product Description

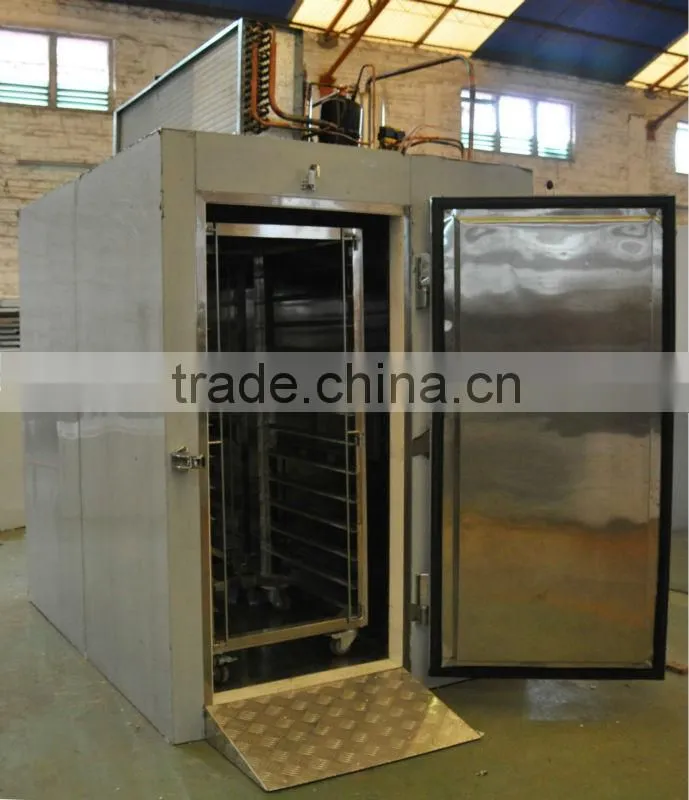

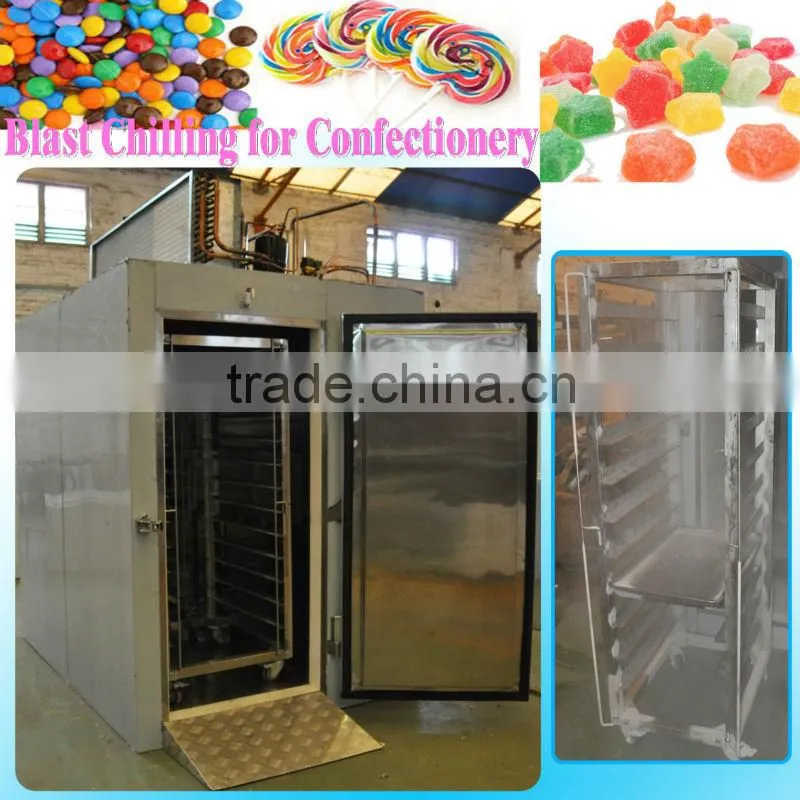

Blast Chilling for Candy Chilling ( CE Approval)
A modern confectionery shop cannot avoid taking advantage of Blast Chilling techniques. Not only shock freezing at -18°C, but also Blast Chilling at +3°C, enable to work more efficiently, reduce preparation times, diminish storage space and increase food quality and safety.Thanks to the excellent performances of ChillRapid blast chillers/freezers, chilling cycles are quick but gentle, and guarantee perfect results for every confectionery product, raw or cooked, finished or semifinished.
For preservation of frozen products we suggest the use of our special TecnoControl storage rooms with active humidity control.
Blast Chilling Product Feature
1. All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick
2. Imported compressor , famous brand Bitzer /Copeland /Tecumseh(air cooled)
3. Blast Chilling can freezer the food from 60kg ~400kg
4. we can design the module Blast Chilling or the finished assembled Blast Chilling
5. Environment-protection Refrigerant :R404a
6.hight quality with CE Rosh
7.OEM Order is welcome !
Blast Chilling PERFORMANCE:
Blast Chilling (soft or hard) lowers the food core temperature from 70°C to +3°C in less than 2 hours. Shock freezing Blast Chiller lowers the food core temperature from 70°C to -25°C within 3~4 hours. Chilling and freezing times will vary somewhat, depending on the food quantity, initial temperature, density, moisture content, specific heat, and type of container. The airflow has a high velocity, indirect pattern designed to cool all levels at identical rates. Time/temperature chilling and freezing rates meet or exceed all FDA and state regulations.
Blast Chilling specification
Model Number | BF-3 | BF-3-S | |
condensing unit | built-in | split unit | |
1. | Unit Dimensions (MM): | 2230*1200*2140mm | 2230*1200*2140mm |
2. | Inner Dimensions (MM): | 1900*960*1420mm | 1900*960*1420mm |
3. | Packaging Dimensions (MM): | 2290*1260*2240mm | 2290*1260*2240mm |
4. | Capacity | can hold 180 kg food | Can hold 180kg food |
5. | freezing Time | It can bring A food from +70 °C to -18°C (product core temp.) in 3hrs | It can bring A food from +70 °C to -18°C (product core temp.) in 3hrs |
6. | with single trolley | double trolleys of 18 tiers | double trolleys of 28 tiers |
7. | trolley size (MM): | 500X600X1400 | 500X600X1400 |
8. | compressor | Bitzer /Copeland /Tecumseh(air cooled) | Bitzer /Copeland /Tecumseh(air cooled) |
9. | Refrigerant: | R404a | R404a |
10. | material | PU material&stainless steel SS304 | PU material&stainless steel SS304 |
11. | Power | 10kw | 10 kw |
12. | Voltage | 380V/50HZ | 380V/50HZ |
13. | G.W./N.W. | 460kg |
we are the manufacturer to do the Blast Chilling , So OEM order is welcome . In order to design the suitable Blast Chilling for your , please answer us the following quesions:
1. What kind of food will be put into the Blast Chilling ?
2. what;s the food size (such as length ,width ,thick ) ?
3.what kind of the food package and the food packaging size ?
4.what;s the foods weight ?
5.how many food will be put into the Blast Chilling per batch ?
6.what;s the food input temperature and the output temperature ?
7.what's the food core temperature after frozen ?
8.how long to reach the output temperature ?
9.what;s the voltage for the Blast Chilling you required ?
you can fill in this form and feed back to us . Then we will send you the Blast Chilling design for your reference :
Product |
product(meat or others) length (mm) |
product(meat or others.) width (mm) |
product(meat or others) Thick(mm) |
product(meat or others) weight(kg) |
product(meat or others) packing |
Capacity/batch |
Input temperature(°C) |
Output temperature(°C) |
Time to reach the output temperature |
Product core temperature after freezing(°C) |
Trolley |
Votage & Frequency |
Need any certificates?(CE,ETL,ROHS etc) |
Blast Chilling CONSTRUCTION:
The chilling/freezing cabinet is constructed of polished type 304 stainless steel, with 2" of CFC-free, high density polyurethane insulation 120mm. The door is equipped with a removable magnetic gasket. The door is hinged on operator’s right.
In order to know more about our Blast Chilling , please check the follwing detailed pictures
All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick

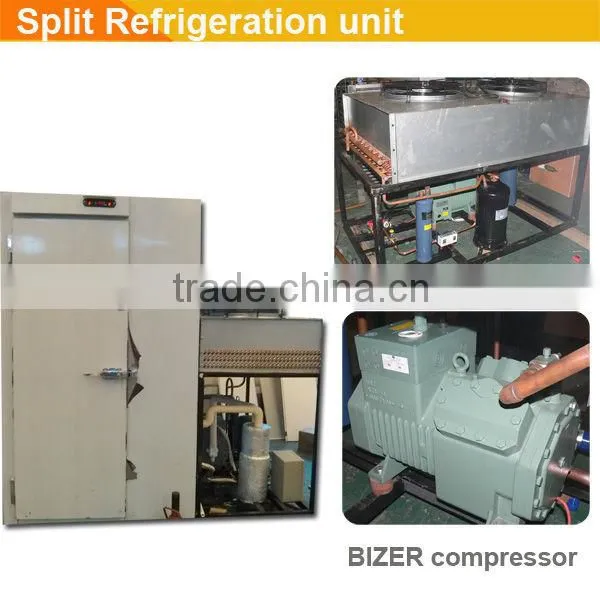

Blast Chilling Refrigeration Unit :
The self-contained refrigeration system includes a condensing unit using R-404A refrigerant. The compressor is a semi- hermetic type with inherent overload protection.
The Blast Chilling Refrigeration Unit can be installed at the top on the
Blast Chilling (built-in type refrigeration uint)
or installed separate from the Blast Chilling ( split refrigeration unit , stand free )
Each Blast Chilling will with Trolley. Trollery size is 500X600X1400 mm
The Blast Chilling is with the slope ,which conventient for the trolleys put into the
Blast Chilling

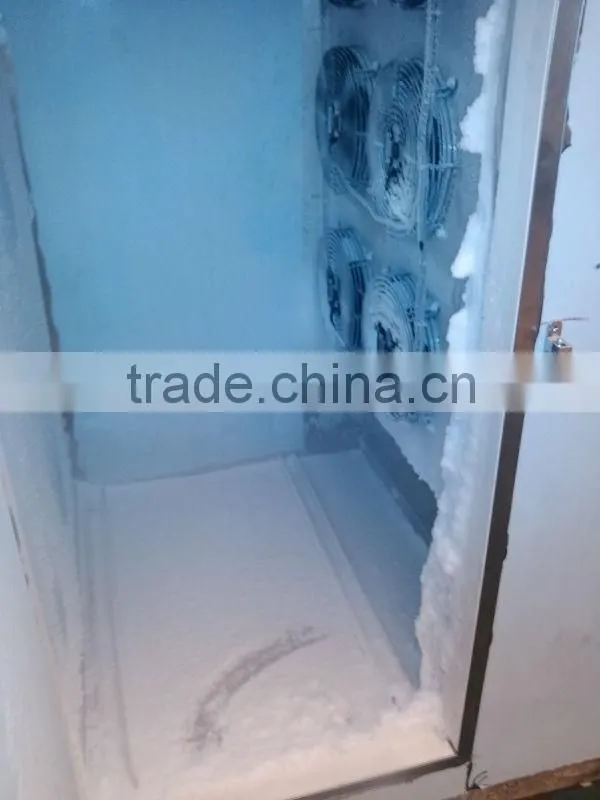

Blast Chilling temperature can fall down to -35 degree C (just accprding to the food feature and size) , it can be Auto-defrosting
Blast Chilling door . We can design the door can be auto close . Also , we design the door inner with safty lock .It can open the door from the Blast Chilling
Packaging information for the Blast Chilling
Blast Chilling Application :
Blast Chilling mainly apply to the restaurant ,cafe, icecream store ,ect .It can freezer/chill the food to the low temperature in short time .
we can also do the Prefabricated Blast Chilling room for the large capacity usage . It can freezer 1000kg ~5 tons food .
