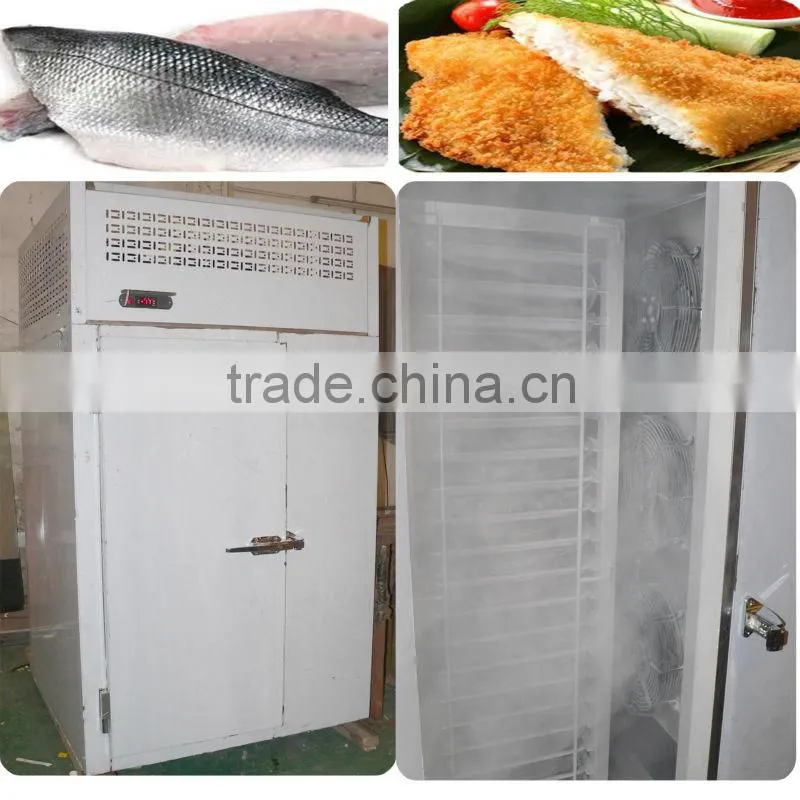

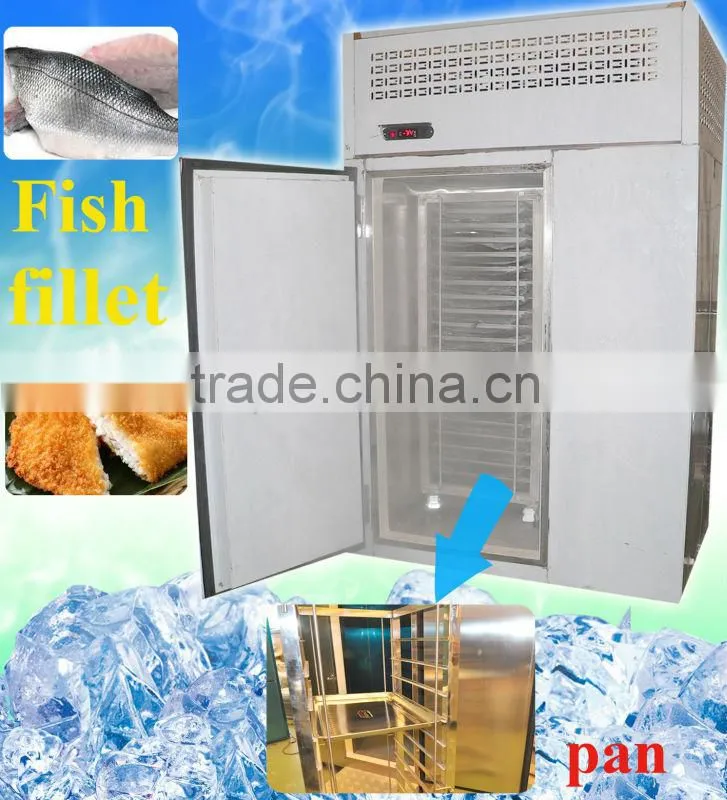

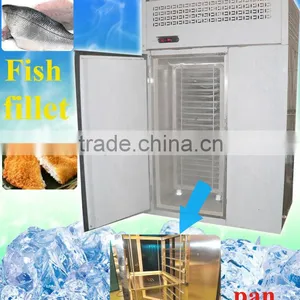

IQF freezer for fish fillet freezing in 2hours
IQF freezer PERFORMANCE:

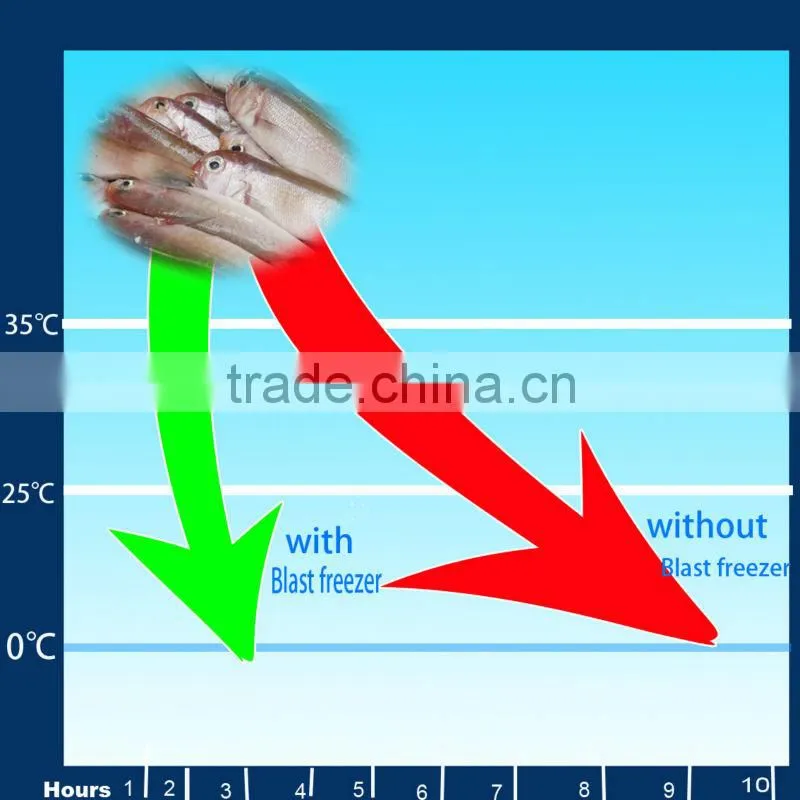

IQF freezer (soft or hard) lowers the food core temperature from 70°C to +3°C in less than 2 hours. Shock freezing Blast Chiller lowers the food core temperature from 70°C to -25°C within 3~4 hours. Chilling and freezing times will vary somewhat, depending on the food quantity, initial temperature, density, moisture content, specific heat, and type of container. The airflow has a high velocity, indirect pattern designed to cool all levels at identical rates. Time/temperature chilling and freezing rates meet or exceed all FDA and state regulations.
IQF freezer Product Feature
1. All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick
2. Imported compressor , famous brand Bitzer /Copeland /Tecumseh(air cooled)
3. IQF freezer can freezer the food from 60kg ~400kg
4. we can design the module IQF freezer or the finished assembled IQF freezer
5. Environment-protection Refrigerant :R404a
6.hight quality with CE Rosh
7.OEM Order is welcome !
IQF freezer specification
| Model Number | BF001 | BF001-S | |
| condensing unit | built-in | split unit | |
| 1. | Unit Dimensions (MM): | 1200*1080*2140mm | 1200*1080*2140mm |
| 2. | Inner Dimensions (MM): | 960*740*1420mm | 960*740*1420mm |
| 3. | Packaging Dimensions (MM): | 1260*1160*2240mm | 1260*1160*2240mm |
| 4. | Capacity | can hold 80kg food | Can hold 100kg food |
| 5. | freezing Time | It can bring A food from +70 °C to -25°C (product core temp.) in 3hrs | It can bring A food from +70 °C to -25°C (product core temp.) in 3hrs |
| 6. | with single trolley | Single trolley of 18 tiers | Single trolley of 28 tiers |
| 7. | trolley size (MM): | 500X600X1400 | 500X600X1400 |
| 8. | compressor | Bitzer /Copeland /Tecumseh(air cooled) | Bitzer /Copeland /Tecumseh(air cooled) |
| 9. | Refrigerant: | R404a | R404a |
| 10. | material | PU material&stainless steel SS304 | PU material&stainless steel SS304 |
| 11. | Power | 3kw | 3kw |
| 12. | Voltage | 380V/50HZ | 380V/50HZ |
| 13. | G.W./N.W. | 280KG /360KG |
we are the manufacturer to do the IQF freezer , So OEM order is welcome . In order to design the suitable IQF freezer for your , please answer us the following quesions:
1.what kind of food will be put into the IQF freezer ?
2.how many food will be put in to the IQF freezer ? (kg)
3.what's the food size ? such length , widh , thick ? (mm) what's the food gross weight each pieces ?
4.what kind of the food package ? plastc bag or trays ,ect?
5.what's the food input & output temperature ?
6.what's the food core temperature after freezing ?
7.what's the voltage for the IQF freezer you required ?
8.do you need any other certificate for the IQF freezer ? our is hight quality with CE & Rosh .
IQF freezer CONSTRUCTION:
The chilling/freezing cabinet is constructed of polished type 304 stainless steel, with 2" of CFC-free, high density polyurethane insulation 120mm. The door is equipped with a removable magnetic gasket. The door is hinged on operator’s right.

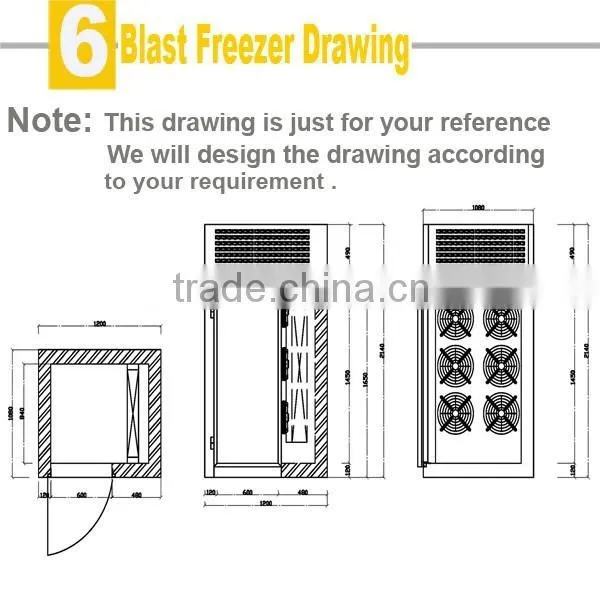

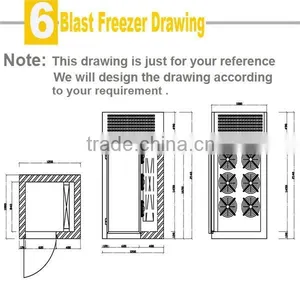

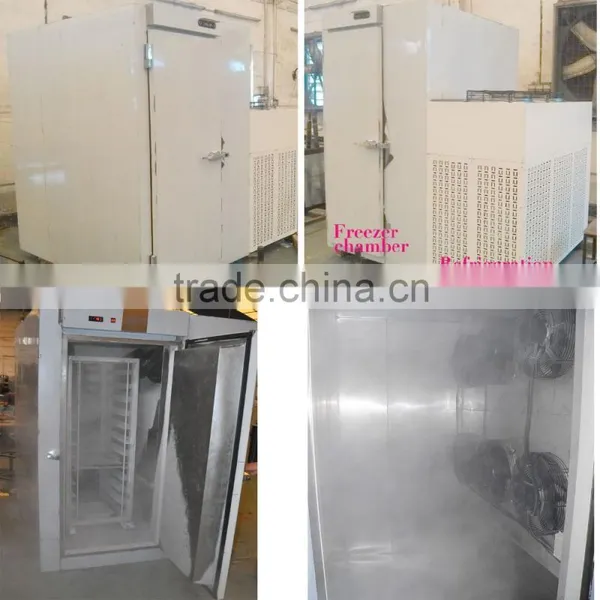

In order to know more about our IQF freezer , please check the follwing detailed pictures
All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick
IQF freezer Refrigeration Unit :
The self-contained refrigeration system includes a condensing unit using R-404A refrigerant. The compressor is a semi- hermetic type with inherent overload protection.
The IQF freezer Refrigeration Unit can be installed at the top on the IQF freezer (built-in type refrigeration uint)

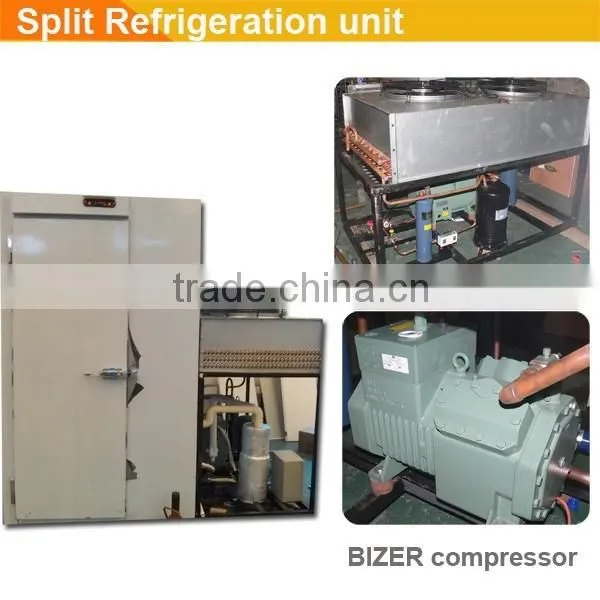

or installed separate from the IQF freezer ( split refrigeration unit , stand free )

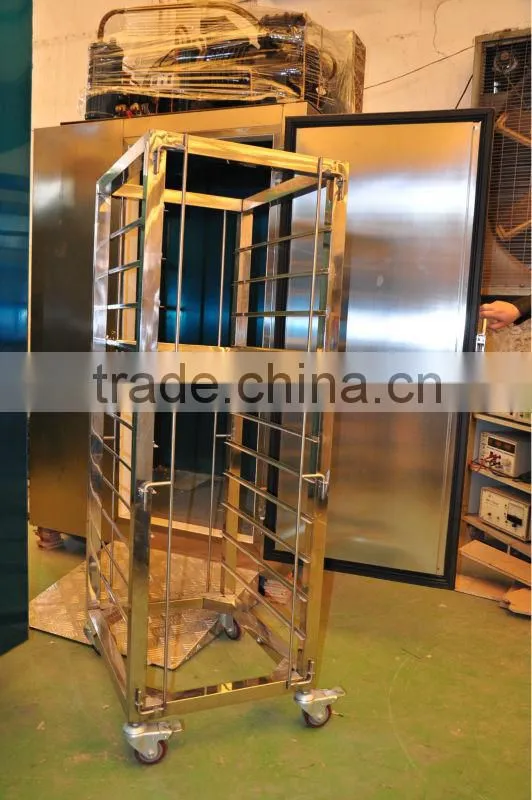

Each IQF freezer will with Trolley. Trollery size is 500X600X1400 mm

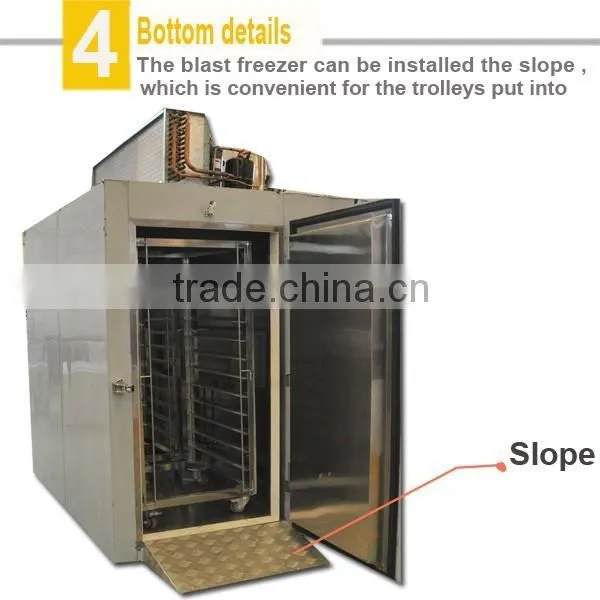

The IQF freezer is with the slope ,which conventient for the trolleys put into the IQF freezer
IQF freezer temperature can fall down to -35 degree C (just accprding to the food feature and size) , it can be Auto-defrosting
IQF freezer door . We can design the door can be auto close . Also , we design the door inner with safty lock .It can open the door from the IQF freezer
Packaging information for the IQF freezer
IQF freezer Application :
IQF freezer mainly apply to the restaurant ,cafe, icecream store ,ect .It can freezer/chill the food to the low temperature in short time .
we can also do the Prefabricated IQF freezer room for the large capacity usage . It can freezer 1000kg ~5 tons food .
