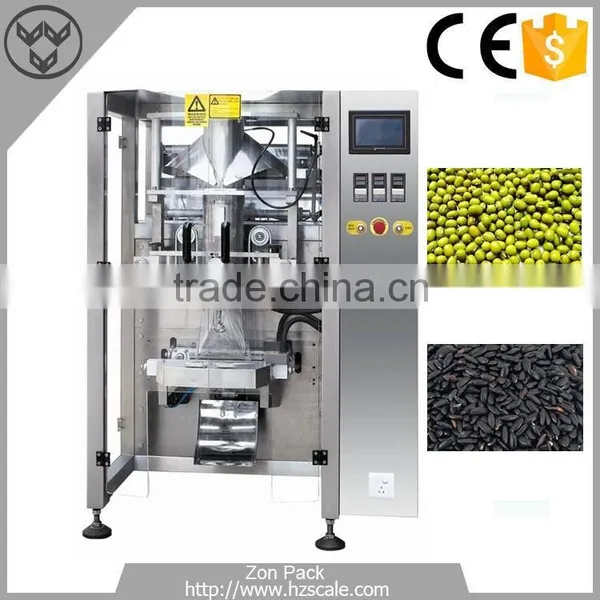

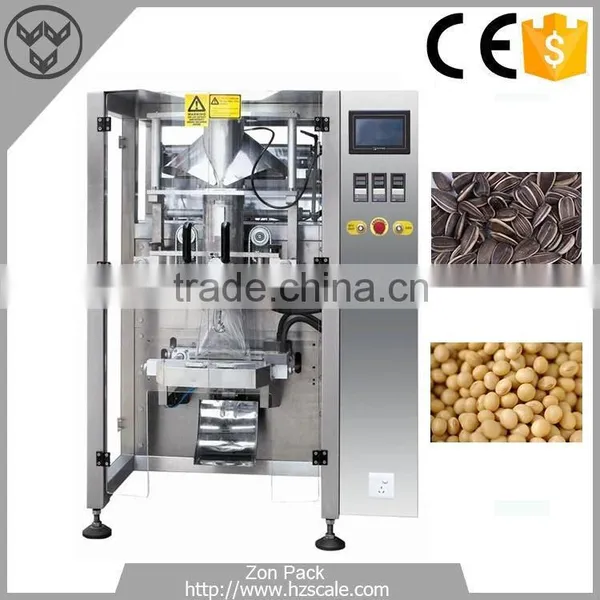

1. Descriptions of 25-60 Bags/Min Max Film Width 520mm Grain Packing Machine
|
Application
|
It is suitable for packing grain, stick, slice, globose, irregular shape products such as puffy food, snacks, candy, chocolate, nuts, pistachio, pasta, coffee bean, sugar, chips, cereals, pet food, fruits, roasted seeds, frozen food, small hardware, etc. |
Parameters | |
Model |
ZH-V520 |
Packing Speed |
25-60 Bags / Min |
Bag Size |
(W) 80-250 (L) 80-350, |
Pouch Material |
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET, |
Type of Bag Making |
Pillow bag, standing bag (gusseted), punch, Linked bag |
Max Film Width |
520 |
Film thickness Width |
0.04-0.10 |
Air Consumption |
0.4m3/min 0.8MPa |
Power Parameter |
220V 50/60Hz 3KW |
Package Size (mm) |
1430(L)×1200(W)×1700(H) |
Total Weight(Kg) |
650 |
| Technical Feature |
| 1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy. |
| 2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability. |
| 3. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic. |
| 4. Perfect alarm system to make problem solved quickly. |
| 5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing. |
| 6. Machine can make pillow bag and standing bag (gusseted bag) according to customer’s requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on. |
| 7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically. |
2. After- Sales Service
|
Training services: We will train your engineer to install our weigher. You can send your engineer to our factory or we dispatch our engineer to your company. We will introduce your engineer how to install the weigher and how to fix problem. |
|
Trouble shooting service: Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support. Of course, you need to afford the round trip flight ticket and accommodation fee. |
|
Spare Parts replacement: For spare parts support: For machine in guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts in cost price. |
