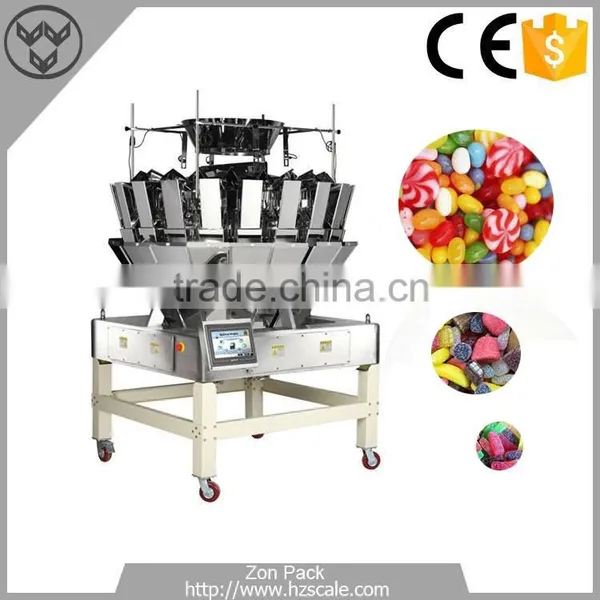

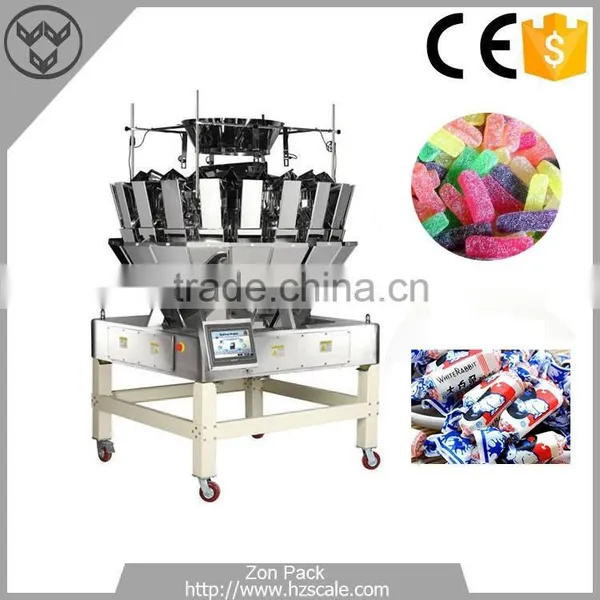

1. Descriptions of ZH-A20 Multihead Weigher
Technical Specification | |
Model |
ZH-A20 |
Weighing Range |
10-2000g |
Max Weigh Speed |
65*2 Bags/Min |
Accuracy |
±0.1-1.5g |
Hopper Volume(L) |
1.6/2.5 |
Driver Method |
Stepper Motor |
Option |
Timing Hopper/ Dimple Hopper/ Printer/ Overweight Identifier / Rotary Top Cone |
Interface |
7"HMI/10"HMI |
Power Parameter |
220V/ 2000W/ 50/60HZ/ |
Package Volume (mm) |
1650(L)×1650(W)×1500(H) |
Total Weight(Kg) |
880 |
Application |
ZH-A20 is developed for precise and high-speed quantitative weighing packaging system. It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc. |
Technical Feature |
1. Machine has twin independent frame with double storage funnel, double vibrator, and double discharged outlet. It can run up to 65 WPM for two different products. |
2. Machine can weigh 2 different products simultaneously with different parameters. |
3. Machine can mix 2 different products with different weight. |
4. Vibrator modifies the amplitude basing on different target to make material down more equably and get higher combination rate. |
5. High precise digital weighing sensor and AD module have been developed. |
6.Modify hopper open speed and open angle basing on the characteristics of measured material can prevent material blocking the hopper. |
7. Multi-time drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper. |
8. Material collecting process system with difference automatic identified and one drag two function can remove unqualified product and deal with material drop signals from two packaging machines. |
9. Components which touch the material are all manufactured with stainless steel. Hermetic and waterproof design has been adopted for preventing particles entering and cleaning easily. |
|
10. Different authority can be set for different operator, which is for easy management.
|
11. Multi-language operation system can be selected basing on customer’s requests. |
Machine Details
2. After- Sales Service
|
Training services: We will train your engineer to install our weigher. You can send your engineer to our factory or we dispatch our engineer to your company. We will introduce your engineer how to install the weigher and how to fix problem. |
|
Trouble shooting service: Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support. Of course, you need to afford the round trip flight ticket and accommodation fee. |
|
Spare Parts replacement: For spare parts support: For machine in guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts in cost price. |
3.Wooden case for ZH-A20 Multihead Weigher
4.More Products to Choose
ZH-A10 Multihead Weigher ZH-A14 Multihead Weigher ZH-A20 Multihead Weigher
ZH-A4 Linear Weigher ZH-AU14 Multihead Weigher ZH-AM10 Mini Multihead Weigher
ZH-V320 Packing Machine ZH-V420 Packing Machine ZH-V520 Packing Machine
ZH-V720 Packing Machine ZH-V520T/720T Packing Machine ZH-G6/G8 Rotary Packing Machine
ZH-BG10 Rotary Packing System ZH-BL10 Vertical Packing System ZH-BR10 Semi-automatic Packing System
ZH-BC10 Can Filling and Packing System ZH-BC Vertical Packing System With Cup Filler ZH-BA Vertical Packing System With Auger Filler
ZH-VG320 Automatic Granule Packing Machine ZH-CH Series Check Weigher ZH-MDA Metal Detector
5.Application&Projects&Exhibition
6. Certifications
7.Welcome to contact us
