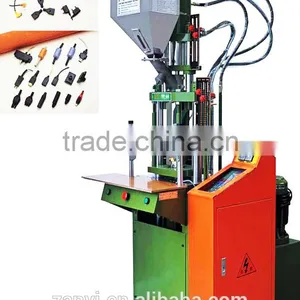

Vertical Injection Molding Machine Price
US$ 4,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, screw injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Swing Arm Robot for Plastic Injection MachineUS$ 1,000 - 5,000MOQ: 1 Piece -
Aluminum Alloy Conveyer BeltUS$ 1,000 - 5,000MOQ: 1 Piece
-
PP/PE Material and Recycling Granulator Type Plastic GranulatorUS$ 1,000 - 5,000MOQ: 1 Piece
-
Oil Type Injection Mold Temperature ControllerUS$ 1 - 1,000MOQ: 1 Piece
-
Fully Automatic Vacuum Plastic LoaderUS$ 1 - 1,000MOQ: 1 Piece
Condition
New
Type
Other, screw injection
Style
Vertical
Brand Name
ZAN YI
Model Number
ZY-160S2-103D
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
50g&58g
Injection Rate
34.6~40cm3/sec
Clamping Force
15T
Opening Stroke
190mm
Power(W)
4.2KW
Certification
CE,ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
vertical injection molding machine price
Product Details:
Item Name: plastic injection machine
| Specifications: | ||||
| MODEL | UNIT | ZY-160S2-103D | ||
| Screw Diameter | Mm | 26 | 28 | |
| Injection Pressure | kg/cm² | 1183 | 1019 | |
| Theoretical Shot Volume | cm³ | 55.7 | 64.6 | |
| Max.Shot Weight(ps) | g | 50 | 58 | |
| Safe Shot Weight(ps) | OZ | 1.7 | 2.0 | |
| Max.Shot Weight(ps) | cm³/sec | 34.6 | 40 | |
| Injection Rate | mm | 105 | ||
| Screw Speed Max. | rpm | 0-215 | ||
| Nozzle Comtact Force | Tons | |||
| Nozzle Retraction Stroke | mm | |||
| Number of Temperature Control | 2 | |||
| Clamping Force | Tons | 15 | ||
| Platen Size | mm | 450*280 | ||
| Distance between tie bere | mm | 265 | ||
| Min.Mold Height | mm | 100/25 | ||
| Opening Stroke | mm | 190 | ||
| Max.Open Daylight | mm | 290/215 | ||
| Ejetor Force | Tons | 1.3 | ||
| Ejetor Stoke | mm | 35 | ||
| Max.Hydaulic Pressure | kg/cm² | 140 | ||
| Pump Output | l/min | 17.5 | ||
| Oil Resservoir Capacity | l | 80 | ||
| Cooling Waer Consumption | l/hr | 400-600 | ||
| Pump Motor Power | KW/HP | 2.2/3HP | ||
| Berrel Heating Power | KW | 1.8 | ||
| Total Electricity | KW | 4.2 | ||
| Packing Weight | Kg | 750kg | ||
| Packing size(LxWxH) | m | 1.5*1.2*2.25 | ||
Features:
1.Straight screw ejected assembly.
2.Two(three) phase temperature ,ejected speed,backing pressure and screw speed is suitable for various plastic to confectioned.
3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die .
Samples produced:
