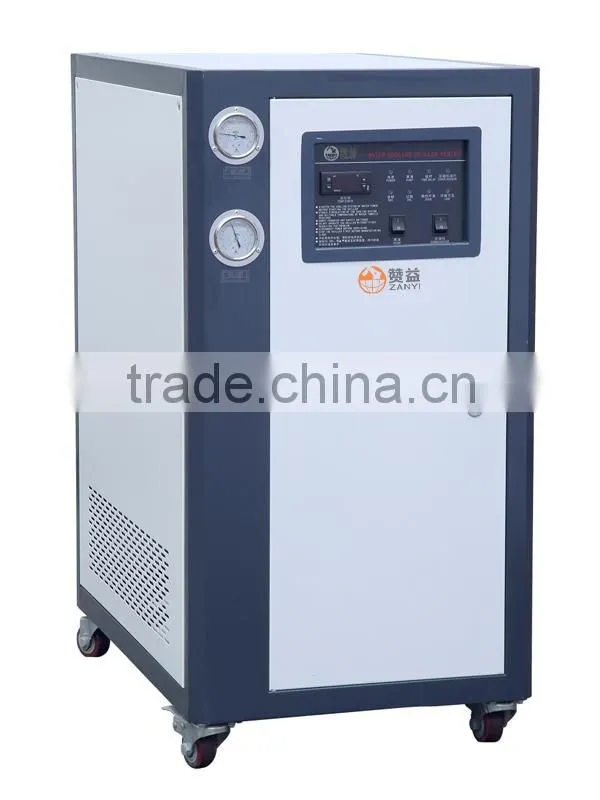

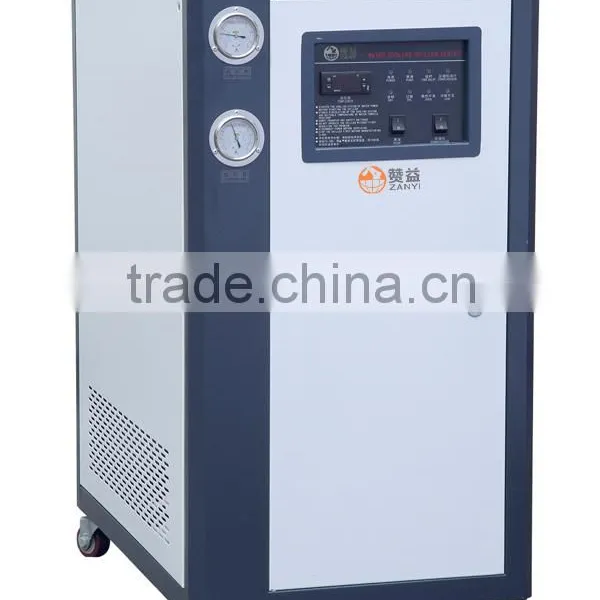

Factory directly sale Box type water chiller system
| Item | TCO-15B | |
| Cooling capacity | BTU/KCAL | 116050/29240 |
| KW | 9 | |
| Refrigera.ID | PT | 2 1/2" |
| Pump power | KW | 2.2 |
| Refrigerant . Flow |
L/min | 350 |
| Tank Capacity | L | 190 |
| Dimension | L*W*H(mm) | 1450*760*1415 |
| Weight | kg | 580 |
| Safety System |
1.Electric power's lack-phase & anti-phase Protector and its Signal Light 2.Master Electric Leakage Switch 3.Punch's Rolling Back Protector and its Signal light 4.Compressor's Rolling Back Protector and its Signal light 5.Punch's Overload Protector and its Signal Light 6.Compressor's Overload Protector and its Signal Light 7.Chiller's High Voltage Protector and its Signal Light 8. Compressor's Low Voltage Protector and its Signal Light 9.Compressor's Anti-ice Protector 10.Compressor's Time-delay Start Safeguard |
|
Features:
1.Adopt high-quality compressor,so its stable performance Durable and low noise.
2. Adopt high-quality compressor temperature controller,it can control the temperture between +5degree and +35 degree exactly,It can control the Temperature deviation accurately Within±1 degress.
3.The designs of chiller and radiator are unique,so the heat exchange efficiency is very high.
4.Have Stainless steel temperature-holder box,Cleaning is easy.
5.The temperature of ultracod chiller can be below -15 degree.
6.This series chiller can customized base on the requirement ofacid-resistant & basicitv-resistant.
