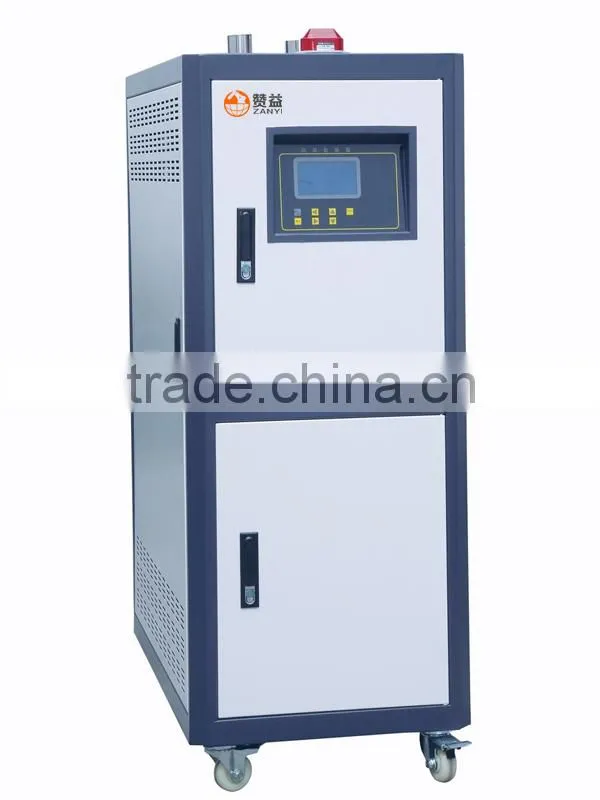

Cabinet Dryer for Plastic Injection Molding Machinery
| Raw Material | Humidity (℃) | Time(HR) |
TCD200
|
| ABS | 80 | 2-3 | 126 |
| Ionomer(SURLYN) | 50 | 3-4 | 109 |
| LCP | 150 | 3-4 | 67 |
| PA6.6/6.10/6.12 | 80 | 4-5 | 77 |
| PA 11/12 | 80 | 4-5 | 61 |
| PBT | 140 | 3-4 | 62 |
| PC | 120 | 3 | 97 |
| PC+ABS | 100 | 3-4 | 103 |
| PEEK | 150 | 3 | 90 |
PEI |
150 | 3-4 | 95 |
| PES | 160 | 4 | 77 |
| PET | 160 | 4-6 | 99 |
| PETG | 66 | 4-5 | 105 |
| PI | 120 | 2 | 105 |
| PMMA | 80 | 3 | 10 |
| POM | 100 | 2 | 198 |
| PPO | 110 | 2 | 93 |
| PPS | 140 | 3-4 | 93 |
| PUS | 120 | 3-4 | 109 |
| PU | 90 | 3-4 | 78 |
| TPU | 90 | 2-3 | 97 |
Specification :
| Model | TCD-200 | |
| Air volume | M3/H | 200 |
| Drying the windmill | 50HZ kw | 2.2 |
| 60HZ kw | 2.55 | |
| Regeneration Of the windmill | 50HZ kw | 0.4 |
| 60HZ kw | 0.5 | |
| Electrothermal Regeneration | kw | 5.4 |
| Pipe Diameter | inch | 2.5 |
| The regeneration air outlet | inch | 2 |
| Cooling water | Inch | 3/4 |
| LPM | 30 | |
| kg/cm2 | 1.0-1.5kg/2 above | |
| Maximum Power | 50HZ | 8 |
| 60HZ | 8.45 | |
| Size mm | W | 630 |
| D | 830 | |
| H | 1560 | |
| Abiut the weight | kg | 245 |
Features:

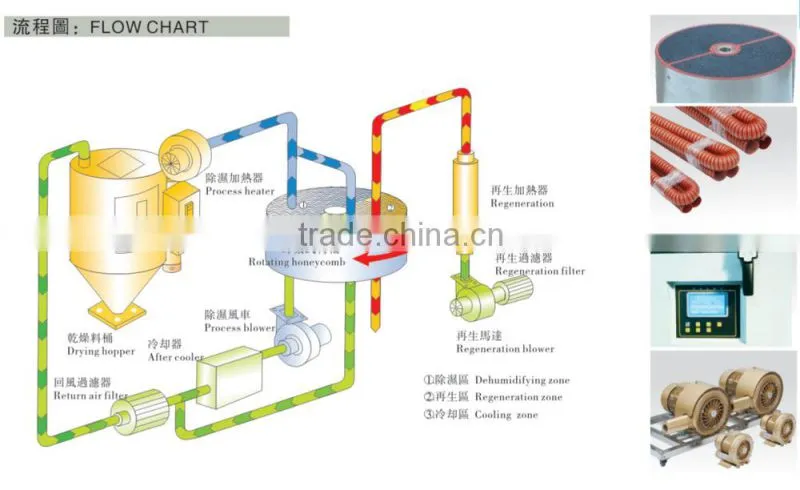

1.Honeycomb-style washable ceramic rotating wheel is used, which
can run in long term without producing any powdered scrap, so as to
maintain cleanliness of raw material, avoid any possible contamination
and ensure quality of the product.
2. When the machine runs under load continuously, the dew point can remain at -32~-40℃, and even -40℃ when matched with chilled water, and the dew point curve remains steady instead of fluctuating.
3. The smart microcomputer LED panel can display various operation states automatically, and is easy to operate and has full range of functions.
4. The embedded dry and regeneration air filter is easy to clean.
5.The cooler is made of stainless steel and easy to disassemble. The
cleaning will be easier when oil-bearing plastic is to be dried.
6. It has protective devices for lack-phase, reverse phase, abnormal
operation, motor overloading and regeneration over-temperature.
