3 Axis Single Arm Cnc Robot Arm With Double Section Arm Design
US$ 1,000 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Elevation Speed:
Adjustable
Vertical Travel(mm):
650 Mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Box Type Electronic Temperature Control Plastic DryerUS$ 1 - 1,000MOQ: 1 Piece -
Hot Good Quality 12KG Industrial Vacuum Loader for Plastic Injection Molding MachineUS$ 1 - 1,000MOQ: 1 Piece
-
High Efficient Heat Exchanger Cooling Water ChillerUS$ 1,000 - 5,000MOQ: 1 Piece
-
Water Cooling Water Chiller SystemUS$ 1,000 - 5,000MOQ: 1 Piece
-
Water Cooled Chiller Water Recirculation ChillerUS$ 1,000 - 5,000MOQ: 1 Piece
Condition
New
Elevation Speed
Adjustable
Vertical Travel(mm)
650 Mm
Horizonal Travel(mm)
1100mm
Application
Load
Place of Origin
Guangdong, China
Brand Name
Zanyi
Model Number
TYS650SW3
Weight
180kg
Dimension(L*W*H)
1445*1190*510mm
Power(W)
Standard
Certification
ISO9001:2008
Warranty
One Year
After-sales Service Provided
Overseas service center available

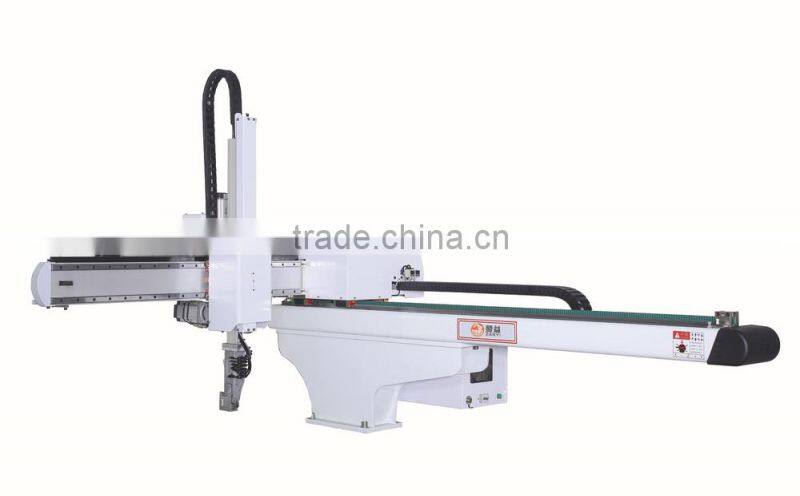

3 axis single arm cnc robot arm with double section arm design
| Model | TYS-650SW3 |
| Recommended I.M.M | 30-180 Tons |
| Vertical Stroke | 650mm |
| Traverse Strobe(mm) | 1100mm |
| Crosswise Stroke(mm) | 650mm |
| Take out time | 0.8 Sec |
| Max loading | 5kg |
| Cycle time | 4.5Sec |
specific air consumption | 3.5NI/Cycle |
| Weight | 180kg |

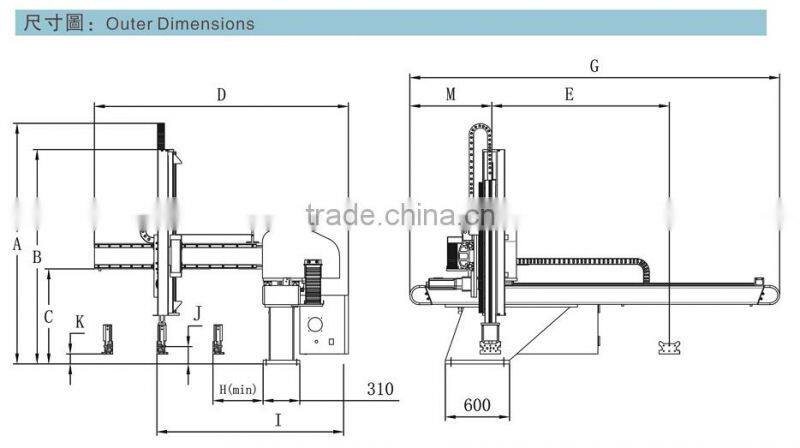

| Model | TYS-650SW3 |
| A | 1230 |
| B | 840 |
| C | 450 |
| D | 930 |
| E | 1100 |
| F | / |
| G | 1950 |
| H | 130 |
| I | 650 |
| J | 90 |
| K | 60 |
| M | 410 |
