Help CenterJIABO JB-BPM China Bicycle Electric and Bike Motor Kit 500w
Related Products
-
JIABO JB-BPM Green 36v 250w Rear Wheel Electric Bike KitUS$ 395 - 420MOQ: 1 Set -
JIABO JB-BPM Electric Bike and Ebike Kit China 500w With BatteryUS$ 395 - 420MOQ: 1 Set
-
JIABO JB-BPM E-bike Electric Bike Vehicle Conversion Kit 500wUS$ 395 - 420MOQ: 1 Set
-
JIABO JB-BPM Electric Bicycle and Bike Conversion KitUS$ 395 - 420MOQ: 1 Set
-
JIABO JB-BPM Ebike Motor Conversion Kit With BatteryUS$ 395 - 420MOQ: 1 Set
Item No.: E-bike Conversion Kit JB-BPM
We are e-bike conversion kit factory
JIABO JB-BPM china bicycle electric and bike motor kit is applied for electric bike

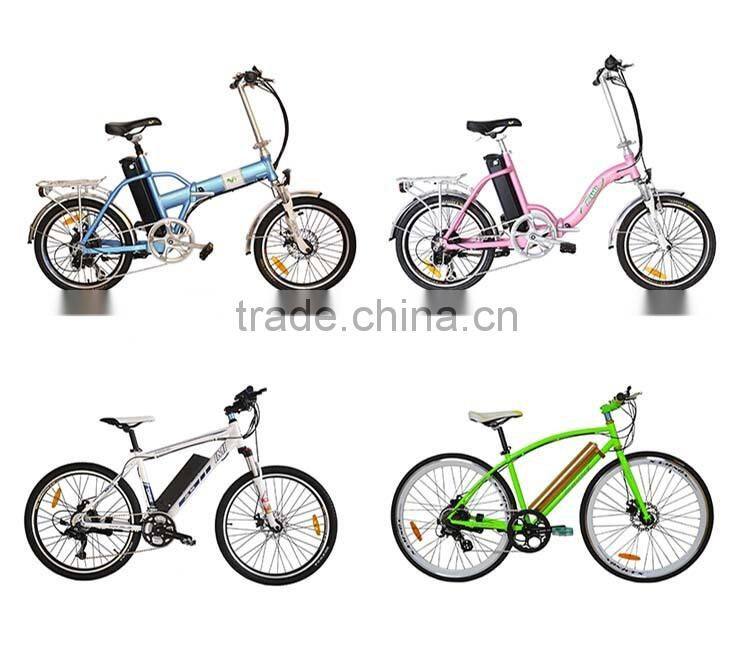

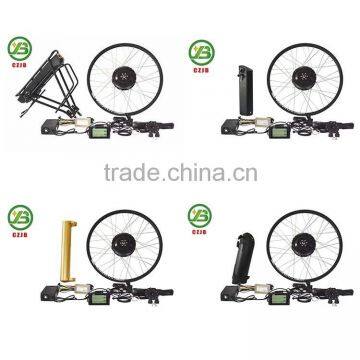

PRODUCT PICTURES
PRODUCT SPECIFICATIONS
Motor: 350w/500w brushless Geared Motor (Front/Rear, light, high speed)
Great hub motor, 20-28in wheel optional. V/Disc brake optional

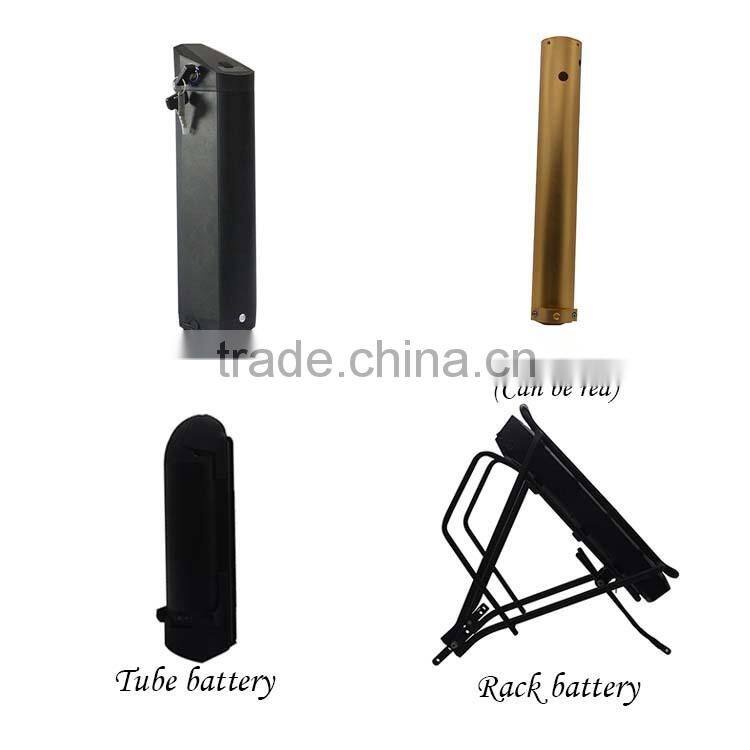

Battery: 36V-8.8AH 36-10AH polymer li-ion
All battery with electric protection circuit
PAS: 1:1 intelligent pedal assistant system

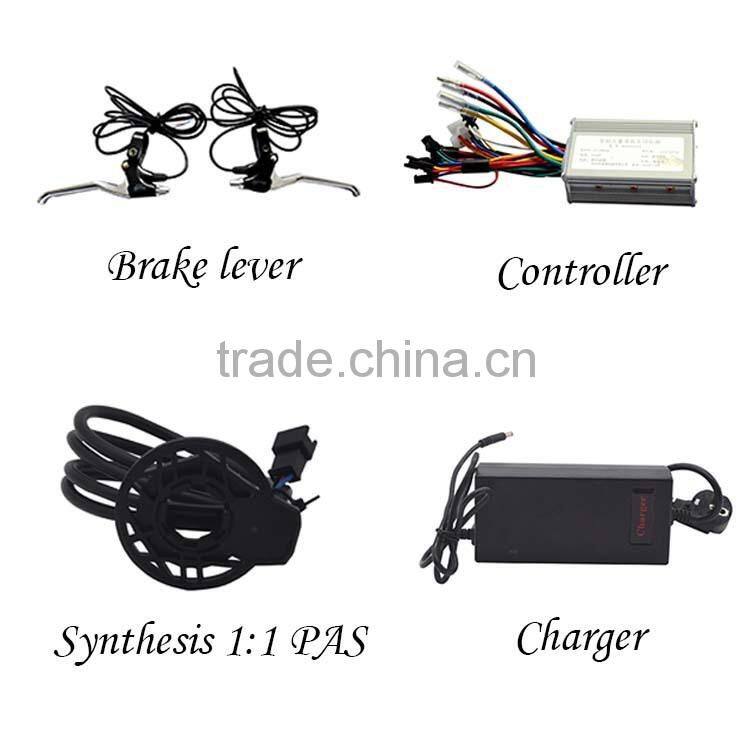

Controller: 36V/48V 13-17A intelligent brushless controller
Charger: AC 100V-240V, 2amps smart charger
Brake lever: AL alloy with power cut off
Throttle: Twist intelligent speed control/thrumb throttle

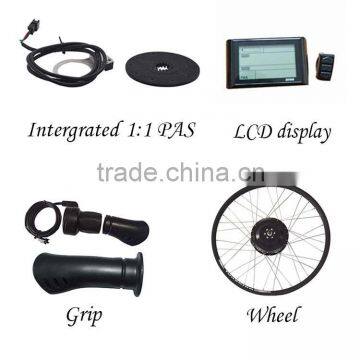

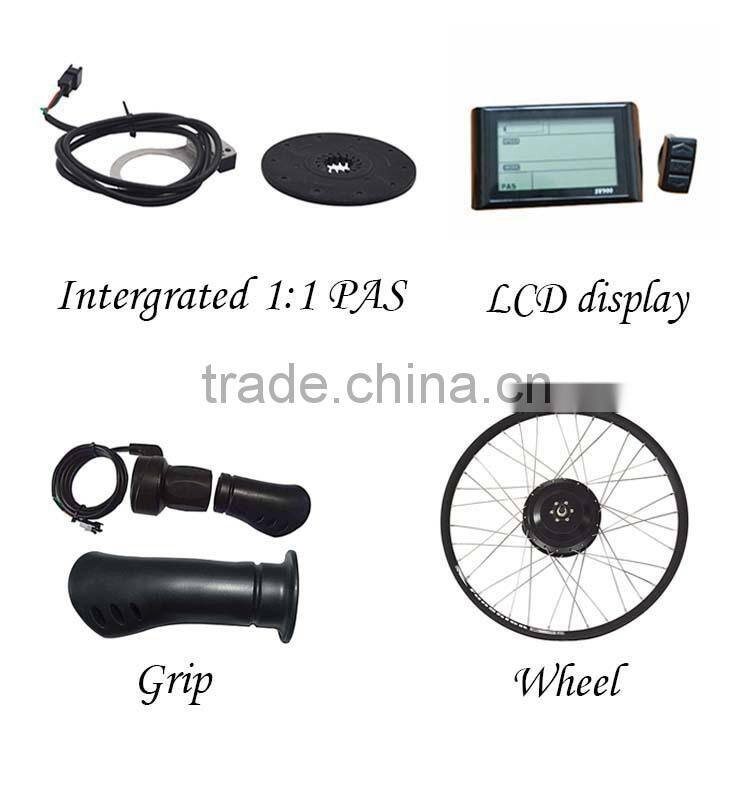

Display: LED/LCD display
Max speed: 25km/h (EU) 32km/h (USA&Canada)
PRODUCT FEATURES
Our JIABO JB-BPM china bicycle electric and bike motor kit ’s characteristics
l Gear motor
l Small size, big power
l With unidirectional clutch
PRODUCT APPLICATION
JIABO JB-BPM china bicycle electric and bike motor kit is applied for electric bike
FACTORY WORKSHOP
QUALITY INSPECTION
COMPANY AND SERVICE
CERTIFICATE
PACKING AND SHIPPING
METHOD OF PAYMENT
FAQ
- QWhat kind of brand do you use for controller and display?
- AKT, Sciencewell, and Xi-tong. Both controller and display for one set. Other brands are optional.
- Qwhat kind of brand do you use for cell box, cell, power-off brake?
-
ACell box: ShanShan and Huiye
Cell(18650): Samsung,Yiklik
Power-off brake: Wuxing
Other brands are optional. - QThe controller uses square wave or sine wave?
- AIt is optional.
- QThe kit uses gear motor or gearless motor?
- AIt is optional.
- QThe controller uses square wave or sine wave?
- AIt is optional.
- QWhat is the largest power of your motor for the kit?
- A500w
- QWill the conversion kit fit my bicycle?
-
AThe conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork (the two
metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel. - QDoes the electric bicycle waterproof?
- AYes. You can ride our electric bikes in the light rain without worrying about damaging the electric components.
