MEPC.107 (49) 30 ppm Oil Monitoring Device

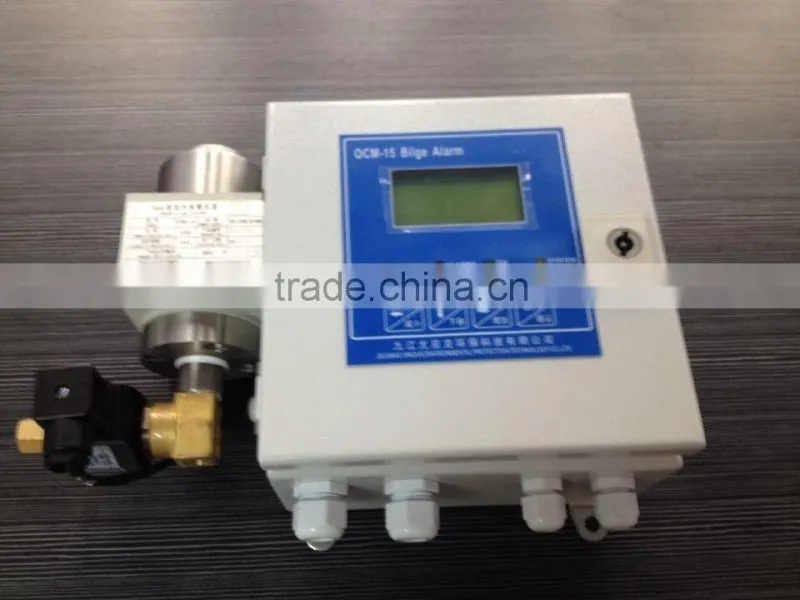

OCM-15 15ppm Bilge Alarm(Oil-in-Water Monitor) is a instrument for monitoring micro-oil content in waste water.
OCM-15 15ppm Oil in water Monitor is a new type instrument for monitoring micro-oil content in waste water.It's suitable for contimuous monitoring of the oily water discharge in the bilge, with a 15 overrun alarm system and a controlling system for waste water discharge. In most case, it applied as a set device for oily water seperator.
Feature
(1)Applying the most advanced multi-band infrared measuring technique and the micro-processing technology, fast response with high-accuracy-measurement;
(2)The overall use of EMI suppression design to overcome the environmental impact on equipment,and improve system stability and equipment reliability;
(3)Real-time display of oil concentration and working state of the system.
(4)Real-time recording of the alarm status and automatically store data,historical data at any time to print;
(5)Measuring room to facilitate maintence and cleaning,simple operation;
(6)With the monitoring of operation condition,automatic control over discharge of sewage to function when equipment in failure,maintence or replacement
(7)The 15 ppm Bilge Alarm type BilgMon 488 is approved and certified in accordance with the latest IMO resolution MEPC107(49) .
The certificate of type approval test has been obtained through comprehensive tests. This device is in accordance with the IMO-Resolution MEPC.107 (49).
SPECIFICATION
Type: |
OCM-15 |
Range: |
0 – 30 mg/l can exceed to 50mg/l |
Accuracy |
Better than 5mg/l |
Linearity |
better than 2 % |
Display |
LCD display |
Power Supply: |
220VAC/110VAC ± 10% |
Consumption: |
10 VA |
Alarm Points: |
1-15ppm |
Alarm Points works set: |
15ppm |
Alarm 1 delay |
0-10 second. |
Alarm 2 delay |
0-10 second |
Alarm output |
Two way relays output |
Alarm relay output contact value |
5A, 250VAC |
Alarm relay output feedback signal test |
Two way working status contact testing |
Alarm Indication: |
Red LED's |
Output Signal: |
4 - 20 mA, reversible Ri < 500 Ω |
Sample Water Pressure: |
0.01 -6 bar |
Sample Flow: |
approx. 0.2 - 4 l/min depend on pressure |
Ambient Temperature: |
0 to + 55° C |
Sample Water Temperature: |
+ 1 to + 80° C |
Size (over all): |
360 mm W x 240 mm H x 105 mm D |
Degree of Protection: |
IP 45 |
Weight: |
8kg |
Pipe Connections: |
R 1/4" Female |
If More Details,please feel free to contact us by below Card,24 hours Service
