Home > Industrial Equipment & Components > Environment Protection Device > Waste Treatment Equipment > CCS & EC Approved Marine 15 Ppm Oil Water Separator

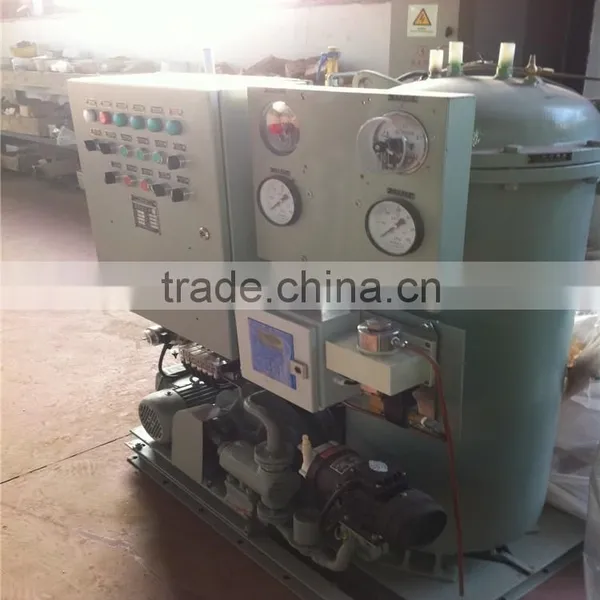

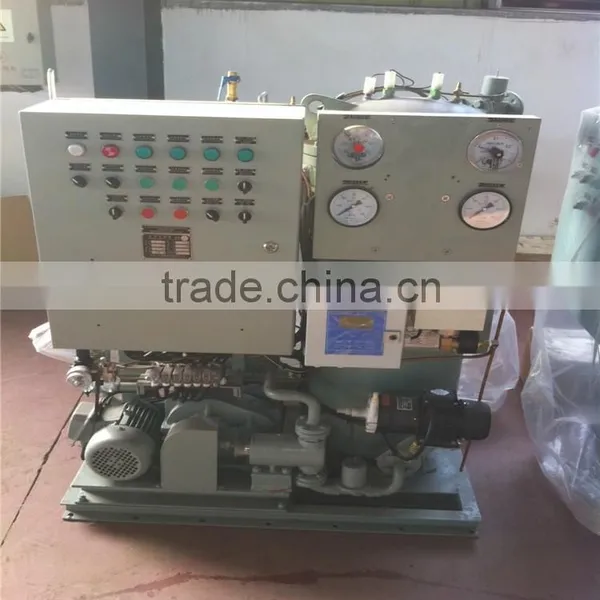

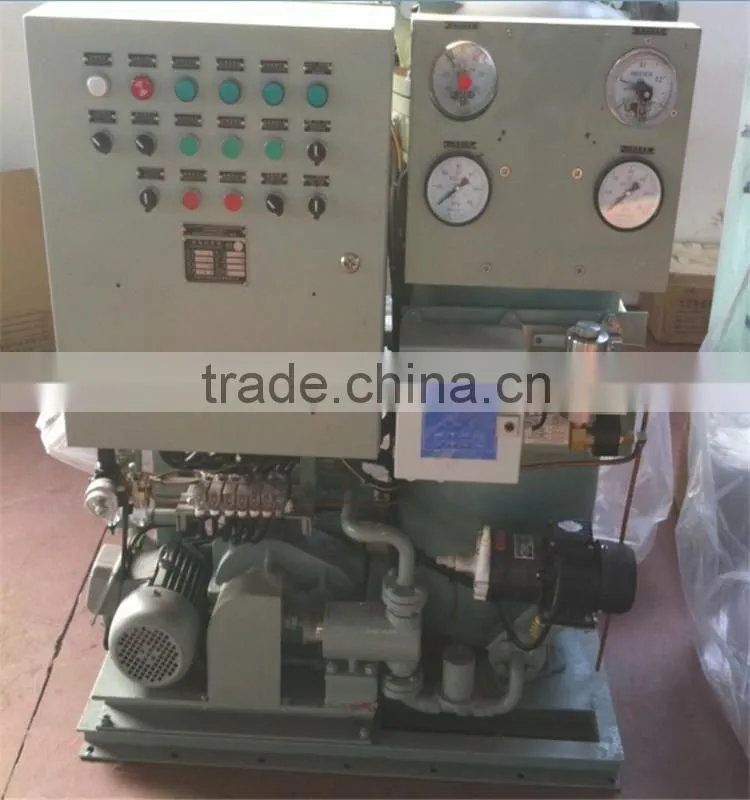

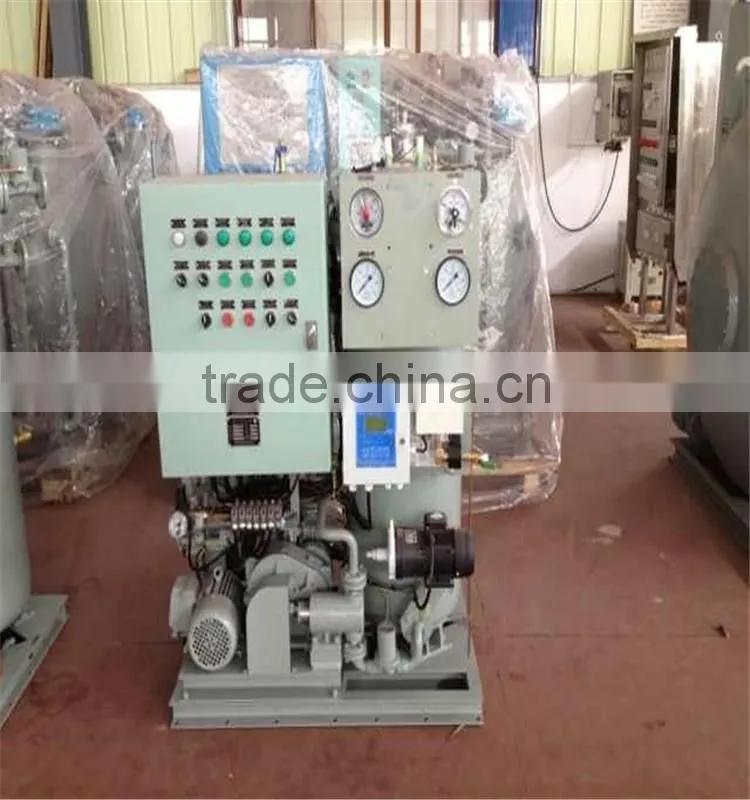

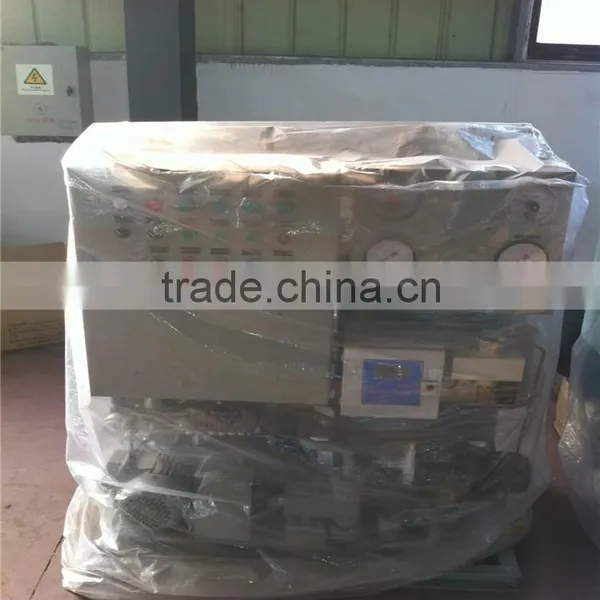

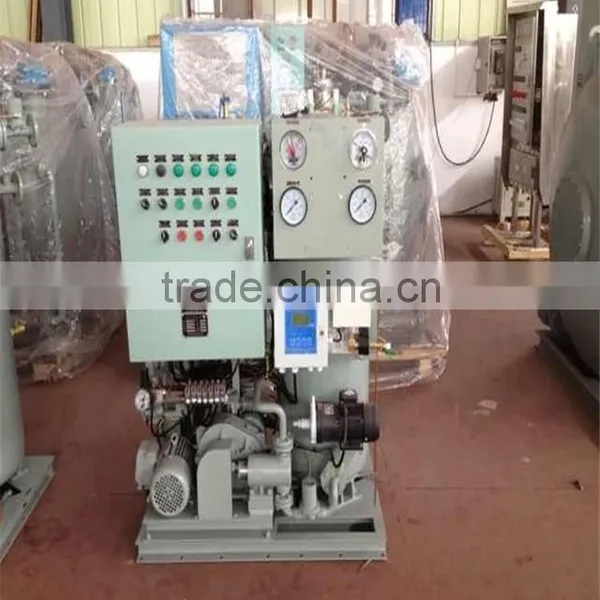

CCS & EC Approved Marine 15 Ppm Oil Water Separator

CCS & EC Approved Marine 15 Ppm Oil Water Separator thumbnail-1
CCS & EC Approved Marine 15 Ppm Oil Water Separator thumbnail-2
CCS & EC Approved Marine 15 Ppm Oil Water Separator thumbnail-3
CCS & EC Approved Marine 15 Ppm Oil Water Separator thumbnail-4
CCS & EC Approved Marine 15 Ppm Oil Water Separator photo-1
CCS & EC Approved Marine 15 Ppm Oil Water Separator photo-2
CCS & EC Approved Marine 15 Ppm Oil Water Separator photo-3
CCS & EC Approved Marine 15 Ppm Oil Water Separator photo-4
US$ 1 - 10 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Gathering
Model Number:
GRC-1.00
Contact Supplier Request Quote Chat Now
Chongqing Gathering Marine Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Gathering
Model Number GRC-1.00

CCS & EC Approved Marine 15 ppm Oil Water Separator



Specification

1. Capacity: 0.25 M3/H to 5M3/H
2. Certificate: CCS, EC/MED
3. Standard: IMO MEPC 107(49)
4. Oil content: ≤ 15ppm
5. Included 15ppm bilge alarm

YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤ 15ppm. This separator is the high-tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.



Type HWC0.25 HWC0.5 HWC1.0 HWC1.5 HWC2.0 HWC2.5 HWC3.0 HWC4.0 HWC5.0
Rating/max capacity (M3/H) 0.25 0.5 1 1.5 2 2.5 3 4 5
Power of pump (KW) 0.37 0.55 0.75 1.1 1.1 1.5 1.5 2.2 2.2
Electric heater power(KW) 3 3 option option option option option option option
steam heater m2/kw __ __   1/30 1/45 2/60 2/75 3/90 4/120 5/150
15ppm bilge alarm included included included included included included included included included
base (channel steel)mm #5 1000*600 #6 1100*690 #6  1050*1080 #6 1100*1130 #8 1900*1120 #8 1900*1120 #8 1700*1500 #8 2280*1700 #8 2590*2000
height(mm) 1250 1460 1600 1650 1700 1900 1900 1900 1900
dry/wet weight (kg) 300/450 600/800 800/860 1060/1810 1260/2260 1500/2800 1800/3200 2100/3900 2500/4600
applicable ship vessel less than 1000 DWT 1000~5000DWT 5~10 KDWT 10~30 KDWT 30~50 KDWT 50~100 KDWT 100~200 KDWT 100~300 KDWT 300    KDWT above
CCS & EC Approved Marine 15 ppm Oil Water SeparatorCCS & EC Approved Marine 15 ppm Oil Water SeparatorCCS & EC Approved Marine 15 ppm Oil Water SeparatorCCS & EC Approved Marine 15 ppm Oil Water Separator
