Electric Hydraulic Windlass Mooring Winch for Marine, Ship, Industry, Mining

FOB Price

US$ 1 - 10 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

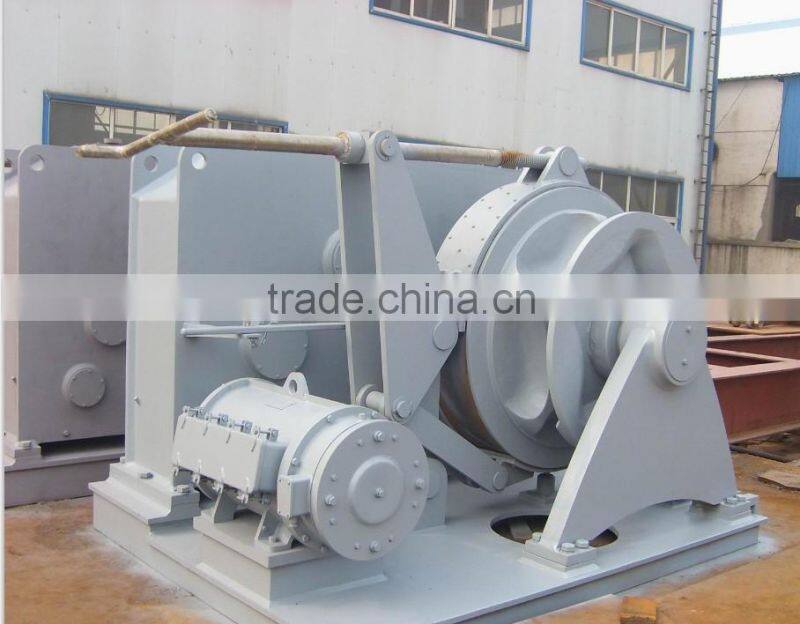

Electric hydraulic windlass mooring winch for marine, ship, industry, mining

The marine hydraulic windlass Mooring Winch is mostly drived by hydraulic pressure. Hydraulic pump provide motives for the system, promotes the hydraulic motor running, and then passes to the pinion gear which installed on motors axle end.
The bull gear connect with principal axis, principal axis running promote gypsy wheel through hand-operated proportional valve to control hydraulic motors positive and reverse rotation, speed-up and speed-down, accomplish the work of drop and weigh anchor.
Its one side equipped with a warping barrel, increase greater convenience for ship to moor and dock.

Electric combined windlass mooring winch: Horizontal Windlass; Vertical Windlass

Model	5ton electric towing winch	5ton electric winch
winch way	towing winch	auto winch
wire rope speed	28m/min	28m/min
motor power	30kw, soft start	30kw, soft start
wire rope dia	22mm	22mm

slow/fast winch from 3ton -- 50ton is available.

Specification	1000kN Hydraulic Marine winch & Towing Winch
	Double drums in waterfall arrangement.Auto spooling device for towing.
Towing	Upper drum
Rated pull & Speed	1000kN at 0~6 m/min(1st layer)
Capacity of the rope	750m
Dia of steel wire rope	48mm
Brake holding	1500kN(1st layer),band type,Hydraulic operated with manual release(safe brake)
Clutch	Hydraulic claw clutch
Hydraulic motor	Staffa
Anchoring	Under Drum
Rated pull & Speed	1000kN at 0~6 m/min(1st layer)
Capacity of the rope	750m
Dia of steel wire rope	48mm
Brake holding	1500kN(1st layer),band type,Hydraulic operated with manual release(safe brake)
Clutch	Hydraulic claw clutch
Hydraulic motor	Staffa
Power pack	Electro-Hydraulic power pack with Kawasaki pumps.
Control	local controls stand and drop-in panel at remote wheelhouse control
Class	ABS,CONSULTING, BV, CCS, etc.

We can supply 1ton to 50ton electric/ diesel power winch

The winches are made by order, please supply the capacity and rope length requirment to us via email.

Thanks for your time!
