Pneumatic Marine Rubber Boat Fender 11*40cm

FOB Price

US$ 5 - 10 / Piece

1 Piece(Min. Order)

Port Shanghai/Qingdao/Tianjing
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	XH
Model Number	XH-001		Part	Hose

Product Description

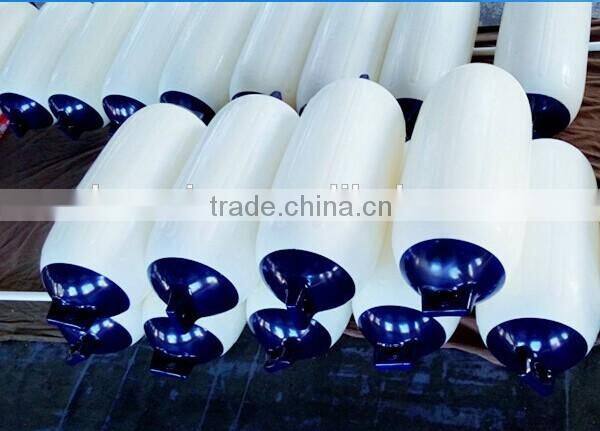

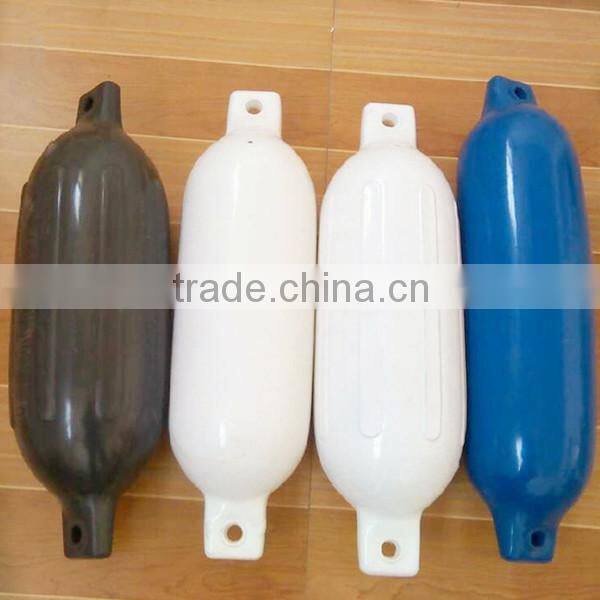

Pneumatic marine rubber boat fender 11*40cm

1. The standard specification of ship rubber fender
You can choose the required diameter and effective length to meet your projects
(1)Diameter: from 500mm to 4500mm
(2)Effective length: from 1000mm to 12000mm
The above specifications only are our standard specifications arrange. Can be supplied customized size upon customers' request.
Performance characteristics
(1)Ship rubber fender is with the use of high quality rubber nylon cord.
(2) Using compressed air as damping medium, the rubber can transform flexibly under pressure, with large contact area, small reaction and absorb large amount of energy.
(3) When berthing, the ship is almost at a certain angle, the ship rubber fender can realize contact in a certain angle by bringing full play to its performance.
(4) Floating on the water surface, even the ship fluctuates and sways resulting from ebb and flow and waves, the pneumatic
(5) Simple installation
(6)Long service life

Nominal size Diameter x Length	Initial Intemal Pressure	Guaranteed Energy Absorption GEA	Reaction Force at GEA	Hull Pressure At GEA	Satety Valve Setting pressure	Testing Pressure	Weight of Net Type (Type I)				Weight of Sling Type (Type II)
		Guaranteed Energy Absorption GEA	Reaction Force at GEA	Hull Pressure At GEA			Approx Fender Body weight	Approx.Weight of Net
		E	R	P			Approx Fender Body weight	Chain Net	Wire Net	Synthetic Fiber Net
(mm x mm)	(kNm)	(kNm)	(kN)	(kPa)	(kPa)	(kPa)	(kg)	(kg)	(kg)	(kg)	(kg)
500 x 1000	50	6	64	132	_	200	22	110	30	20	32
600 x 1000	50	8	74	126	_	200	25	120	30	22	36
700 x 1500	50	17	137	135	_	200	45	150	40	37	55
1000 x 1500	50	32	182	122	_	200	73	200	80	51	98
1000 x 2000	50	45	257	132	_	200	88	220	140	57	113
1200 x 1200	50	63	297	126	_	200	131	320	190	68	156
1350 x 2500	50	102	427	130	_	200	200	350	200	_	240
1500 x 3000	50	153	579	132	_	200	250	530	350	_	290
1700 x 3000	50	191	639	128	_	200	290	580	440	_	330
2000 x 3500	50	308	875	128	_	200	405	960	640	_	465
2500 x 4000	50	663	1381	137	175	250	902	1240	910	_	1080
2500 x 5500	50	943	2019	148	175	250	1090	1850	1160	_	1320
3300 x 4500	50	1175	1884	130	175	250	1460	1710	1270	_	1840
3300 x 6500	50	1814	3015	146	175	250	1870	2570	1910	_	2250

Marine Blue & White color fender for hot sales
