400-470mhz 136-174mhz Uhf Vhf Handheld Radio

FOB Price

Negotiable / Piece

2 Pieces(Min. Order)

Port Shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	VVK
Model Number	UV-N9	Type	Handheld
Dimensions	95x59x33mm	Frequency Range	136-174MHz/400-480MHz
Storage Channel	16	Talk Range	3-5KM

Product Description

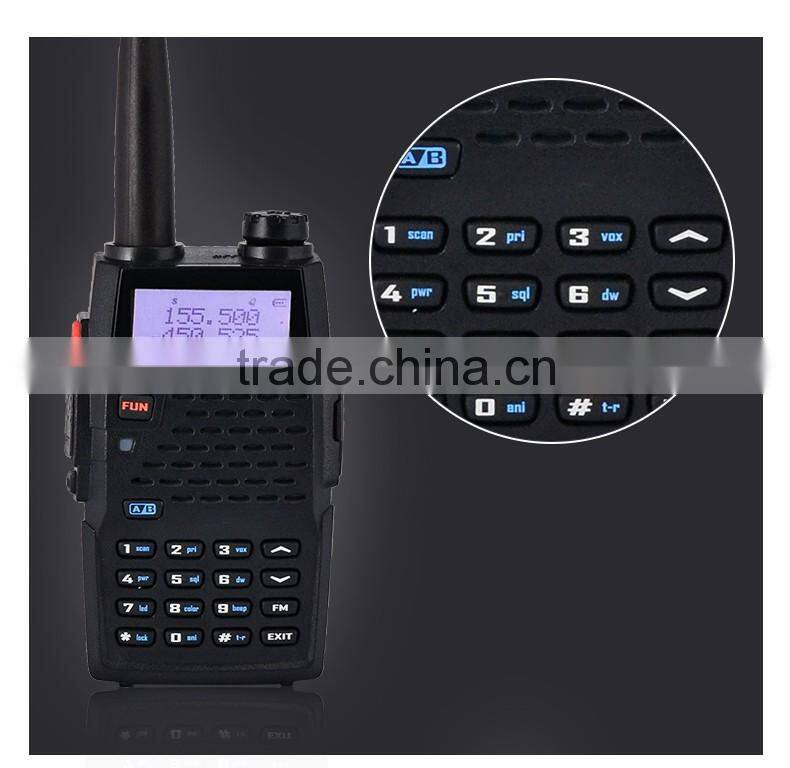

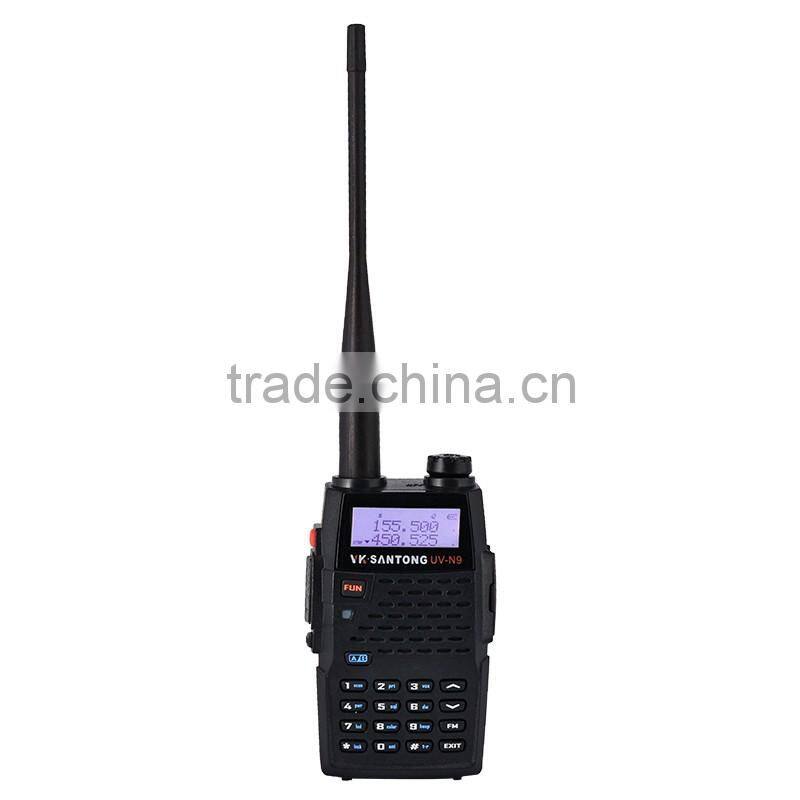

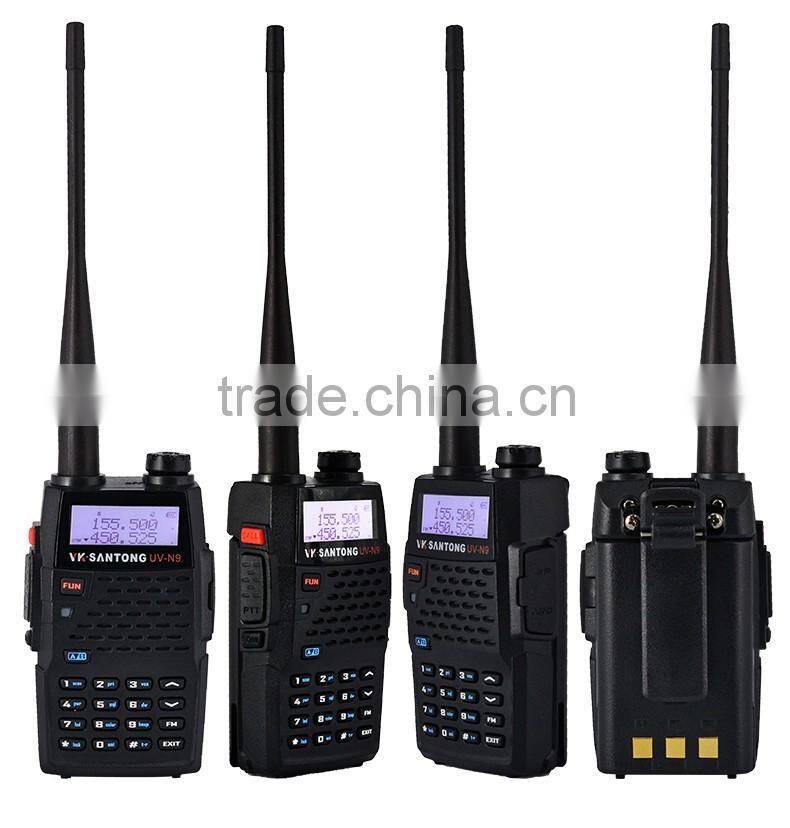

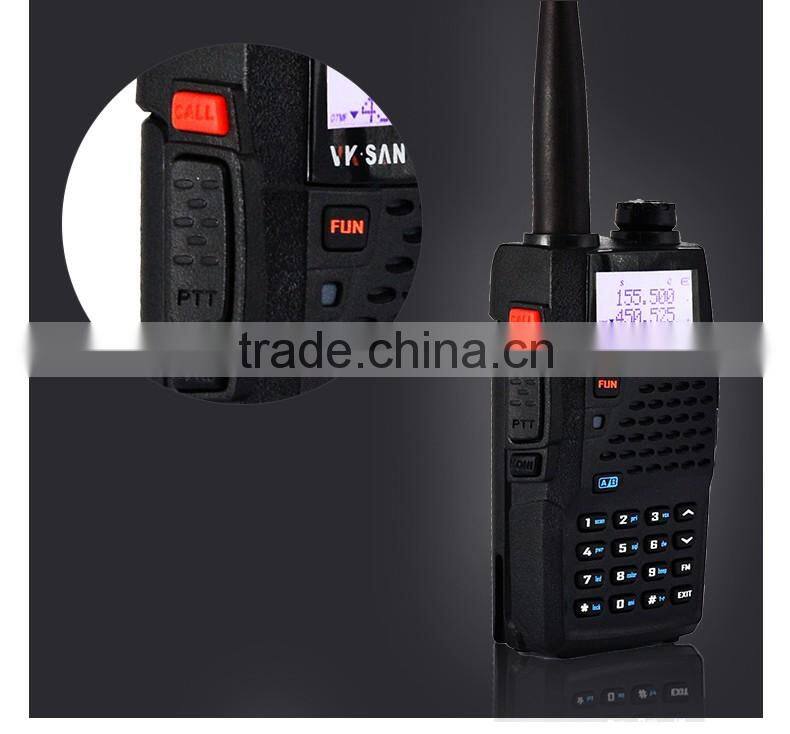

VVK UV-N9 uhf vhf handheld radio

from china manufacturer

Factory price +Best service! Provide ODM/OEM service!

Product Description

About this item: UV-N9 uhf vhf handheld radio

1.Dual Band/Standby/Display
2.Elastic keypad with voice promt(English/Chinese)
3.LCD display(green, blue, yellow)
4.CTCSS/DCS encoding/decoding function
5.User-friendly shortcut menu and phonebook function
6.VOX function
7.DTMF encoding & decoding

It can use for construction, industries, trip...etc. It is very easy to handle and communicate with each other.

Full set including:

1* handheld radio UV-N9, 1*1200mAh Li-ion battery, 1*Adapter, 1*Desktop Charger, 1*Antenna

1*Belt clip,1*User Manual, 1*earphone or 1* Bluetooth optional

UV-N9 uhf vhf handheld radio .400-470mhz and 136-174mhz frequency.

Dual band two way radio general details:

General
Frequency Band	VHF/UHF
Frequency Range	136-174MHz/400-480MHz
Channel Capacity	Min 16 addable to countless
Channel Spacing	25KHz/12.5KHz
Antenna Impedance	50Ω
Microphone Impedance	600Ω
Operating Voltage	7.4V DC±15%
Frequency Stability	±2.5ppm
Battery	1200mAh(Polymer Li-ion)
Compatible With American Military Standard(Mil-STD-810C/D/E)
Transmitter(EIA-RS 316B STANDARD)
RF Power Output	5W
Modulation Type	FM
Modulation Sensitivity	<15µV
Modulation Distortion	≤3%
Max Freq Deviation	<5KHz
Occupied Bandwidth	≤16KHz
Modulation Feature	±3dB
Spurious Radiation	≤7.5μW
Adjacent Channel Power	≤-65dB
Receiver
Sensitivity(12db SINAD)	≤0.15μ(12dB S/N)
Squelch Sensitivity	≤0.1μV
Audio Power output	1W/16Ω
Audio Respond	+2-8
Operation Bandwidth	>5KHz
Co-channel Rejection	≥-8dB
Blocking	≥85dB
Adjacent Channel Selectivity	≥65dB
Standby Current	60mA,15mA
Spurious Rejection	≥60dB
Intermodulation Resistance	≥60dB

bluetooth earphone is available.

Packaging & Shipping

Packing for portable two way radios :

Gift box per piece, 40sets/CTN, Normal Carton : 63x43x57 cm

Delivery date:

1-5 working days for order less than 100pcs

5-10 working days for order less than 500pcs

10-20 working days for large OEM order

Our Services

Service
A. OEM & ODM service offered
B. By sea ,by air, by Express, for example DHL,UPS, FedEx, EMS, TNT or local logistics

Warranty:
* Before delivery , we will check the items' quality strictly one by one .
* 1 year warranty for radio body & 6 month for accessories.

Please contact us immediately if any problem comes up.
Payment terms
Payment: T/T, Paypal, Alipay, Trade assurance, LC, Western Union
