Help Center1W High Power Warm White SMD LED
Related Products
Specifications
1.Size: 5.4*8.0*14.5mm, 350mA, 3V,2. Luminous flux 80-95 LM,
3. 120 degree
4. Low light decay
1W High Power Warm White SMD LED(GPP-H1LA9NA-1400)
Features:
1.Long lifespan: can be used than 50,000hrs.
2.High energy efficiency:save 80% power than sodium lamps.
3.Environmental friendly: no lead,no mercury and no pollution.
4.More safety:good impact resistance, no UV rays, no IR rays.
5.Quick response: achieves high lumens within in nanoseconds.
6.No flicker, no strobe for less visual fatigue.
Technical data:

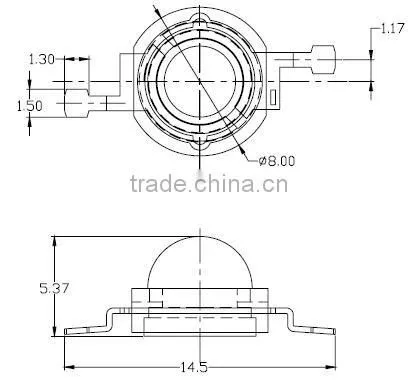

Package dimensions:
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.25mm unless otherwise specified.
3. Lead spacing is measured where the leads emerge form
4. Specifications are subject to change without noticed.the package.
Electrical and optical characteristics(Ta=25°C)
|
Symbol |
Condition |
Min. |
Typ. |
Max |
Unit |
|
1 |
Forward Voltage |
VF |
IF=350mA |
3 |
3.5 |
4 |
V |
2 |
Luminous Flux |
- |
IF=350mA |
80 |
85 |
95 |
Lm |
3 |
Reverse Current |
IR |
VR=5V |
- |
- |
10 |
μA |
4 |
Color Temperature |
CCT |
IF=350mA |
- |
350 |
- |
K |
5 |
Viewing Angle |
2θ1/2 |
IF=350mA |
- |
120 |
- |
deg |
Package:50pcs/tube
Notes:1. All Dimensions are in mm, Tolerance is ±2.0mm unless otherwise noted.
2. Specifications are subject to change without notice.
Application:
1. Lightings
2. Miner's lamp
3. Optical indicator
4. Signal & symbol luminaire.
5. Substitution of Micro incandescent lamps
6. Indoor & outdoor displays
7. Backlightings (LCD, cellular phone, switches, keys, displays, advertising lighting, general lighting)
Our advantages:
1.16 years experience in manufacturing, Encapsulation Center for LED in Xiamen
2.LED components supplier for LG,TPV,Lite-on, Mitsubishi
3.Well-trained and experienced staffs to help you slove your problem
4. A experienced R&D team to help design new products
5. Strict QC system for high quality
6. Guaranteed delivery time
