Help Center3528 Red/white
Negotiable
MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Gopro
Model Number:
GPTD1210RW-D
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
Gopro
Model Number
GPTD1210RW-D
Type
LED
Package Type
Surface Mount
Max. Reverse Voltage
5V
Max. Forward Current
175/100mA
Specifications
1> red & white 3528 smd2> 140 degree dual colors diode
3> 620-635nm smd led
4> used in TV set, backlight, mobile etc
Specifications
chip: AlInGaP InGaN
emitted color: red (pin 1,2) white (pin3,4)
resin: water clear
voltage: red 1.6-2.4V, white 2.7-3.2V
luminous intensity: red 10-40mcd, white 60-150mcd
reverse current: red/white 10uA
wavelength: red 630nm
spectral line half-width: red 20nm
beam angle: red 140 degree, white 120 degree
CIE value(x,y): 0.31 (If=5mA)
package: 3000pcs/tape
Applications
TV set, monitor, mobile telephone, computer, circuit board, backlight

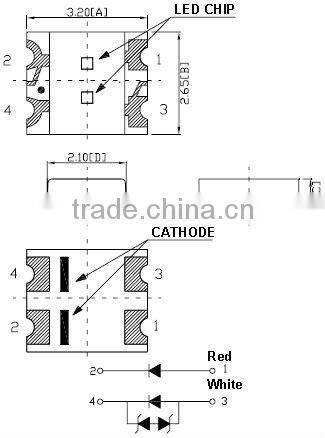

Dimensions (mm)

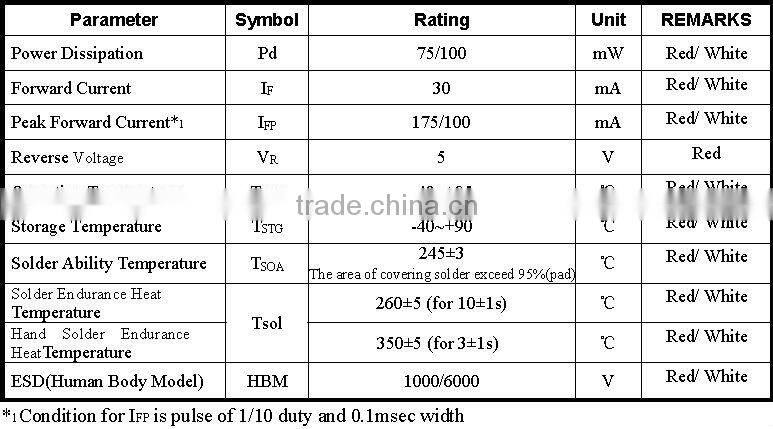

Absolute maximum ratings (Ta=25 celsius degree)

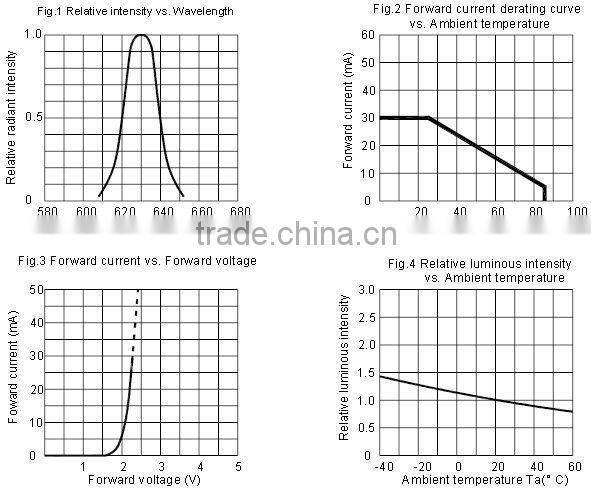

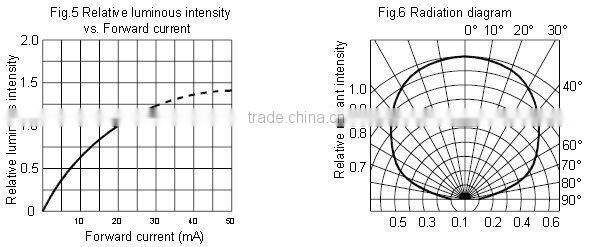

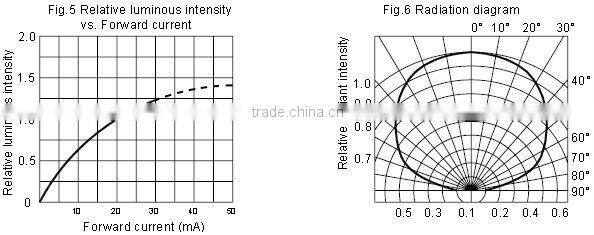

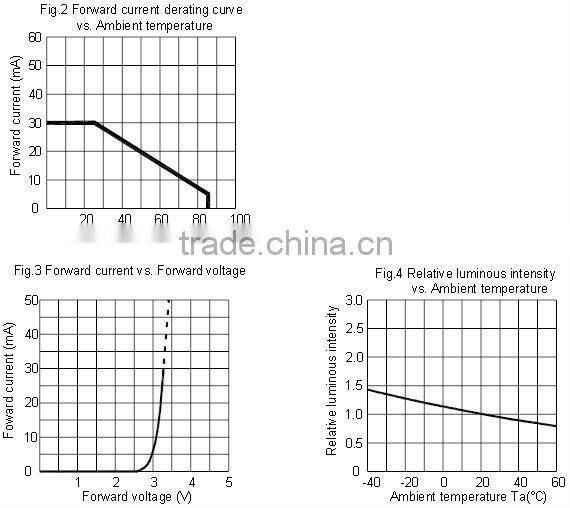

Electro-optical characteristics curves
red
white

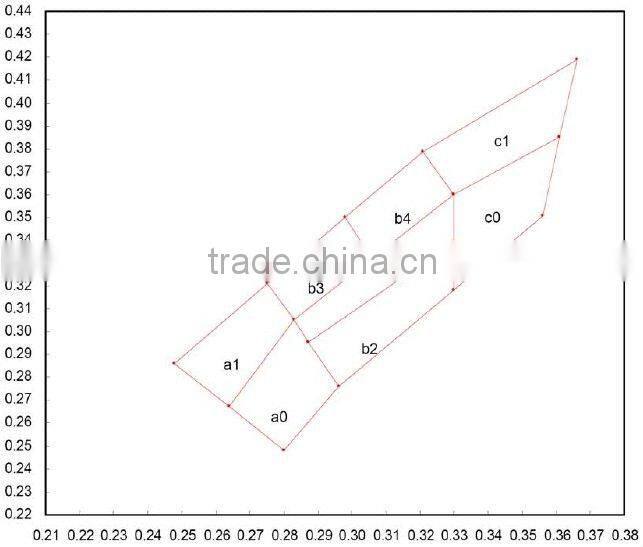

CIE chromaticity diagram

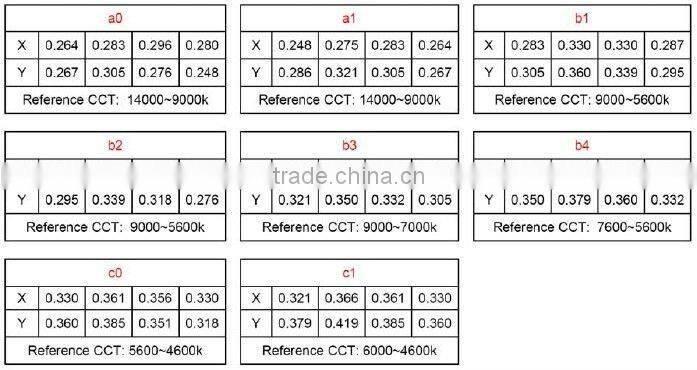

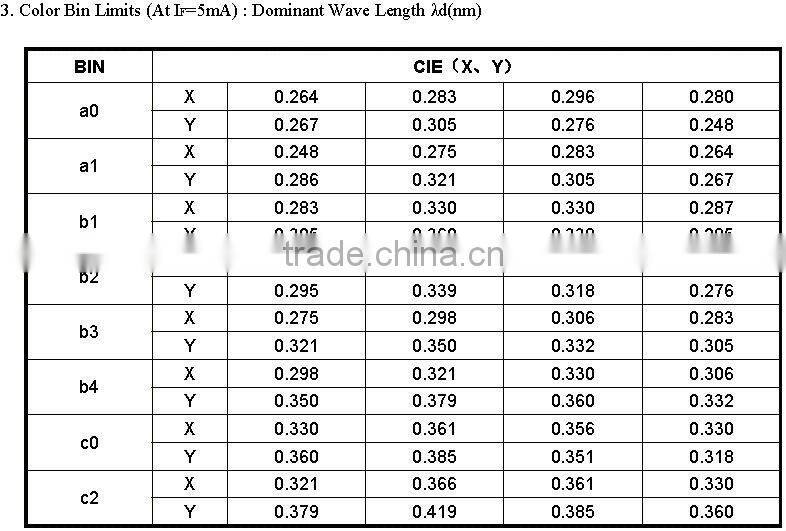

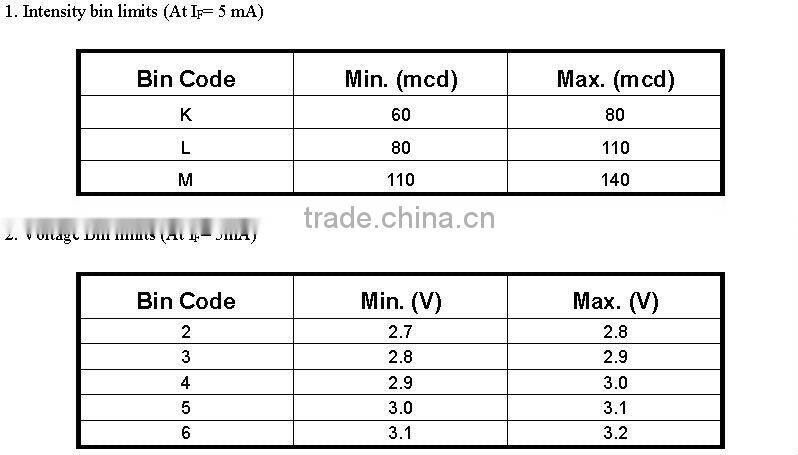

Bin limites

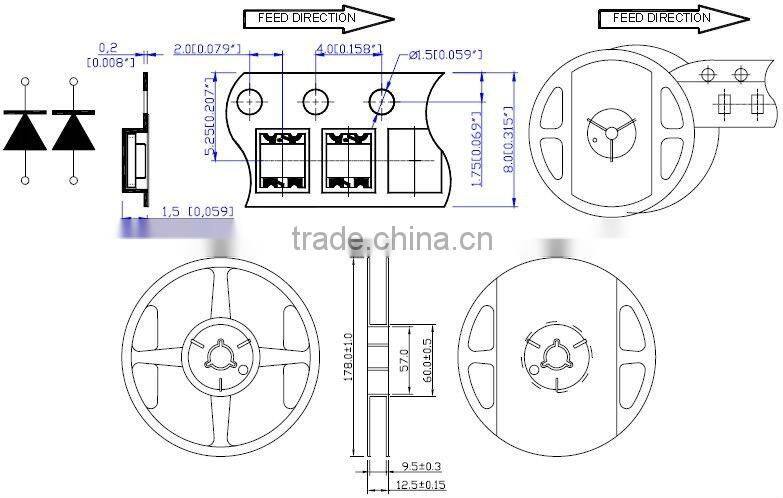

Taping (mm)
