brand alternator gas generator
Parts of the products

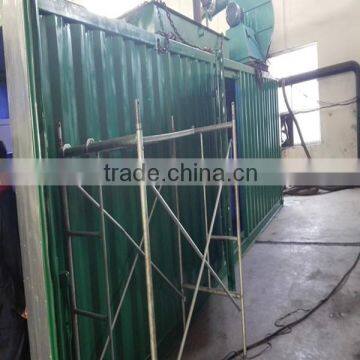

Install case
Generating set general Model |

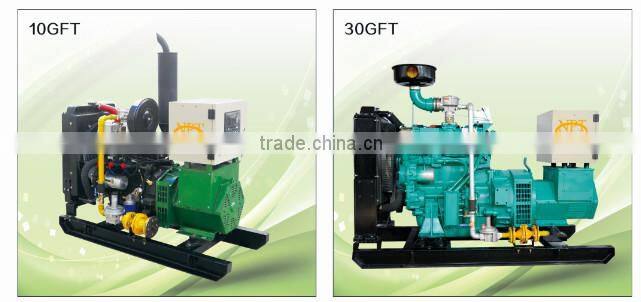

10GFT |
|
Structure |
integral |
|
Exciting method |
AVR Brushless |
|
Rated Power (kVA/kW) |
12.5KVA/10KW |
|
Rated Current(A) |
18 |
|
Rated Voltage(V) |
400/230 |
|
Rated Frequency(Hz) |
50 |
|
Rated Power Factor |
0.8 LAG |
|
Overall dimension (L x W x H)(mm) |
1320X600X900 |
|
Net weight (kg) |
500 |
|
Gas Engine |
Model |
NQ15D1.5 |
Type |
In line 4stroke, electric control ignition, pre-mixed stoichiometry burn |
|
Cylinder number |
3 |
|
Bore x Stroke (mm) |
80x90 |
|
Total displacement (L) |
1.5 |
|
Rated Power (kW) |
15 |
|
Rated Speed (r/min) |
1500 |
|
Fuel type |
Biogas/Natural gas/LPG |
|
Control panel |
NPT Brand10 KZY |
LCD display |
Circuit Breaker type |
ATS SKT1-20 |
|
Control Module |
Smartgen |
|
Operation language |
English |
|
Alternator |
Model |
XN164C |
Brand |
MBH( Germany brand) |
|
Shaft |
Single bearing |
|
Rated Power (kW) |
10.8 |
|
Rating(kVA) |
13.5 |
|
Enclosure protection |
IP23 |
|
Efficiency (%) |
80 |
|
brand alternator gas generator packing
brand alternator gas generator service
Weifang Naipute Gas Genset CO.,Ltd is a professional manufacturer of gas generator set, in order to enhance management and guarantee quality, we go strictly with ISO 9001 and all our products technology index can qualify CE certification. Our service concept will be” efficiency ,reliability, credibility, consideration”. Our service includes: proper gas generator option, installation &debugging, train operator, technical service &spare parts during gas generator life time.
Pre-sale service
Provide specification parameter and consultants service, customized design optional.
According the requirement of customer we will design and offer a complete set of equipment, such as mute device and heat treatment device and so on.
After –sale service
Installation guide and maintenance manual
Guide user to install the machine and free debugging machine for free.
Training the operator for the user, cooperate with the user finish the acceptance work.
Tracking service
Regularly consult feedback from end user ,avoid potential problem and solve problem in time.
Customer in workshop
Instal case
