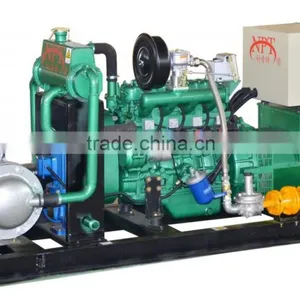

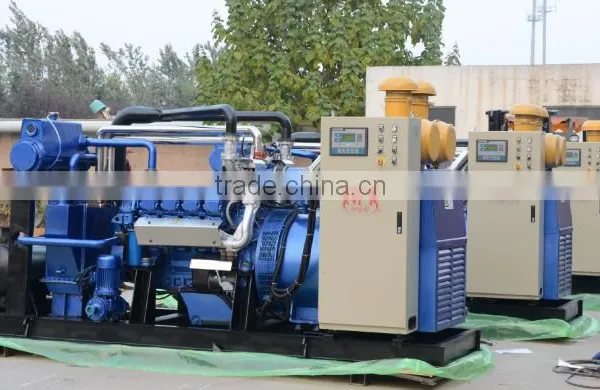

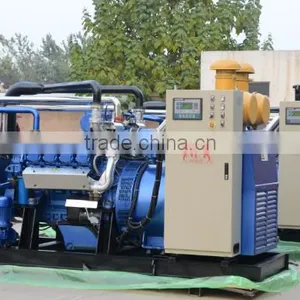

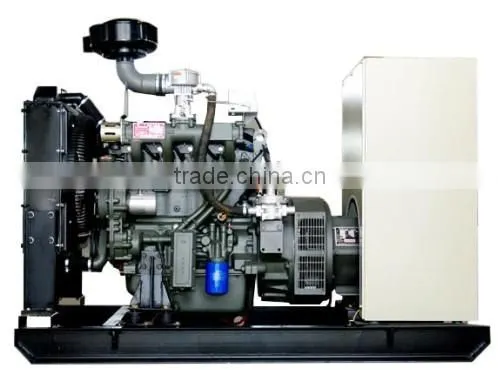

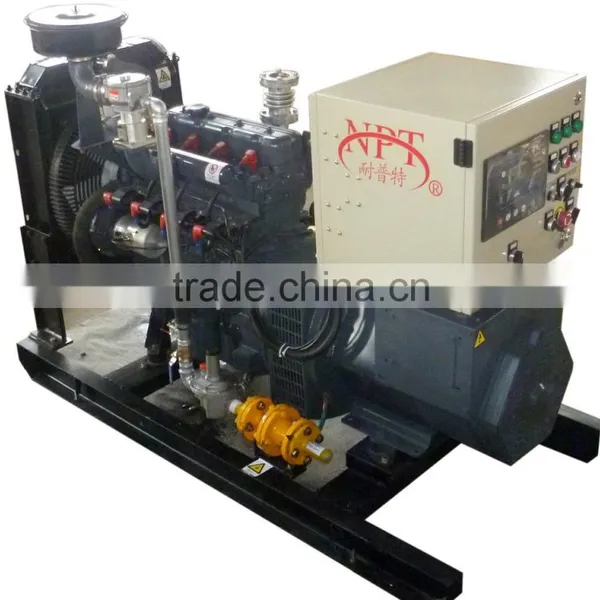

Natural gas Driven Generator
Generating set general Model |
20GFT |
|
Structure |
integral |
|
Exciting method |
AVR Brushless |
|
Rated Power (kW) |
20KW/25KVA |
|
Rated Current(A) |
36 |
|
Rated Voltage(V) |
400/230 |
|
Rated Frequency(Hz) |
50 |
|
Rated Power Factor |
0.8 LAG |
|
Overall dimension (L x W x H)(mm) |
1650X720X1250 |
|
Net weight (kg) |
680 |
|
Gas Engine |
Model |
NQ35D3 |
Type |
In line 4stroke, electric control ignition, pre-mixed stoichiometry burn |
|
Cylinder number |
4 |
|
Bore x Stroke (mm) |
98x115 |
|
Total displacement (L) |
3.5 |
|
Rated Power (kW) |
30 |
|
Rated Speed (r/min) |
1500 |
|
Fuel type |
Natural gas |
|
Control panel |
NPT Brand 20KZY |
LCD display |
Circuit Breaker type |
ATS SKT1-40 |
|
Control Module |
Smartgen HGM6320 |
|
Operation language |
English |
|
Alternator |
Model |
XN162G |
Brand |
MBH( Germany brand) |
|
Shaft |
Single bearing |
|
Rated Power (kW) |
20 |
|
Rating(kVA) |
25 |
|
Enclosure protection |
IP23 |
|
Efficiency (%) |
80.7 |
|

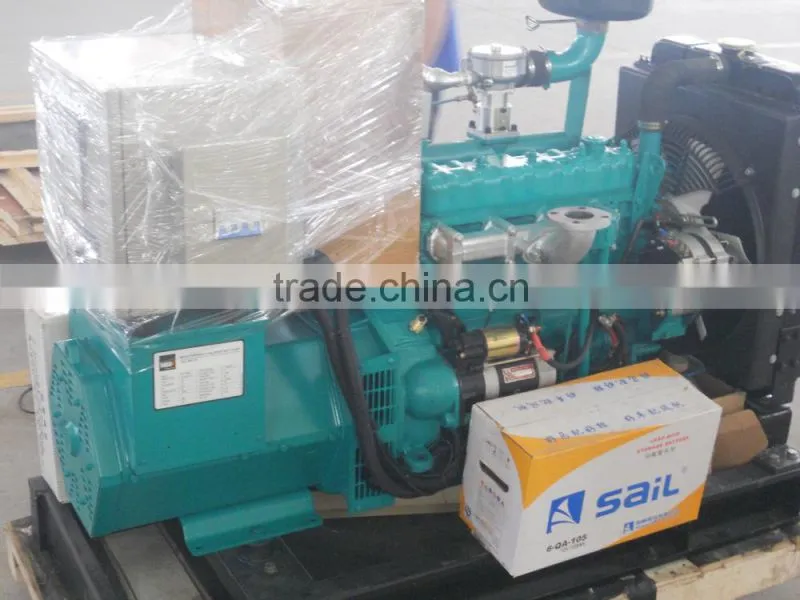

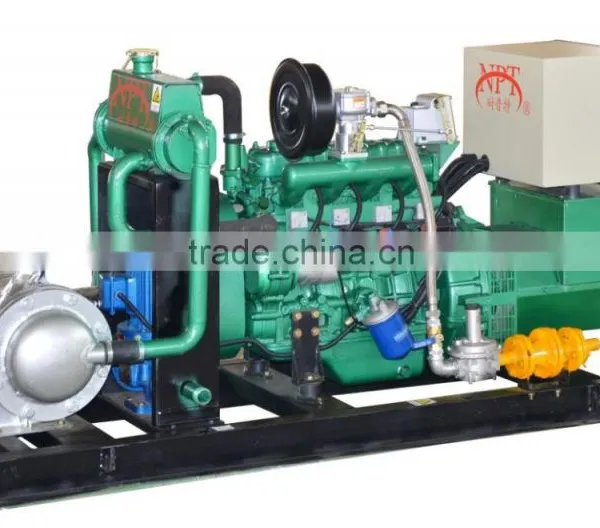

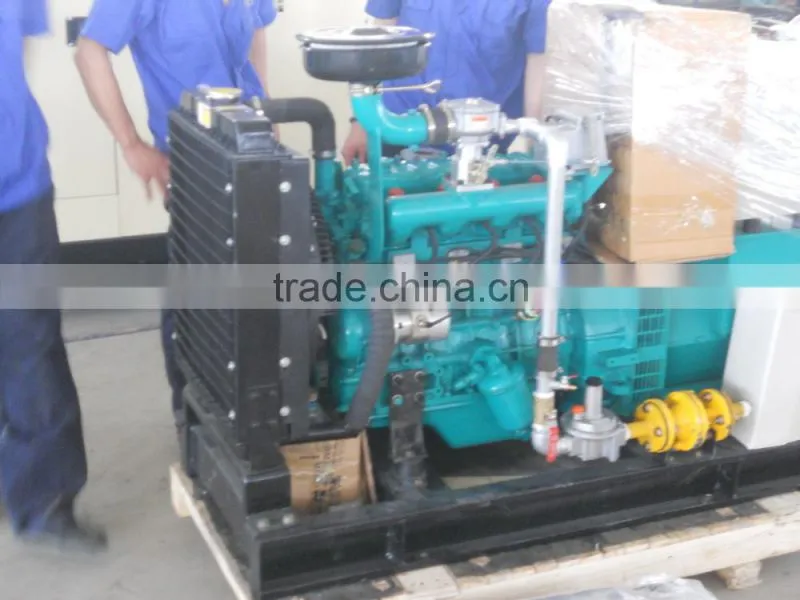

natural gas Driven Generator
natural gas Driven Generator
Pre-sale service
Provide specification parameter and consultants service, customized design optional.
According the requirement of customer we
can design and offer a complete set of equipment, such as mute device and heat treatment device and so on.
After –sale service
Installation guide and maintenance manual
Guide user to install the machine and free debugging machine for free.
Training the operator for the user, cooperate with the user finish the acceptance work.
Tracking service
Regularly consult feedback from end user ,avoid potential problem and solve problem in time.

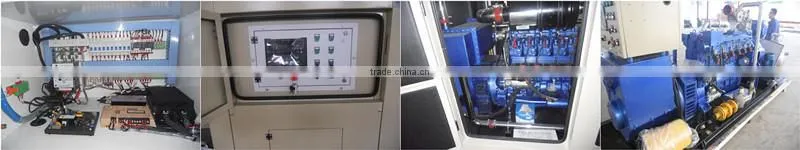

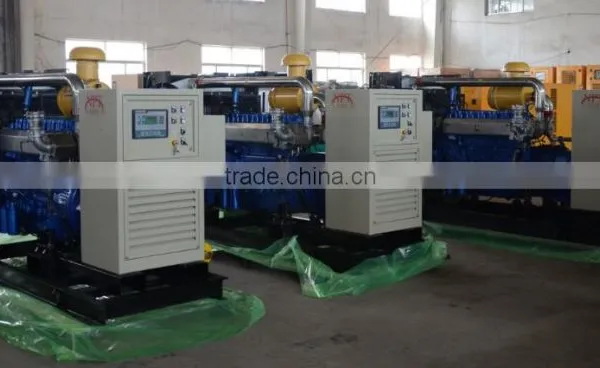

Work shop
Customer testing
1.12 months or 1500 running hours warranty covering all manufacturing defacts(whichever comes first)since leaving China port;our company provides free easily-damaged parts for the faults caused by the quality of products or raw material, but exclude the damageable parts of engine due to the customer’s incorrect man –made operation.
2.1 year maintenance spare parts and technician support(send technician to your country or train your technician both in China and abroad )for overseas market; After expiration, our company provide spare parts with cost for maintenance forever.
Contact
Helen Wang
Sale manager
skype:hellen.yu3
Trademanager: cn1511922066
QQ:2548526848
What’s up & Viber&cell phone No.:(86)15662551270

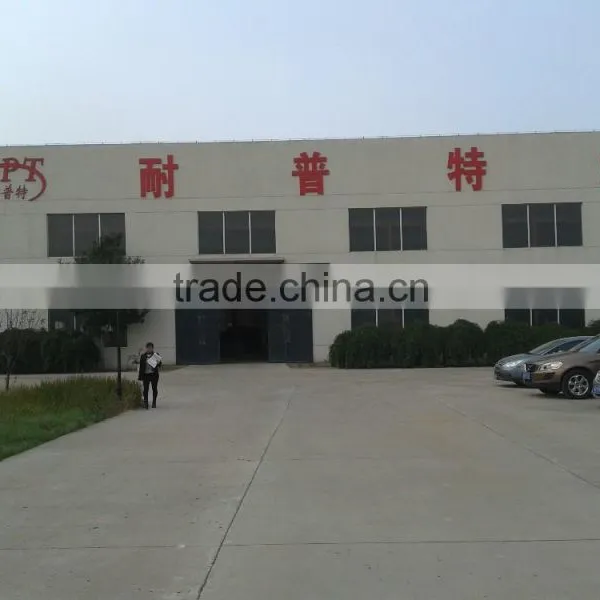

Weifang Naipute Gas Genset Co.,ltd
Add:1599 Xinyuan Rd., Economic Development Zone, Weifang,Shandong,China
