6.25m Coke Oven Machinery(Chinese Famous Brand)1.Independent intellectual property
2.Environmental protection
3.ISO9001:2008
6.25m Coke Oven Machinery(Chinese Famous Brand)
6.25m stamping coke oven machinery is one of the series of DHHI stamping coke oven machinery, with independent intellectual property rights. Since 2010 the product design and manufacturing has been developed, the indicators meet user requirements, the technology reach the level of domestic leading and international advanced, as the current total of 14 sets have been manufactured.
Description of 6.25m Coke Oven Machinery –Stamping Machines :
(For reference only, the design can be personalized according to user requirements)

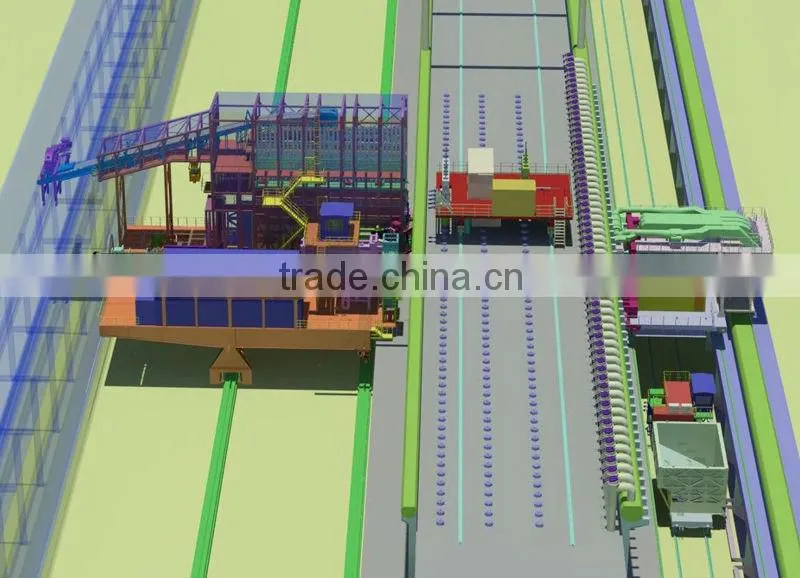

| Be composed of | Option 1(See drawing 1) | Option 2(See drawing 2) |
| SCP Machine(With the function of Stamping,Charging and Pushing) | Coke Pushing Machine(or pushing with charging machine) | |
| U-Shaped Pipe Smoke Guide Car | Coal Charging Car | |
| Coke Guide Car | Stamping Machine | |
| Electric Locomotive | Swing feeder | |

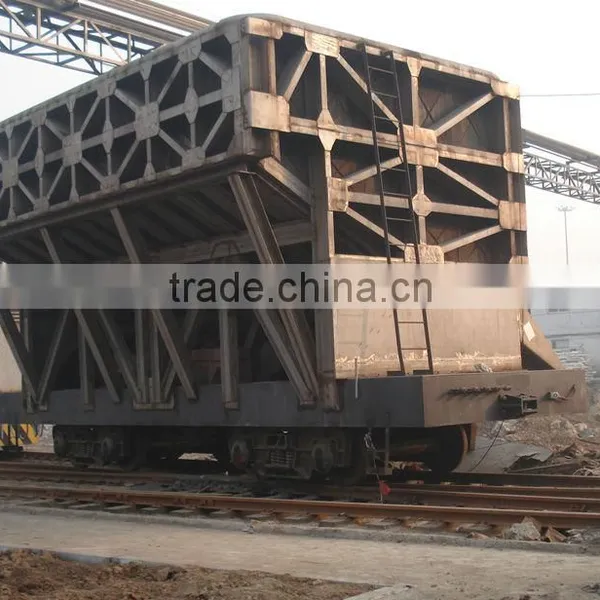

| Quenching Car(or CDQ) | U-Shaped Pipe Smoke Guide Car | |
| Reversing Machine | Coke Guide Car | |
| Electric Locomotive | ||
| Quenching Car(or CDQ) | ||
| Reversing Machine | ||
| Parameter of Coke Oven | Length(mm):17220(hot) | |
| width(mm):490/500/520/540/550(hot) | ||
| height(mm):6250(hot) | ||
| Coke Output(max) | 35t (approx) | |
| Technological Characteristics | 1. DHHI has its independent intellectual property; | |
| 2. Environmental Protection,High Efficiency and High Reliability; | ||
| 3. With emergency system in case of power failure; | ||
| 4. One spot postioning,5-2 serial sequence and four-car interlocking; | ||
|
5.Automatic Alignment & Oven Identicifaction system with Spotting accuracy ±5mm; | ||
| 6. Oven(Coke) temperature detecting function; | ||
| 7. VVVF Speed Control technology is used for traveling device; | ||
| 8. Executive mechanisms are drived by hydraulic cylinders (or built-in MTS hydraulic cylinders) | ||
| 9. Smokeless charging; | ||
| 10. Dust and Fume are effciently controlled on the top of oven,pusher side and coke side; | ||
| 11. Mechanized Automatic Lid Lifting; | ||
| 12. Mechanized Automatic Oven Door Extractor with memory function; | ||
| 13. Mechanized (High presser water) automatic Oven Door Cleaner; | ||
| 14. Mechanized automatic Oven Jamb Cleaner; | ||
| 15. Mechanized Automatic Cleaning for the Bottom of Ascension Pipe | ||
| 16. Mechanized automatic Spillage Coke and Coal Collecting. | ||
| Awards | Liaoning Provincial Science and Technology Progress First Prize | |
| Record | Earliest developed the 6.25m coke oven machinery in China | |
| Lead-time | 12 months after receiving the advance payment | |
weight |
about 1800t | |

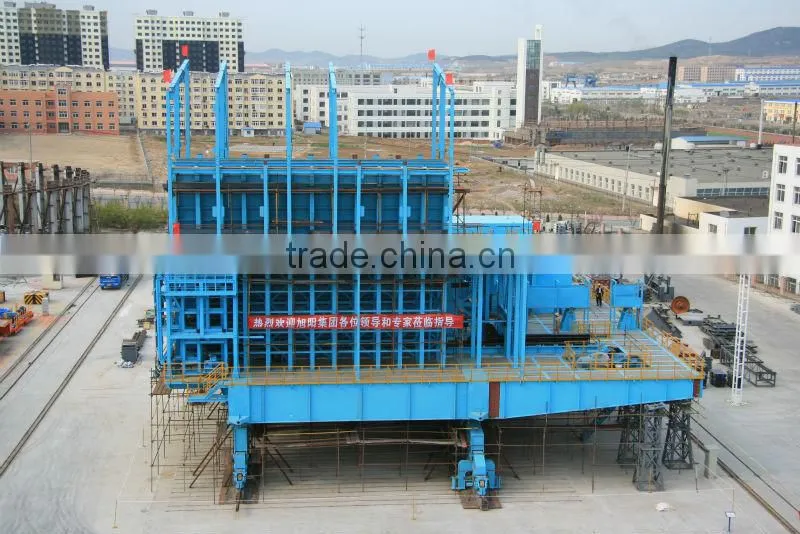

Factory Final Assembly:
Certificate:
DHI·DCW coke oven machinery was granted the title of Liaoning Famous Brand and
Dalian Famous Brand.
List of main customers:
User Site:

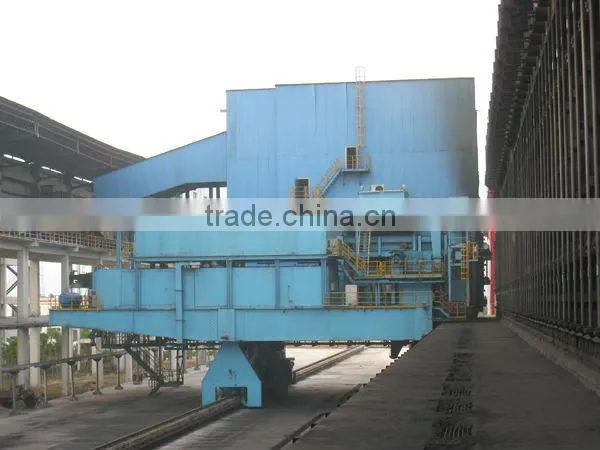

6.25m Coke Oven Machinery,Hebei Risun,China,2011
Business License:
Main Processing Equipment:
Patent:
Our Factory:
