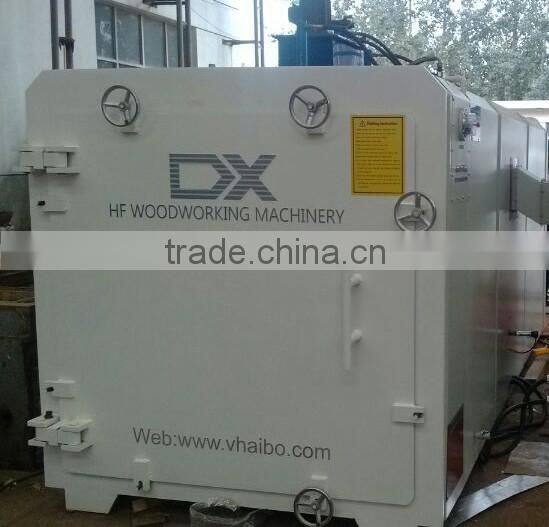

Top quality HF vacuum wood drying kiln drying oven industrial
Specification :
High vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.
Why we choose High Frequency Vacuum Wood Drying Machinery ??
1. Heating fast and uniformly, fast drying(more than10 times faster than conventional steam dryer);
2. Saving labor, cost and drying time
3. Full-automatic, easy to control and operate; flexible and simple;
4. High outturn percentage, no crack, no deformation;
5. Environmental protection;
6. New square design tank increase the availability of the inner space;
7. Bacteria and worm killing, high outturn percentage;
8. Drying used for all kinds of wood

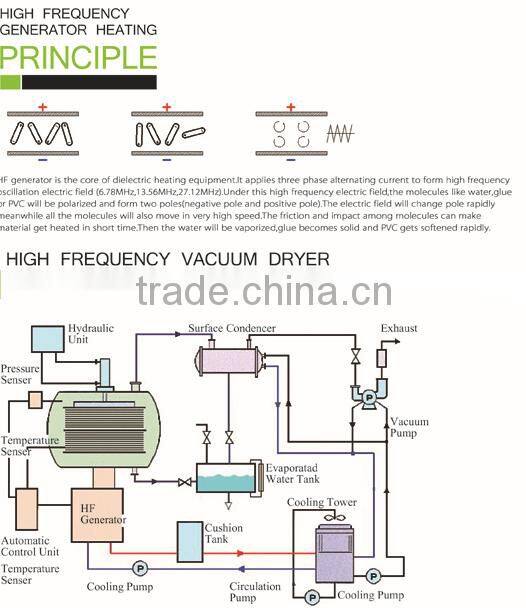

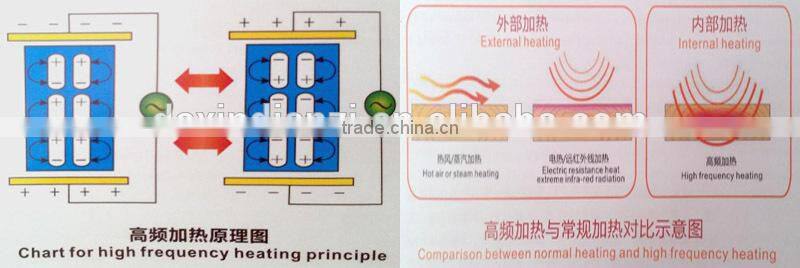

High frequency Working principle :
HF generator is the core of dielectric heating equipment. It applies three phase alternating current to form frequency oscillation electric field .Under this high frequency electric field, the molecules like water .glue or PVC will be polarized and form two poles. The electric field will change pole rapidly meanwhile all the molecules will also move in very high speed. The friction and impact among molecules can make material get heated in short time. Then the water will be vaporized, glue becomes solid and PVC gets softened rapidly.
Why we choose HIGH FREQUENCY VACUUM?
|
High frequency vacuum |
Microwave vacuum |
Heating method |
High frequency |
microwave |
Heating speed |
Fast |
fast |
Diathermy way |
through heating |
The internal and external heating |
Heating area |
Outside high, inside low temperature |
|
Technology process |
Easy |
complex |
Drying temperature |
Can be high to low |
high |
Drying quality |
Perfect |
Maybe some damage |
Radiation |
Low |
high |
comprehensive evaluation |
Excellent |
good |

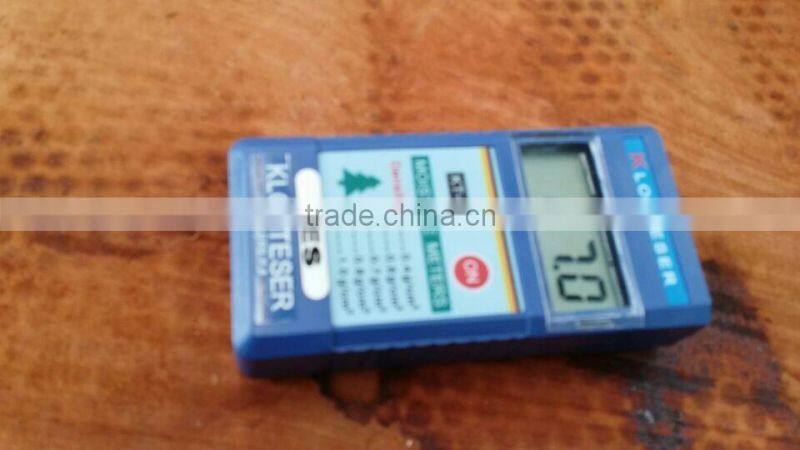

Wood mositure test :
DXHF has engaged in HF field for more than 20 years and is the first brand in China.
Cooperation and exchange technology with international HF expert can supply yearly the top quality equipment and quote reasonably.Various models with 10/20/30/40 /50KW power HF Generator; Capacity:3/4/6/8/10/12/15 CBM.

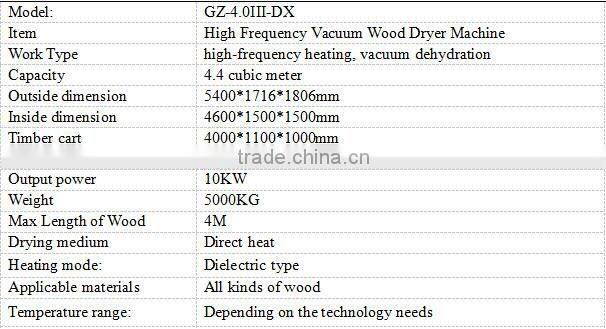

Model |
GZ-3.0III-DX |
GZ-4.0III-DX |
GZ-6.0III-DX |
GZ-8.0III-DX |
GZ-10.0III-DX |
GZ-12.0III-DX |
Capacity (CBM) |
3.3 |
4.4 |
6.6 |
8.64 |
10.08 |
12.48 |
Out Dimension (mm) |
L4400 W1716 H1806 |
L5400 W1716 H1806 |
L6500 W1916 H2006 |
L7600 W2000 L2090 |
L8600 W2000 H2090 |
L9600 W2000 H2090 |
Inside dimension (mm) |
L3600 W1500 H1500 |
L4600 W1500 H1500 |
L5700 W1700 H1700 |
L6800 W1750 H1750 |
L7800 W1750 W1750 |
L8800 W1750 H1750 |
Timber cart (mm) |
L3000 W1100 H1000 |
L4000 W1000 H1000 |
L5000 W1200 H1000 |
L6000 W1200 H1200 |
L7000 W1200 H1200 |
L8000 W1300 H1200 |
Max Length of Wood |
3m |
4m |
5m |
6m |
7m |
8m |
High Frequency |
6.78MHz |
|||||
Input Power |
15KW |
15KW |
30KW |
40KW |
50KW |
50KW |
output power |
10KW |
10KW |
20KW |
30KW |
40KW |
40KW |
Vacuum pressure |
- 0.093MPa |
|||||
Weight(kg) |
4000 |
5000 |
7000 |
9000 |
11000 |
13000 |

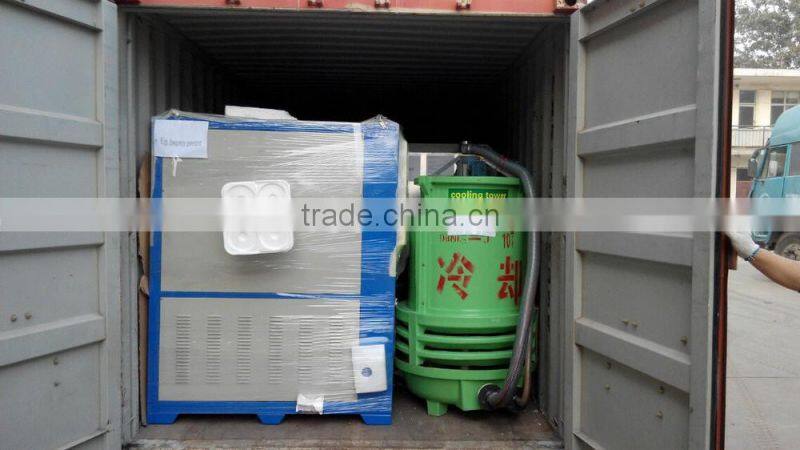

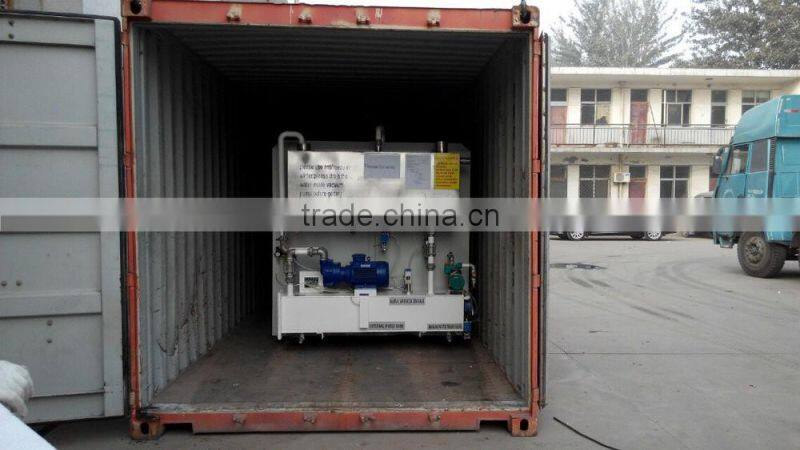

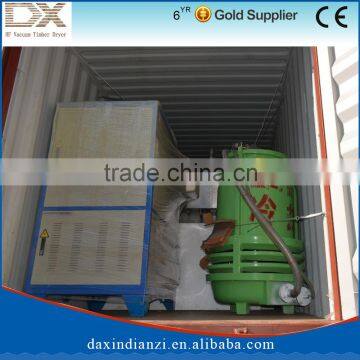

Packing |
20GP |
40GP |
40HQ |
40HQ |
40HQ |
40HQ |
Kiln Temp |
Vacuum kiln Drying temperature: ≤90°C |
|||||
Moisture |
From 90% to 6% ,could be setting as per-request |
|||||
Drying time |
2-7 days |
|||||
Application |
Apply for all hardwood species |
|||||
We highly appreciate your interest in our machine,so any inquiries ,ideas or suggestions
will be considered carefully before we reply and contact you with more information .
Contact person:Chan
Tel:+86-18231955965
Skype:haibo5
Email:haibo5(at)
Welcome your inquiry for more information .
