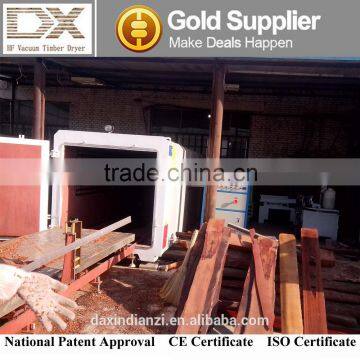

ISO Certificated Lumber Board Drying Used Machines Making in China

        ISO Certificated Lumber Board Drying Used Machines

1) HIGH FREQUENCY GENERATOR

1. Power: ~480 50HZ Three-phase four-wire system

2. Input power: 50KVA

3. Power adjustment: manual Five grade power to adjustable

4. Filament voltage: 10V

5. Electronic tube: FU924

6. Central oscillation frequency: 6.78 MHZ

7. Oscillation power: 40 KW

8 .Overall efficiency: under a good match state ≥50%

9. Load form: flat capacitance

10. Output adjustment mode: manual vacuum variable capacitive

11. Output form: unilateral output

12. Safety protection: high pressure over current protection,main transformer overload protection, loop short

circuit and spark protection

13. Range of application: board jointing,wood bending,wood floor,integrated timber,science and technology

wood ,wood drying etc

14. Technical conditions: GB5959·1-86 GB5959·9-86 GB/T10067·5-93 prescribed technical conditions

15. Electromagnetic radiation and protection: GB8702-88 standard

16. Work environment: humidity≤85% temperature+10~35°C

17. Equipment Size: L1050mm×W1450mm×H1700mm   Weight: 550 KGS

18. Note: Keep high frequency generator away from dust environment, flammable, explosive & corrosive gases, and sources of quake and impact.

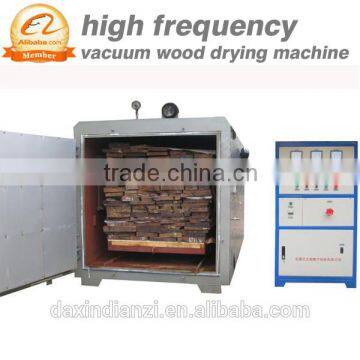

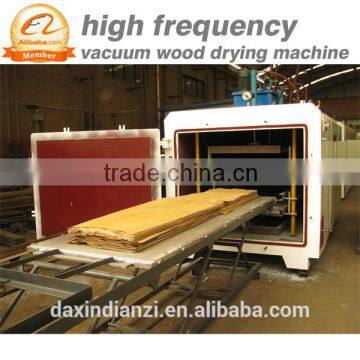

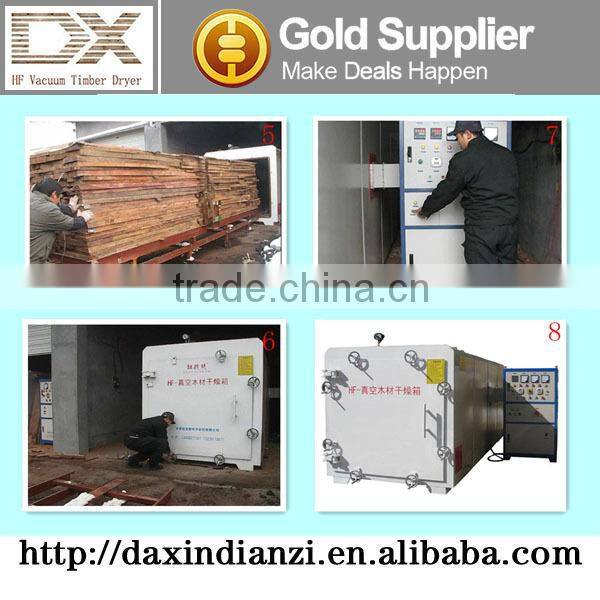

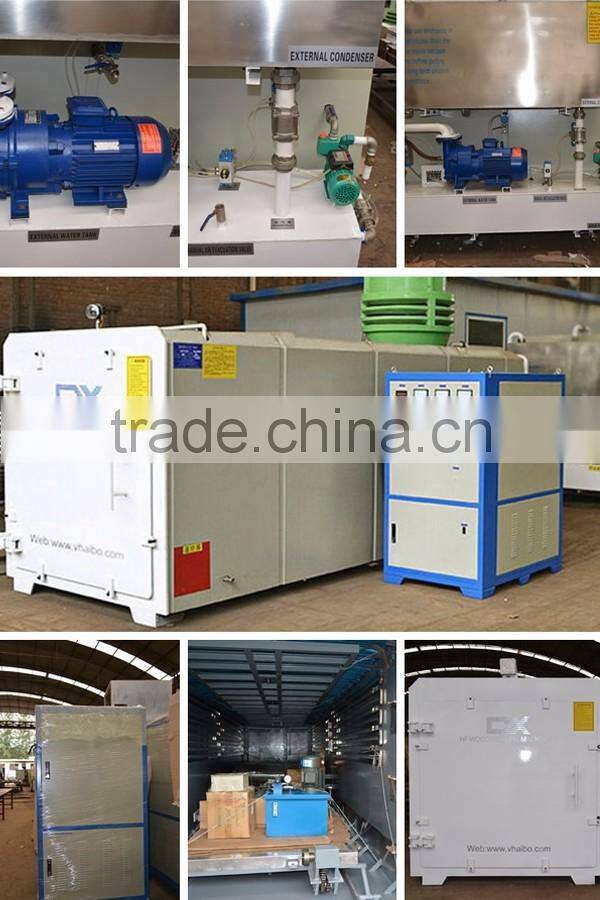

2) VACUUM WOODDRYING OVEN

1. Efficient volume of vacuum dryer: 10 M3

2. Timber cart: 6.0 M long, 1.5M wide

3. Outer orbit: 5.5 M long

4.Pile height :0.5~1.1M

5.Vacuum degree: 0~-0.093MPa

6. Vacuum pump power: 4KW

7. Circle pump parameter: input power: 370W flow: 3 cubic per hour

8. Initial moisture content of wood requirement: less than 30%

9. Maximum dehydration rate: 310 KGS /24hour (condition: density of wood 0.75, output power 40KW,

temperature of condenser:30°C, vacuum degree— 0.08MPa)

10. Temperature check: main and deputy even numbers show temperature display, can meet the specials

need of wood drying technology.

11. Safety protection: vacuum pump overloads protection

12. Drainage control: automatic/ manual

13. Temperature control: manual set, automatic operation

14. Vacuum degree control: manual set, automatic operation

15. Main control valve: pneumatic

16. Material pile of pressure device: hydraulic or pneumatic

17. Pressure device is maximum pressure: 9500KG

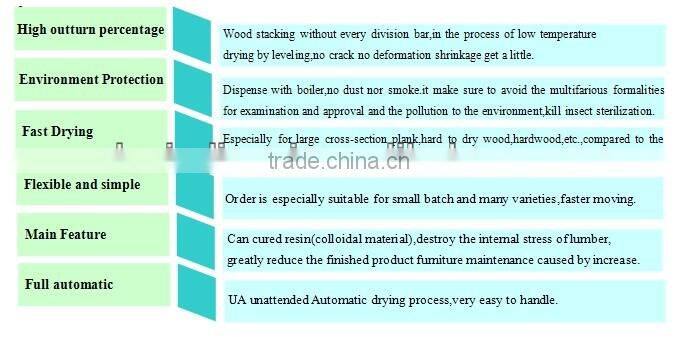

Why do we choose hf wood kiln dryer ?

 Get more information

6CBM Machine           8CBM Machine

10CBM Machine         12CBM Machine

Contact person:Ellen Liu

Tel:+86-13722980382

Skype: vhaibo9

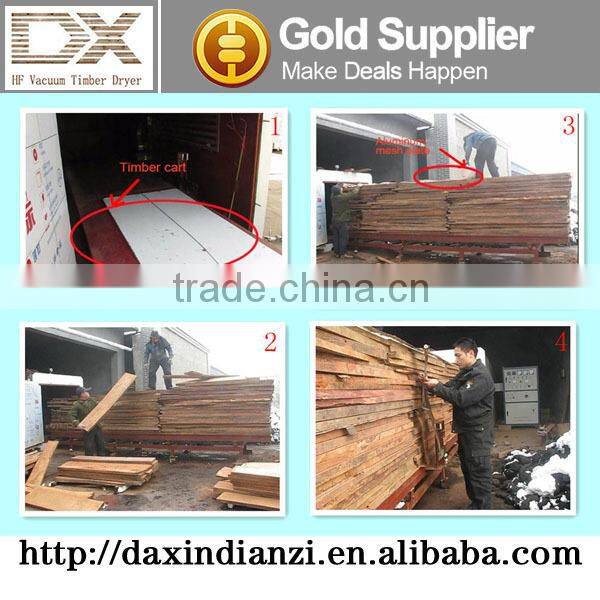

 Working flow

Certification:

Warranty: 1 year for the whole machine.

After-sale service: Engineers available to service machinery overseas.

 If there were some parts broken by itself, we can supply the parts freely within 1 year.

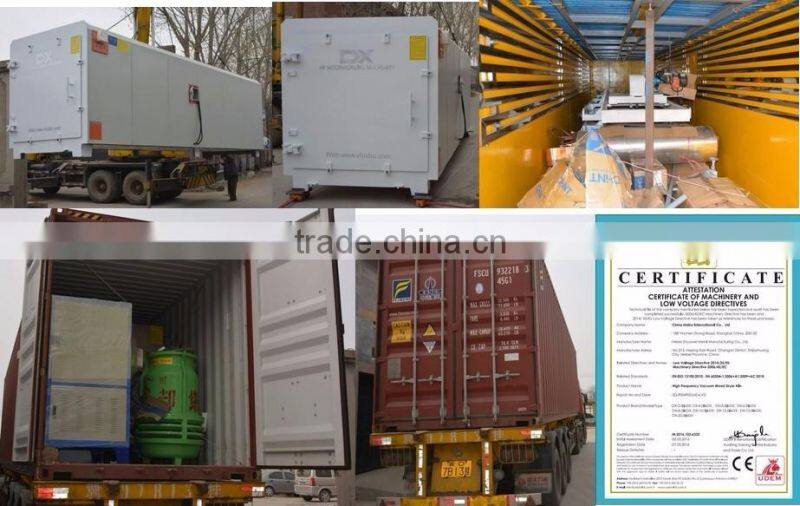

Packing & Shipping

 As usually we adpot standard export packing, plastic and foam, fixed by wood pallet,

shipped in container by sea!  we can also packing the machine according to your requires .
