Specifications
1.Fast cutting speed2.Good sharpness
3,Cost-effective
4.Stable proformance
6.Different type
Description:

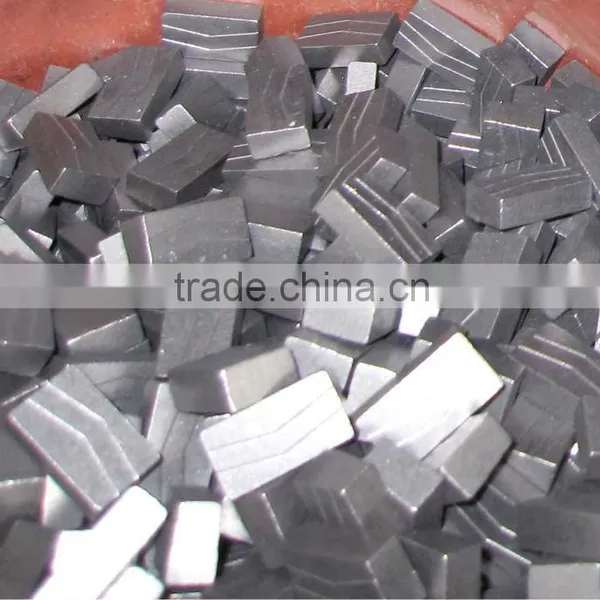

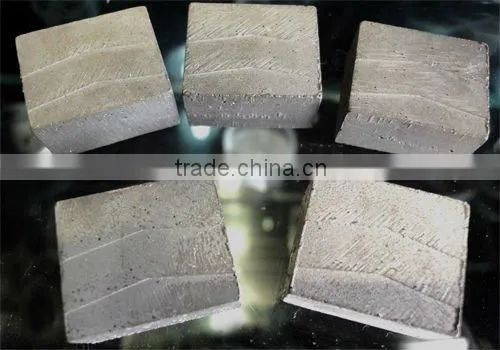

Segment can be produced for cutting granite, marble,
andesite ,sandstone, asphalt, tile, concrete, fire-proof materials or for continuous polishing machine. Our diamond segments for large circular saw blades are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.
The diamond segments are fixed on circular blades, gang saws and circular multi-blade cutters which are used for cutting marble and granite.
1) Our price is competitive and quality is stable and good
2) Our products last long life and give a sharp cut
3) Diameter ranges from 100mm to 3,000mm.
4) Various specifications are available upon requests.
Other specifications can be made in accordance with the needs of customers,.
|
Inch (in) |
Diameter (mm) |
Segment dimension LxWxH (mm) |
CORE Thickness |
Segment NO. |
Application |
10 |
250 |
40×2.5×10 |
1.8/2.0 |
18 |
For trimming and processing granite, marble slab, tile & others. |
12 |
300 |
40×3.0×8/15 |
1.8/2.2/2.4 |
21 |
|
14 |
350 |
40×3.2×8/15/20 |
1.8/2.2/2.4 |
24 |
|
16 |
400 |
40×3.4×8/15/20 |
2.2/2.6/2.8 |
28 |
|
18 |
450 |
40×4.0×8/15/20 |
2.5/2.8/3.3 |
32 |
|
20 |
500 |
40×4.2×8/15/20 |
3.0/3.3 |
36 |
|
22 |
550 |
40×4.2×8/15/20 |
2.8/3.5 |
38 |
|
24 |
600 |
40×4.6×8/15/20 |
2.8/3.5 |
42 |
|
28 |
700 |
40×5.0×8/15/20 |
3.6/4.0 |
46 |
|
32 |
800 |
40×6.0×8/15/20 |
4.5 |
50 |
|
36 |
900 |
23.5×6.0/6.8×12 |
5.0 |
64 |
|
40 |
1000 |
24×6.0/6.8×12 |
5.0 |
70 |
|
44 |
1100 |
24×7.4/6.8×12 |
5.5 |
74 |
|
48 |
1200 |
24×7.5/6.5×12/13 |
5.5 |
80 |
|
52 |
1300 |
24×8.2/7.6×12/13 |
6.0 |
88 |
|
56 |
1400 |
24×8.2/7.6×12/13 |
6.5 |
96 |
|
64 |
1600 |
24×9.0/8.4×12/15/20 |
6.5 |
108 |
|
72 |
1800 |
24×9.0/8.4×12/15/20 |
7.0 |
120 |
|
80 |
2000 |
24×11/10×12/15/20 |
8.0 |
128 |
|
88 |
2200 |
24×11/10×12/15/20 |
8.5 |
136 |
|
110 |
2500 |
24×12/11×12/15/20 |
9.5 |
140 |
|
120 |
3000 |
24×13/12×15/20/30 |
10 |
160 |
|
Other specifications are available. | |||||
