Diamond Segments Reinforce Concrete

Diamond Segments Reinforce Concrete thumbnail-1
Diamond Segments Reinforce Concrete photo-1
US$ 0.8 - 1.8 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
JS
Model Number:
JS
Contact Supplier Request Quote Chat Now
Changsha Chenguang Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name JS
Model Number JS
Type Core Drill Bit
Material Diamond
Use Masonry Drilling

Specifications

1.OEM thinwall bit,competitive price
2.drilling concrete ceramic,marble,granite and glass

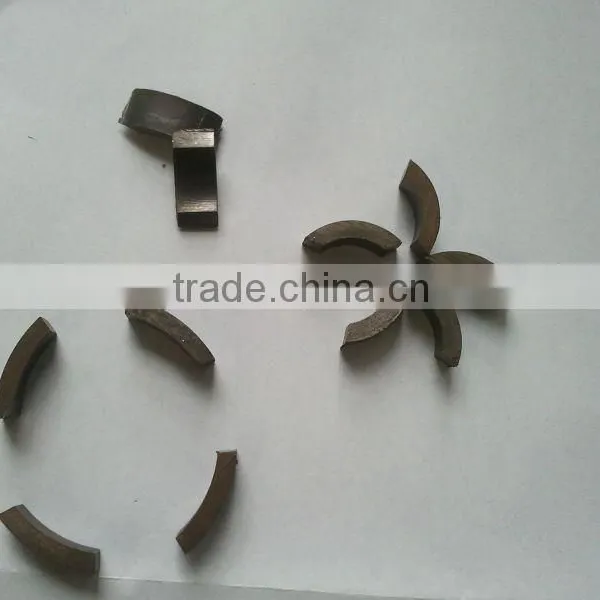

Diamond segments and core barrel (crown) are available for concrete drilling bit (for 25mm-800mm bit)



diamond segments reinforce concrete





Thin Wall Core Bits

1.OEM bit,competitive price
2.drilling glass, ceramic, marble and granite and concrete
3.good quality,fast drilling speed 30mm/min



Application:

1.for drilling glass, concrete,ceramic, marble and granite stone,concrete and asphalt etc
2.Laser welded can avoid segments broken.

3.best diamond grit bond enables bit having long lifespan and very fast drilling speed.

4.special designed waterway for best cooling



Thin Wall Core Bits for concrete cutting (wet cutting type)

Laser welded for 1''-10" bit and 12" & 14" are silver brazed. Designed for wet drilling of concrete and reinforced concrete. tube length can extend to 18"(450mm). Different types of connections threads are available upon request.(Hilti thread,metric thread,customized thread are all available)

diamond segments reinforce concrete

Available size:(Size can be manufactured as requirements)



ITEM NO. DIAMETER SEGMENT DIMENSIONS TUBE LENGTH THREAD
INCH MM THICK HEIGHT L M
BCGW0100 1" 25.5 3.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0125 1-1/4" 32 3.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0150 1-1/2" 38.1 3.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0175 1-3/4" 44.5 3.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0200 2" 51.5 3.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0250 2-1/2" 63.8 3.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0300 3" 76.2 3.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0350 3-12" 89 3.8mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0400 4" 101.8 3.8mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0500 5" 127.2 4.2mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0550 5-1/2" 140 4.2mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0650 6" 152.4 4.3mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0700 7" 178.5 4.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0800 8" 203.2 4.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW0900 9" 229 5.0mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW1000 10" 254 5.0mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW1200 12" 305 5.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC
BCGW1400 14" 356 5.5mm 10mm 14"(350mm)-18''(450mm) 1-1/4"-7UNC



Thin Wall Core Bits for concrete cutting (dry cutting type)

Laser welded for dry drilling concrete, specially designed vented barrel for cooling and easy material removal, turbo segments allow extremely fast drilling.It is suitable for the arean which is lack of water.

diamond segments reinforce concrete

Available size:(Size can be manufactured as requirements)



ITEM NO. DIAMETER SEGMENT DIMENSIONS TUBE LENGTH THREAD
INCH MM THICK HEIGHT L M
BCBD1000 1" 25.5 3.6mm 10mm 9"(229mm) 5/8"-11UNC
BCBD1125 1-1/8" 28.6 3.8mm 10mm 9"(229mm) 5/8"-11UNC
BCBD1250 1-1/4" 32 3.8mm 10mm 9"(229mm) 5/8"-11UNC
BCBD1375 1-3/8" 35 3.8mm 10mm 9"(229mm) 5/8"-11UNC
BCBD1500 1-1/2" 38.1 3.8mm 10mm 9"(229mm) 5/8"-11UNC
BCBD1750 1-3/4" 44.5 3.8mm 10mm 9"(229mm) 5/8"-11UNC
BCBD2000 2" 51.5 3.8mm 10mm 9"(229mm) 5/8"-11UNC
BCBD2250 2-1/4" 57.2 3.8mm 10mm 9"(229mm) 5/8"-11UNC
BCBD2500 2-1/2" 64 3.8mm 10mm 9"(229mm) 5/8"-11UNC
BCBD3000 3" 76.3 3.8mm 10mm 9"(229mm) 5/8"-11UNC
BCBD3500 3-1/2" 89 4.0mm 10mm 9"(229mm) 5/8"-11UNC
BCBD4000 4" 101.8 4.2mm 10mm 9"(229mm) 5/8"-11UNC
BCBD4500 4-1/2" 114.3 4.6mm 10mm 9"(229mm) 5/8"-11UNC
BCBD5000 5" 127.2 4.6mm 10mm 9"(229mm) 5/8"-11UNC
BCBD6000 6" 152.4 4.6mm 10mm 9"(229mm) 5/8"-11UNC



Thin Wall Core Bits for stone cutting (wet cutting type)

Laser welded for wet drilling granite, marble,porcelain, artificial and natural stone



diamond segments reinforce concrete

Available size:(Size can be manufactured as requirements)



ITEM NO. DIAMETER SEGMENT DIMENSIONS TUBE LENGTH THREAD
INCH MM THICK HEIGHT L M
BGGW1000 1" 25.5 3.0mm 10mm 2"(50mm) 5/8"-11UNC
BGGW1125 1-1/8" 28.6 3.0mm 10mm 2"(50mm) 5/8"-11UNC
BGGW1250 1-1/4" 32 3.0mm 10mm 2"(50mm) 5/8"-11UNC
BGGW1375 1-3/8" 35 3.0mm 10mm 2"(50mm) 5/8"-11UNC
BGGW1500 1-1/2" 38.1 3.0mm 10mm 2"(50mm) 5/8"-11UNC
BGGW1750 1-3/4" 44.5 3.0mm 10mm 2"(50mm) 5/8"-11UNC
BGGW2000 2" 51.5 3.0mm 10mm 2"(50mm) 5/8"-11UNC
BGGW2250 2-1/4" 57.2 3.0mm 10mm 2"(50mm) 5/8"-11UNC
BGGW2500 2-1/2" 64 3.0mm 10mm 2"(50mm) 5/8"-11UNC
BGGW3000 3" 76.3 3.0mm 10mm 2"(50mm) 5/8"-11UNC





Thin Wall Core Bits for stone cutting (dry cutting type)

Laser welded for wet drilling granite, marble,porcelain, artificial and natural stone.

Side protection enables long lifespan.

Less dust pollution as fast drilling.



diamond segments reinforce concrete

Available size:(Size can be manufactured as requirements)



ITEM NO. DIAMETER SEGMENT DIMENSIONS TUBE LENGTH THREAD
INCH MM THICK HEIGHT L M
BGGD1250 1-1/4" 32 3.8mm 10mm 4"(100mm) 5/8"-11UNC
BGGD1375 1-3/8" 35 3.8mm 10mm 4"(100mm) 5/8"-11UNC





diamond segments reinforce concrete
