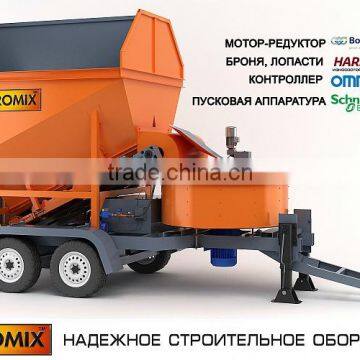

Mobile Concrete Batching Plant Euromix CROCUS 15/750 TRAIL

Mobile concrete batching plants EUROMIX CROCUS 15/750 TRAIL (on wheels), capacity up to 12 m3/h, cement and inert materials weighing by weight , water and chemicals batching by volume , batching error according to State Standard within the limits , automatic control system EUROMIX LOGIC PRO. "ONE BUTTOM" operation mode. Archeive of data. The montage period of one plant with optional equipment is 6 hours.

Gear motor by BONFIGLIOLI RIDUTTORI S.p.A, Italy .

Concrete mixer                                           600.750 (8 blade , planetary concret emixer)
Inner steel serfacing of mixer's walls - present (HARDOX)
Bunkers (quan-ty xcub m)                           2 x 3
Inert materials loading                                 by BELT
Aggregates weiging :                               cement by weight
Water batching                                              by VOLUME
Cement silo (option)                               from 10 up to 120 cub m
Operation mode -                                          AUTOMATIC
Installed capacity -                                               30 kW
Max weight                                                             3500 kg
Dimensions WxWxH,                                690x2400x2800 mm

Distinctive features of Mobile concrete batching plant EUROMIX CROCUS 15/750 TRAIL:

- Gear motor by BONFIGLIOLI RIDUTTORI S.p.A, Italy .

- all base compoennets are mounted on common frame;

- easy in montage;

- Automatic control system of the plant;

- can be easy transported through  the production job duw to wheels installed on the mixer;

The mobile concrete plant can be equipped with:

- Belt conveyor to load ready concrete into mixing truck;

- Silo , volume from 10 to 120 cub m with screW conveyor  (for cement storage and  loading into mixer)

- Bulk Bag unloaders with screw conveyor (for cement loading into mixer);
