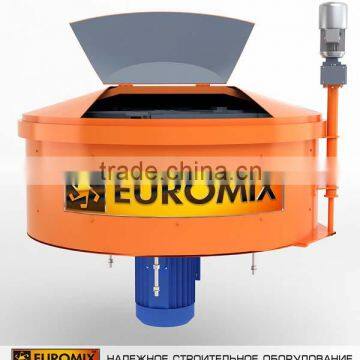

Forced action concrete mixers of series Euromix 600.750 are batch concrete machines intended to prepare concrete mixes and building mortars with aggregate size up 40 mm. Good mxiing quality, high universality, production both easy and not easy workable mixes, as well as stiff molding mortars , rather high reliability and short cycle period of mixing make such mixes popular mixing installations.
Technical specifications
| Total volume of teh mixer, l | 750 |
| Ready mix volume,l | 500 |
| Capacity. m³/h: - manual loading - automatic loading | 7 15 |
| Time of one batch, sec | 40 |
| Concrete production cycle, min | 2-3 |
| Rotation frequency of actuator, rev/min | 30-35 |
| Admissible torque moment, N×m | 5300 |
| Drive power, kW | 18,5 |
| Power supply voltage, V | 380 |
| Loading height, mm | 1600 |
| Overall dimensions (L×B×H), mm | 1720×1720×1600 |
| Weight, | 950 |
The mixer is distinguied with:
- Bonfiglioli Ridutori gear motor (Italy) as driving mechanism;

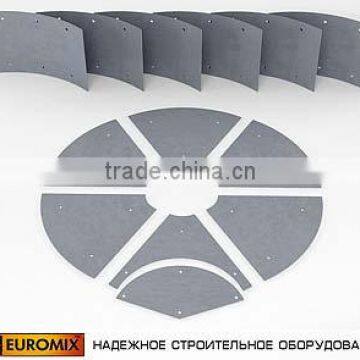

- HARDOX inner steel coating of walls of the mixer

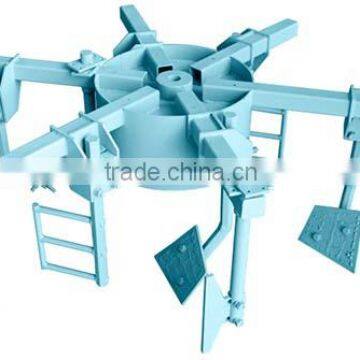

- the paddles of improved design that prevent the excess brekage of the paddles.
- the easy operation and easy access to the mixer
- mixer can be operated in indoors and on open jobsite
- sector valve helps to unlaod ready mix very quickly

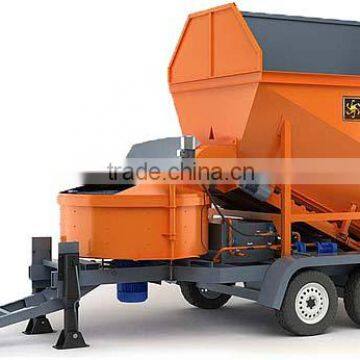

The mixer can be easy installed into concrete batching pmants of EUROMIX series.
