Help CenterScrew Mortar Pump Euromix 400.8.500
Related Products

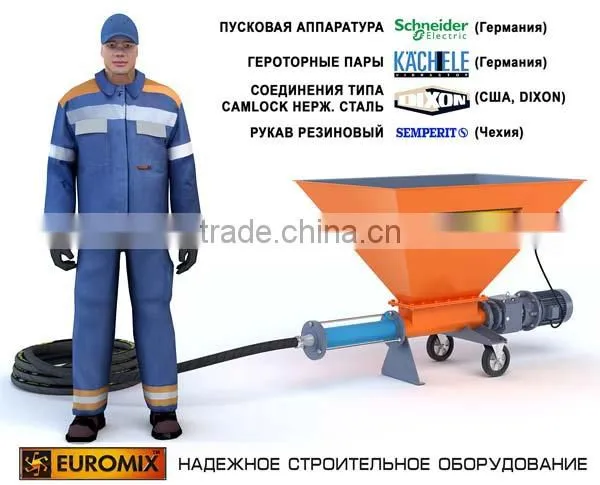

The screw (gyratory) mortar pump Euromix 400.8.500 is intended for pumping (pressure pumping) of the wet mortars, complex multicomponent mixes particularly sensitive to mechanical effects.
Technical characteristics
Capacity for mortar flow of 10 cm and more (specified in GOST 5802-86), m³/h |
7-8 |
Pressure, Bar |
25 |
|
Practical pumping distance, m - vertically |
|
Hose diameter of pressure pipeline, mm |
50 |
Rated power, kW |
11 |
Current |
AC, three-phase |
Frequency, Hz |
50 |
Voltage, V |
380 |
Loading tank volume, l |
500 |
Maximum admissble fraction size, max, mm |
5-6 |
Overall dimensions (L×W×H), mm |
2370×1030×1380 |
Weight, kg |
420 |
The advantages of application of screw mortar pump are: BONFIGLIOLI RIDUTTORI S.p.A (Italy) gear motor, screw pair by Wilhelm Kaechele GmbH , Germany production , with control box included based on SCHNEIDER ELECTRIC elementary electric base.
